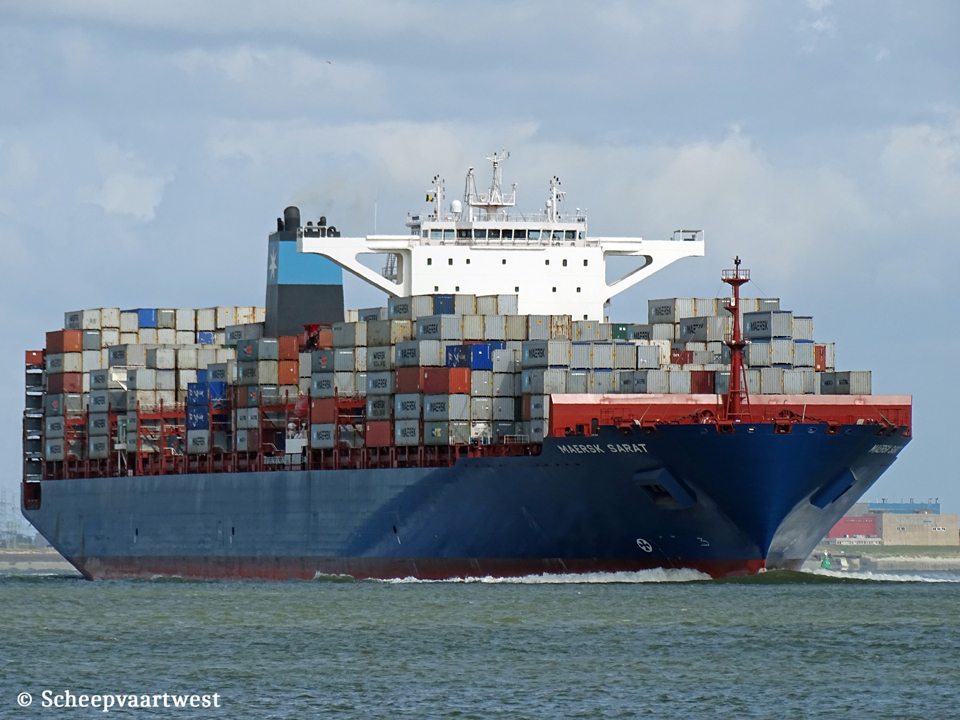

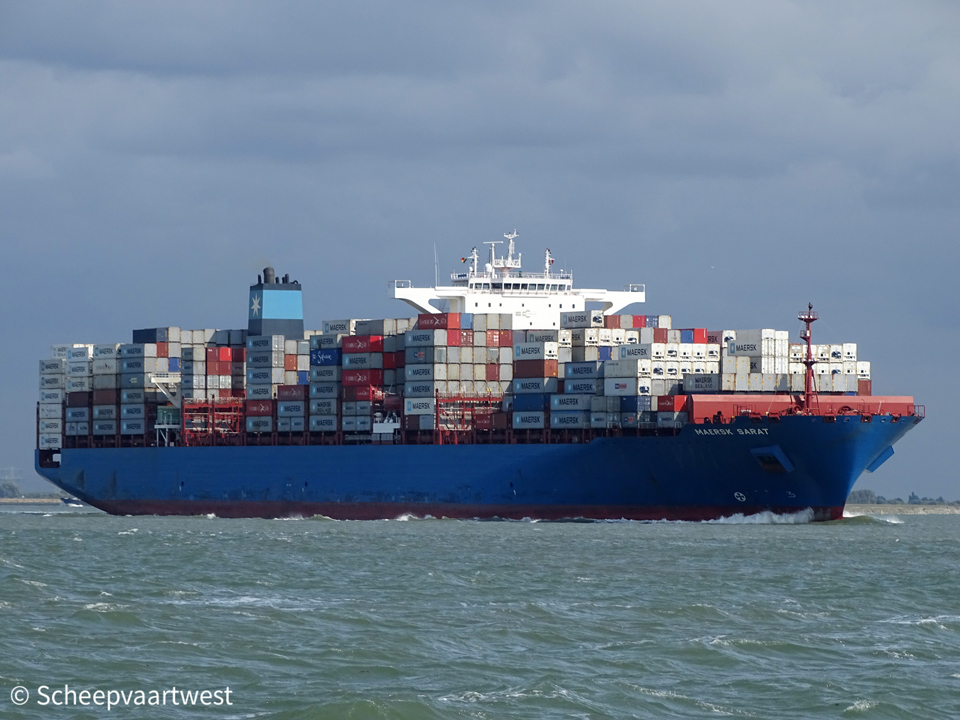

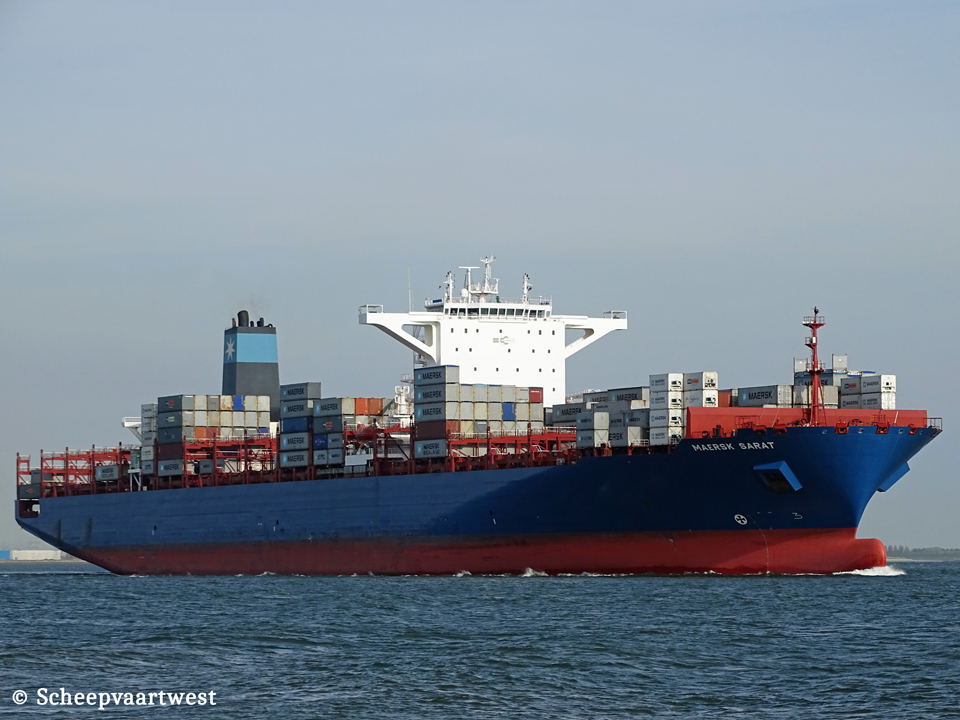

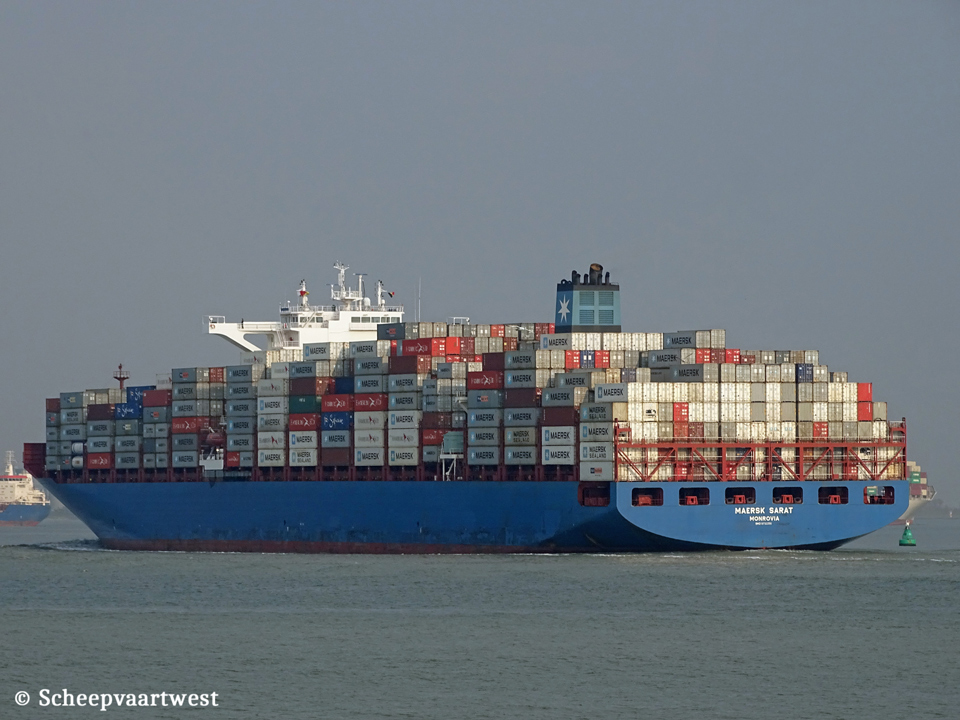

Maersk Sarat 01

Westerschelde 27 August 2018



Name

MAERSK SARAT

Type

Cellular containership

IMO-number

9732591

Call sign

D5JH6

Flag

Liberia

Port of registry

Monrovia

GT

94.702 t

DWT

Summer: 111.614 t

NT

51.914 t

Number of 20ft containers

9.443

Reefer capacity

1.400

Length

299,99 m overall

287,00 m between perpendiculars

Breadth

48,20 m extreme

Draught

Max: 15,02 m

Depth

24,80 m

Speed

Max: 22,0 knots

Built

2015

Keel laid

24/08/2015

Launch date

24/10/2015

Date of completion

27/11/2015

Builder

Hyundai Samho Heavy Industries Co., Ltd.
South Korea

Yard number

S782

Hull material

Steel

Main engine

1x Wärtsilä W9X82 - 9 cylinder combustion engine 36.870 kW

Propellers

1x Mono-block propeller

Boilers

3x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Builder: Kangrim Heavy Industries Co.,Ltd.

Generators

3x Hyundai HIMSEN 9H32/40 main diesel generatorsets each 4.694 kW

1x Hyundai HIMSEN 7H32/40 main diesel generatorset 3.584 kW

Builder: Hyundai Engine & Machinery Co. Ltd.

Emergency generator

1x Doosan AD158TIS diesel generatorset

Bow thruster

3.000 kW

Tank capacities

Ballast: 30.142 m³

Anchor equipment

Length: 770,00 m

Diameter: 111 mm

Manager

Bernhard Schulte Shipmanagement (Singapore) Ptr. Ltd.

Operator

Maersk Line

Registered owner

SFL Sarat Inc.

Latest data adjustment

05 December 2018
