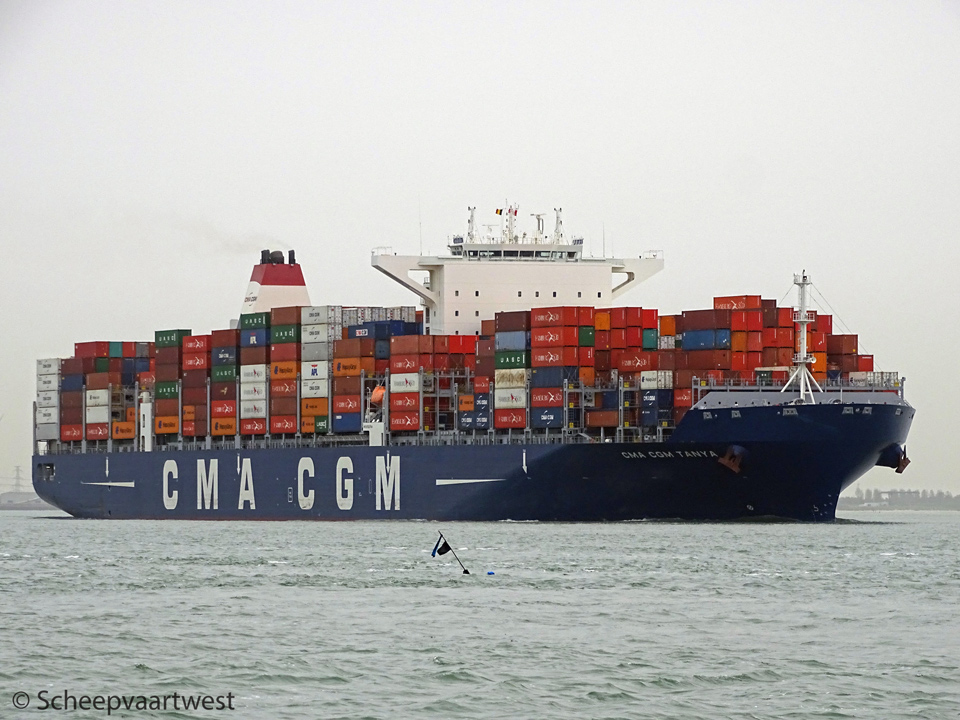

CMA CGM Tanya 06

Westerschelde 17 October 2017

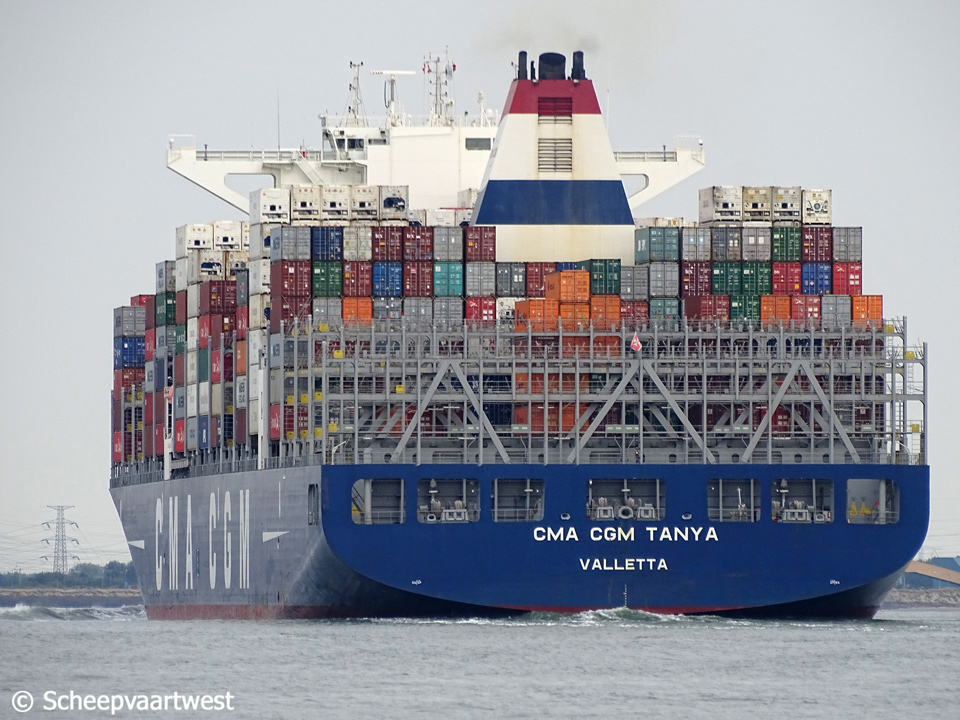

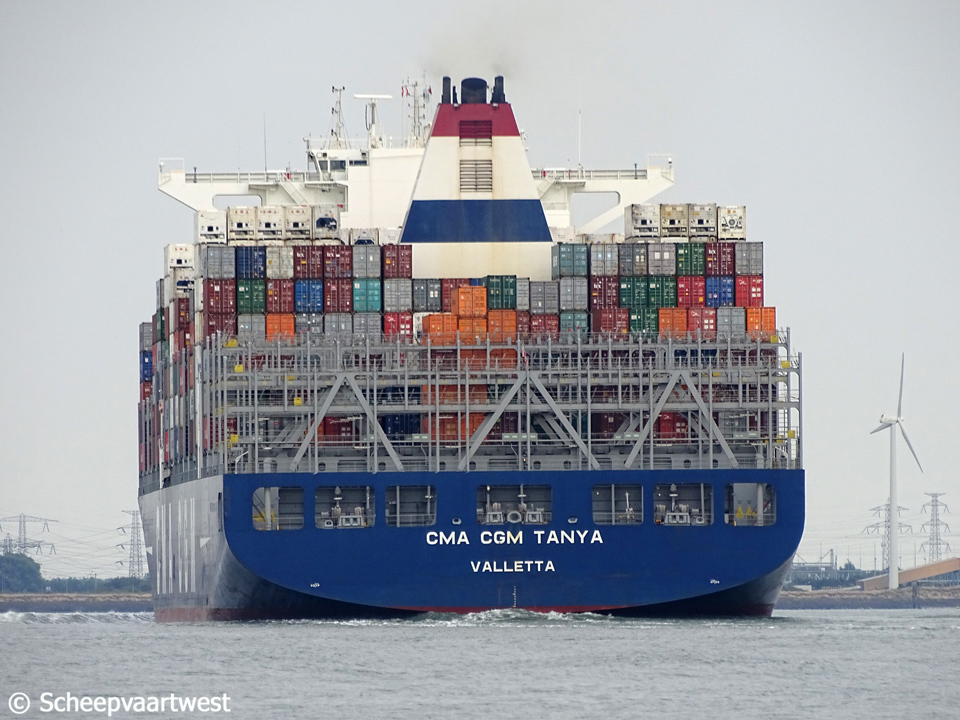

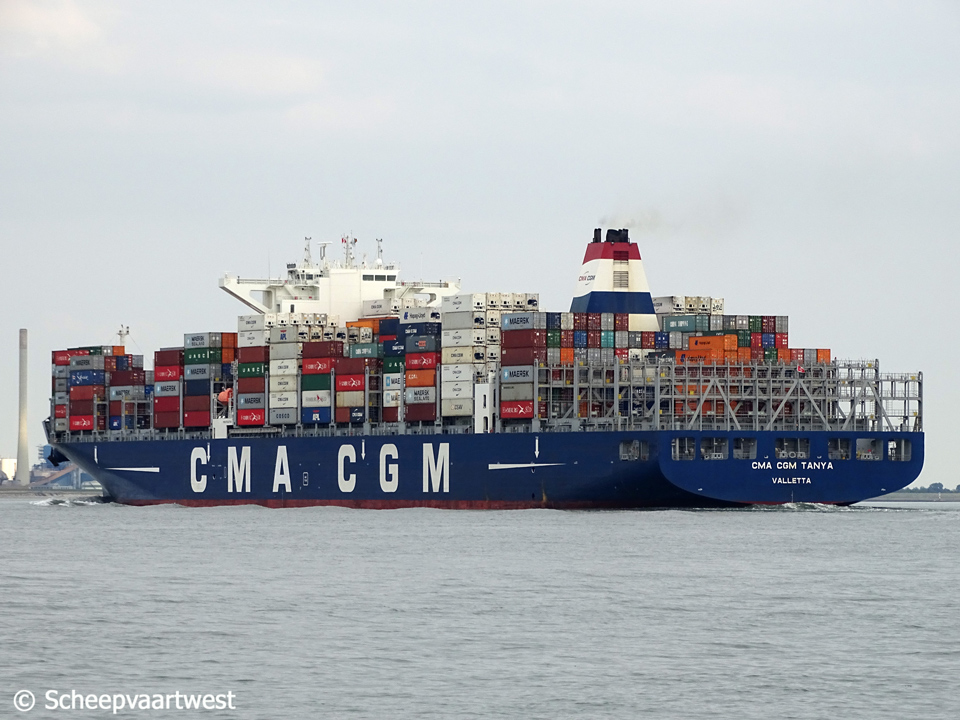

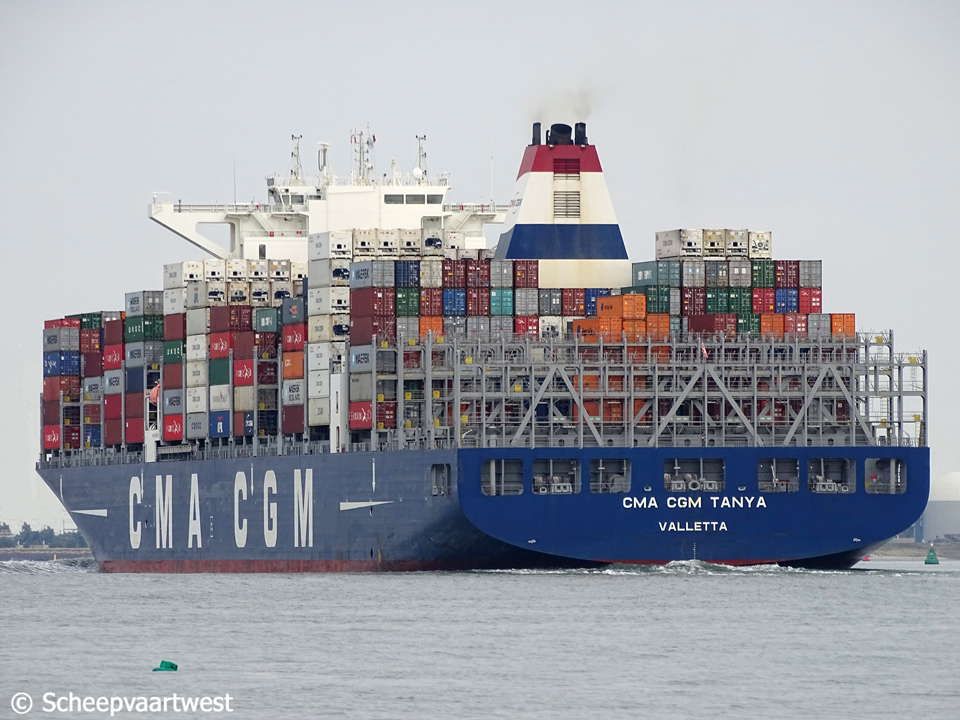

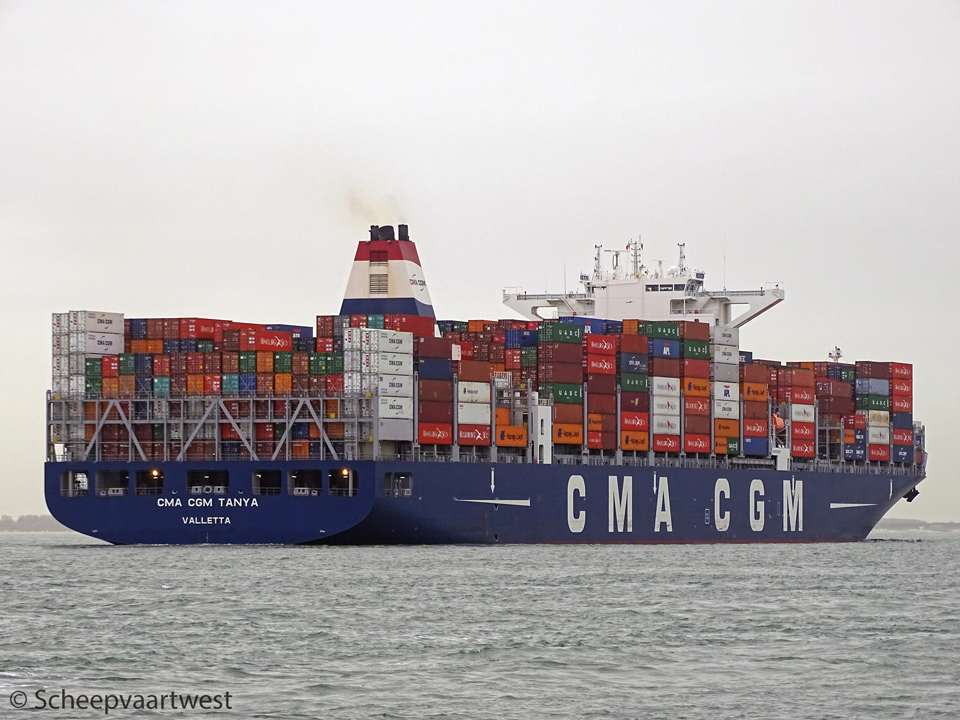

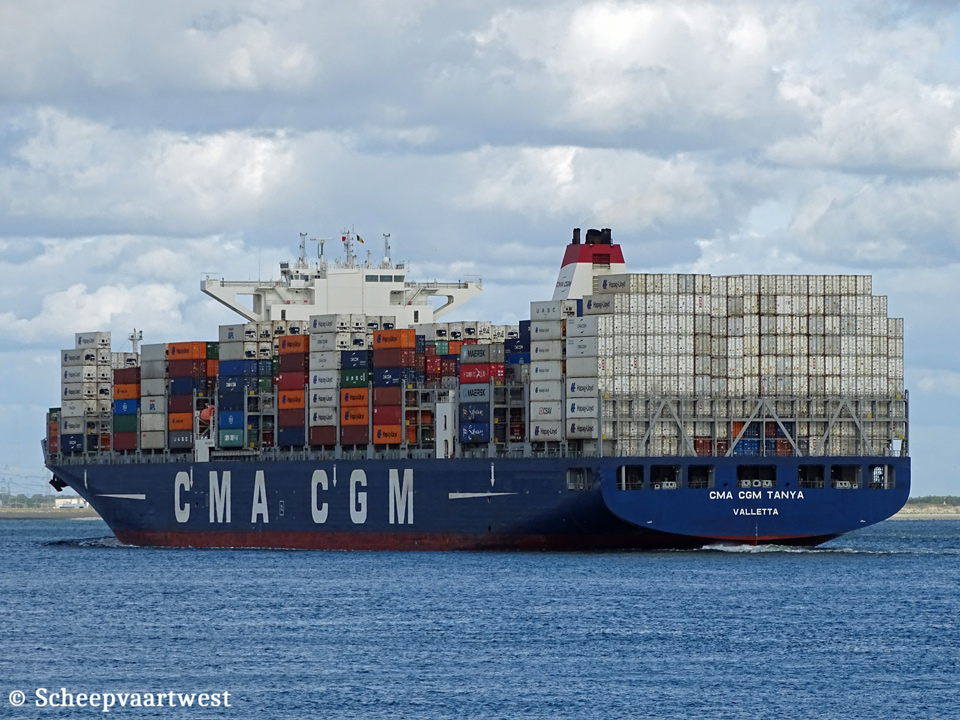

CMA CGM Tanya 03   CMA CGM Tanya 04   CMA CGM Tanya 05   CMA CGM Tanya 01   CMA CGM Tanya 07   CMA CGM Tanya IMO 9722704 08
Westerschelde 28/08/18 Westerschelde 28/08/18 Westerschelde 28/08/18 Westerschelde 28/08/18   Westerschelde 17/10/17   Westerschelde 08/07/19

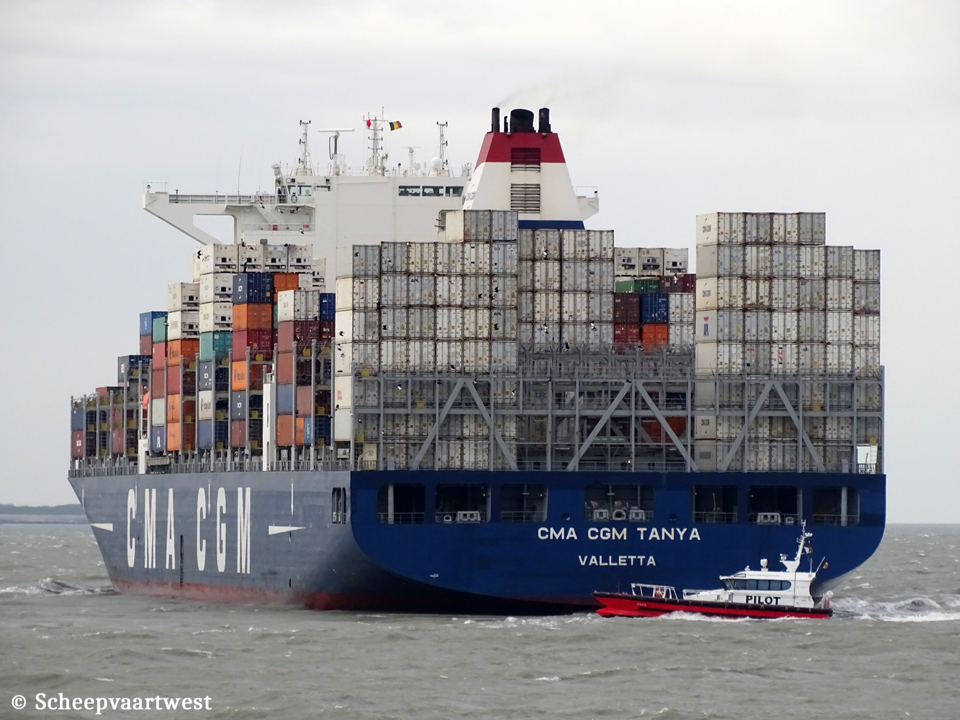

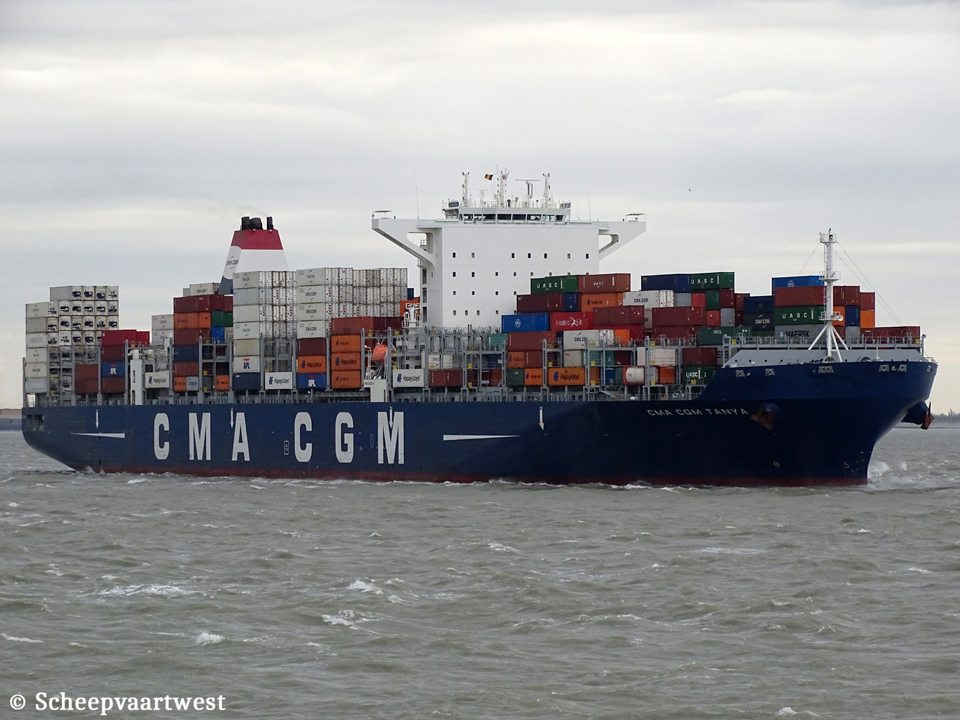

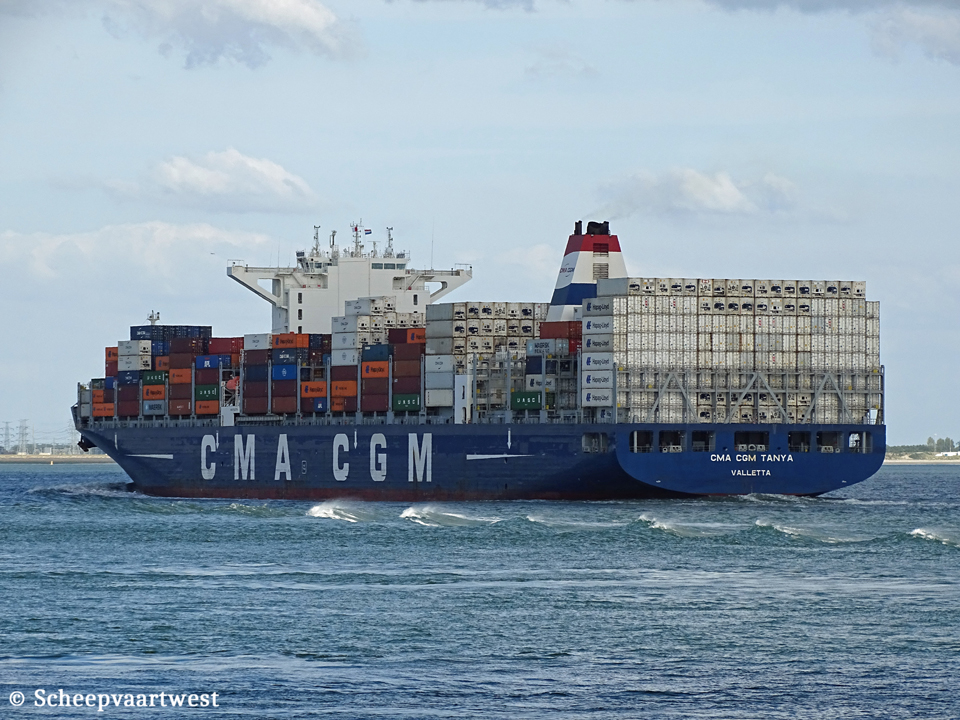

CMA CGM Tanya IMO 9722704 09   CMA CGM Tanya IMO 9722704 10   CMA CGM Tanya IMO 9722704 11
Westerschelde 20/07/20   Westerschelde 15/01/20   Westerschelde 15/01/20


Name

CMA CGM TANYA

Type

Cellular containership

IMO-number

9722704

Call sign

9HA4199

Flag

Malta

Port of registry

Valletta

GT

94.440 t

DWT

Summer: 110.501 t

NT

52.015 t

Number of 20ft containers

10.024

Container capacity 14t

6.760

Reefer points

1.400

Length

299,90 m overall

286,00 m between perpendiculars

Breadth

48,20 m

Draught

Max: 14,50 m

Forecastle

19,05 m

Deckhouse

5,40 m

Freeboard

5.836 mm

Depth

25,00 m

Speed

Max: 25,2 knots

Service: 22,0 knots

Built

2016

Date of completion

18/02/2016

Builder

Samsung Shipbuilding & Heavy Industries Co., Ltd.

Geoje

South Korea

Yard number

2116

Hull material

Steel

Bulkheads

11

Continuous decks

1

Main engine

1x Doosan/MAN-B&W 8S90ME-C 9.2 - 2 stroke 8 cylinder 900 x 3.260 mm combustion engine 46.480 kW / 63.152 hp at 84,0 rpm

Built: 19/08/2015

Builder: Doosan Engine Co., Ltd.; Gyeongnam - South Korea

Propellers

1x Screw propeller solid

Boilers

1x CHM Economizer Composite 1.021;31 m² - 6,0 bar

Generators

2x Main diesel generatorsets each 5.375 kVA - 4.300 kW - 6.114 hp

2x Main diesel generatorsets each 4.125 kVA - 3.300 kW - 4.755 hp

Emergency generator

1x Diesel generatorset 375 kVA - 300 kW - 408 hp

Bow thruster

1x 3.000 kW

Number of holds

7

Total hold capacity

182.462,90 m³

Tank capacities

Fuel: 8.467,1 m³

Cargo gear

Gearless

Commerical manager

CMA CGM SA The French Line

4, quai d'Arenc

13002 Marseille

France

ISM manager

CMA CGM International Shipping

14-01, The Metropolis (Tower 1)

9, North Buona Vista Drive

Singapore 138588

Repunlic of Singapore

Registered owner

Ocean Spirit Shipping Pte. Ltd.

Care of CMA CGM SA (The French Line)

4, quai d'Arenc

13002 Marseille

France

Sister ships

CMA CGM Arkansas - IMO 9722651

CMA CGM Columbia - IMO 9722663

CMA CGM Jacques Junior - IMO 9722716

CMA CGM Niagara - IMO 9722675

CMA CGM Ohio - IMO 9722687

CMA CGM Rio Grande - IMO 9722699

Latest data adjustment

23 April 2022
