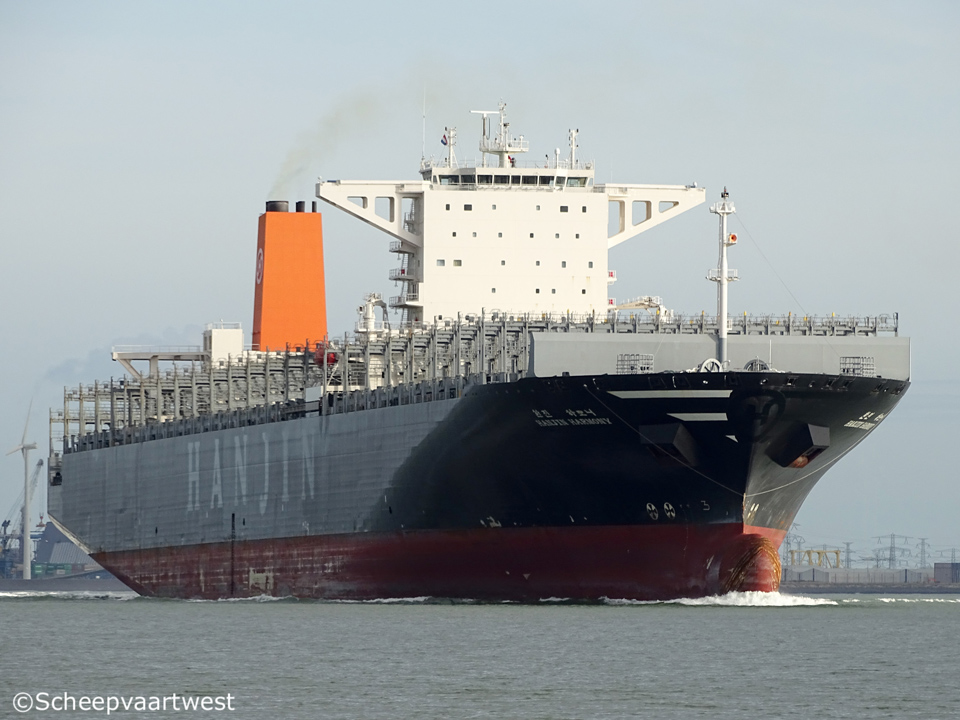

Hanjin Harmony 01

Westerschelde 27 November 2016

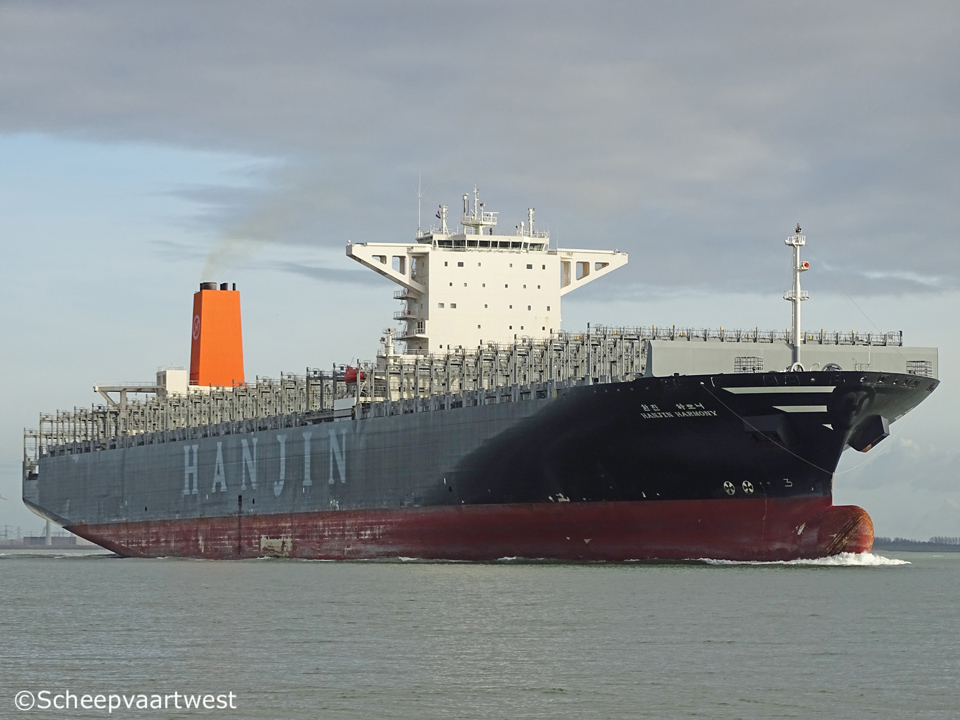

Hanjin Harmony 02
Westerschelde 27/11/18


Name

HANJIN HARMONY

Previous names

Built as: Rio Matie

Type

Cellular containership

IMO-number

9502958

Call sign

2GBC4

Flag

Isle Of Man - United Kingdom

Port of registry

Douglas

GT

141.754 t

DWT

Summer: 140.340 t

NT

64.587 t

Number of 20ft containers

In hold: 6.018

On deck: 7.074

Total: 13.092

Container capacity 14t

8.921

Reefer capacity

800

Length

366,44 m overall

350,02 m between perpendiculars

Breadth

48,85 m extreme

48,20 m moulded

Draught

Summer: 15,50 m

Depth

29,85 m

Speed

Max: 24,6 knots

Built

2013

Keel laid

21/05/2012

Launch date

07/08/2012

Date of completion

22/03/2013

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

2235

Hull material

Steel

Continuous decks

1

Main engine

1x Sulzer 12RT-Flex96C - 2 stroke single acting 12 cylinder 960 x 2.500 mm combustion engine Mcr 68.840 kW / 93.323 hp at 102,0 rpm

Builder: Hyundai Heavy Industries Co., Ltd. - South Korea

Propellers

1x Fixed pitch propeller - aft at 102,0 rpm

Boilers

1x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated

Builder: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

2x Hyundai Himsen 6H32/40 - 4 stroke 6 cylinder 320 x 400 mm diesel engines each Mcr 3.000 kW connected with generators each 3.000 kW

2x Hyundai Himsen 8H32/40 - 4 stroke 6 cylinder 320 x 400 mm diesel engines each Mcr 4.000 kW connected with generators each 3.900 kW

Builder: Hyundai Heavy Ind. Co., Ltd. Engine & Machinery Divisio

Emergency generator

1x Cummins NTA-855-D-M diesel generatorset

Thruster

2x Tunnel thruster each 1.800 kW / 2.447 bhp, forward

Tank capacities

Ballast: 35.979,6 m³

Anchor equipment

Length: 770,00 m

Diameter: 122 mm

Cargo gear

Gearless

Manager

Dohle Schiffahrt

Hamburg

Germany

Operator

Hanjin Shipping Co. Ltd.

Seoul

South Korea

Owner

Resolute Leasing 6 Ltd.

Douglas, Isle of Man

United Kingdom

Renamed

2016 Maersk Ensenada

Republic of Panama, Panama City - Call sign: H9UW

Owner: Sun Lanes Shipping SA

Manager: Synergy Maritime Private Limited

Latest data adjustment

25 March 2023
