Name |

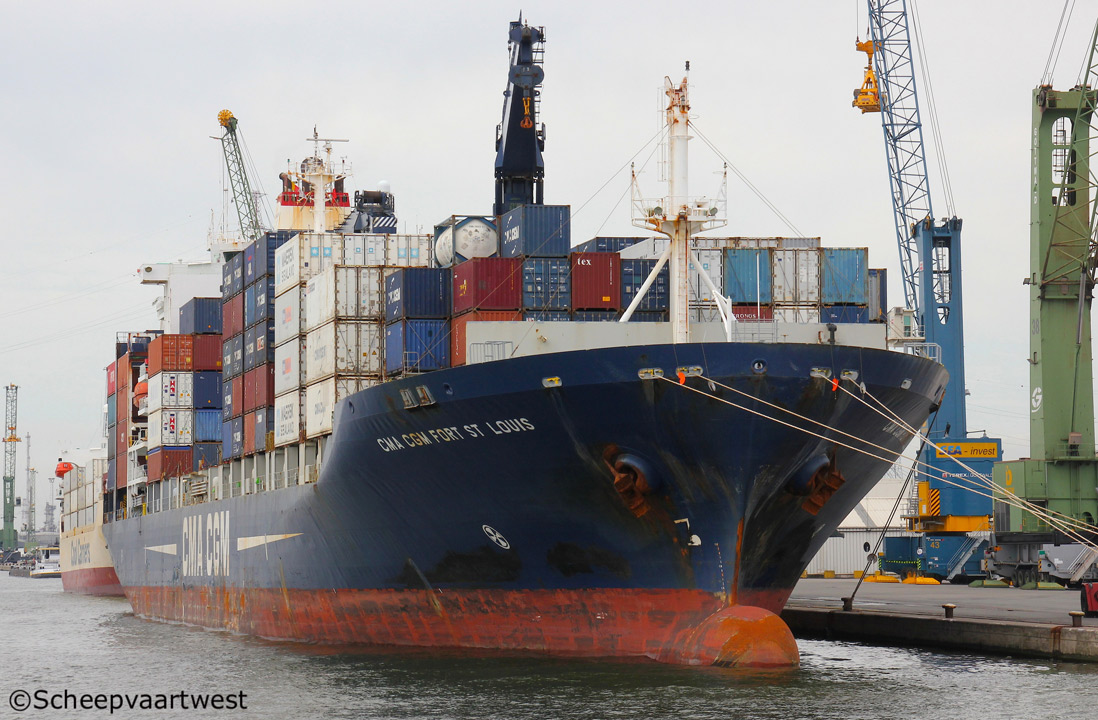

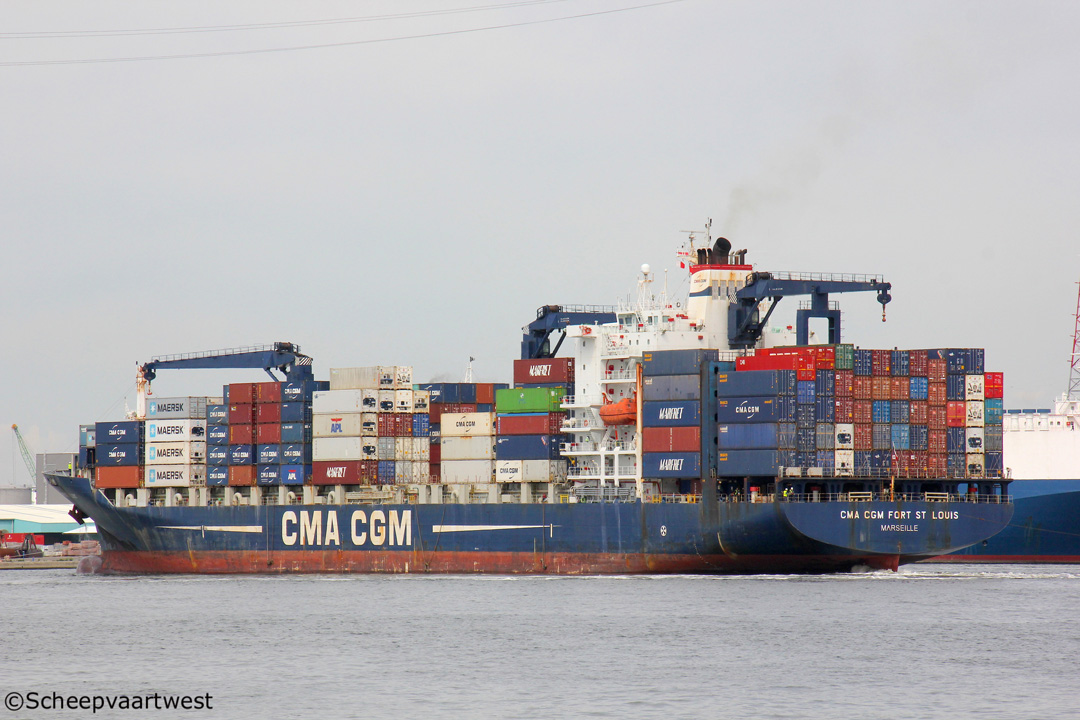

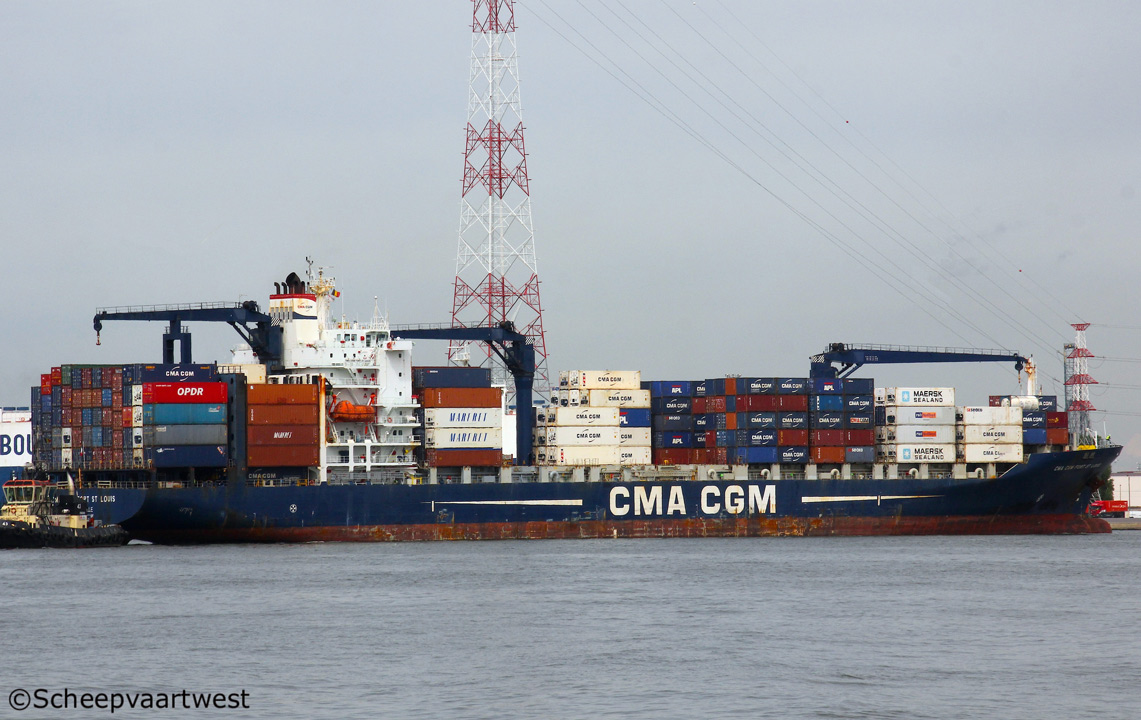

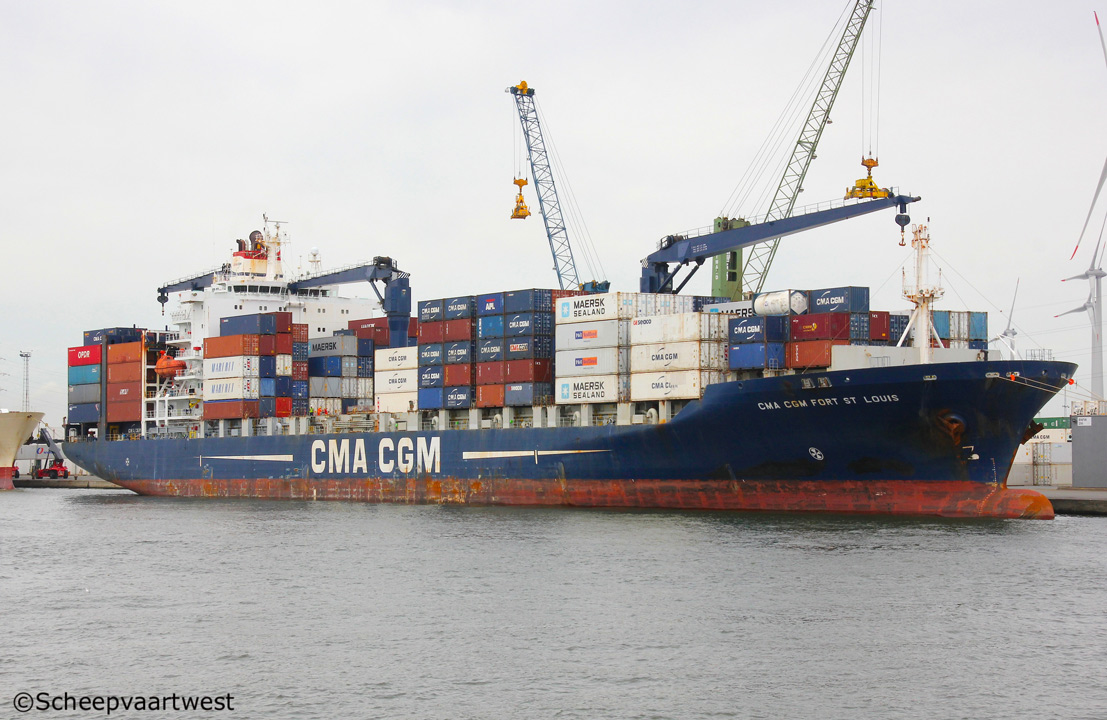

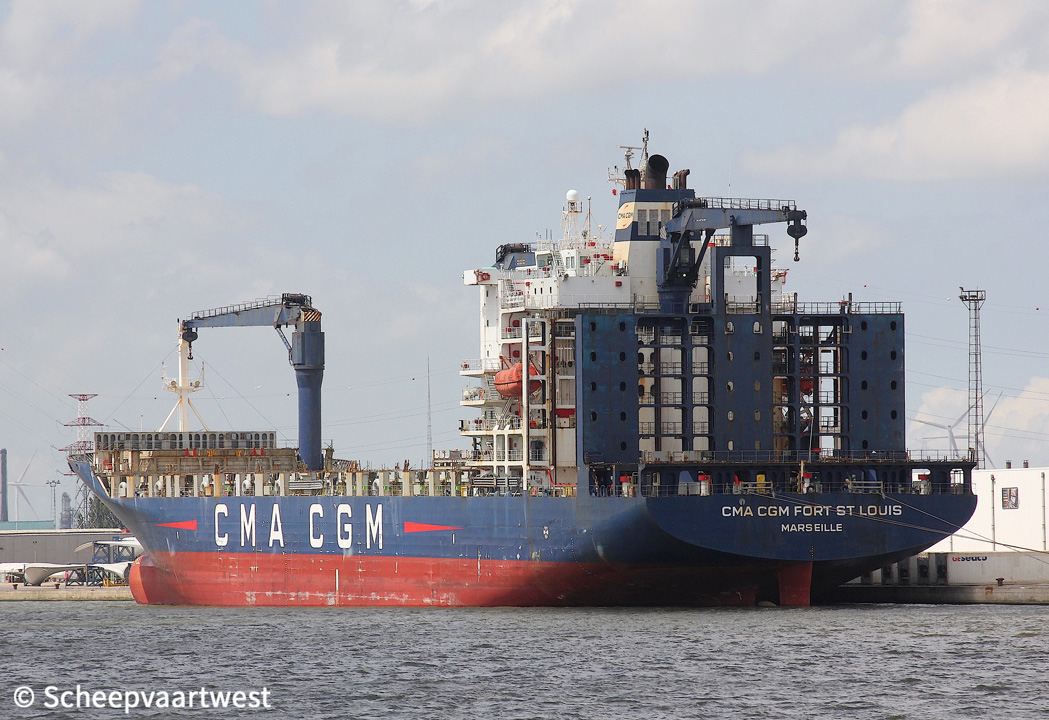

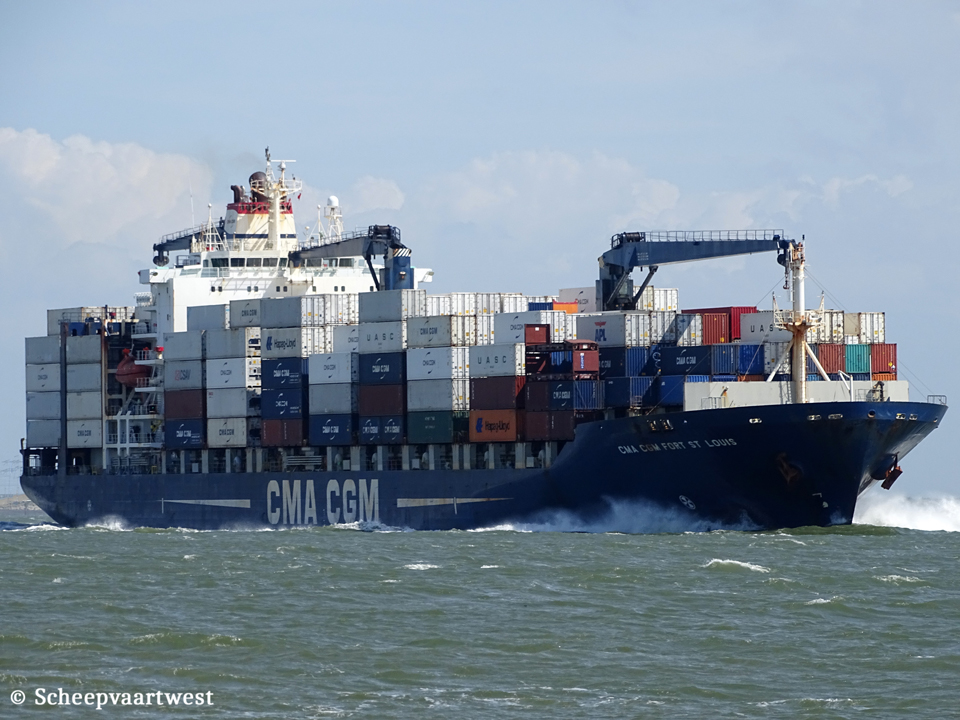

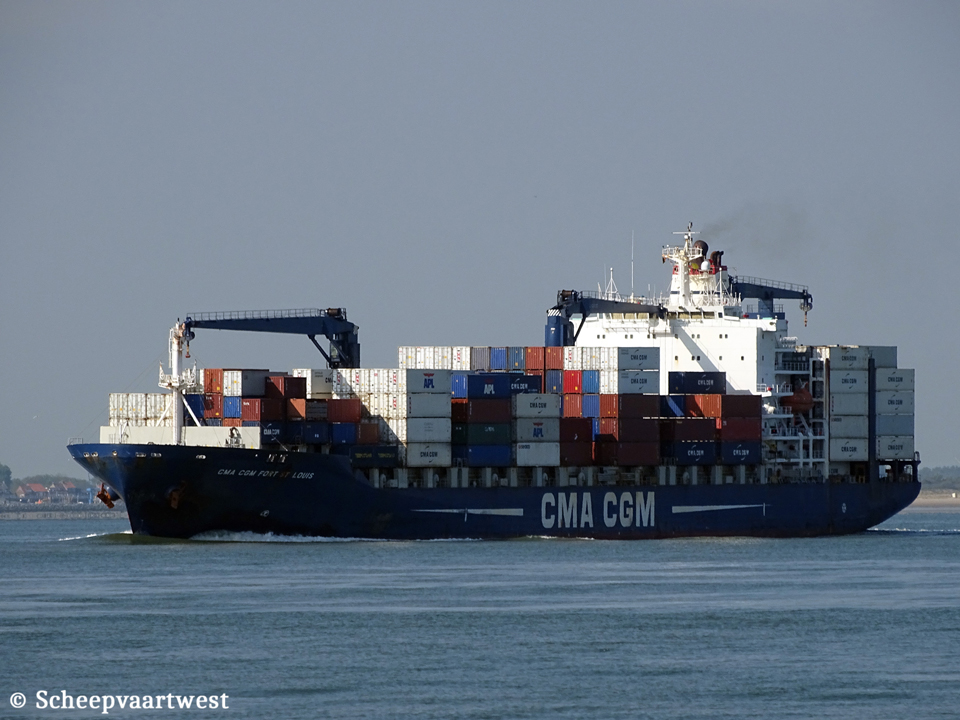

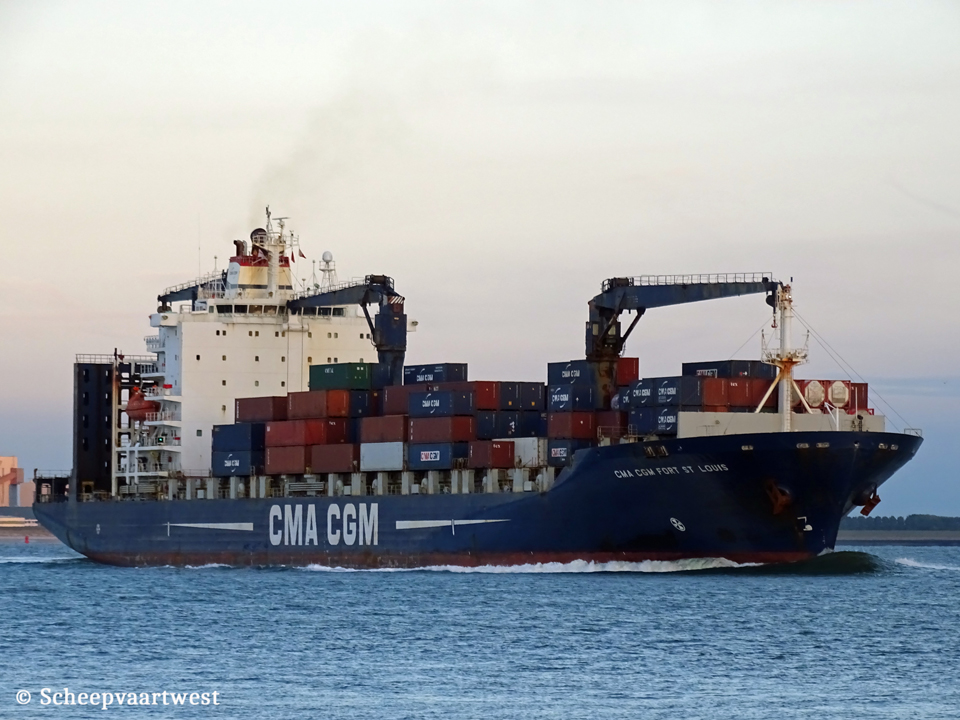

CMA CGM FORT ST LOUIS |
|
Type |
Cellular containership |
|
IMO-number |
9261889 |
|
Call sign |
5BLP5 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2003 - 2010 Kerguelen Islands (TAAF) 2010 France, Marseille - Call sign: FQFL |
|
GT |
26.342 t Suez: 26.342 t |
|
DWT |
Summer: 30.804 t |
|
NT |
10.218 t Suez: 10.218 t |
|
Number of 20ft containers |
In hold: 1.390 On deck: 870 Total: 2.260 |
|
Container capacity 14t |
1.870 |
|
Reefer points |
556 |
|
Length |
197,20 m overall 184,99 m between perpendiculars |
|
Breadth |
30,20 m |
|
Draft |
Summer: 11,01 m |
|
Freeboard |
5.625 mm |
|
Depth |
16,60 m |
|
Speed |
Max: 21,5 knots |
|
Built |
2003 |
|
Date of completion |
02/06/2003 |
|
Builder |
China Shipbuilding Corp. Kaohsiung Shipyard Taiwan China |
|
Yard number |
796 |
|
Hull material |
Steel |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8S70MC-C - 2 stroke single acting 8 cylinder 700 x 2.800 mm combustion engine 24.830 kW / 33.759 hp at 91,0 rpm Built: 2002 Builder: HSD Engine CO., LTD., Changwon - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 95 rpm |
|
Boilers |
1x CHO Osaka 47,00 m² - 7,0 bar 1x CHR Osaka 562,00 m² - 12,9 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
4x Main diesel generatorsets each 2.250 kVA - 1.800 kW - 2.568 hp / 440/220 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 190 hp |
|
Bow thruster |
1x Tunnel thruster 1.100 kW / 1.496 bhp, forward 1x Tunnel thruster 1.100 kW / 1.496 bhp, aft |
|
Number of holds |
5 |
|
Cargo hatchways |
9 1x 12,60 x 15,70 m 1x 12,60 x 20,90 m 7x 12,60 x 26,10 m |
|
Tank capacities |
Fuel: 2.416,57 m³ |
|
Cargo gear |
3x Electro-hydraulic deck cranes - SWL 45,0 t each |
|
Crew |
25 |
|
Commercial manager |
CMA CGM The French Line 4, quai d Arenc 13002 Marseille France |
|
ISM manager |
CMA Ships SAS 4, quai d'Arenc 13002 Marseille France |
|
Registered owner |
Talent Fortune International Holding Limited Care of CMA CGM SA (The French Line) 4, quai d'Arenc 13002 Marseille France |
|
Latest data adjustment |
30 October 2022 |
