Concordia 02

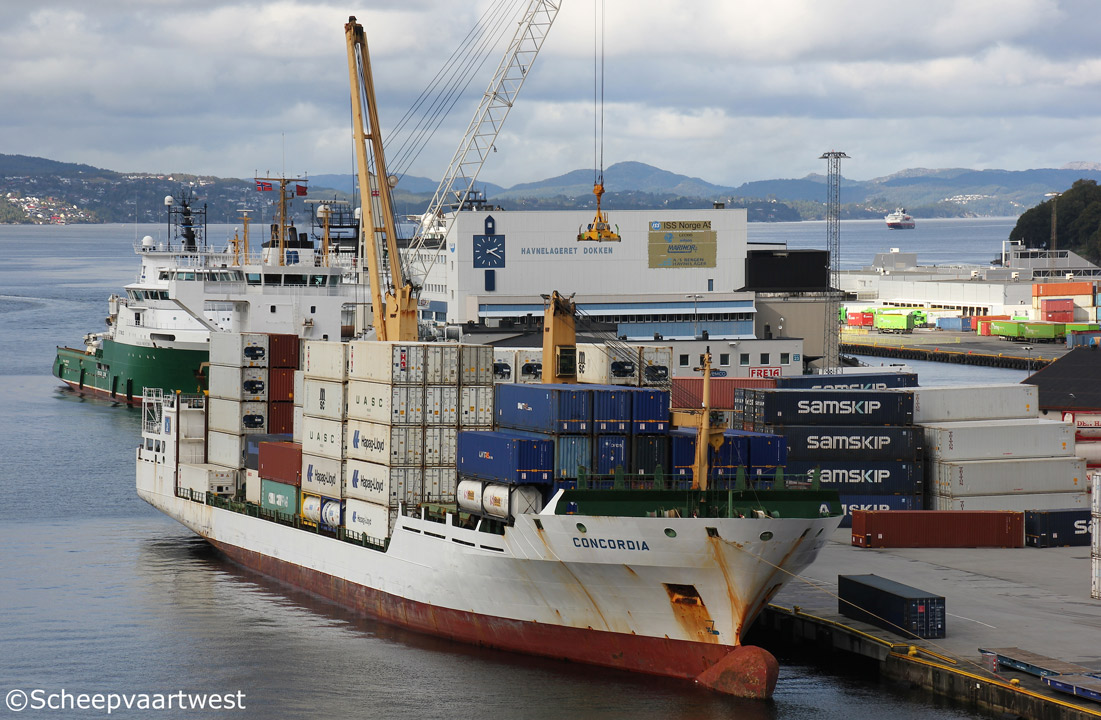

Bergen, Norway 20 September 2017



Concordia 01
20/09/17



Name

CONCORDIA

Previous names

1997 Launch as: Concordia

11.1997 - 02.2000 Chiquita Las Americas

02.2000 - 11.2007 Concordia

11.2007 - 06.2009 Tiznit

06.2009 - 11.2009 Concordia

11.2009 - 05.2010 Tiznit

Type

Containership

IMO-number

9162679

Call sign

DPCT

Flag

Germany

Port of registry

Hamburg

GT

7.981 t

DWT

Summer: 11.401 t

NT

3.814 t

Number of 20ft containers

864

Container capacity 14t

480

Reefer capacity

232

Length

138,50 m overall

128,70 m between perpendioculars

Breadth

21,75 m extreme

Draught

8,36 m

Depth

10,83 m

Speed

Max.: 21,0 knots

Built

1997

Keel laid

28.11.1996

Launch date

10.11.1997

Date of completion

03.12.1997

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Germany

Yard number

1111

Hull material

Hull material: shipbuilding steel (higher tensile)

Hull type

Single hull partly double bottom

Watertight bulkheads

9

Continuous decks

3

Main engine

2x MaK 9M32- 4 stroke 9 cylinder diesel engine 8.640 kW

Manufacturer: Krupp Mak Maschinenbau GmbH

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 35,0 m²

2x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 84,0 m²

Manufacrurer: PWT Prozesswärmeträgertechnik GmbH

Electric installations

1x Plant- 440/220 V - 1.220 kVA
1x Plant - 440/220 V - 1.795 kVA
1x Plant - 440 V - 840 kVA
1x Plant - 440 V - 330 kVA

Shaft generator

840 kVA

Generators

1x Main diesel generatorset 1.795 kVA

1x Main diesel generatorset 1.220 kVA

Emergency generator

1x Diesel generatorset 330 kVA

Compressed air receivers

2x Receivers each 750 liters - 30,0 bar

Bow thruster

1x Transvers thruster JASTRAM - 550 kW

Cargo hold capacity

Grain: 12.977 m³

Bales: 11.275 m³

Tank capacities

Ballast: 3.198,6 m³

Fuel oil: 966 m³

Anchor equipment

3x Anchors weight each 5.250 kg

Length: 577,50 m

Diameter: 56 mm

Cargo gear

2x Cranes - SWL 50,0 t each

Crew size

13

Manager

Reederei Peter Koppelmann
Holmer Str. 5
22880 Wedel
Germany

Registered owner

Reederei Peter Koppelmann

Latest data adjustment

01 November 2017
