| Zeebrugge 22 October 2008 |
|
Name |

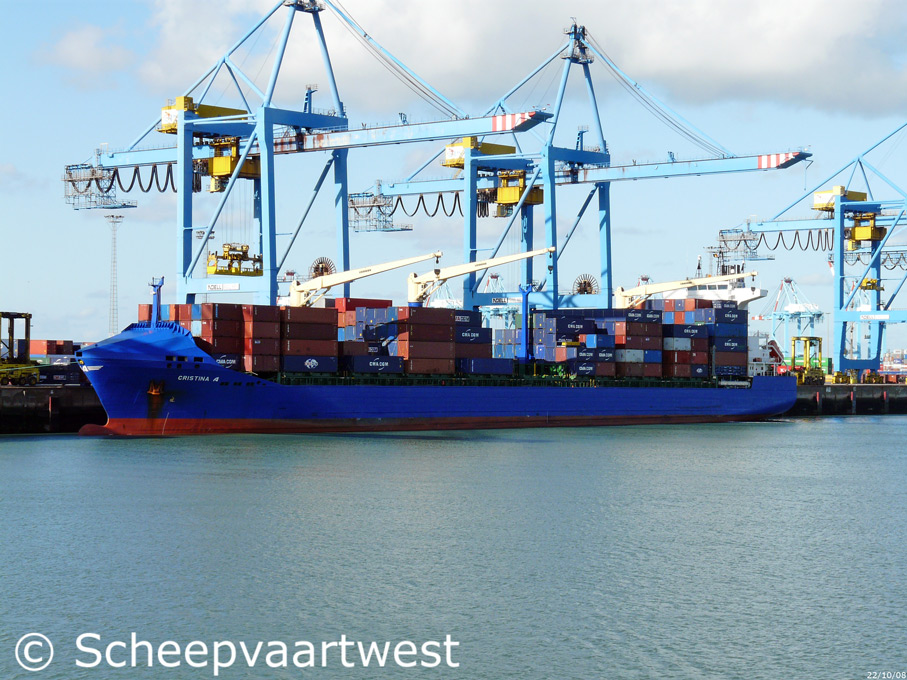

CRISTINA A |
|
Type |
Cellular containership |
|
IMO-number |
9337365 |
|
Call sign |
TCQY7 |
|
Flag |
Turkey |
|
Port of registry |
Izmir |
|
GT |
17.687 t |
|
DWT |
Summer: 22.014 t |
|
NT |
6.711 t |
|
Number of 20ft containers |
1.604 |
|
Container capacity 14t |
1.173 |
|
Reefer point |
178 |
|
Length |
183,86 m overall 177,75 m registered |
|
Breadth |
24,50 m overall |
|
Draught |
Summer: 9,00 m |
|
Forecastle |
12,55 m |
|
Poop |
13,85 m |
|
Freeboard |
5.200 mm |
|
Depth |
14,20 m moulded |
|
Speed |
19,0 knots |
|
Built |
2007 |
|
Keel laid |
27.09.2006 |
|
Launch date |
16.02.2007 |
|
Date of completed |
03.05.2007 |
|
Builder |
Peene Werft GmbH |
|
Yard number |
535 |
|
Hull material |
Shipbuilding steel |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
8 |
|
Nr. of continuous decks |
2 |
|
Main engine |
1x MAN B&W 8S50 MC-C - 2 stroke single acting 8 cylinder 500 x 2.00 mm diesel engine - 13.280 kW Year of Manufacture: 2007 Builder: Man Group Munchen - Germany |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Year of Manufacture: 2006 Manufacturer: Aalborg Industries A/S |
|
Electric installations |
1x 450/230 V - 3.700 kVA 1x 450 V - 1.125 kVA 1x 450 V - 300 kVA 1x 24 V - 605 Ah |
|
Shaft generator |
1x 900 kW - 1.125 kVA |
|
Main generators |
4x Main diesel generatorsets each 925 kVA each |
|
Emergency generator |
1x Diesel generatorset 300 kVA |
|
Batteries |
1x Battery for automation 200 Ah 2x Start emergency engine each 135 Ah |
|
Compressed air |
2x Receivers each 4.500 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 800 kW forward |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m |
|
Cargo gear |
3x Cranes SWL - 45,0 t each |
|
Tank capacities |
Water ballast: 6.930 m³ Fuel oil: 1.266 m³ |
|
Crew |
16 |
|
Manager |
Arkas Shipping & Transport Relet K-Line |
|
Operator |
Delmas |
|
Owner |
Limar Liman ve Gemi Isletmeleri A.S |
