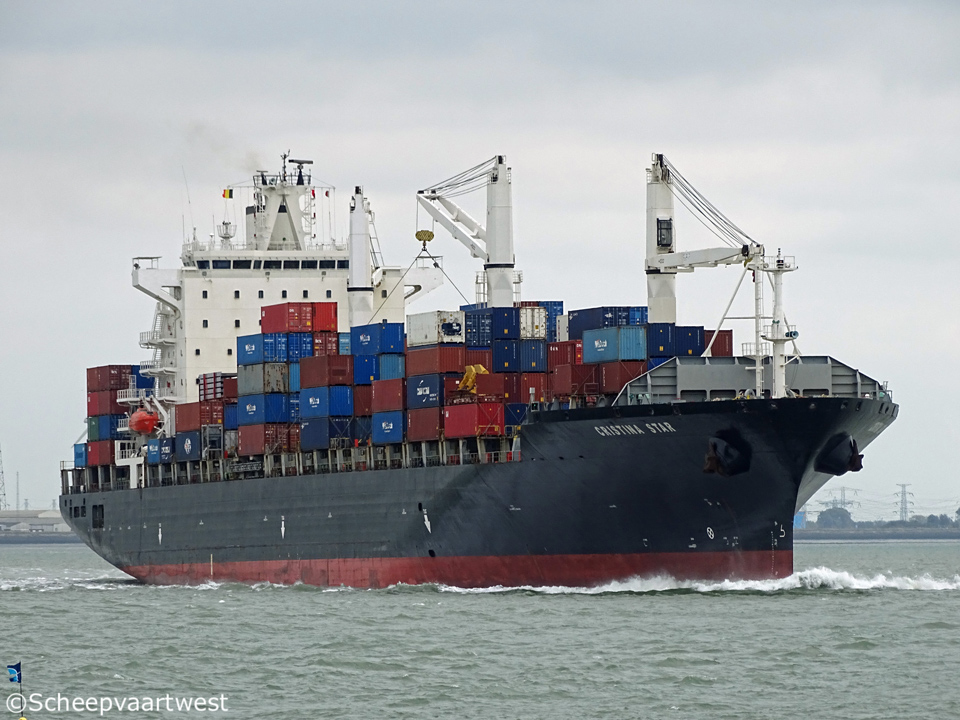

Westerschelde 13 October 2017 |
 |
 |
 |
||

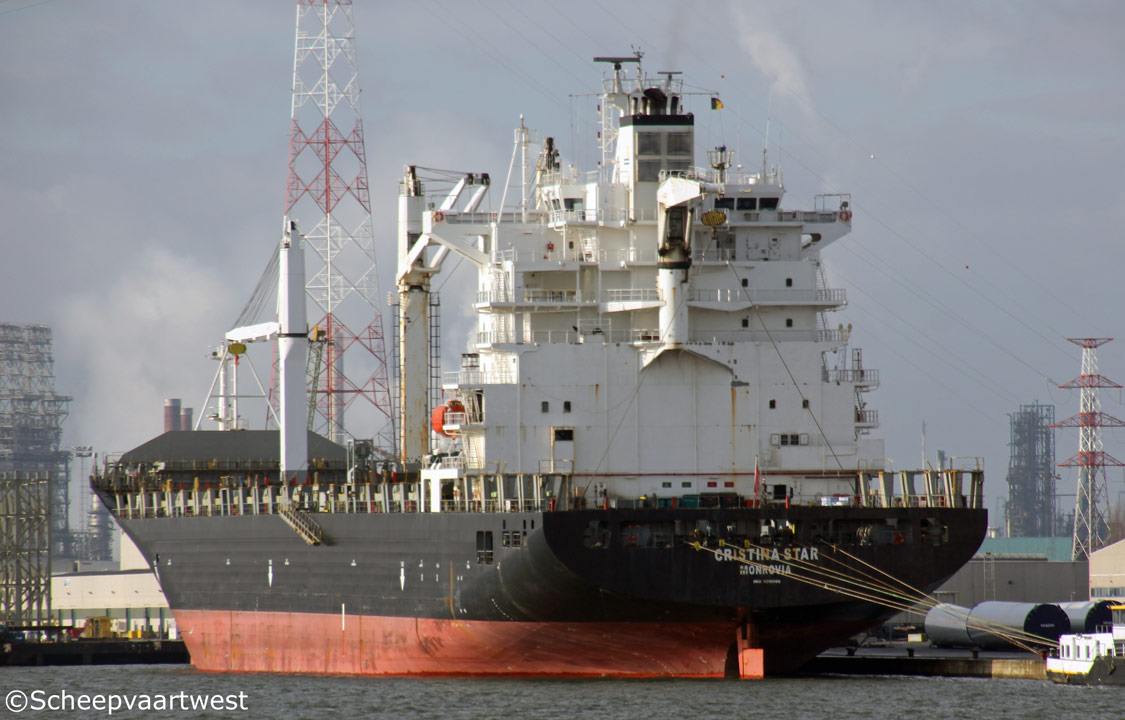

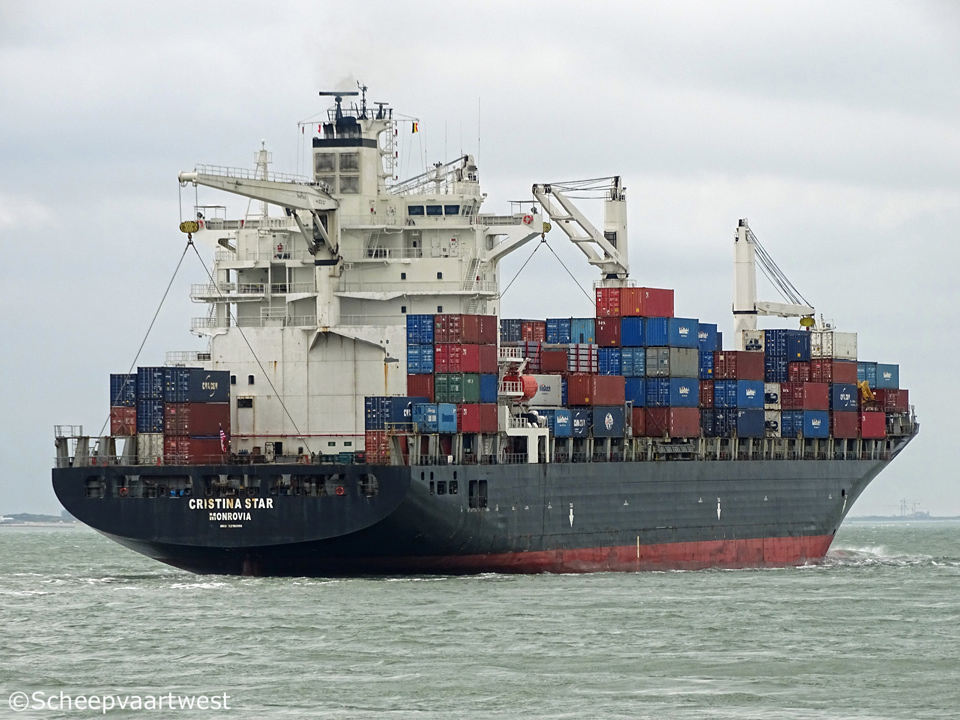

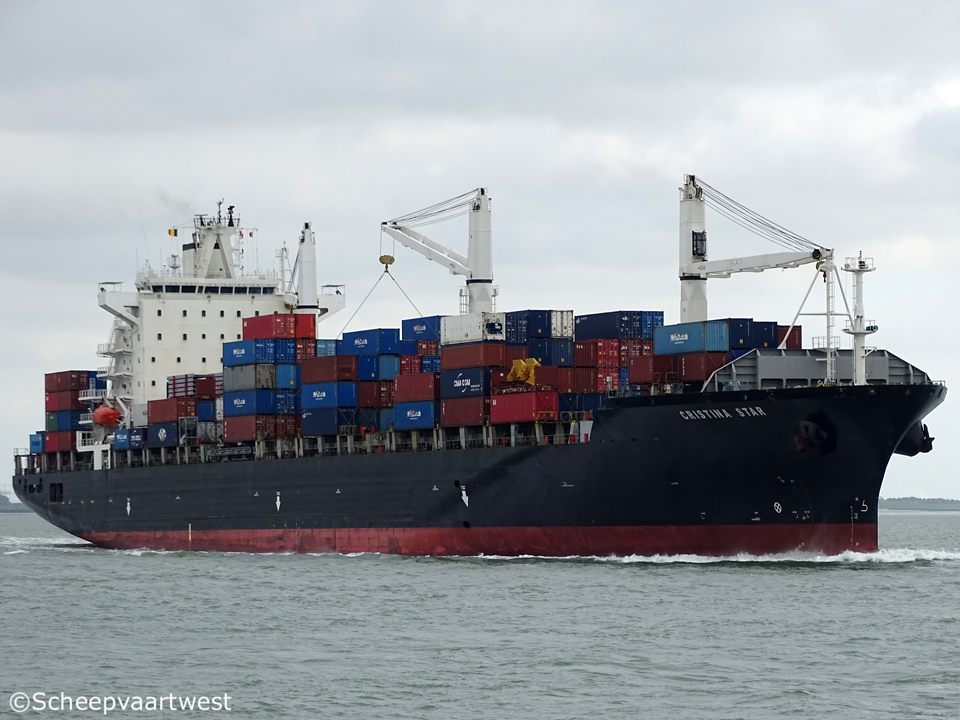

| Westerschelde 13/10/17 | Westerschelde 13/10/17 | Antwerpen 14/01/17 |
|
Name |
CRISTINA STAR |
|
Previous names |
2001 Build as: Santa Cristina 05/2001 - 12/2005 P&O Nedlloyd Bantam 12/2005 - 11/2010 Christina Star 11/2010 - 11/2010 Santa Cristina |
|
Type |
Cellular containership |
|
IMO-number |
9210098 |
|
Call sign |
A8RQ8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
37.113 t |
|
DWT |
Summer: 39.978 t |
|
NT |
18.650 t |
|
Number of 20ft containers |
3.430 |
|
Container capacity 14t |
2.260 |
|
Reefer capacity |
800 |
|
Length |
243,12 m overall 231,00 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
11,52 m |
|
Depth |
15,58 m |
|
Speed |
Max.: 22,9 knots |
|
Built |
2001 |
|
Keel laid |
09/01/2001 |
|
Launch date |
24/03/2001 |
|
Date of completion |
30/05/2001 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Goeje Shipyard 530, Jangpyeong-ri, Sinhyeon-eup Geoje, Kyongsang-namdo Republic of Korea |
|
Yard number |
1318 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä Sulzer 7RTA84C - 2 stroke 7 cylinder 840 x 2.400 mm combustion engine engine 28.385 kW at 102,0 rpm Year of manufacture: 2001 Manufacturer: Samsung Heavy Industries Co., Ltd. 1339, Hyohaeng-ro Hwaseong-si, Kyonggi-do Republic of Korea |
|
Propellers |
1x Solid propeller (Keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 75,0 m² 1x Steam boiler,exhaust gas heated - 9,0 bar Heating surface: 469,0 m² Year of manufacture: 2000 Manufacturer: Parat Anders Halvorsen AS Tjoersvaagstrand 27 4401 Flekkefjord Norway |
|
Electric installations |
4x Plants each 440/220 V - 2.250 kVA 1x Plant 440 V - 188 kVA 1x Plant 24 V - 400 Ah1x Plant 24 V - 800 Ah |
|
Generators |
4x MAN L28/32H main diesel generatorsets each 1.800 kW / 2.250 kVA |
|
Emergency generator |
1x Cummins CTA 8.3 DMGE diesel generatorset 188 kVA |
|
Batteries |
1x Battery for start emergency engine 400 Ah 1x Battery for start emergency engine 400 Ah 1x Battery for UPS radio 400 Ah |
|
Compressed air receivers |
2x Receivers each 6.900 litres - 31,0 bar 1x Receiver 300 litres - 9,0 bar 1x Receiver 100 litres - 7,7 bar |
|
Bow thruster |
2x Transverse thruster Nakashima - each 1.300 kW, forward |
|
Tank capacities |
Ballast: 12.155,9 m³ |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Length: 687,50 m Diameter: 81 mm |
|
Cargo gear |
4x Deck cranes - SWL 45,0 t each |
|
Manager |
Hammonia Reederei GmbH & Co. KG Neumühlen 9 22763 Hamburg Germany |
|
Previous managers |
Metrostar Management Corp. Goldenport Shipmanagement Ltd., Athens,16671 - Greece |
|
Registered owner |
Malvern 4 Shipping Ltd. St. George's Court Upper Church Street Douglas, IM1 1EE Isle of Man United Kingdom |
|
Previous owners |
Orionis Maritime Corporation |
|
Sister ships |
Carlotta Star - IMO 9210050 Carolina Star - IMO 9210062 Celina Star - IMO 9210086 Dimitris C - IMO 9210074 |
|
Renamed |
09/2020 MSC Sines R Liberia, Monrovia - Call sign: A8RQ8 Manager: MSC Shipmanagement Ltd., Limassol - Cyprus Owner: Malvern 4 Shipping Ltd. - Cyprus Care of MSC Shipmanagement Ltd., Limassol - Cyprus |
|
Latest data adjustment |
01 January 2021 |
