Westerschelde 03 April 2017 |
|
Name |

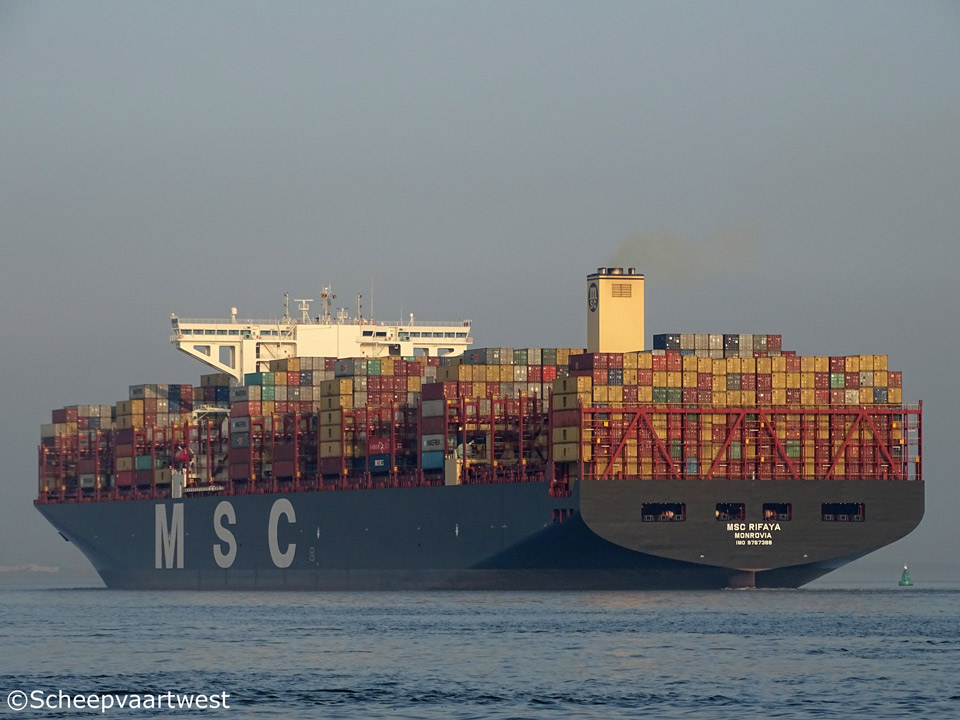

MSC RIFAYA |
|
Type |
Cellular containership |
|
IMO-number |
9767388 |
|
Call sign |
D5MF9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
193.489 t |
|
DWT |
202.338 t |
|
NT |
112.017 t |
|
Number of 20ft containers |
19.437 |
|
Length |
399,99 m overall 383,03 m between perpendiculars |
|
Breadth |
58,84 m extreme |
|
Draught |
16,00 m |
|
Depth |
30,20 m |
|
Speed |
Max.: 24,0 knots |
|
Built |
2017 |
|
Keel laid |
29.12.2015 |
|
Launch date |
06.10.2016 |
|
Date of completion |
09.02.2017 |
|
Builder |
Samsung Heavy Industries Co. Ltd., Koje Shipyard |
|
Yard number |
2157 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 11G95ME-C - 11 cylinder combustion engine 75.570 kW / 102.747 hp |
|
Propellers |
1x Mono-block propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (Exhaust Gas Boiler) 2x Auxiliary boiler, exhaust gas heated (G/E Economizer) 1x Auxiliary boiler, oil/gas fired (Aux. oil-fired boiler) Builder: Kangrim Heavy Industries Co.,Ltd. |
|
Generators |
2x MAN 8L32/40CD main diesel generatorsets each 3.800 kW 2x MAN 9L32/40CD main diesel generatorsets each 4.300 kW |
|
Emergency generator |
1x MAN D2842LE201 diesel generatorset |
|
Bow thruster |
5.000 kW |
|
Tank capacity |
Ballast: 55.500,6 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 137 mm |
|
Manager |
MSC - Mediterranean Shipping Company S.r.l. |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Titan Box Shipping Company Limited |
|
Latest data adjustment |
19 August 2017 |
