| Westerschelde 16 October 2016 |
 |
 |
 |
 |
 |
||||

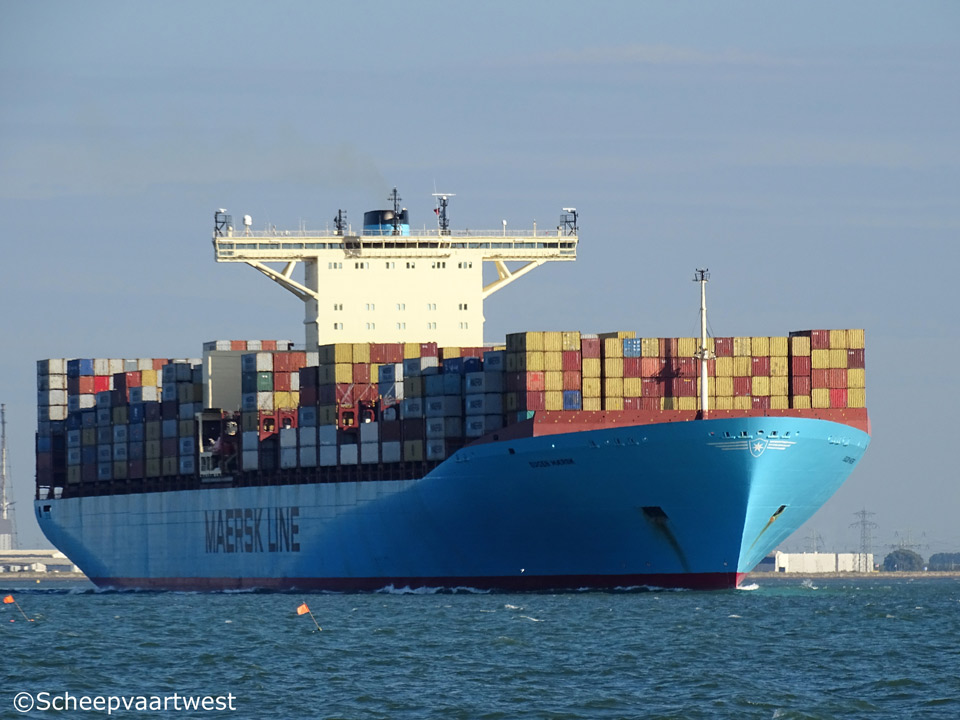

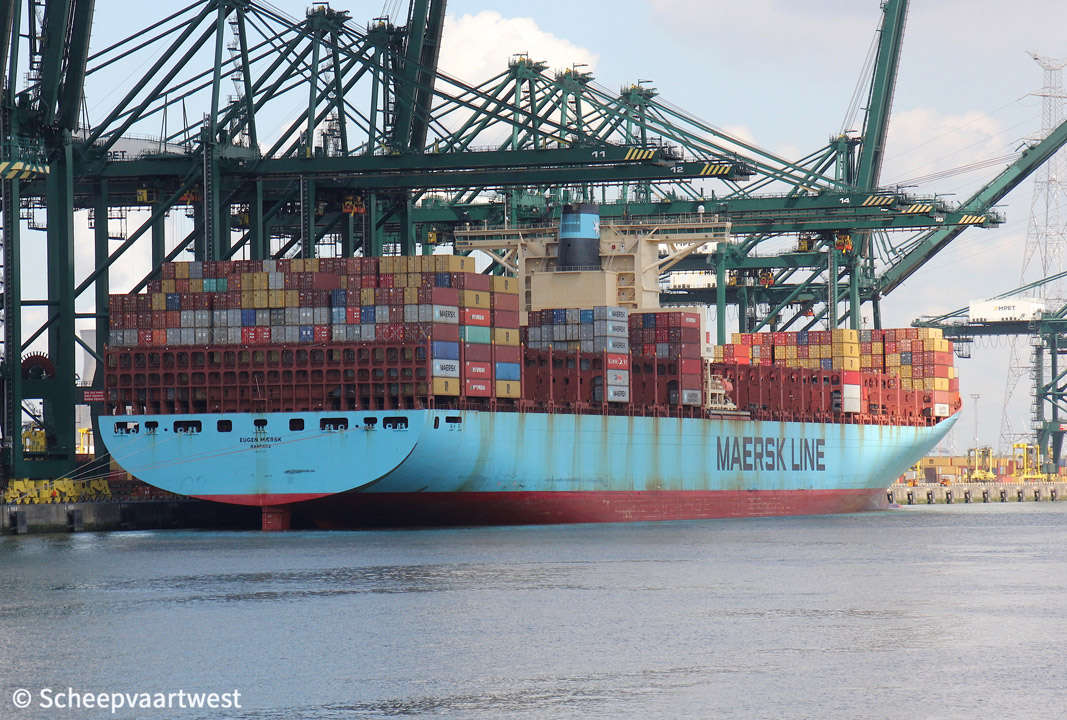

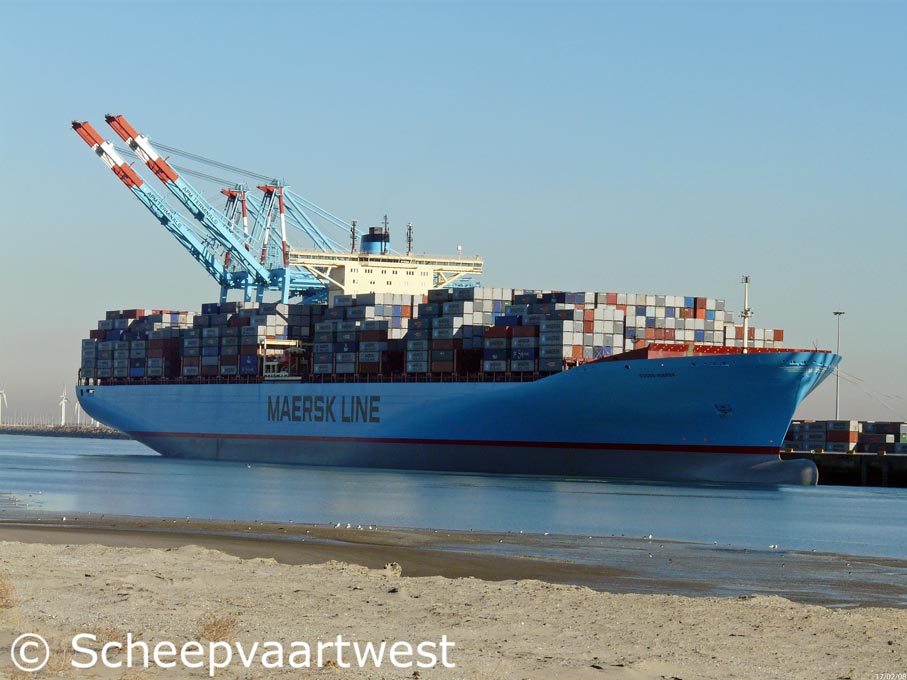

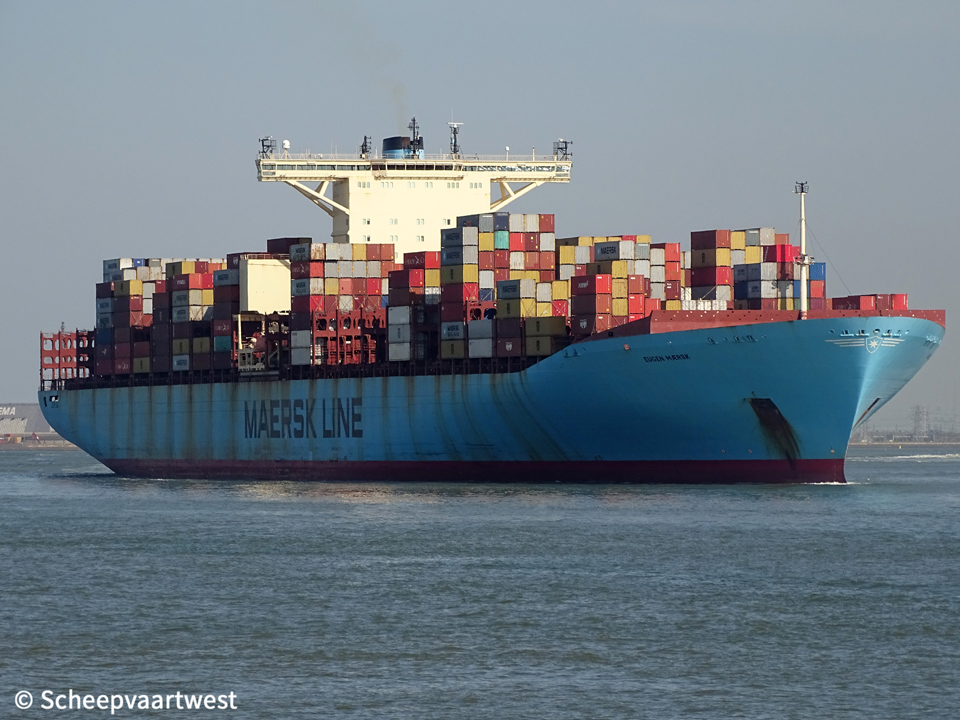

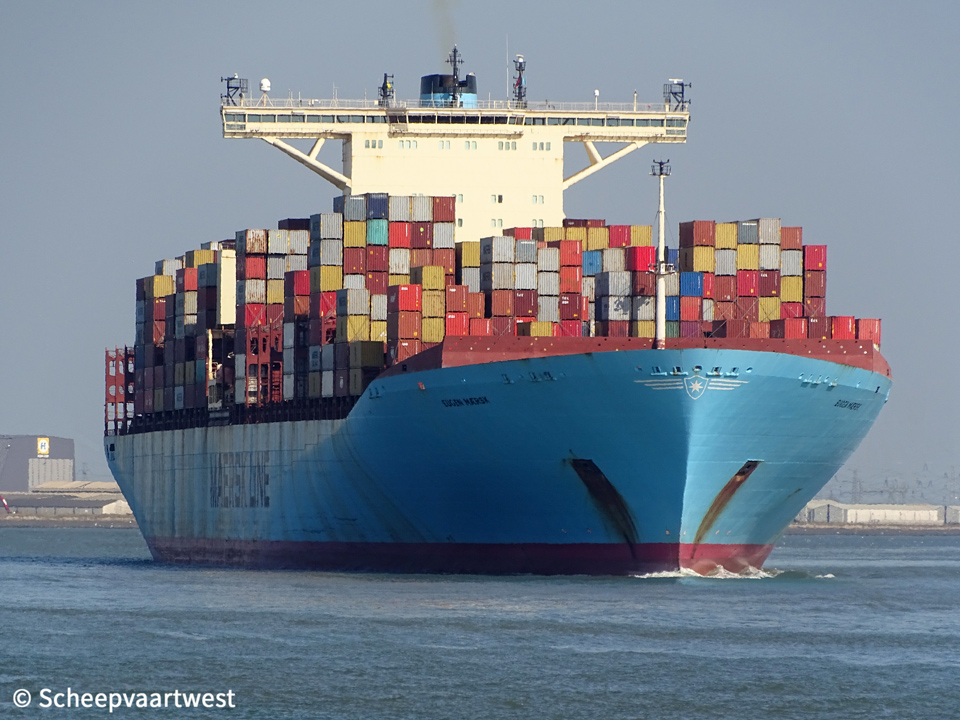

| Westerschelde 16/10/16 | Zeebrugge 17/02/08 | Doel, Belgium 29/07/19 | Westerschelde 07/04/20 | Westerschelde 07/04/20 |
|
Name |
EUGEN MAERSK (EUGEN MÆRSK) |
|
Type |
Cellular containership - Carriage of dangerous goods - Refrigerated cargo |
|
IMO-number |
9321550 |
|
Call sign |
OXOS2 |
|
Flag |
Denmark |
|
Port of registry |
Randers |
|
GT |
171.542 t registered Suez: 171.347,16 |
|
DWT |
Summer: 158.200 t |
|
NT |
62.537 t registered Suez: 152.109,93 t |
|
Number of 20ft containers |
14.760 |
|
Container capacity at 14t |
11.000 |
|
Reefer point |
1.300 |
|
Length |
398,90 m overall 376,00 m between perpendiculars |
|
Beam |
56,55 m overall |
|
Draught |
Summer: 16,00 m |
|
Freeboard |
5.670 mm |
|
Depth |
30,20 m moulded |
|
Speed |
Max.: 24,8 knots |
|
Built |
2008 |
|
Keel laid |
30/07/2007 |
|
Launch date |
23/11/2007 |
|
Delivery date |
29/01/2008 |
|
Builder |
Odense Steel Shipyard AS Odense Denmark |
|
Yard number |
L210 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Single hull |
|
Bulkheads |
Non tight: 11 Water tight: 10 Oil tight: 13 |
|
Main engine |
1x Doosan-Sulzer 14RT-Flex96C - 14 cylinder 960 x 2.500 m combustion engine 80.080 kW at 102,0 rpm Manufacturer: Doosan Engine Co. Ltd. |
|
Turbo generator |
1x Combo power / steam turbine generator - 10.625 kVA / 8.500 kW Manufacturer: Sem Drasov |
|
Shaft engine |
2x 9.000 kW Manufacturer: Siemens AG |
|
Propeller |
1x Six blade solid pitch bronze propeller Manufacturer: Mecklenburger Metallguss GmbH |
|
Boilers |
1x Vertical water tube oil fired auxiliary boiler AQ-10/12W - 14,0 bar Total Heating Surface: 55.000 mm² 1x HP Exhaust gas boiler AV-6N - 14,0 bar 1x LP Exhaust gas boiler AV-6N - 12,0 bar Manufacturer: Aalborg Industries Aalborg - Denmark |
|
Generators |
5x MaK 9M32C main diesel generatorsets each 5.925 kVA / 4.148 kW Manufacturer: Sem Drasov |
|
Cargo hold capacity |
Grain: 355.190,74 m³ Hold: 355.164,10 m³ |
|
Number of tanks |
Ballast: 32 Fuel oil: 22 Lubricating oil: 8 Sea water: 7 Fresh water: 7 Waste water: 6 Sludge: 6 Diesel oil: 6 Chain: 2 Hydraulic oil: 1 |
|
Tank capacities 100% |
Ballast: 61.134,35 t / 62.570,1 m³ Diesel oil: 364,50 t / 405 m³ Fresh water: 752,60 t Fuel oil: 17.089,50 t / 16.920,30 m³ Lube oil: 586,89 t / 652,1 m³ Hydraulic oil: 5,7 m³ |
|
Lifting equipment |
1x Elevator SSRFC - SWL 0,5 t Manufacture: Hans Lutz Maschinenfabrik GMBH & Co. 1x Monorail stores crane 20T PR - SWL 20,0 t Manufacture: Dreggen A/S 1x Overhead engine room crane aft - SWL 12,5 t Manufacture: Danish Crane Building A/S 1x Overhead engine room crane fwd. - SWL 12,5 t Manufacture: Danish Crane Building A/S 1x Stores/bunker/ Suez boat pedestal crane port 5T-6.5M/2.5T-8.4M - SWL 5,0 t Manufacture: Dreggen A/S 1x Stores/bunker/Suez boat pedestal crane stbd. DK40-5T-6.5M/2.5T-8.4M - SWL 5,0 t Manufacture: Dreggen A/S |
|
Cargo gear |
Gearless |
|
Manager |
A.P. Möller Maersk A/S Esplanaden 50 CopenhagenK, DK-1098 Denmark |
|
Operator |
Maersk Line A/S Esplanaden 50 Copenhagen K, DK-1263 Denmark |
|
Owner |
A.P.Möller- Maersk A/S |
|
Registered owner |
Maersk Line A/S |
|
Latest data adjustment |
21 January 2020 |
