| Zeebrugge 25 October 2008 |
 |
 |
 |
 |
|||

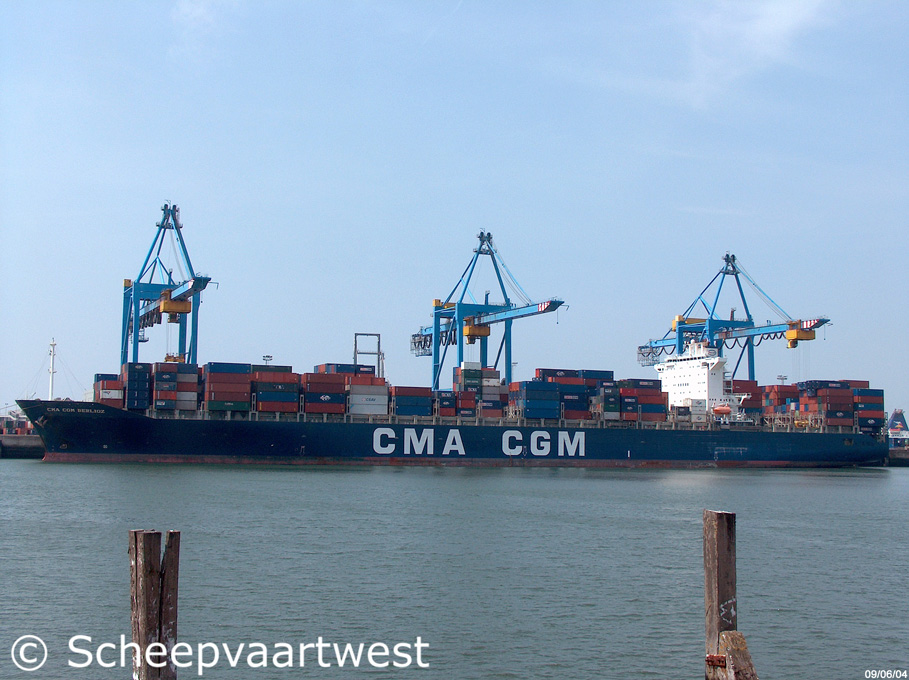

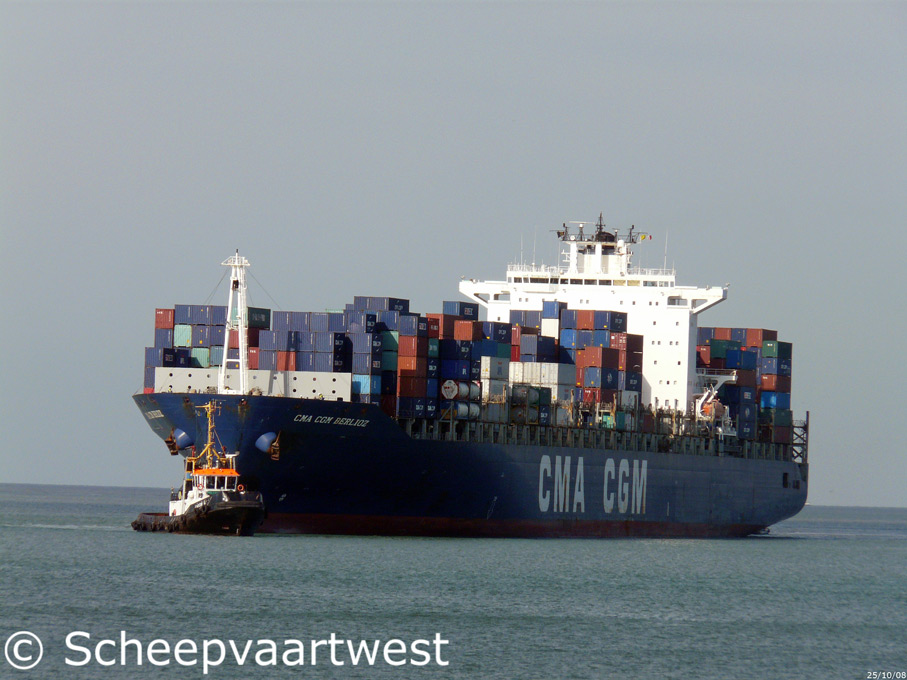

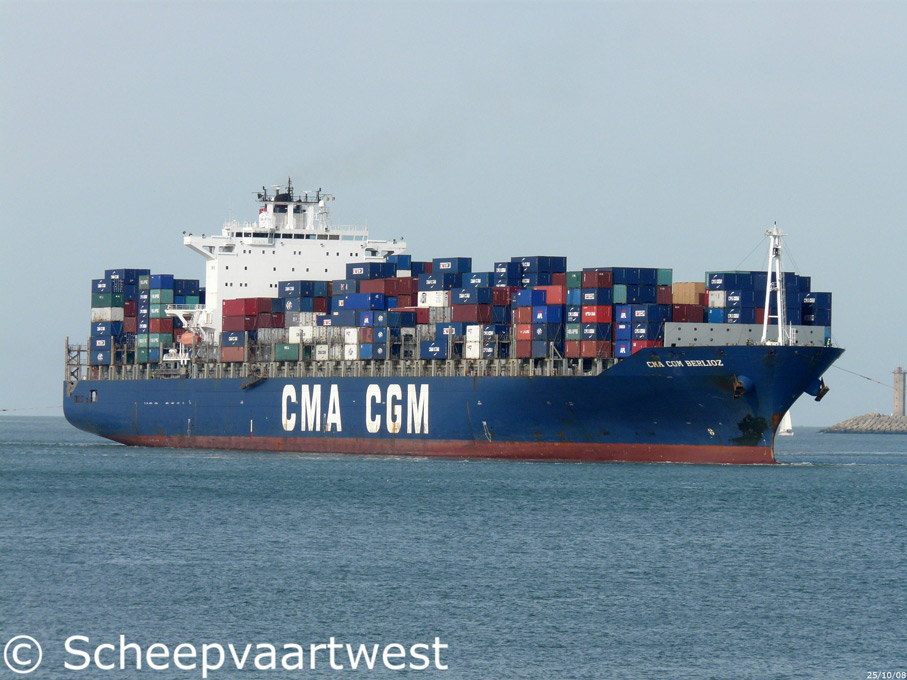

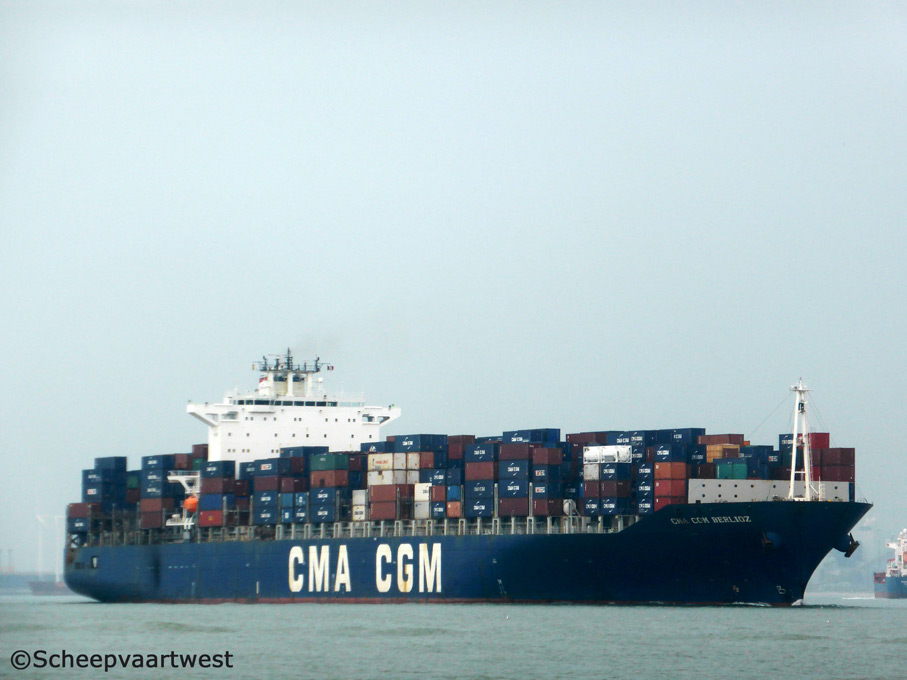

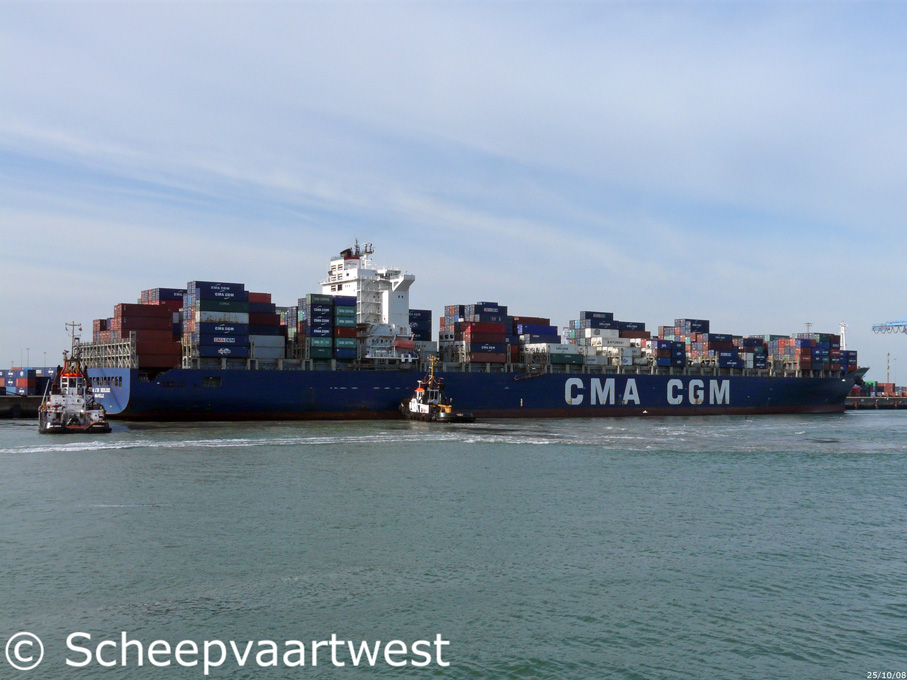

| Zeebruegge 25/10/08 | Zeebruegge 25/10/09 | Zeebruegge 09/06/04 | Westerschelde 27/07/14 |
|
Name |
CMA CGM BERLIOZ |
|
Type |
Cellular Containership |
|
IMO-number |
9222297 |
|
Call sign |
5BVA |
|
Previous call sign |
FSZO |
|
Flag |
Cyprus |
|
Previous flags |
2001 Republic of Panama |
|
Port of registry |
Limassol |
|
Previous port of registry |
Marseille |
|
GT |
73.157 t |
|
DWT |
Summer: 80.250 t |
|
NT |
41.255 t |
|
Number of 20ft containers |
6.627 |
|
Container capacity 14t |
4.555 |
|
Reefer Point |
500 Feu on deck up to 3rd tier |
|
Length |
299,95 m overall |
|
Breadth |
40,30 m |
|
Draught |
Summer: 14,27 m |
|
Freeboard |
5.855 mm |
|
Depth |
24,10 m |
|
Speed |
Max.: 25,9 knots |
|
Service |
Europe Pakistan India Consortium |
|
Built |
2001 |
|
Launch date |
19.05.2001 |
|
Date of completion |
20.07.2001 |
|
Builder |
Hanjin Heavy Industries & Construction Co. Ltd. |
|
Yard number |
N-087 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
11 |
|
Continuous decks |
2 |
|
Propelling engine |
1x MAN-B&W Hundai 12K-98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm diesel engine - 68.520 kW / 93.098 hp at 104,0 rpm |
|
Number of screws |
1x Screw propeller solid at 104 rpm |
|
Boilers |
1x CHO Kangrim 137,00 m² - 10,0 bar |
|
Electrical installation |
Power Voltage: 4500 V |
|
Generators |
3x Main diesel generatorsets each 3.500 kVA - 2.800 kW - 4.022 hp |
|
Emergency generator |
1x Diesel generatorset 687 kVA - 550 kW - 826 hp |
|
Bow thruster |
2.000 kW |
|
Fuel capacity |
13.863 m³ |
|
Number of holds |
8 |
|
Cargo hatchways |
16 |
|
Cargo Gear |
Gearless |
|
Crew |
26 |
|
Managing owners |
CMA CGM |
|
Operator |
CMA CGM |
|
Owner |
Dalian 1 |
|
Registered owner |
Global Ship Lease 17 Ltd. |
|
Latest data adjustment |
23 August 2014 |
