| Westerschemde 15 August 2020 |
|
Name |

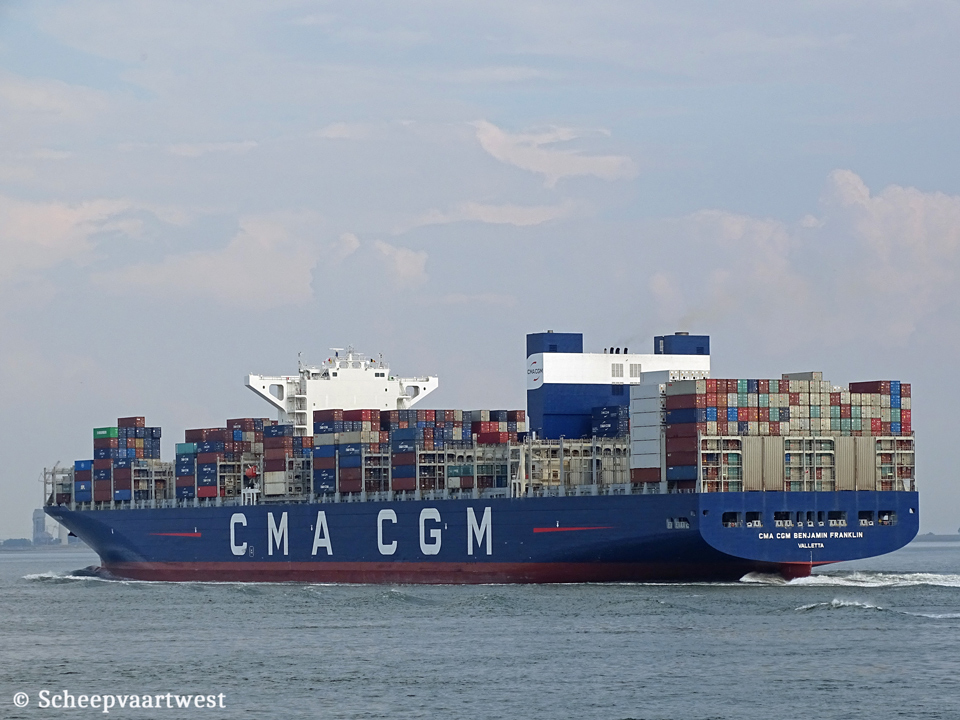

CMA CGM BENJAMIN FRANKLIN |
|
Type |
Cellular containership |
|
IMO-number |
9706891 |
|
Call sign |
9HA5008 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2015 - 2019 United Kingdom, London - Call sign: 2IZK8 |
|
GT |
179.922 t Suez: 182.105 t |
|
DWT |
Summer: 185.070 t |
|
NT |
99.861 t Suez: 168.920 t |
|
Number of 20ft containers |
17.859 |
|
Container capacity 14t |
11.944 |
|
Reefer capacity |
1.400 |
|
Length |
399,20 m overall 381,40 m between perpendiculars |
|
Breadth |
54,00 m |
|
Draught |
Summer: 16,00 m |
|
Freeboard |
4.450 mm |
|
Depth |
30,20 m |
|
Speed |
22,9 knots |
|
Built |
2015 |
|
Date of completion |
04/12/2015 |
|
Builder |
Shanghai Jiangnan Changxing Heavy Industry Co., Ltd. Shanghai China |
|
Yard number |
H6003 |
|
Hull material |
Steel |
|
Watertight compartments |
15 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 11S90ME-C9.2-TII - 2 stroke 11 cylinder 900 x 3.260 mm combustion engine 63.910 kW / 86.834 hp at 84,0 rpm Build: 06/04/2015 Builder: Cssc-Mes Diesel Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller - aft at 84,0 rpm |
|
Boilers |
1x CHO Alfa Laval 40,14 m² - 10,0 bar 1x CHR Alfa Laval 492,00 m² - 10,0 bar |
|
Generators |
4x Main diesel generatorsets each 5.400 kVA - 4.320 kW - 6.114 hp |
|
Emergency generator |
1x Diesel generatorset 375 kVA - 300 kW - 486 hp |
|
Bow thruster |
2x Each 2.000 kW |
|
Number of holds |
12 |
|
Cargo hold capacity |
365.732,3 m³ |
|
Tank capacities |
Fuel: 16.038,5 m³ |
|
Cargo gear |
Gearless |
|
Commerical manager |
CMA CGM SA The French Line 4, quai d'Arenc 13002 Marseille France |
|
ISM manager |
CMA Ships SAS 4, quai d'Arenc 13002 Marseille France |
|
Registered owner |
CHC Third Shipping SA Care of CMA CGM SA (The French Line) 4, quai d'Arenc 13002 Marseille France |
|
Latest data adjustment |
12 February 2022 |
