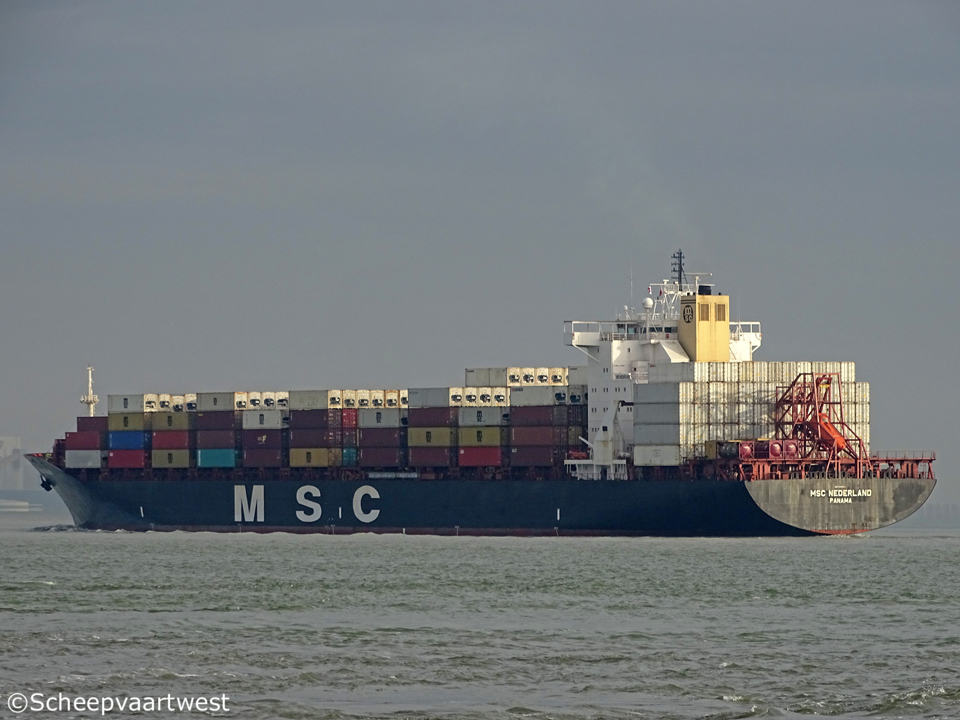

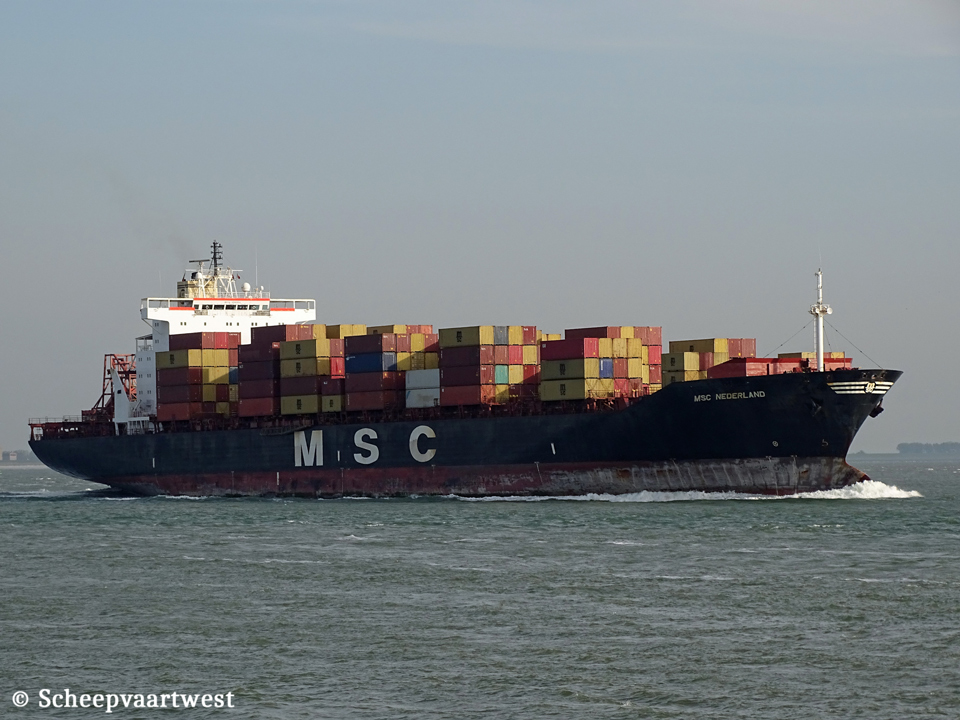

Westerschelde 14 April 2020 |
 |
 |
 |
 |
 |
 |
|||||

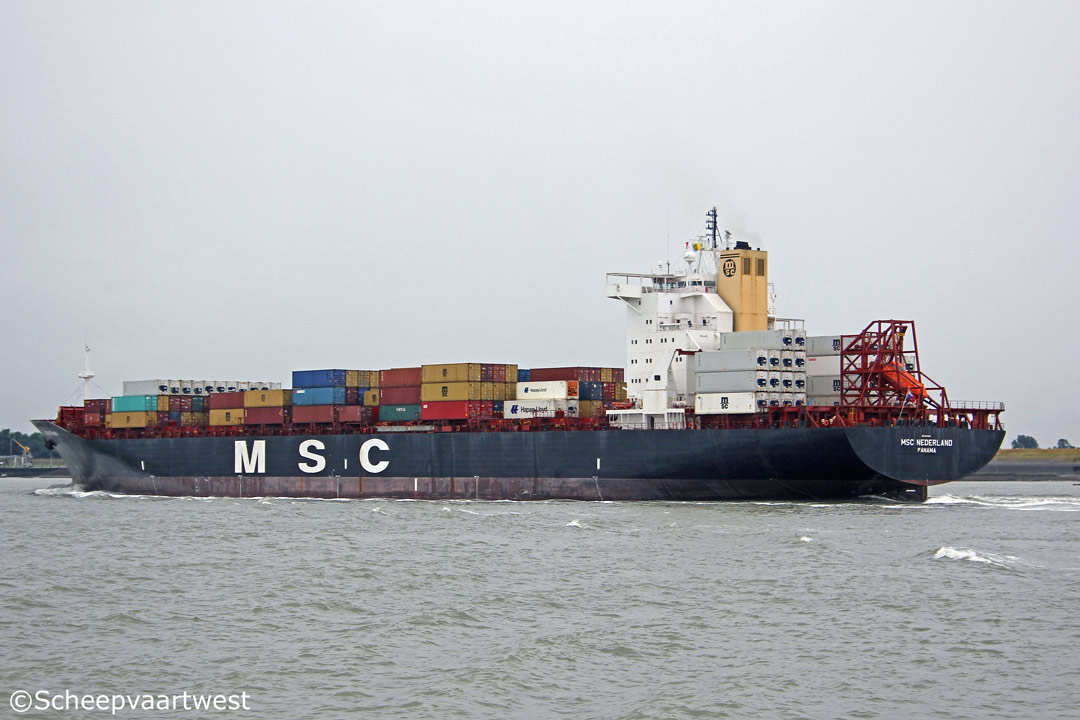

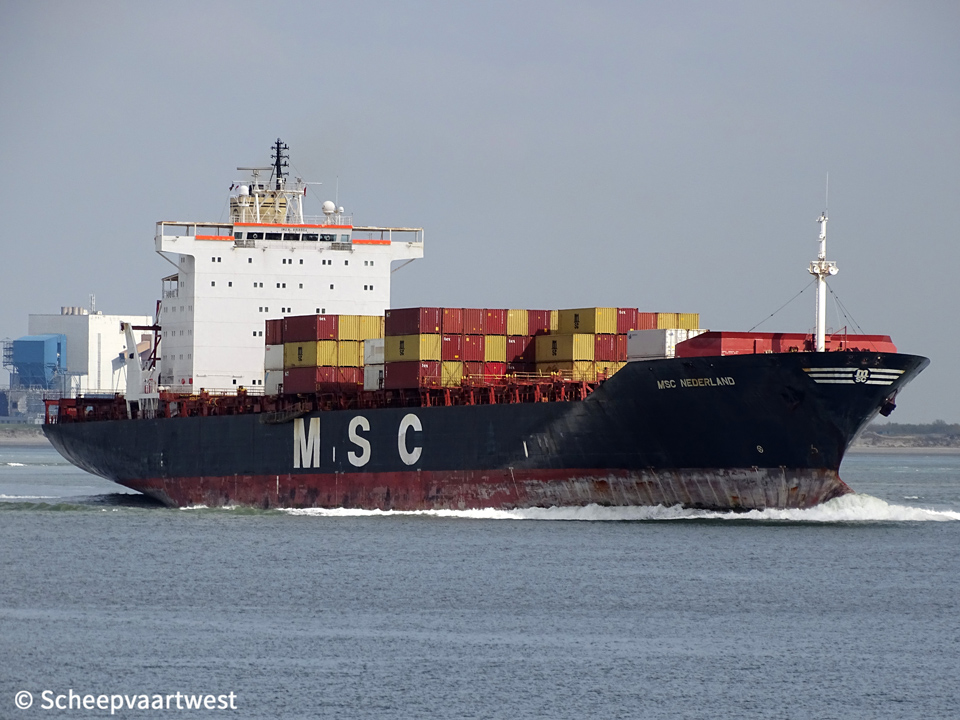

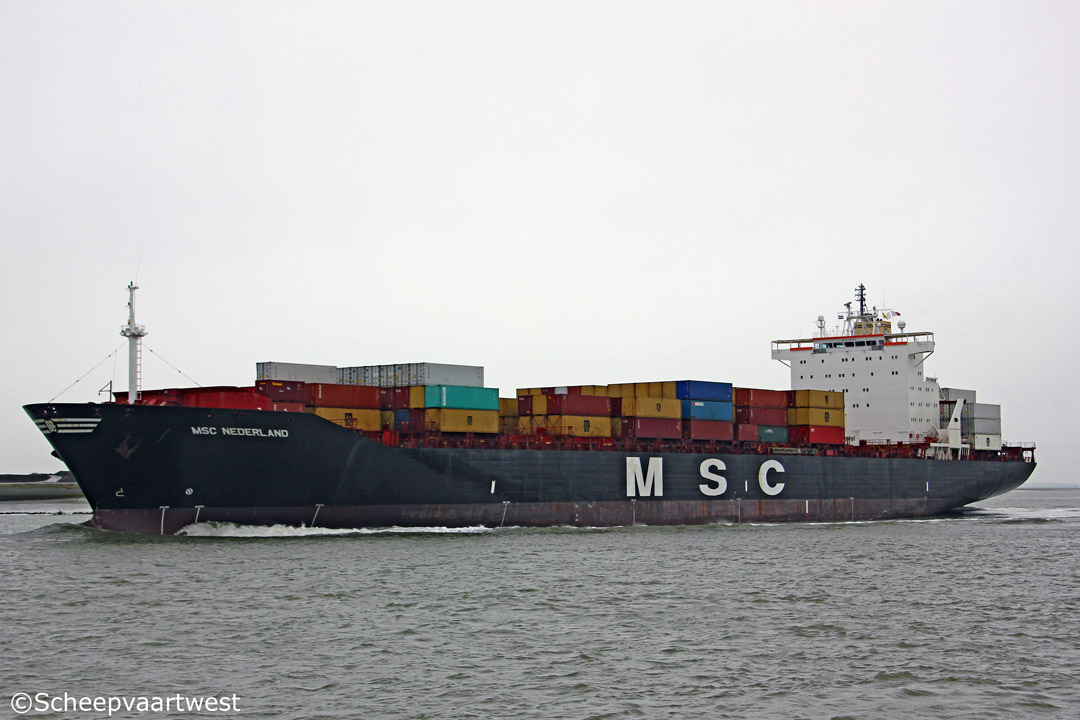

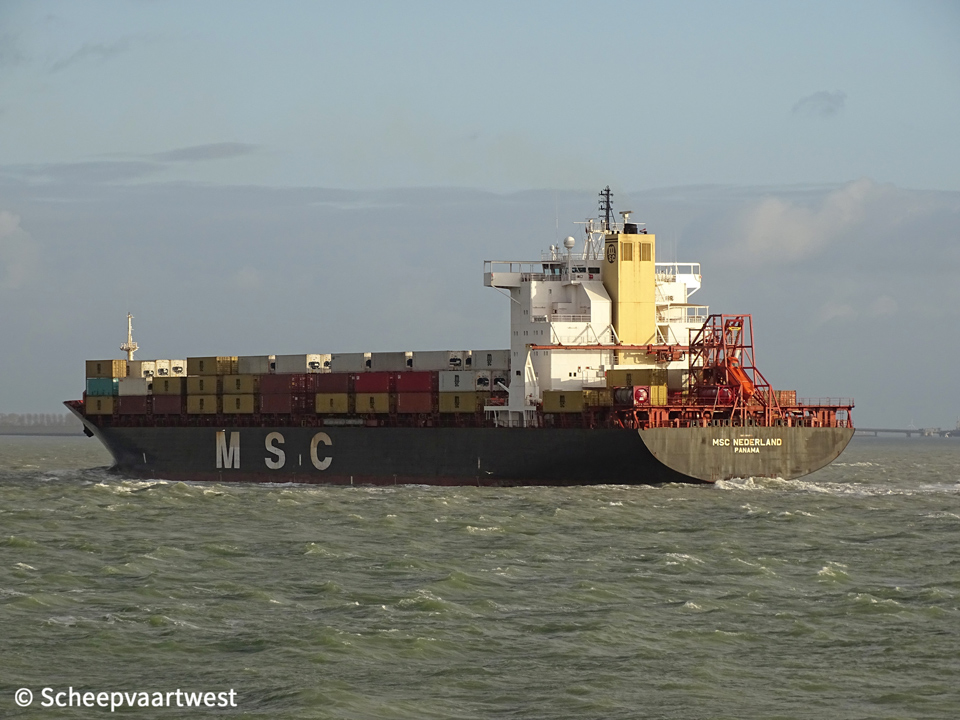

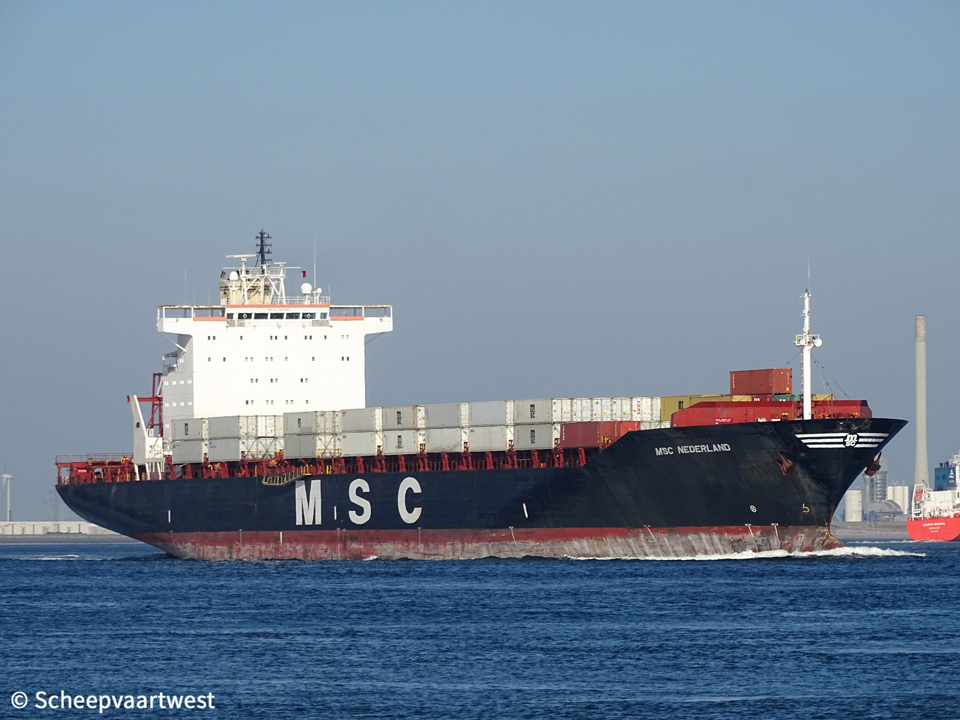

| Westerschelde 19/07/15 | Westerschelde 19/07/15 | Westerschelde 19/12/17 | Westerschelde 29/02/18 | Westerschelde 23/12/19 | Westerschelde 31/10/19 |
 |
 |
|

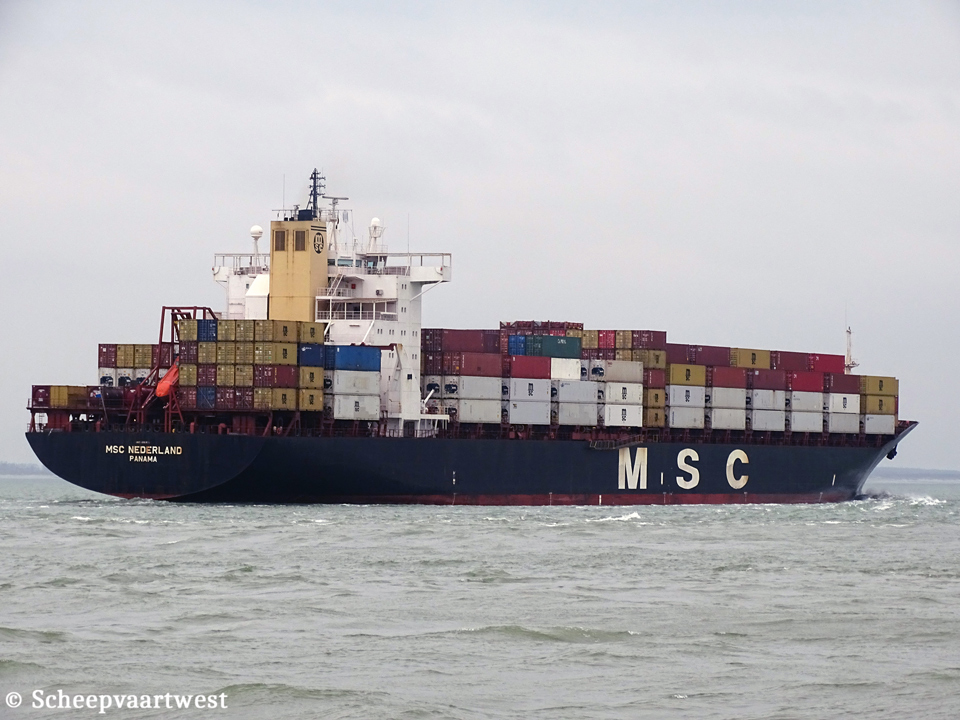

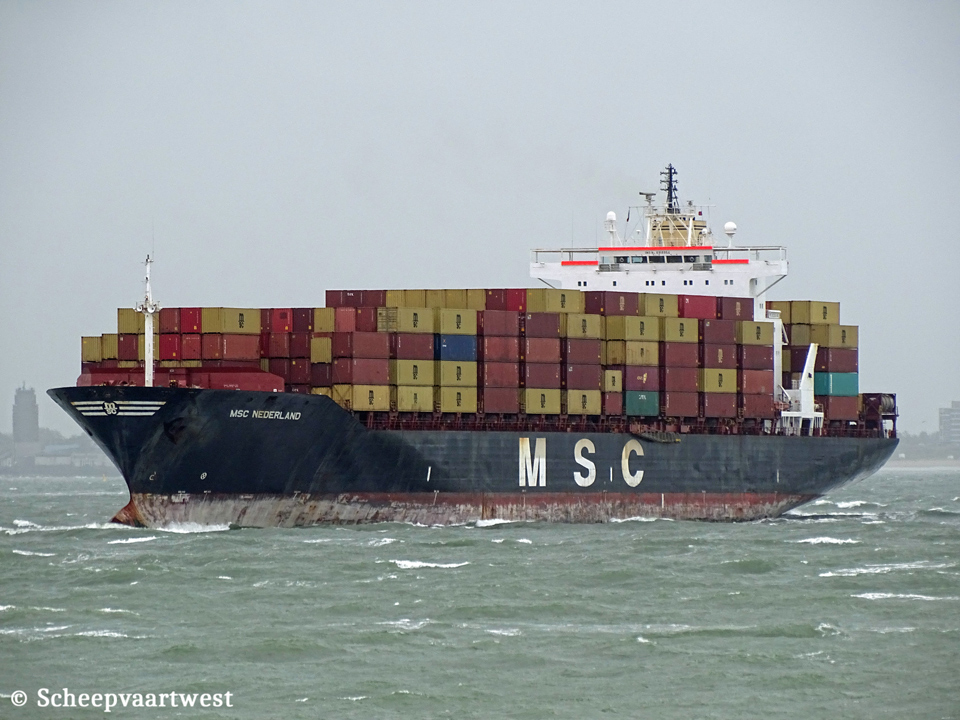

| Westerschelde 08/02/20 | Westerschelde 04/10/19 |
|
Name |
MSC NEDERLAND |
|
Previous names |
1992 - 06/2002 Vladivostok Senator 06/2002 - 01/2003 Vladivostok Mariner |
|
Type |
Cellular containership |
|
IMO-number |
8918954 |
|
Call sign |
HPMR |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
37.071 t |
|
DWT |
Summer: 46.600 t |
|
NT |
15.889 t |
|
Number of 20ft containers |
3.007 |
|
Container capacity 14t |
2.480 |
|
Reefer capacity |
100 |
|
Length |
237,00 m overall 225,25 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
11,98 m |
|
Depth |
18,80 m |
|
Speed |
Max.: 21,0 knots |
|
Built |
1992 |
|
Keel laid |
30/07/1991 |
|
Launch date |
01/06/1992 |
|
Date of completion |
02/11/1992 |
|
Builder |
Bremer Vulkan AG Schiffbau und Maschinenfabrik Bremen Germany |
|
Yard number |
93 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7L80MC - 2 stroke 7 cylinder 800 x 2.592 mm combustion engine 21.700 kW / 29.503 hp at 88,0 rpm Year of manufacture: 1992 Manufacturer: Bremer Vulkan AG Schiffbau und Maschinenfabrik Lindenstr. 110 28755 Bremen Federal Republic of Germany |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 54,0 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 320,0 m² |
|
Electric installations |
3x Plants each 450/220 V - 1.138 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 180 kVA |
|
Shaft generator |
1x 1.200 kW / 1.500 kVA |
|
Generators |
3x MAN-B&W 6L23/30MDB diesel generatorsets each 1.138 kVA / 910 kW |
|
Emergency generator |
1x Caterpillar 3306 DIT diesel generatorset 180 kVA |
|
Compressed air receivers |
1x Receiver 250 litres - 40,0 bar 2x Receivers each12.000 litres - 31,0 bar 1x Receiver 40 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 1.300 kW, forward |
|
Number of holds |
7 |
|
Number of hatches |
34 |
|
Tank capacities |
Ballast: 19.198,2 m³ |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Length: 687,50 m Diameter: 81 mm |
|
Cargo gear |
Gearless |
|
Commerical manager |
Niki Shipping Co., SA Building A, 24, Filellinon Street 105 57 Athens Greece |
|
ISM manager |
MSC Shipmanagement Ltd. MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
NSM Nederland Shipping Company Limited Care of Niki Shipping Co SA Building A, 24, Filellinon Street 105 57 Athens Greece |
|
Latest data adjustment |
12 August 2021 |
