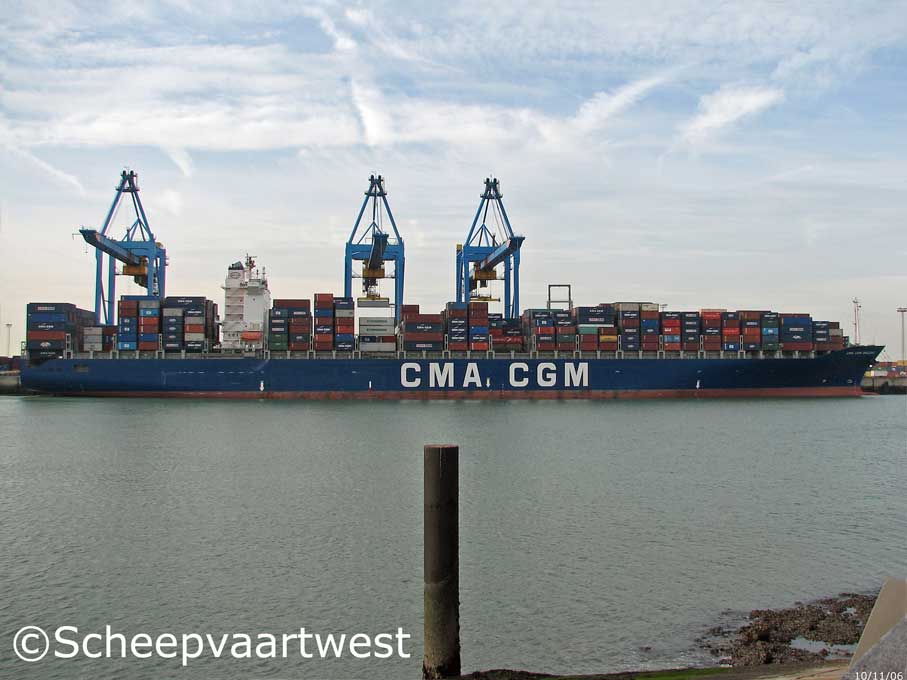

| Zeebrugge 10 November 2006 |
 |

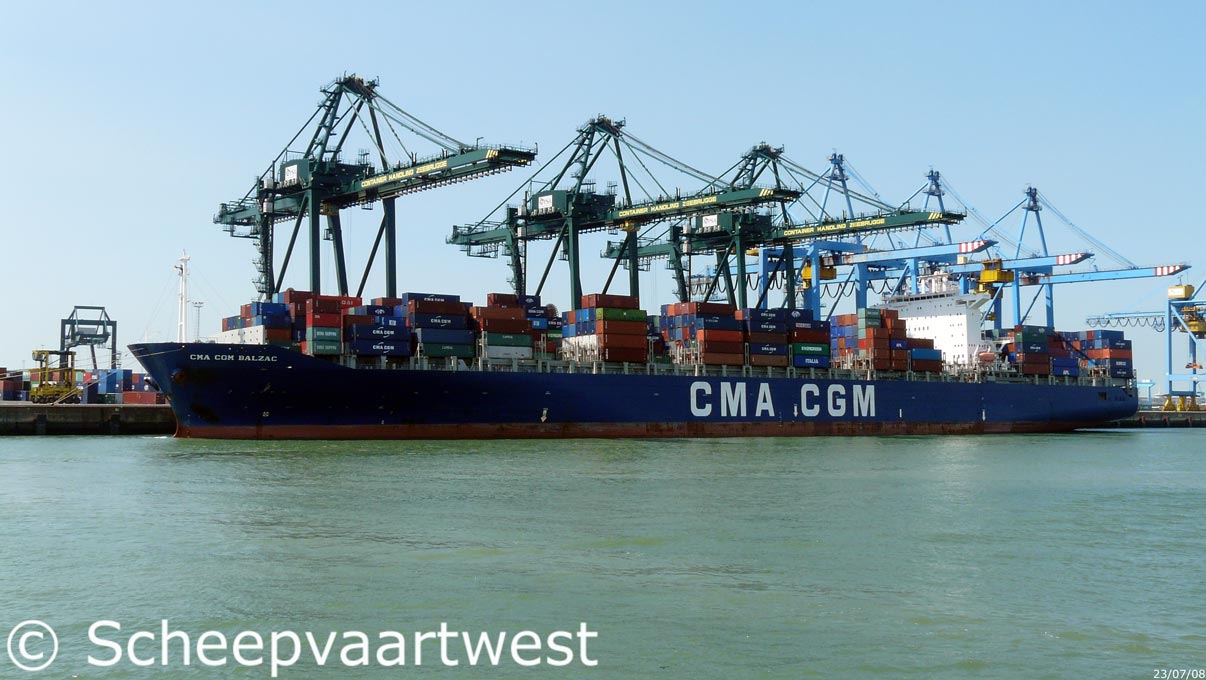

| Zeebrugge 23/07/08 |
|
Name |
CMA CGM BALZAC |
|
Previous name |
2001 - 05/2001 Conti Paris 2001 - 2015 CMA CGM Balzac |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9222273 |
|
Call sign |
Germany |
|
Flag |
Hamburg |
|
Port of registry |
DIHN |
|
GT |
73.172 t |
|
DWT |
Summer: 77.941 t |
|
NT |
40.905 t |
|
Number of 20ft Containers |
In hold: 3.007 On deck: 3.620 Total: 6.627 |
|
Container capacity 14t |
4.729 |
|
Reefer capacity |
500 on deck up to 3rd tier |
|
Length |
300,27 m overall 286,06 m between perpendiculars |
|
Breadth |
40,30 m over all |
|
Draught |
Summer: 14,03 m |
|
Freeboard |
6.090 mm |
|
Depth |
24,10 m moulded |
|
Speed |
25,8 knots |
|
Built |
2001 |
|
Keel laid |
09/11/2000 |
|
Launch date |
15/02/2001 |
|
Date of completion |
04/2001 |
|
Builder |
Hanjin Heavy Industries & Construction Co. Ltd. 29, 5-ga, Bongnae-dong Youngdo-gu Busan 606-065 Republic of Korea |
|
Yard number |
N077 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 12K98MC-C - 2 stroke single acting 12 cylinder 980 x 2.400 mm combustion engine 68.520 kW / 93.160 hp at 104,0 rpm Year of manufacture: 2000 Manufacturer: Hyundai Heavy Industries Engine & Machinery Co., Ltd., Ulsan - South Korea |
|
Propeller |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 148,0 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 644,0 m² Year of Manufacture: 2000 Manufacturer: Omnical Marine Boilers |
|
Electric installations |
1x Plant 440/220 V - 10.500 kVA 1x Plant 440 V - 688 kVA |
|
Generators |
3x Wärtsilä 8R32LND - 4 stroke 8 cylinder 320 x 350 mm diesel engine each 2.960 kW connected with generators each 2.800 kW |
|
Emergency generator |
1x Diesel generatorset 688 kVA / 550,4 kW |
|
Compressed air receivers |
2x Receivers, each 23.000 litres - 33,0 bar 1x Receiver 200 litres - 33,0 bar 1x Receiver 125 litres - 33,0 bar 1x Receiver 60 litres - 9,9 bar 1x Receiver 20 litres - 9,9 bar 1x Receiver 350 litres - 8,8 bar |
|
Bow thruster |
2x Variable pitch propeller LIPS - 2.000 kW/ 2.719 hp, forward |
|
Tank capacities |
Ballast: 21.127 m³ Fuel oil: 7.743 m³ |
|
Anchor equipment |
3x Anchors weight each 16.100 kg Chain Length: 742,50 m |
|
Crew size |
32 |
|
Cargo gear |
Gearless |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG Harburger Str. 47-51 21614 Buxtehude Federal Republic of Germany |
|
Operator |
CMA CGM |
|
Owner |
Conti 25, Alemania Schiffahrts GmbH & Co. KG MS "CONTI PARIS" Harburger Str. 21614 Buxtehude Federal Republic of Germany |
|
Renamed |
2015 Conti Paris Liberia, Monrovia - Call sign: D5SI7 Manager: Conti Reederei management GmbH & Co. Konzeptions KG Owner: Conti 25. Alemania Schiffahrts-GmbH & Co. KG MS ''CONTI PARIS'' |
|
Latest data adjustment |
05 July 2020 |
