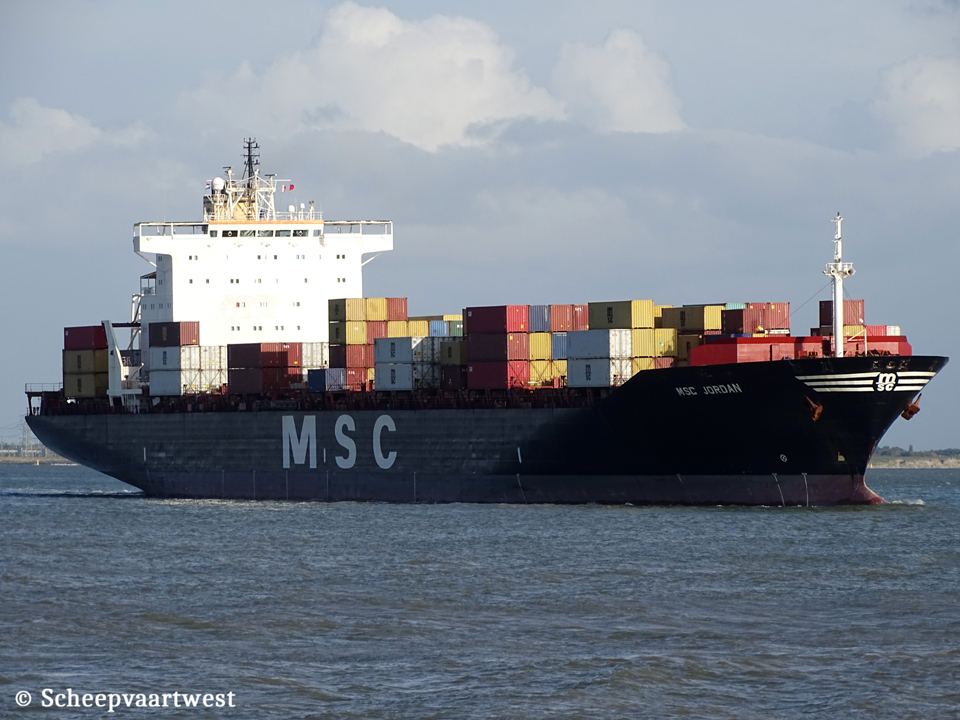

Westerschelde 05 February 2020 |
 |
 |
 |
 |
 |
 |
|||||

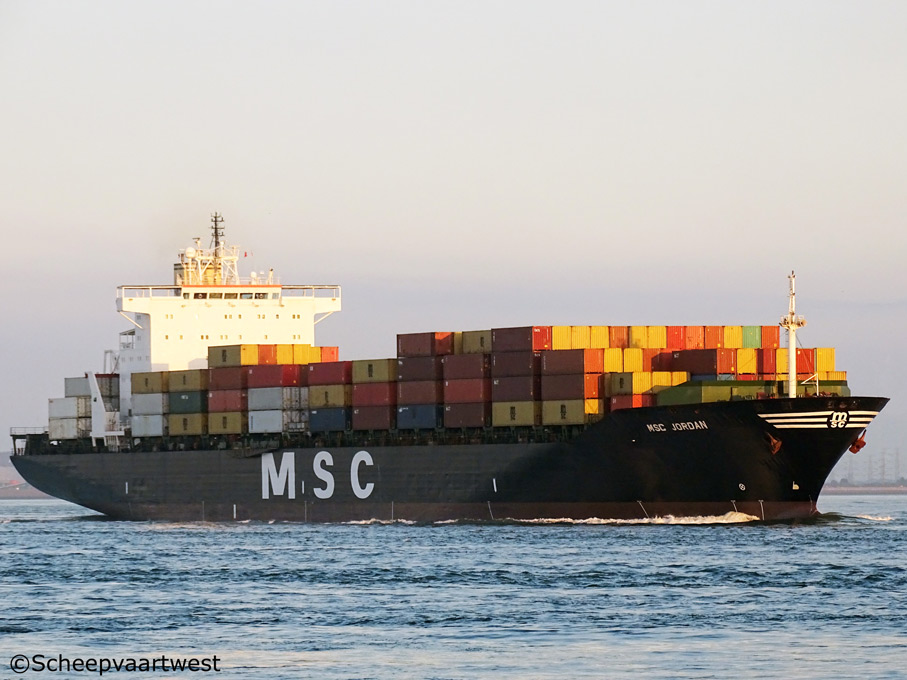

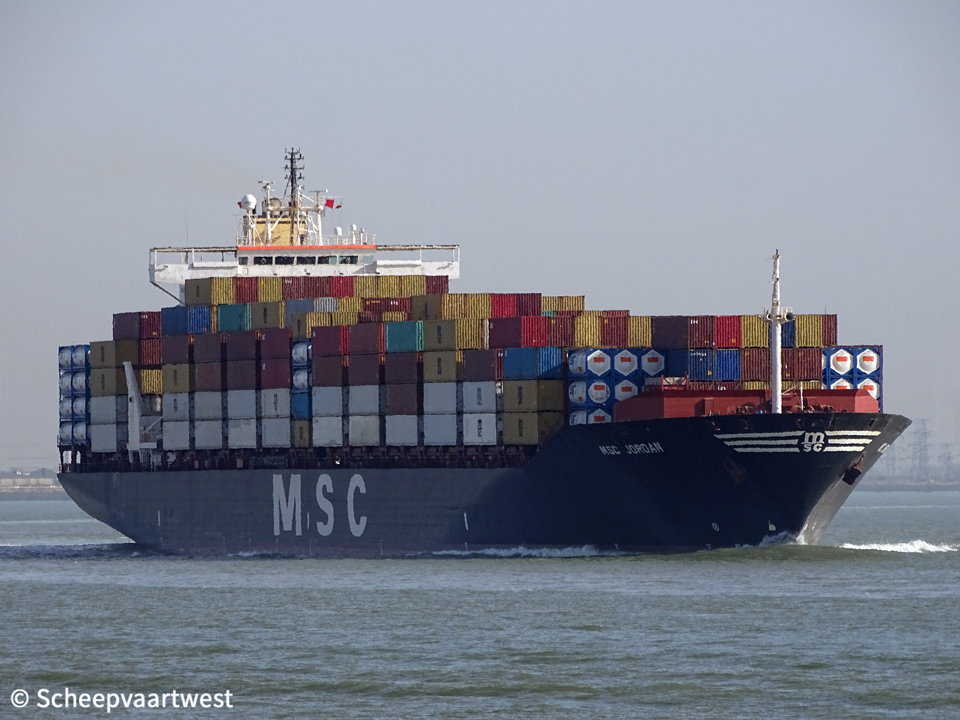

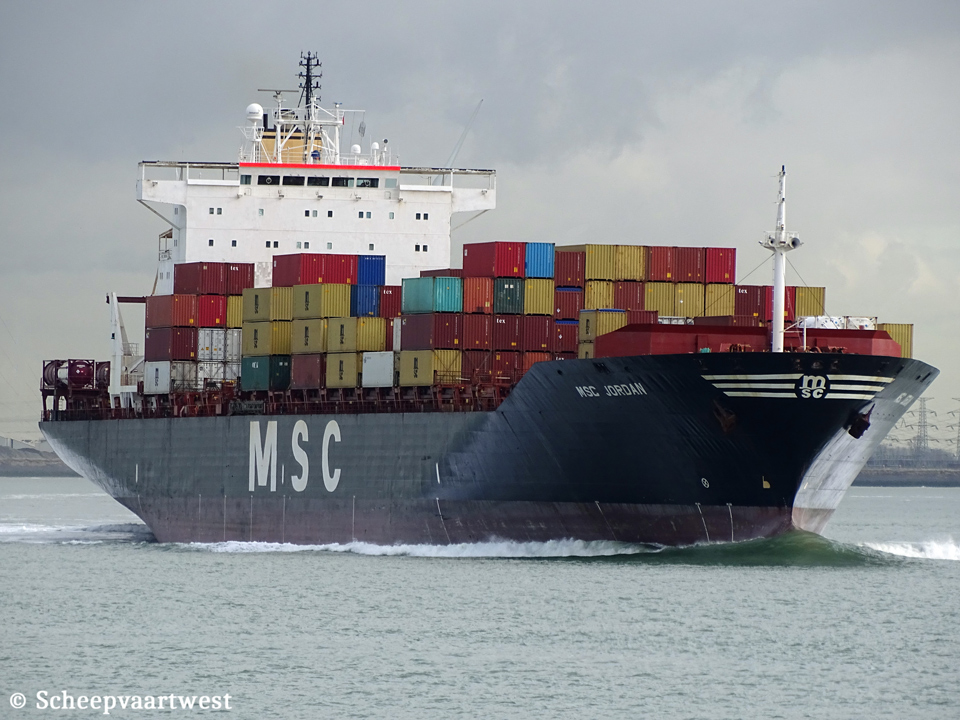

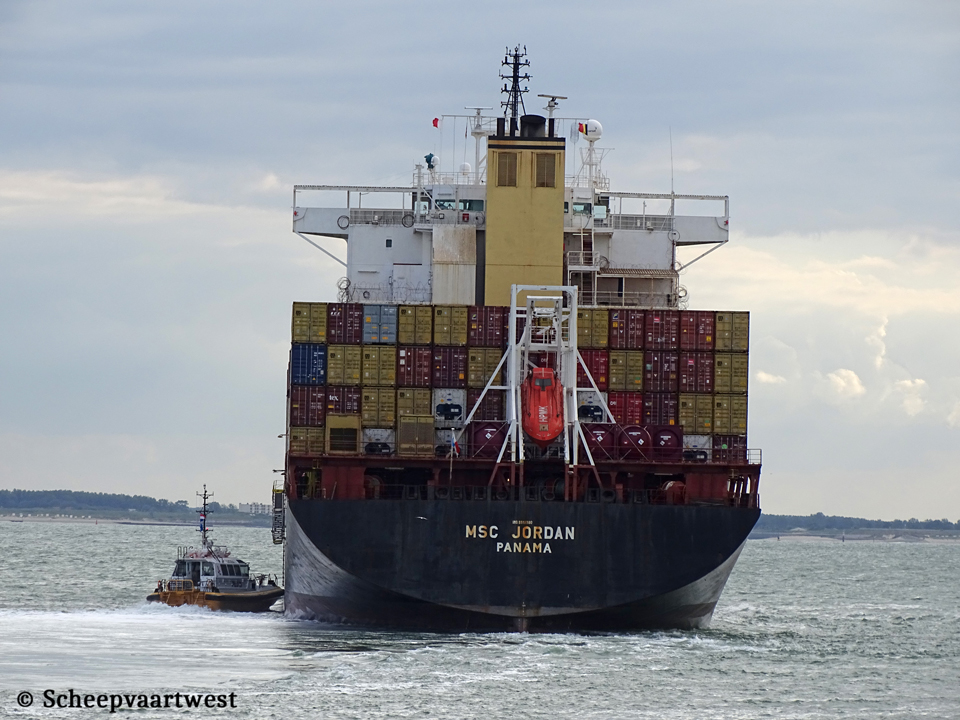

| Westerschelde 24/04/14 | Westerschelde 29/10/16 | Westerschelde 12/10/17 | Westerschelde 17/02/19 | Terneuzen 16/08/19 | Terneuzen 16/08/19 | |||||
 |
 |
 |
 |
 |
||||||
| Westerschelde 05/02/20 | Westerschelde 09/04/20 | Westerschelde 05/02/20 | Westerschelde 28/07/20 | Westerschelde 02/10/19 | ||||||
|
Name |
MSC JORDAN |
|
Previous names |
1993 - 02/2003 Sovcomflot Senator |
|
Type |
Cellular containership |
|
IMO-number |
8918980 |
|
Call sign |
HPMK |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
1993 - 2003 Liberia |
|
GT |
37.071 t |
|
DWT |
Summer: 46.600 t |
|
NT |
15.889 t |
|
Number of 20ft containers |
3.005 |
|
Container capacity 14t |
2.480 |
|
Reefer capacity |
100 |
|
Length |
237,00 m overall 225,25 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Max.: 11,98 m |
|
Depth |
18,80 m |
|
Speed |
Max.: 21,0 knots |
|
Built |
1993 |
|
Keel laid |
14/09/1992 |
|
Launch date |
27/03/1993 |
|
Date of completion |
30/06/1993 |
|
Builder |
Howaldtswerke-Deutsche Werft AG Kiel Germany |
|
Yard number |
272 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7L80MC - 2 stroke 7 cylinder 800 x 2.592 mm combustion engine 21.677 kW / 29.472 hp at 88,0 rpm Year of manufacture: 1992 Manufacturer: Bremer Vulkan AG Schiffbau und Maschinenfabrik Lindenstr. 110 28755 Bremen Federal Republic of Germany |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 54,0 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 320,0 m² |
|
Electric installations |
3x Plants each 450/220 V - 1.138 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 180 kVA |
|
Shaft generator |
1x 1.500 kVA / 1.200 kW |
|
Generators |
3x 6L23/30 main diesel generatorsets each 1.138 kVA / 910 kW |
|
Emergency generator |
1x Caterpillar 3306 DIT diesel generatorset 180 kVA |
|
Compressed air receivers |
1x Receiver 250 litres - 40,0 bar 2x Receivers each12000 litres - 31,0 bar 1x Receiver 40 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 1.300 kW, forward |
|
Number of holds |
7 |
|
Tank capacities |
Ballast: 19.198,2 m³ |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Length: 687,50 m Diameter: 81 mm |
|
Cargo gear |
Gearless |
|
Manager |
MSC Shipmanagement Ltd. |
|
Previous managers |
1993 - 2003 Unicom Management Services (Cyprus) Ltd. 2003 - 2004 Pacific Marine Services Ltd. 2004 - 2005 Unicom Management Services (Cyprus) Ltd. |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Octampa Management S.A. Panama City Republic of Panama |
|
Previous owners |
1993 - 2003 Megaslot X Shipping Co. Ltd. 2003 - 2014 Napoli Shipping Co. Ltd. |
|
Latest data adjustment |
03 July 2022 |
