Name |

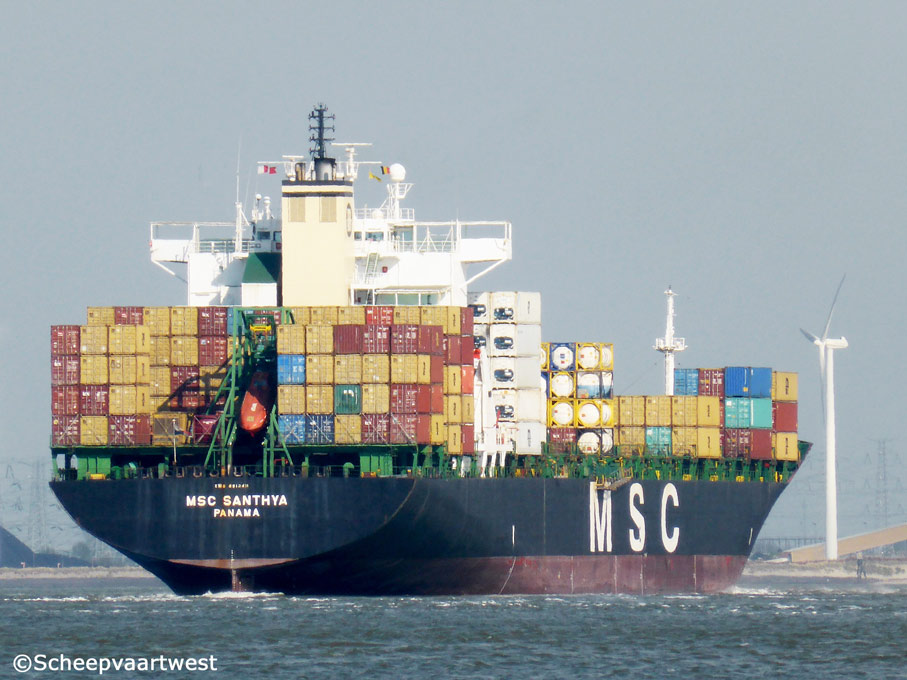

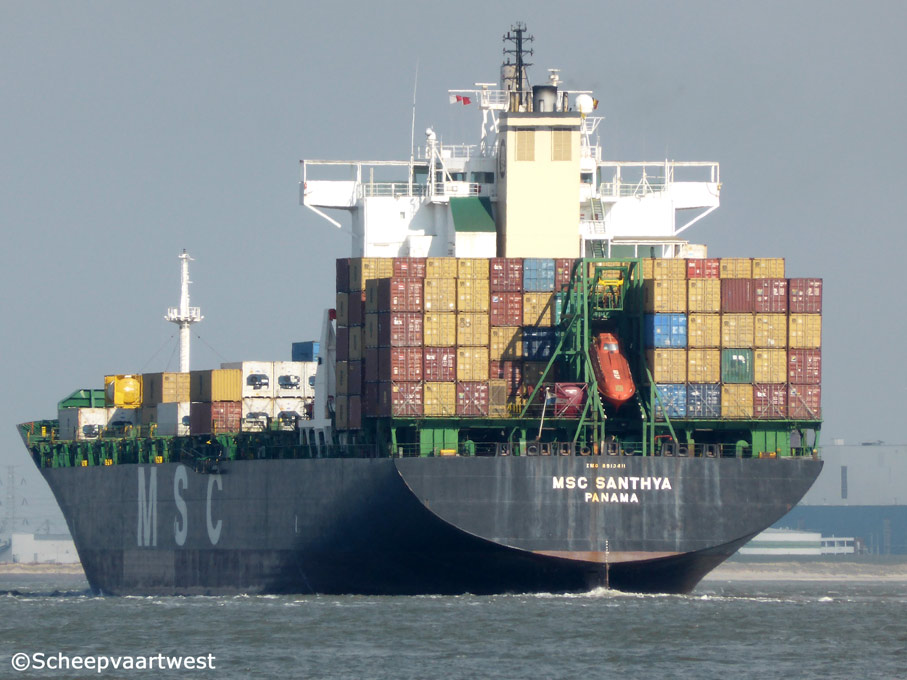

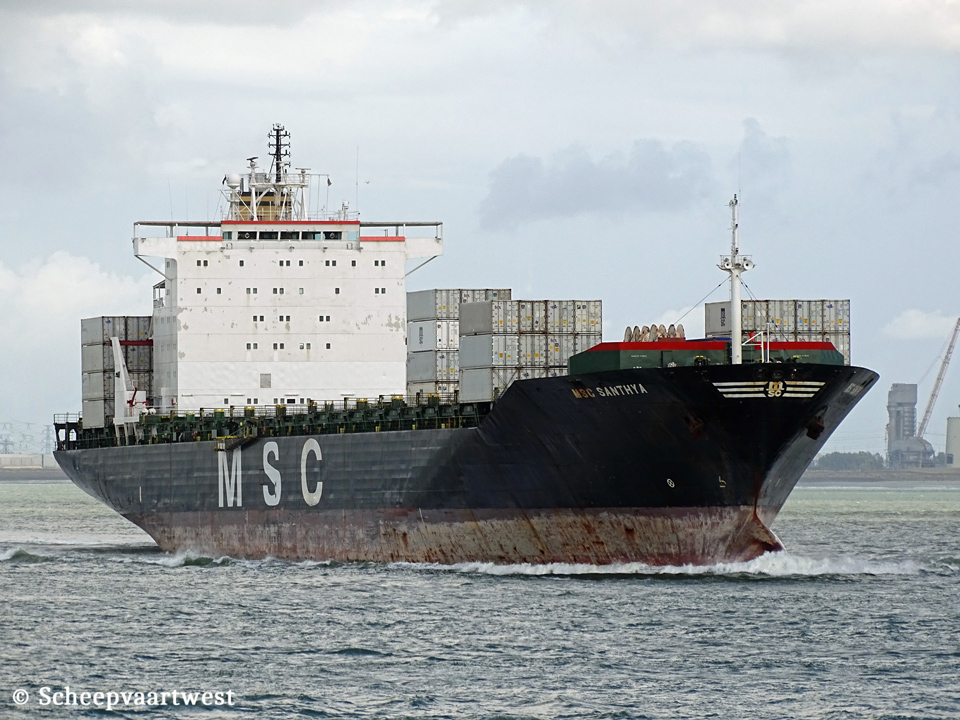

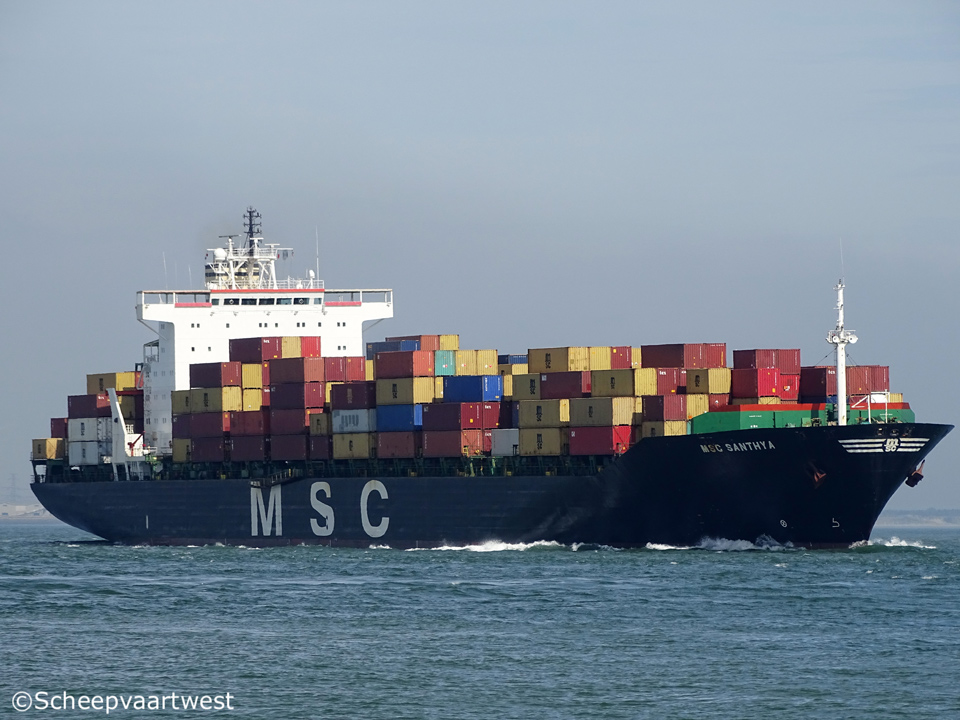

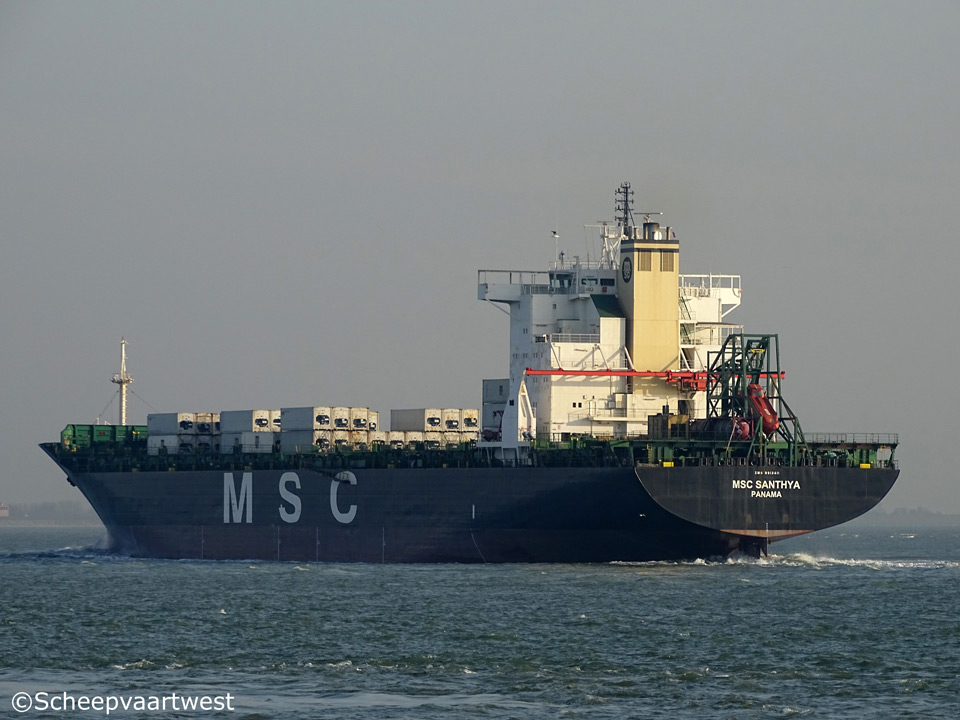

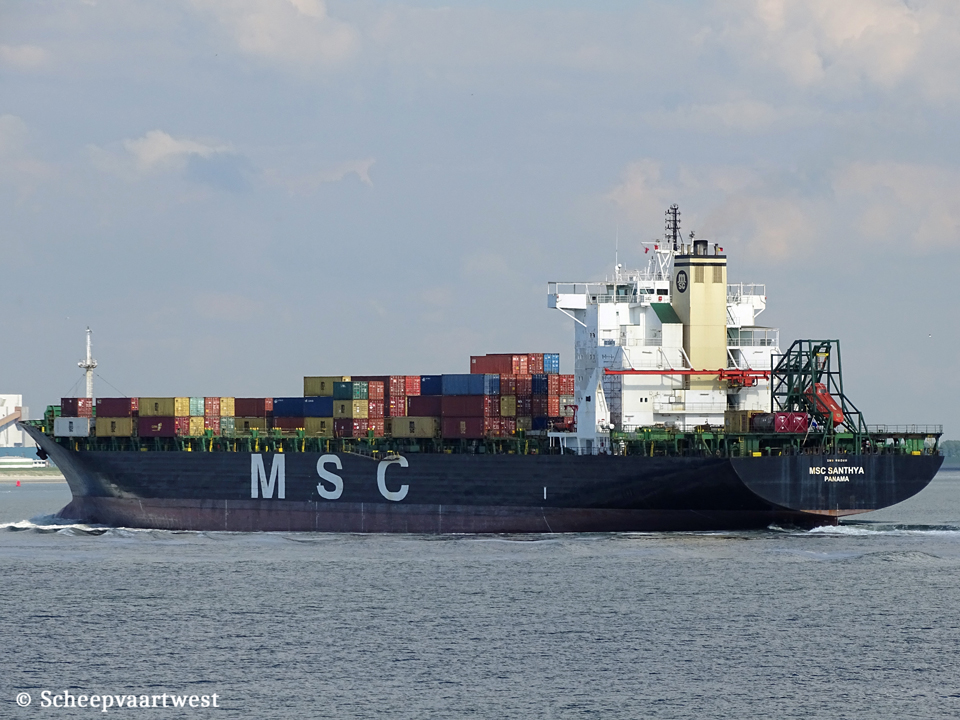

MSC SANTHYA |
|
Previous names |
1991 Built as: Vladivostok 05/1991 - 08/2000 DSR Senator 02/2000 - 05/2004 Baykal Senator |
|
Type |
Cellular containership |
|
IMO-number |
8913411 |
|
Call sign |
HPSP |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
37.071 t |
|
DWT |
Summer: 46.600 t |
|
NT |
15.889 t |
|
Number of 20ft containers |
In hold: 1.334 On deck: 1.671 Total: 3.005 |
|
Container capacity 14t |
2.480 |
|
Reefer capacity |
100 |
|
Length |
237,00 m overall 227,70 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
11,98 m |
|
Depth |
18,80 m |
|
Speed |
21,0 knots |
|
Built |
1991 |
|
Keel laid |
10/07/1990 |
|
Launch date |
03/02/1991 |
|
Date of completion |
27/05/1991 |
|
Builder |
Bremer Vulkan AG Schiffbau und Maschinenfabrik Lindenstr. 110 28755 Bremen Federal Republic of Germany |
|
Yard number |
90 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7L80MC - 2 stroke 7 cylinder 800 x 2.592 mm combustion engine Mcr 21.700 kW / 29.503 hp at 88,0 rpm Year of manufacture: 1991 Manufacturer: Bremer Vulkan AG Schiffbau und Maschinenfabrik Lindenstr. 110 28755 Bremen Federal Republic of Germany |
|
Propellers |
1x Solid propeller (keyless) - aft at 88,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 54,0 m² 1x Steam boiler,exhaust gas heated - 10,0 bar Heating surface: 320,0 m² Year of manufacture: 1990 Manufacturer: ThyssenKrupp Marine Systems GmbH Werftstr. 112-114 24143 Kiel Federal Republic of Germany |
|
Electric installations |
3x Plants each 450/220 V - 1.138 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 180 kVA |
|
Shaft generator |
1x 1.500 kVA / 1.200 kW |
|
Generators |
3x MAN-B&W 6L23/30H 4 stroke 6 cylinder 225 x 300 mm diesel engines each Mcr 950 kW connected with generators each 910,4 kW / 1.138 kVA - 440/220 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 180 kVA |
|
Compressed air receivers |
1x Receiver 250 litres - 40,0 bar 2x Receivers each 12.000 litres - 31,0 bar 1x Receiver 40 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS 1.300 kW / 1.737bhp, forward |
|
Number of holds |
7 |
|
Tank capacity |
HFO: 2.661 m³ Diesel oil: 189 m³ |
|
Anchor equipment |
3x Anchors weight each 11100 kg Chain length: 687,50 m Diameter: 81 mm |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Commercial manager |
MSC Mediterranean Shipping Co., SA Chemin Rieu, 12-14 1208 Geneva Switzerland |
|
ISM manager |
MSC Shipmanagement Ltd. MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Registered owner |
Santhya Maritime Inc. Care of MSC Mediterranean Shipping Co., SA Chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
13 September 2023 |
