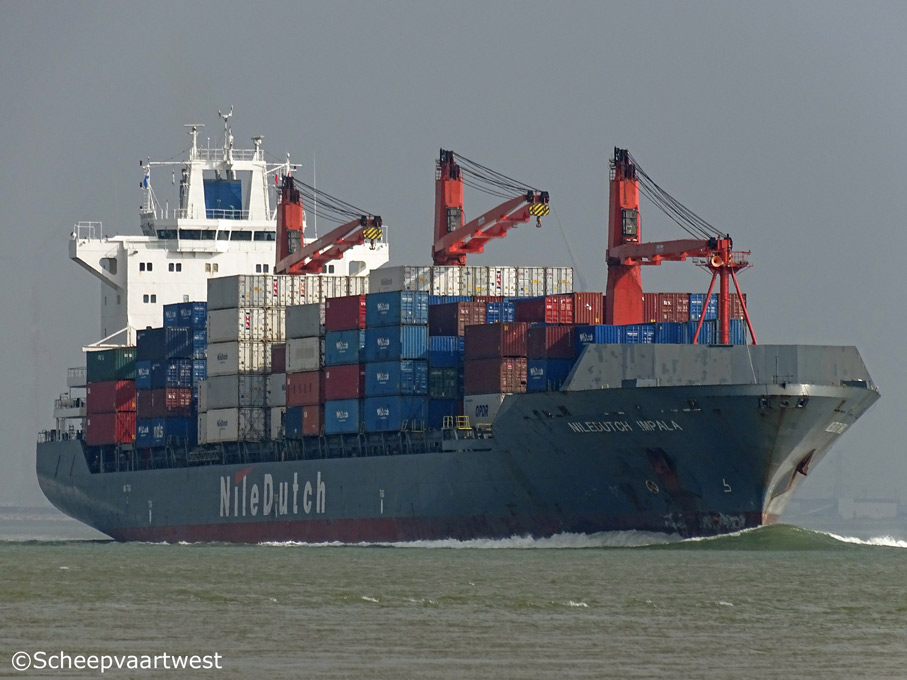

Westerschelde 11 March 2016 |
 |

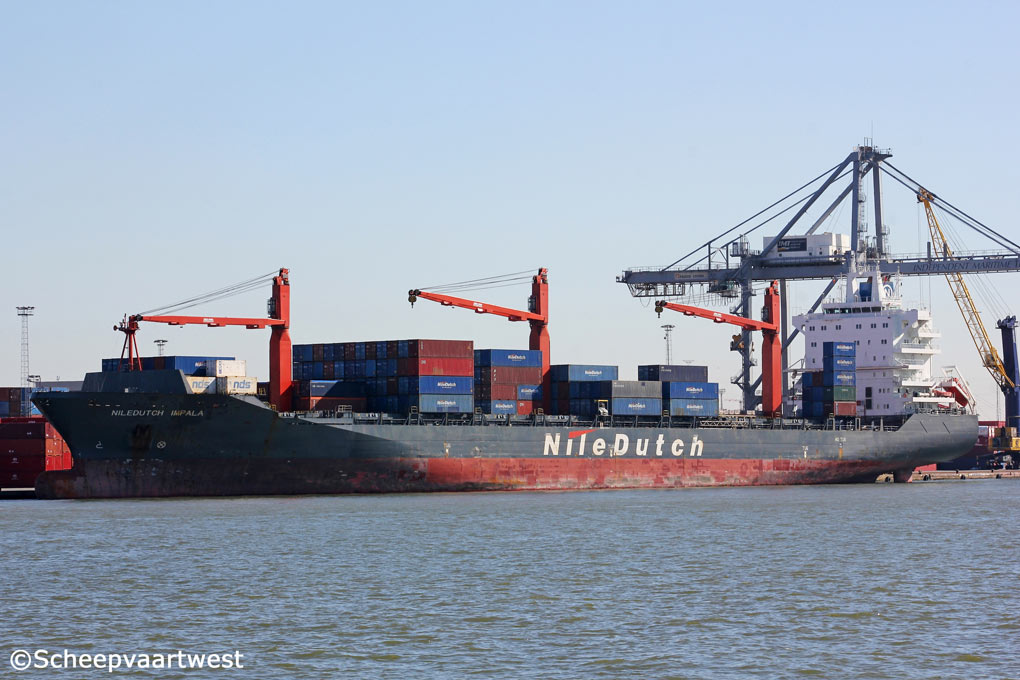

| Antwerpen 12/03/15 |
|
Name |
NILEDUTCH IMPALA |
|
Previous names |
2003 Launch as: Nordatlantic 2003 - 07/2004 Calapalos 07/2004 - 08/2005 Nordatlantic 08/2005 - 06/2010 Libra Niertoi 06/2010 - 05/2011 Nordatlantic 05/2011 - 04/2012 Atlantic |
|
Type |
Cellular containership |
|
IMO-number |
9241451 |
|
Call sign |
P3MU9 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
25.407 t |
|
DWT |
33.853 t |
|
NT |
12.733 t |
|
Number of 20ft containers |
On deck: 1.486 In hold: 992 Total: 2.478 |
|
Number of 40ft container |
On deck: 706 + 74 TEU In hold: 482 + 28 TEU Total: 1.188 + 102 TEU |
|
Container capacity 14t |
1.899 |
|
Reefer capacity |
400 whereof 100 in holds / 300 on deck |
|
Length |
207,30 m overall 196,75 m registered |
|
Breadth |
29,80 m registered |
|
Draught |
11,40 m |
|
Forecastle |
27,44 m |
|
Poop |
14,69 m |
|
Depth |
16,40 m moulded |
|
Speed |
Max: 21,0 knots Economic: 12,5 knots |
|
Built |
2003 |
|
Keel laid |
04/11/2002 |
|
Launch date |
29/03/2003 |
|
Date of completion |
16/05/2003 |
|
Builder |
Wadan Yards MTW GmbH Wendorfer Weg 5 23966 Wismar Federal Republic of Germany |
|
Yard number |
016 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hu Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm combustion engine engine 21.560 kW at 99,0 rpm Year of manufacture: 2002 Manufacturer: Wartsila Italia S.p.A. Bagnoli della Rosandra, 334 34018 San Dorligo della Valle Italy |
|
Propellers |
1x Solid propeller (keyless) aft at 99,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 18,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 262,0 m² Year of manufacture: 2002 Manufacturer: Alfa Laval Aalborg A/S Marine & Offshore Systems Marine Boilers & Heaters Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
3x Plants each 440/220 V - 1.880 kVA 1x Plant 440 V - 220 kVA 2x Plants each 24 V - 120 Ah 2x Plants each 24 V - 130 Ah |
|
Generators |
3x Wärtsilä 9L20C main diesel generatorsets each 1.880 kVA |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Batteries |
2x Batteries for automation each 130 Ah 2x Batteries for automation each 120 Ah |
|
Compressed air receivers |
2x Receivers each 6.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster BRUNVOLL - 1.100 kW, forward |
|
Number of holds |
5 |
|
Hold ventilation |
2x Air changes per hour, mechanical and natural |
|
Number of hatches |
10 Hatch 1: 12,64 x 15,36 m Hatch 2: 12,64 x 20,36 m Hatches 3-10: 12,64 x 25,35 m |
|
Hatch type |
Mac Gregor ponto0n type hatch covers, weathertight |
|
Tank capacities |
Fuel oil: 2.443 m³ MDO: 171 m³ Ballast water: 9.186 m³ Fresh water: 200 m³ Lub oil: 127 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 660,00 m Diameter: 76 mm |
|
Cargo gear |
3x Cranes - SWL 45,0 t each |
|
Crew size |
24 |
|
Manager |
Reederei Nord GmbH Astraturm, Zirkusweg 2 20359 Hamburg Federal Republic of Germany |
|
Operator |
NileDutch |
|
Registered owner |
Schifffahrtsgesellschaft MS "ATLANTIC" mbH & Co. KG Astraturm Zirkusweg 2 20359 Hamburg Federal Republic of Germany |
|
Renamed |
2018 Nordatlantic Portugal, Madeira - Call sign: CQAH3 Owner: Schifffahrtsgesellschaft MS "ATLANTIC" mbH & Co. KG Manager: Reederei Nord GmbH, Hamburg - Germany |
|
Latest data adjustment |
04 May 2021 |
