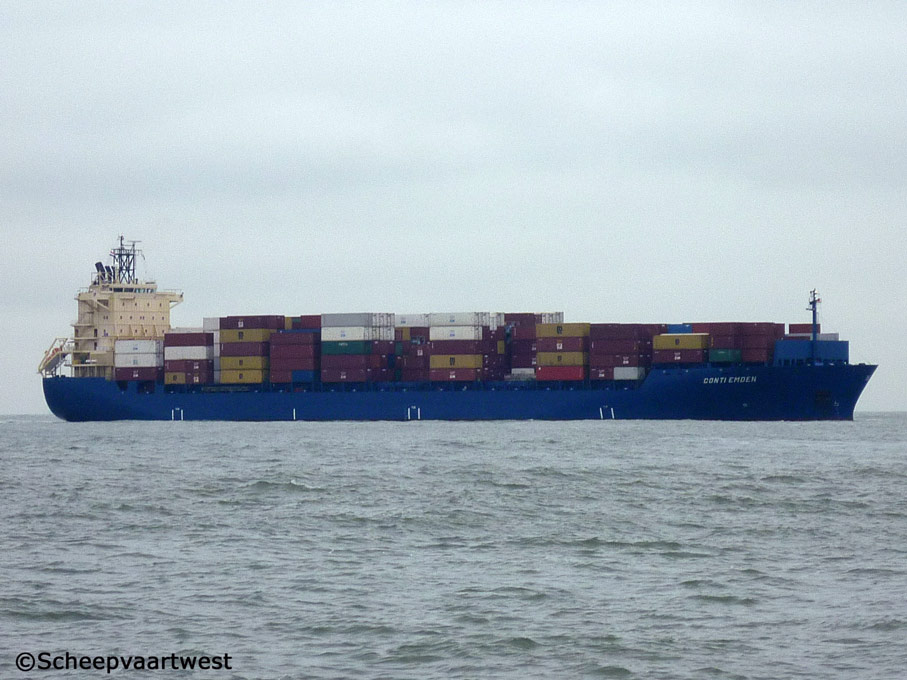

| Westerschelde 05 March 2012 |
|
Name |
CONTI EMDEN |
|
Previous names |
2006 Launch as Cinti Emden 14.06.2006 - 01.2008 ZIM Norfolk |
|
Type |
Cellular containership |
|
IMO-number |
9313242 |
|
Call sign |
A8IV9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
27.915 t |
|
DWT |
Summer: 38.103 t |
|
NT |
14.045 t |
|
Number of 20ft containers |
On deck: 1.596 In hold: 1.106 Total: 2.702 |
|
Container capacity 14t |
2.100 |
|
Reefer point |
500 whereof 74 in holds Type: CEE 17, 32 A 450 V, 60 cycles, 3 phases |
|
Length |
215,29 m overall 205,28 m between perpendiculars 205,93 m registered |
|
Breadth |
29,80 m moulded |
|
Draught |
11,55 m |
|
Forecastle |
38,70 m |
|
Poop |
15,73 m |
|
Freeboard |
4.990 mm |
|
Depth |
16,50 m to main deck |
|
Speed |
21,9 knots |
|
Built |
2006 |
|
Keel laid |
15.12.2004 |
|
Launch date |
09.12.2005 |
|
Date of completion |
07.04.2006 |
|
Builder |
Emder Werft und Dockbetriebe GmbH |
|
Yard number |
548 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7L70MC-C - 2 stroke 7 cylinder 700 x 2.360 mm diesel engine - 21.770 kW at 108,0 rpm Year of manufacture: 2005 Manufacturer: Hitachi Zosen Diesel and Engineering Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 108,0 rpm 5 blades |
|
Boilers |
Steam boiler, oil fired - 10,0 bar Heating Surface: 51,0 m² Steam boiler,exhaust gas heated - 10,0 bar Heating Surface: 377,0 m² Year of manufacture: 2005 Manufacturer: TPK Nova d.o.o. |
|
Electric installations |
3x Plants each 450/230 V - 2.150 kVA 1x Plant 450 V - 687 kVA 1x Plant 24 V - 110 Ah 2x Plants each 24 V - 146 Ah 2x Plants each 24 V - 190 Ah |
|
Generators |
3x MaK 6M25 main diesel generatorsets each 2.150 kVA / 1.720 kW at 720 rpm |
|
Emergency + harbour gen. |
1x MAN diesel generatorset 687 kVA / 550 kW at 1.800 rpm |
|
Batteries |
1x Battery for automation 110 Ah |
|
Compressed air receivers |
2x Receivers each 7.500 litres - 30,0 bar 1x Receiver 1.000 litres - 10,0 bar 1x Receiver 60 litres - 10,0 bar 1x Receiver 30 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 1200 kW, forward electrically driven |
|
Number og hatches |
11 Hatches covered by steel pontoons up to 35 t piece weight All pontoons can be worked independently without sequence. Dimensions of hatches: No. 1 (twin hatch) 12,80 × 15,53 m No. 2 - 11 (triple hatches) 12,80 × 25,68 m |
|
Tank capacities |
HFO: 2.875 m³ MDO: 304 m³ Ballast: 11.315 m³ |
|
Anchor equipment |
3x Anchors weight each 9.900 kg Chain length: 660.00 m |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
Manager |
Martime Gesellschaft für Maritime Dienstleistungen mbH |
|
Registered owner |
Conti 151. Container Schiffahrts-GmbH & Co. KG MS "CONTI EMDEN" |
|
Latest data adjustment |
14 March 2014 |
