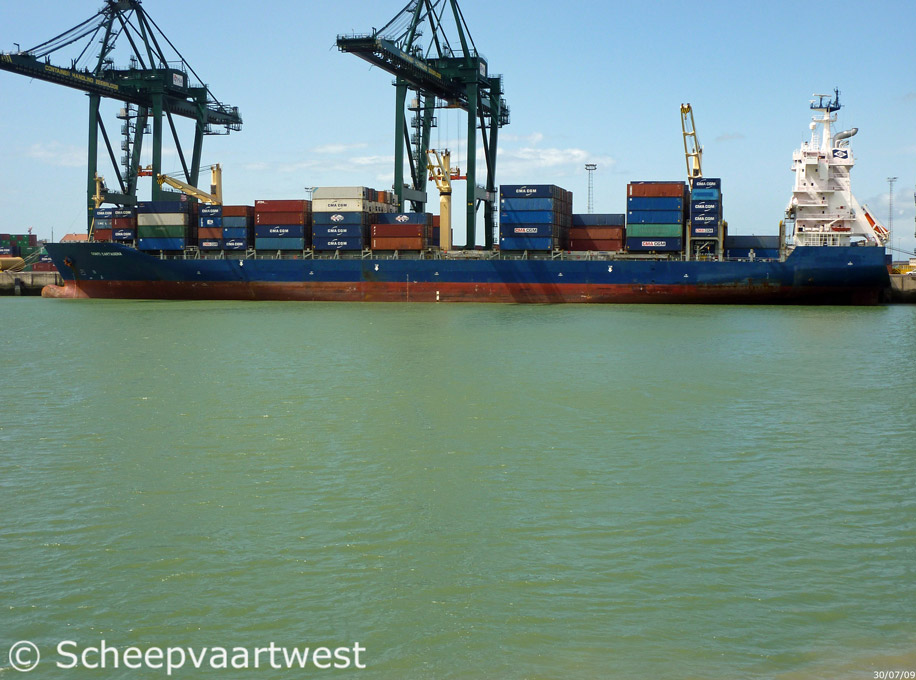

| Zeebrugge 30 July 2009 |
|
Name |
CONTI CARTAGENA |
|
Previous name |
Launch as: Conti Cartagena 1997 Sea-Land Argentina 2000 MSC Provence 2001 Conti Cartagena 2003 CMA CGM Eagle 2004 Conti cartagena 2005 Cap Pilar 2007 MOL Splendor |
|
Type |
Cellular Containership |
|
IMO-number |
9154206 |
|
Call sign |
A8UW7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
1997 - 2010 Germany, Hamburg - Call sign: DGVN |
|
GT |
25.996 t |
|
DWT |
33.985 t |
|
NT |
13.352 t |
|
Number of 20ft containers |
2.456 |
|
Reefer capacity |
300 |
|
Length |
208,00 m overall 196,00 m between perpendiculars 197,97 m registered |
|
Breadth |
29,80 m over all |
|
Draught |
Summer: 11,40 m |
|
Forecastle |
28,44 m |
|
Poop |
14,80 m |
|
Freeboard |
5.000 mm |
|
Depth |
16,40 m moulded |
|
Speed |
21,0 knots |
|
Built |
1997 |
|
Keel laid |
19/05/1997 |
|
Launch date |
12/09/1997 |
|
Date of completion |
04/12/1997 |
|
Builder |
Daewoo Heavy Industries Ltd. Okpo Yard 1, Ajoo-dong Koje-city , Kyungnam 656-714 Republic of Korea |
|
Yard number |
4053 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 6RTA2U - 2 stroke single acting 6 cylinder 720 x 2.500 mm combustion engine 17.940 kW / 24.391 hp Year of manufacture: 1997 Manufacturer: Korea Heavy Industries & Construction Co., Ltd. 555, Kyuigok-dong Changwon 641-792 Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
Steam boiler, oil fired / exhaust gas heated - 6,5 bar Heating surface: 44,0 m² Heating surface: 260,0 m² Year of manufacture: 1997 Manufacturer: Howaldtswerke-Deutsche Werft GmbH Werftstr. 112-114 24143 Kiel Federal Republic of Germany |
|
Electric installations |
1x 440/220 V - 4.416 kVA 1x 440 V - 625 kVA |
|
Generators |
3x Main diesel generatorsets each 1.472 kVA |
|
Emergency generator |
1x Diesel generatorset 625 kVA |
|
Compressed air receivers |
2x Receivers each 7.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar 1x Receiver 150 litres - 8,0 bar |
|
Bow thruster |
1x Variable pitch propeller LIPS - 1.100 kW, forward |
|
Cargo hold capacity |
Grain: 49.158 m³ |
|
Tank capacities |
Water ballast: 10.749 m³ Bunker: 2.400 t |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 660,00 m Diameter: 76 mm |
|
Cargo gear |
3x Deck cranes - SWL 40,0 t each |
|
Crew |
21 |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG Harburger Str. 47-51 21614 Buxtehude Federal Republic of Germany |
|
Operator |
CMA CGM |
|
Owner |
Conti Castillo Schiffahrts-GmbH & Co. KG MS "CONTI CARTAGENA" Paul-Wassermann-Str. 5 81829 München Federal Republic of Germany |
|
Renamed |
2014 MSC Ishyka Liberia, Monrovia - Call sign: A8UW7 Owner: Cazalet Investments Corporation Manager: MSC Shipmanagement Limited |
|
Latest data adjustment |
31 January 2024 |
