| Westerschelde 24 April 2020 |
|
Name |

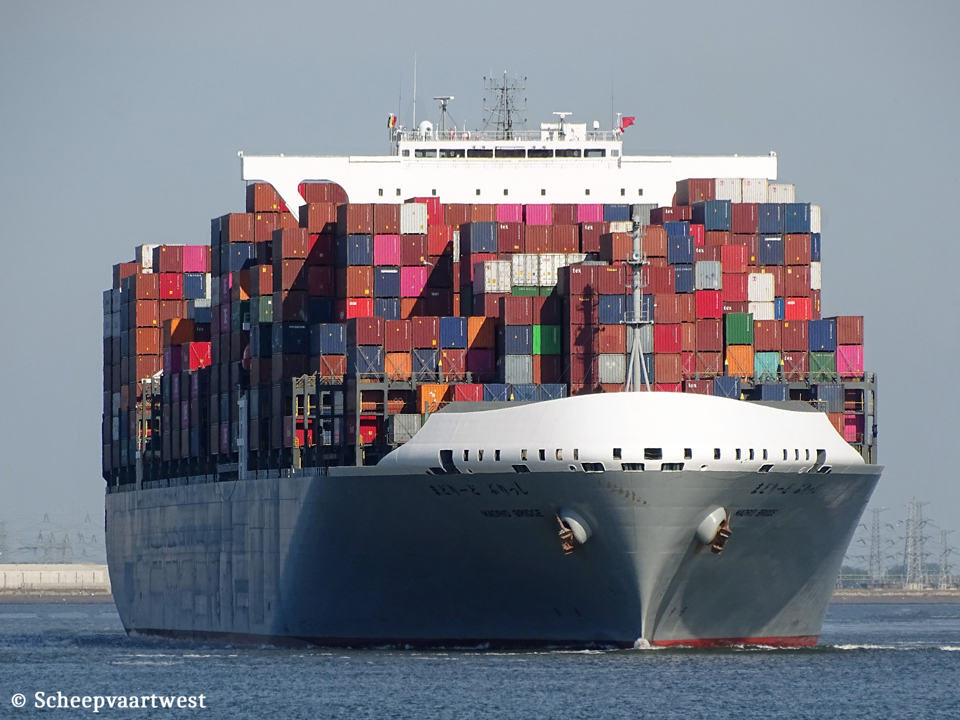

MADRID BRIDGE |
|
Type |
Cellular containership Millau-Bridge-Typ |
|
IMO-number |
9805453 |
|
Call sign |
7KBO |
|
Flag |
Japan |
|
Port of registry |
Kobe |
|
GRT |
152.068 t |
|
DWT |
146.778 t |
|
NRT |
63.263 t |
|
Number of 20ft containers |
13.900 |
|
Length |
365,94 m overall |
|
Breadth |
51,20 m moulded |
|
Draught |
Summer: 15,52 m |
|
Moulded L x B x D |
350,00 x 51,20 x 23,20 m |
|
Registered L x B x D |
356,38 x 51,20 x 25,83 m |
|
Freeboard |
Summer: 7.716 mm |
|
Depth |
23,20 m moulded |
|
Speed |
Max: 24,9 knots |
|
Built |
2018 |
|
Keel laid |
15/09/2015 |
|
Launch date |
09/11/2017 |
|
Date of completion |
13/04/2018 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Hiroshima Shipyard Hiroshima Japan |
|
Yard number |
2573 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsu/MAN-B&W 11S90ME-C9.2 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine 48.900 kW / 66,485 hp at 76,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.050 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,8 MPa Evaporation: 12,95 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
5x Generatorsets total 17.800 kVA |
|
Tank capacities |
Fuel oil: 10.411,2 m³ Fresh water: 429,3 m³ |
|
Manager |
K-Line - Kawasaki Kisen Kaisha Pte, Ltd. 9-00, The Octagon, 105, Cecil Street Singapore 069534 Republic of Singaporer |
|
Owner |
Kawasaki Kisen Kaisha, Ltd. Iino Building, 1-1, Uchisaiwai-cho 2-chome, Chiyoda-ku, Tokyo, 100-8540 Japan |
|
Renamed |
One Madrid Japan, Kobe - Call sign: 7KBO Registered owner: TLC Oak Ltd. / Costa Leasing Co., Ltd. / FS Juliet Leasing Ltd. Manager: "K" Line Ship Management (Singapore) Pte Ltd. |
|
Latest data adjustment |
08 March 2024 |
