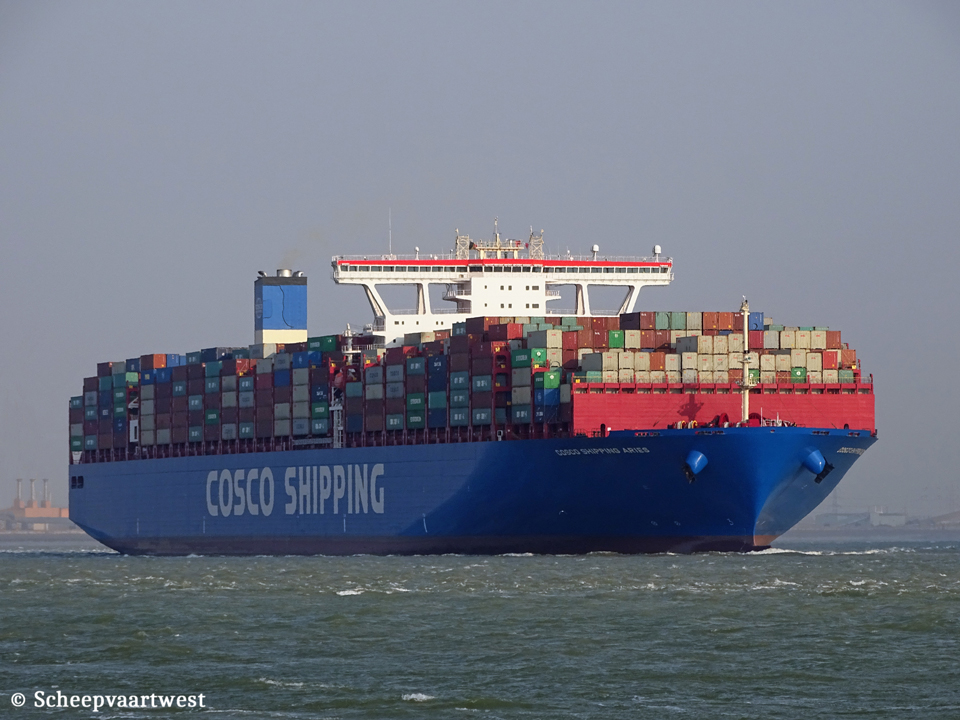

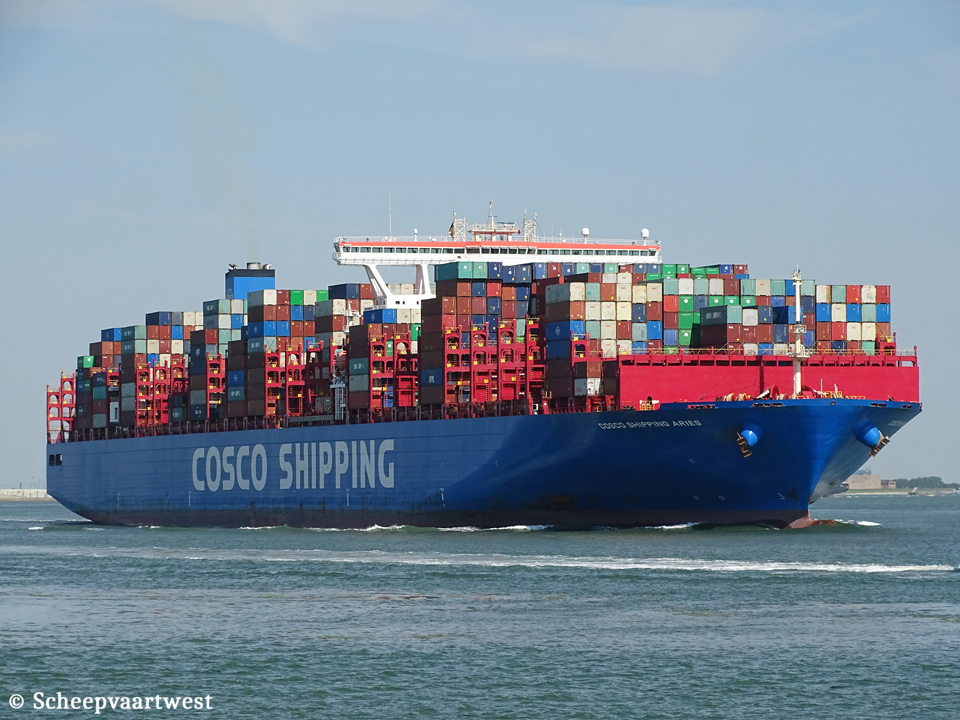

COSCO Shipping Aries IMO 9783497 06
Westerschelde 24 June 2020

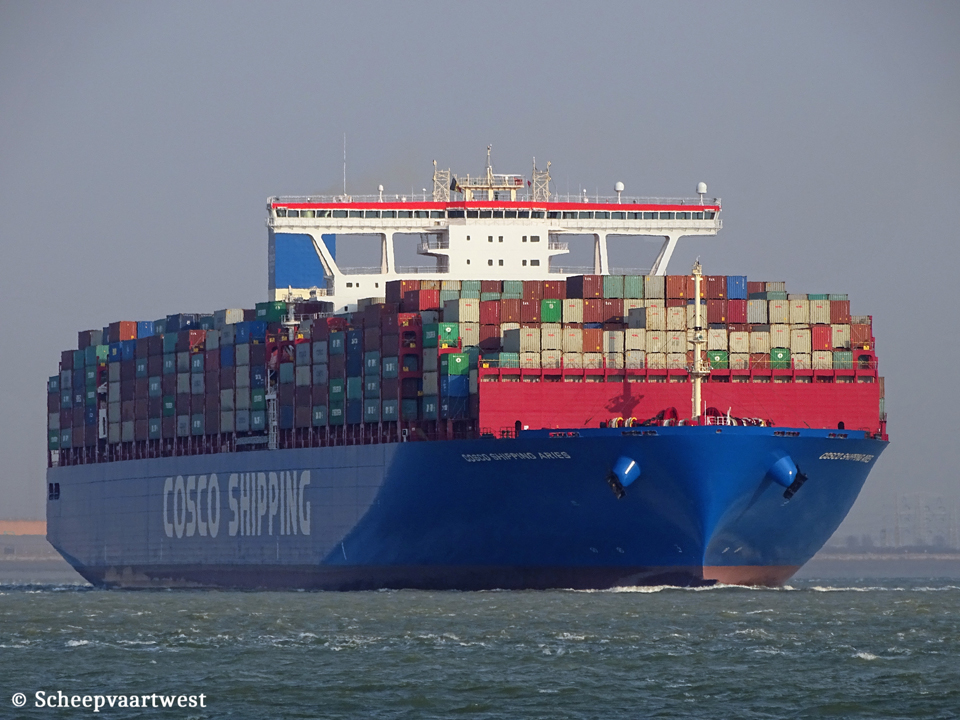

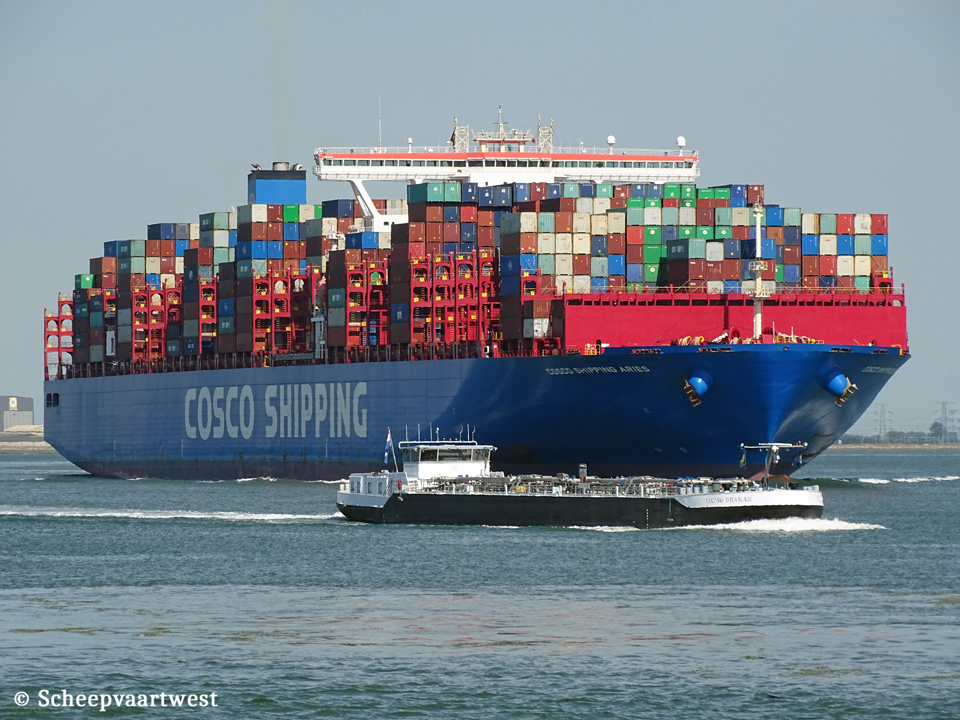

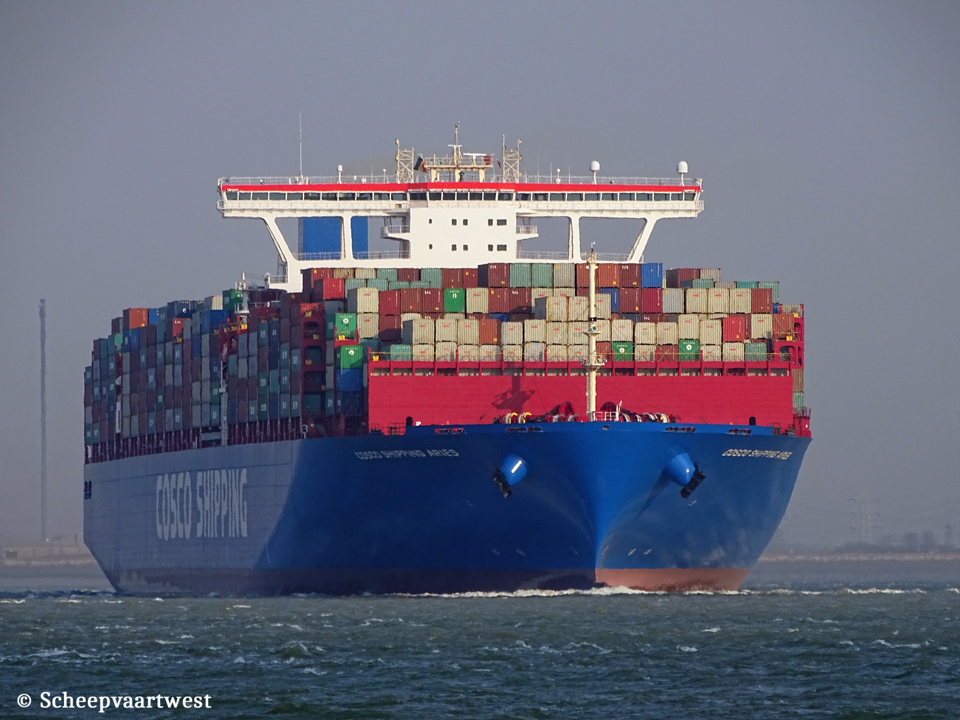

COSCO Shipping Aries IMO 9783497 05   COSCO Shipping Aries IMO 9783497 01   COSCO Shipping Aries IMO 9783497 02   COSCO Shipping Aries IMO 9783497 04
Westerschelde 24/06/20   Westerschelde 28/02/18   Westerschelde 28/02/18   Westerschelde 28/02/18


Name

COSCO SHIPPING ARIES

Type

Cellular containership

IMO-number

9783497

Call sign

VRRB4

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

196.670 t

DWT

197.021 t

NT

92.071 t

Number of 20ft containers

20.038

Container capacity 14t

13.400

Reefer capacity

1.000

Length

400,00 m overall

382,00 m between perpendiculars

Breadth

58,60 m moulded

58,76 m extreme

Draught

Summer: 16,00 m

Deck house

7,20 m

Freeboard

7.351 mm

Depth

30,70 m moulded

Speed

Service: 19,0 knots

Max: 23,1 knots

Built

2018

Keel laid

07/12/2015

Delivery data

15/01/2018

Builder

Nantong COSCO KHI Ship Engineering Co., Ltd.

China

Yard number

NE 231

Hull material

Steel

Bulkheads

13

Continuous decks

1

Main engine

Hyundai/MAN-B&W 11S90ME-C10 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine Mcr 54.950 kW / 74.710 hp at 72,0 rpm

Build: 13/04/2017

Builder: Hyundai Heavy Industries Co., Ltd. - South Korea

Propellers

1x Fixed pitch propeller - aft at 72,0 rpm

Boilers

1x Exhaust gas economiser

1x Water tube auxiliary boiler

Builder: Alfa Laval Qingdao Ltd.

Generators

2x Wärtsilä 7L32 - 4 stroke 7 cylinder 320 x 400 mm diesel engines each Mcr 3.360 kW connected with generators each 3.207 kW - 6.600 Volt 60 Hz

2x Wärtsilä 9L32 - 4 stroke 7 cylinder 320 x 400 mm diesel engines each Mcr 4.320 kW connected with generators each 4.107 kW - 6.600 Volt 60 Hz

Bow thruster

1x Fixed pitch thruster 1.500 kW / 2.038 bhp, forward

Number of holds

10

Tank capacities

Ballast: 64.323 m³

Cargo gear

Gearless

ISM manager

Shanghai Ocean Shipping Co., Ltd.

Shanghai

China

Operator

COSCO Shipping Lines Co., Ltd.

COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu, Shanghai, 200080

China

Registered owner

COSCO Grand Shipping Ltd. - Hong Kong

Care of COSCO Shipping Lines Co. Ltd.

Shanghai

China

Latest data adjustment

15 February 2024
