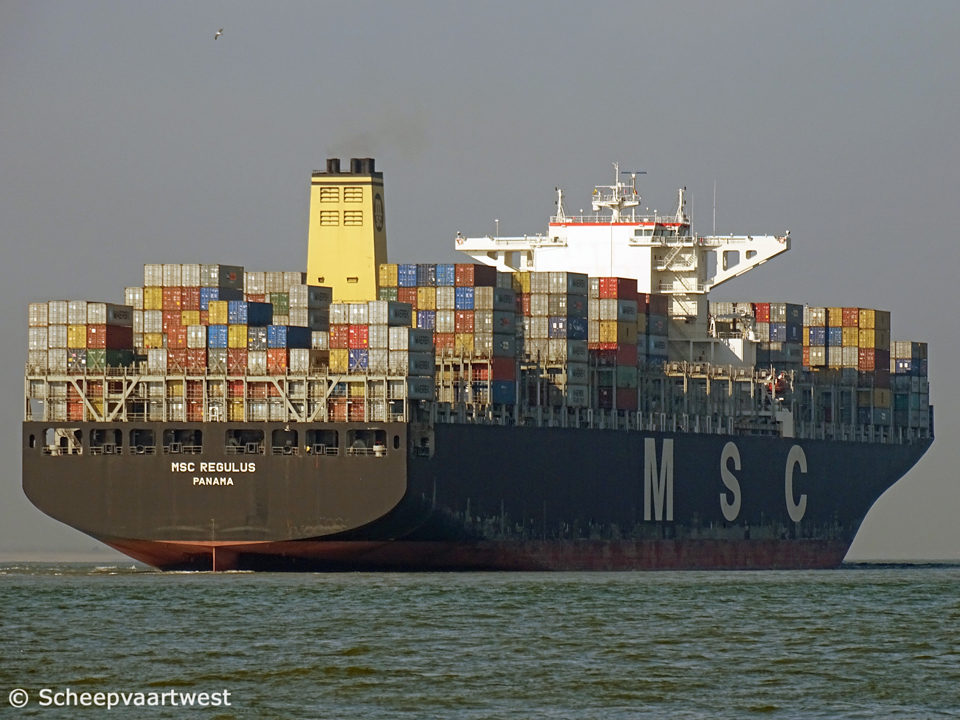

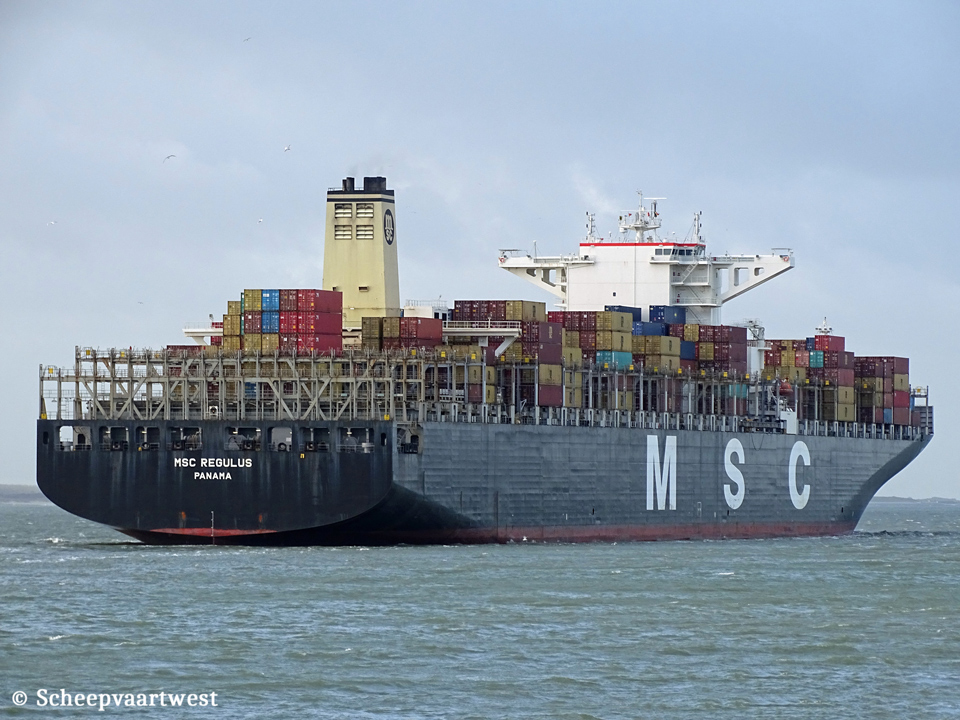

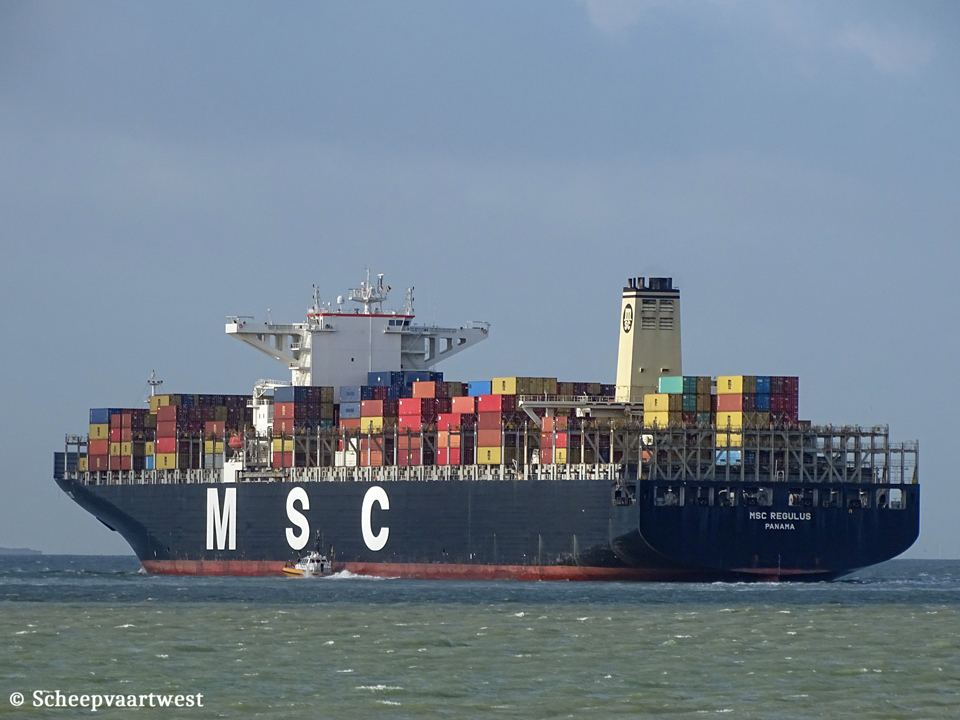

Westerschelde 18 February 2020 |
 |
 |
|
| Westerschelde 18/02/20 | Westerschelde 14/04/16 | |
|
Name |
MSC REGULUS |
|
Previous names |
04/ 2012 - 05/2012 E.R. Regulus |
|
Type |
Cellular containership |
|
IMO-number |
9465291 |
|
Call sign |
3EYG3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
141.635 t |
|
DWT |
Summer: 140.951 t |
|
NT |
63.825 t |
|
Number of 20ft containers |
On deck: 7.074 In hold: 6.028 Total: 13.102 |
|
Container capacity 14t |
8.921 |
|
Reefer capacity |
1.600 |
|
Length |
366,37 m overall 349,97 m between perpendiculars |
|
Breadth |
48,26 m extreme |
|
Draught |
Summer: 16,00 m |
|
Depth |
29,85 m |
|
Speed |
Max: 24,7 knots |
|
Built |
2012 |
|
Keel laid |
07/11/2011 |
|
Launch date |
17/02/2012 |
|
Date of completion |
21/08/2012 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. 1, Cheonha-dong, Dong-gu Ulsan, 682-792 Kyongsang-namdo Republic of Korea |
|
Yard number |
2165 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Main engine |
1x MAN-B&W/Hyundai 12K98ME - 2 stroke 12 cylinder 980 x 2.660 mm combustion engine 72.760 kW Manufacturer: Hyundai Heavy Industries Co., Ltd. 1, Jeonha-dong, Dong-gu Ulsan ,682-792 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Steam boiler, oil fired - 7,85 bar Heating surface: 73,4 m² 1x Steam boiler, exhaust gas heated - 9,81 bat Heating surface: 911,4 m² Year of manufacture: 2011 Manufacturer: KangRim Heavy Industries Co., Ltd. 40, Wongnam-dong Changwon ,642-290 Kyongsang-namdo Republic of Korea |
|
Electric installations |
4x Plants each 6.600 V with 4.426,7 kVA 1x Plant 450 V - 370 kVA 2x Plants each 12 V - 3 Ah 2x Plants each 24 V - 200 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V - 200 Ah |
|
Generators |
4x Hyundai/Himsen 7H32/40 main diesel generatorsets each 3.540 kW / 4.426,7 kVA |
|
Emergency generator |
1x Scania DC 123 54A diesel generatorset 370 kVA |
|
Compressed air receivers |
2x Receivers each 16.000 litres - 32,4 bar 1x Receiver 500 litres - 32,4 bar 1x Receiver 300 litres - 7,7 bar 1x Receiver 2.000 litres - 7,56 bar |
|
Bow thruster |
2x Transverse thruster each 1.800 kW, forward |
|
Number of holds |
10 |
|
Tank capacities |
Ballast: 37.218,2 m³ |
|
Anchor equipment |
3x Anchors weight each 24.500 kg Length: 770,00 m Diameter: 122 mm |
|
Cargo gear |
Gearless |
|
Commercial manager |
MSC Mediterranean Shipping Co. chemin Rieu, 12-14 1208 Geneva Switzerland |
|
ISM manager |
Mediterranean Shipping Company S.r.l. Via Francesco Ciampa 29 80063 Piano di Sorrento NA Italy |
|
Registered owner |
CL Mars Ltd. Care of MSC Mediterranean Shipping Co., SA chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
26 November 2021 |
