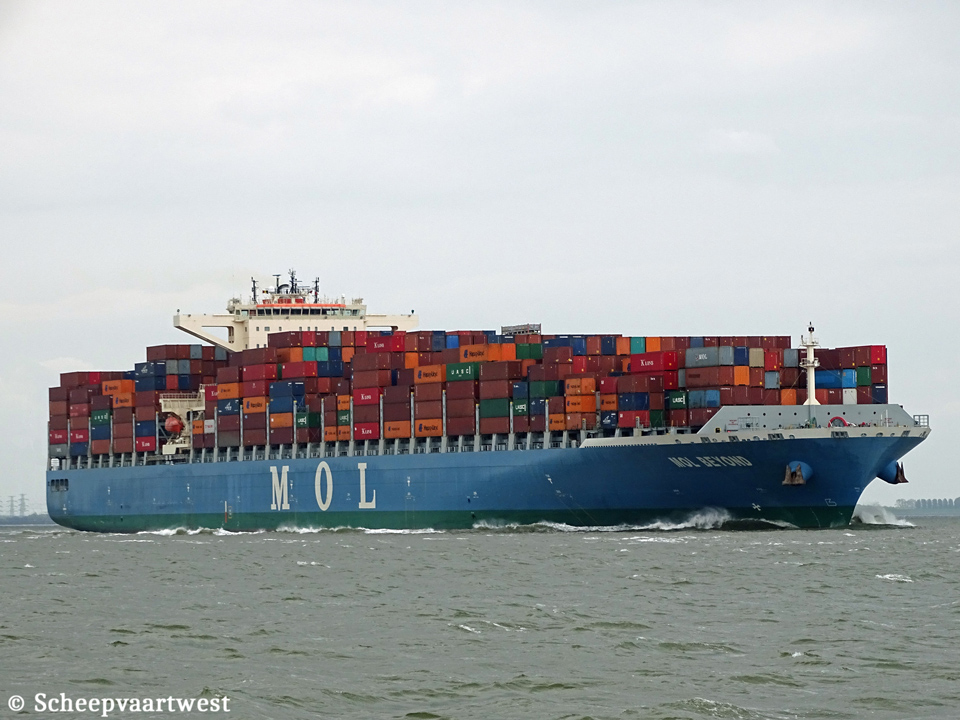

Westerschelde 28 April 2018 |
|
Name |
MOL BEYOND |
|
Type |
Cellular containership |
|
IMO-number |
9739678 |
|
Call sign |
VRPN8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
113.042 t |
|
DWT |
119.368 t |
|
NT |
59.440 t |
|
Number of 20ft containers |
10.100 |
|
Container capacity 14t |
8.059 |
|
Length |
336,94 m overall 320,34 m between perpendiculars |
|
Breadth |
48,29 m extreme 48,18 m moulded |
|
Draught |
Summer: 15,52 knots |
|
Depth |
27,20 m |
|
Speed |
Max: 23,3 knots |
|
Built |
2016 |
|
Keel laid |
27/06/2014 |
|
Launch date |
30/12/2015 |
|
Date of completion |
28/04/2016 |
|
Builder |
Jiangsu Yangzi Xinfu Shipbuilding Co., Ltd. China |
|
Yard number |
YZJ2014-1107 |
|
Hull material |
Steel |
|
Main engine |
MAN-B&W 10S90ME-C9.2 - 10 cylinder combustion engine 58.100 kW at 84,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller 6 blades Manufacturer: Nakashima |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated XS-7V 1x Auxiliary boiler, oil/gas fired Mission OS-TCi-5500 Manufacturer: Alfa Laval Aalborg A/S |
|
Generators |
2x Daihatsu 8DC-32 main diesel generatorsets each 3.690 kW 2x Daihatsu 6DC-32 main diesel generatorsets each 2.648 kW Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division |
|
Emergency generator |
1x Doosan V/AD 180 diesel generatorset |
|
Tank capacities |
Ballast: 31.530,1 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 114 mm |
|
Cargo gear |
Gearless |
|
Manager |
Seaspan Ship Management, Ltd. Granville Street Vancouver Canada |
|
Operator |
MOL - Mitsui Osk Line |
|
Registered owner |
FPG Shipholding Panama 25 S.A. |
|
Latest data adjustment |
15 January 2021 |
