Westerschelde 11 June 2020 |
|
Name |

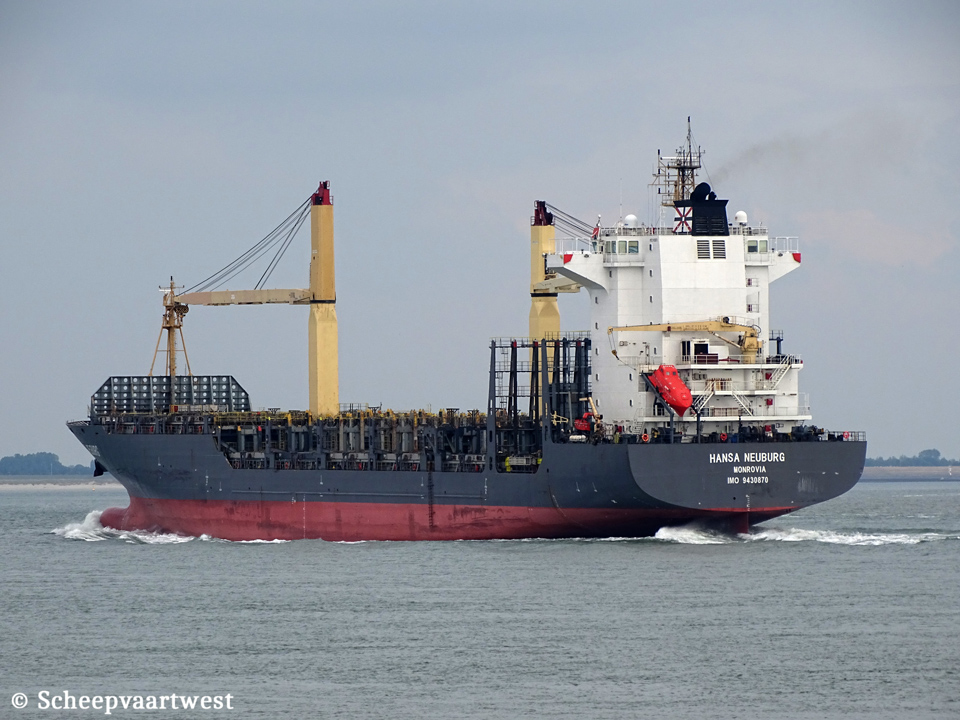

HANSA NEUBURG |
|
Previous names |
2010 - 2018 Corvette |
|
Type |
Cellular containership |
|
IMO-number |
9430870 |
|
Call sign |
D5KB8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2010 - 2015 Antigua & Barbuda , St. John’s - Call sign: V2QC5 |
|
GT |
18.326 t |
|
DWT |
Summer: 23.295,5 t |
|
NT |
10.714 t |
|
Number of 20ft containers |
In hold: 700 On deck: 1.036 Total: 1.736 |
|
Number of 40ft containers |
In hold: 388 On deck: 520 Total: 1.290 |
|
Container capacity 14t |
1.330 |
|
Reefer capacity |
300 - Whereof 80 under deck |
|
Length |
175,56 m overall 164,95 m between perpendiculars |
|
Breadth |
27,68 m extreme 27,40 m moulded |
|
Draught |
Summer: 10,90 m |
|
Depth |
14,30 m |
|
Speed |
Maw: 20,6 knots |
|
Built |
2010 |
|
Keel laid |
10/07/2009 |
|
Launch date |
23/09/2009 |
|
Date of completion |
31/03/2010 |
|
Delivery |
07/04/2010 |
|
Builder |
Guangzhou Wenchong Shipyard Co. Ltd. Guangzhou China |
|
Yard number |
GWS364 |
|
Hull material |
shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Hudong/MAN-B&W 7S60MC-C Mark 8 - 2 stroke 7 cylinder combustion engine 16.660 at 105,0 rpm Transmission: main propulsion acts directly on the propellershaft Starter type: compressed air direct |
|
Propellers |
1x Solid propeller (keyless) - aft at 105,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 13,35 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface :224,0 m² Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
3x Plant each 1.475 kVA 1x Plant 213 kVA 1x Plant 24 V - 12 Ah 1x Plant 24 V - 20 Ah 1x Plant 24 V - 70 Ah 1x Plant 24 V - 80 Ah 1x Plant 24 V - 120 Ah 1x Plant 24 V - 200 Ah |
|
Generators |
3x MAN-B&W 6L28/32H main diesel generatorsets each 1.1475 kVA |
|
Emergency generator |
1x MAN D2866 TE diesel generatorset 213 kVA |
|
Batteries |
2x Batteries for automation each 200 Ah 2x Batteries for UPS radio each 120 Ah 2x Batteries for start emergency engine each 80 Ah 2x Batteries for automation each 70 Ah 2x Batteries for automation each 20 Ah 2x Batteries for automation each 12 Ah |
|
Compressed air receivers |
2x Receivers each 6.000 litres - 30,0 bar 2x Receivers each 30 litres - 30,0 bar 1x Receiver 350 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster 900 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
27.172 m³ |
|
Number of hatches |
8 Hatch 1: 12,80 x 19,85 m Hatch 2: 12,84 x 24,93 m Hatches 3 - 8: 12,80 x 24,93 m |
|
Hatch type |
Pontoon hatch covers |
|
Tank capacities |
Ballast: 7.915,17 m³ Fuel: 2.044 t Fresh water: 109,0 m³ |
|
Anchor equipment |
3x Anchors weight each 7.800 kg Length: 632,50 m Diameter: 68 mm |
|
Lifting equipment |
1x Crane - SWL 4,0 t 1x Crane - SWL 6,0 t |
|
Cargo gear |
2x Electro-hydraulic cranes - SWL 45,0 t Outreach: 28,00 m |
|
Crew size |
30 |
|
Manager |
Leonhardt & Blumberg Shipmanagement GmbH & Co. KG Neumühlen 13 22763 Hamburg Germany |
|
Registered owner |
Schiffahrts-Gesellschaft "HANSA NEUBURG" mbH & Co. KG |
|
Latest data adjustment |
06 December 2020 |
