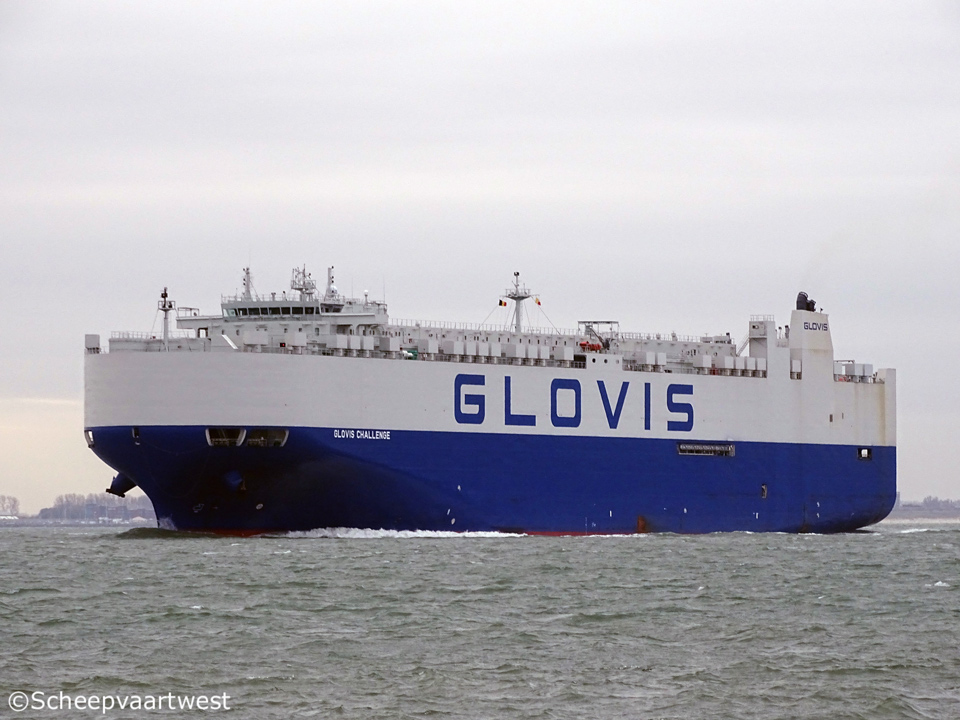

Glovis Challenge 01

Westerschelde 14 November 2017

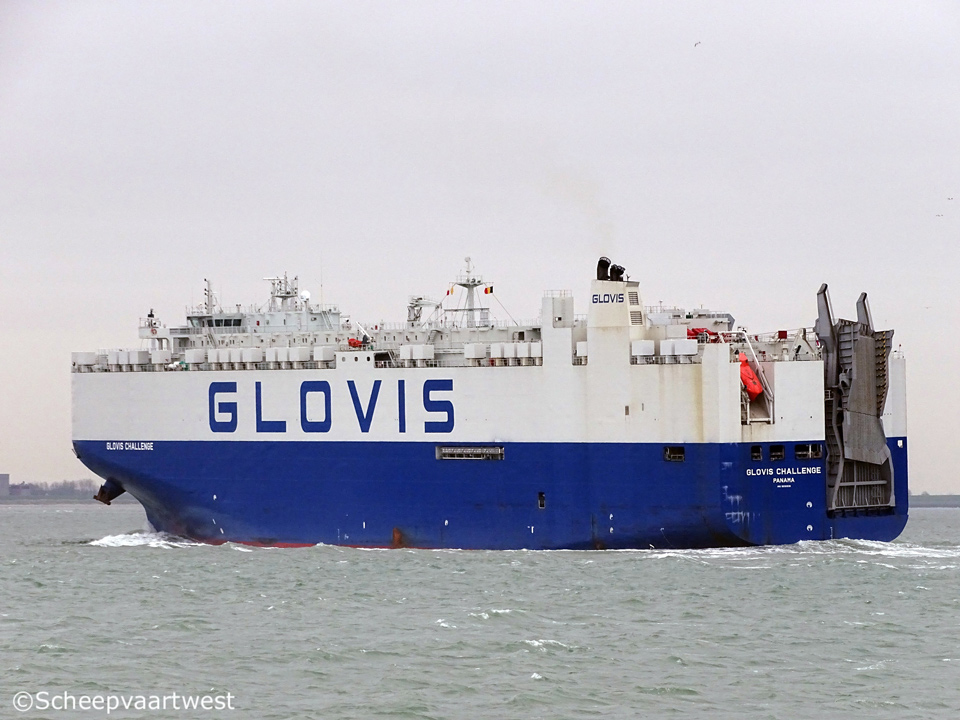

Glovis Challenge 02
Westerschelde 14/11/17



Name

GLOVIS CHALLENGE

Type

Roll-On/Roll-Off carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9590591

Call sign

9EUM9

Flag

Republic of Panama

Port of registry

Panama City

GT

58.288 t

DWT

Summer: 20.895 t

NT

20.557 t

Length

199,98 m overall

Breadth

32,26 m

Draught

10,01 m

Reg. dimensions L x B x D

192,87 x 32,26 x 20,11 m

Rule dimensions L x B x D

188,60 x 32,26 x 14,30 m

Freeboard

Summer: 3.020 mm

Depth

20,11 m registered

Speed

20,4 knots

Built

2012

Keel laid

13/12/2011

Launch date

17/02/2012

Date of completion

17/04/2012

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

H2400

Hull material

Steel

Watertight bulkheads

3

Main engine

1x MAN-B&W-HHI 6S60MC-C8 - 2 stroke single acting 6 cylinder 600 x 2.400 combustion engine 13.570 kW at 104,0 rpm

Built: 12/2011

Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler WTB - 8,80 bar

Heating surface: 24,6 m²

2x Economizer EGE - 11,7 bar

Heating surface: 267 m²

Built: 10/2011

Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon, South Korea

Generators

3x Main diesel generatorsets total 1.500 kVA - 450 Volt

Bow thruster

1x 1.345 kW

Number of cars

6.450

Tank capacities

Fuel oil: 3.719,1 m³

Fresh water: 303,8 m³

Water ballast: 10.457,4 m³

Manager

Hyundai Glovis Co., Ltd.
Seoul
South Korea

Technical manager

G-Marine Service Co., Ltd.

Registered owner

GL NV2 Shipping, Inc.

Latest data adjustment

29 April 2018
