Westerschelde 27 April 2019 |
 |
 |
 |
 |
 |
||||
| Westerschelde 27/04/19 | Westerschelde 10/07/17 | Westerschelde 03/07/16 | Westerschelde 18/09/18 | Westerschelde 13/12/18 |
|
Name |

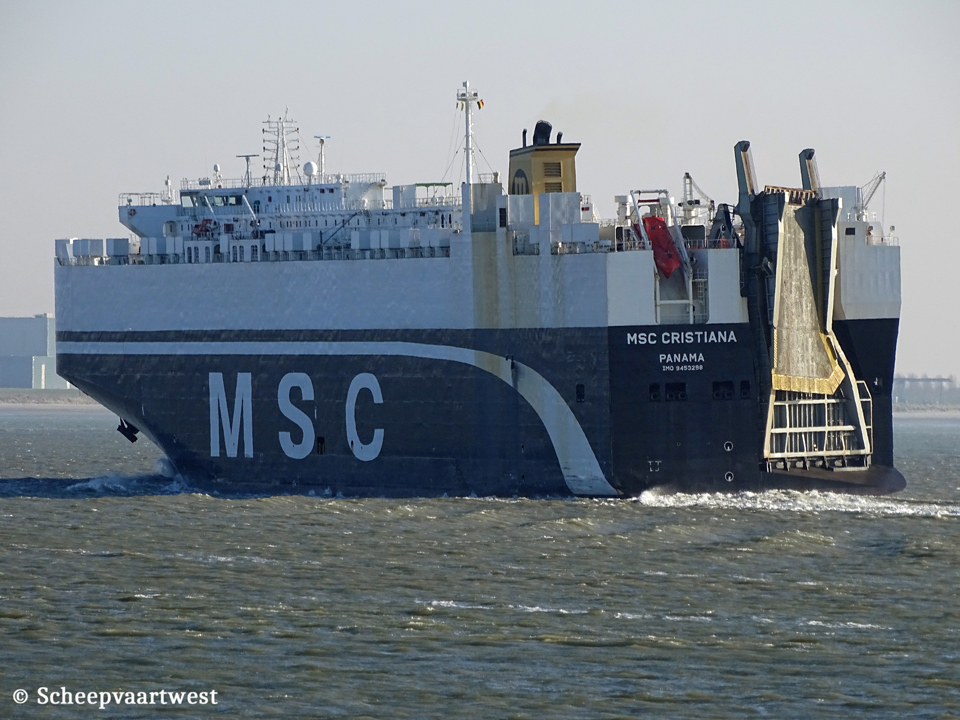

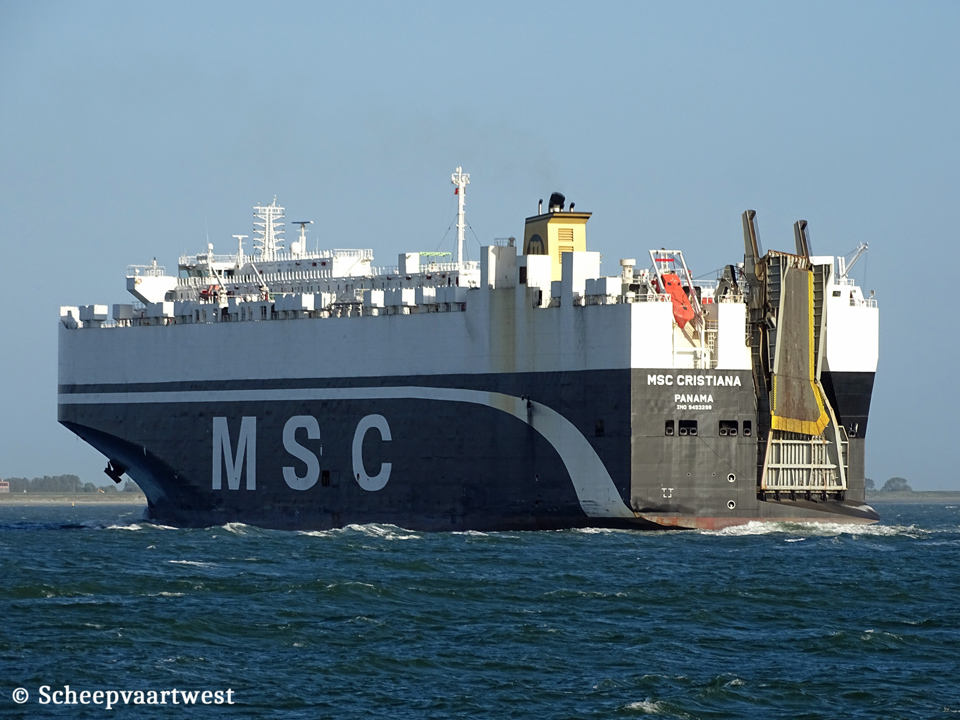

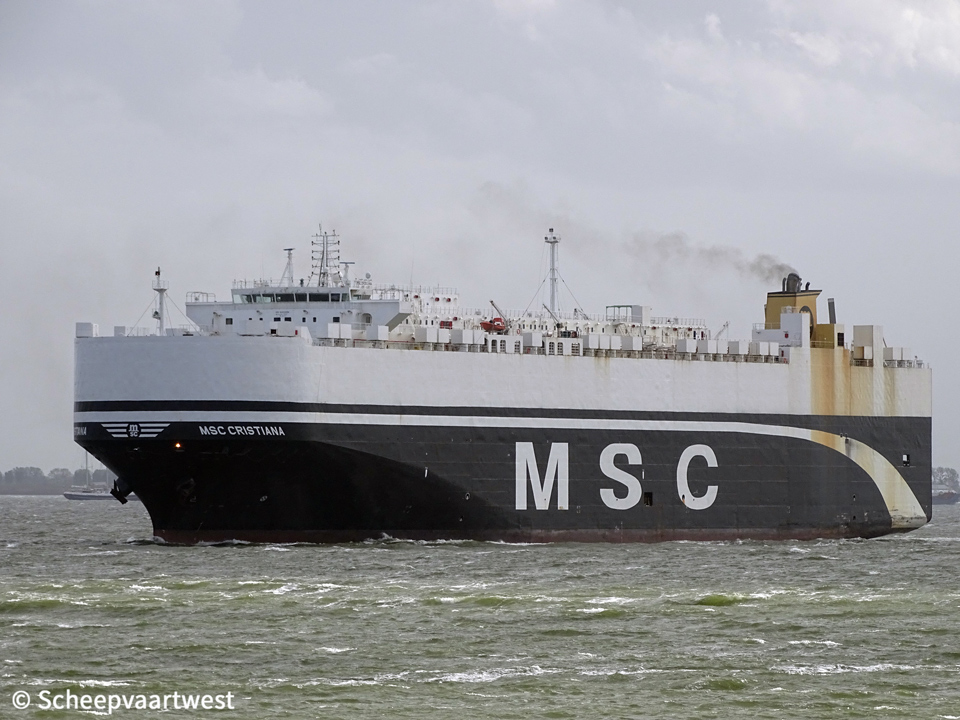

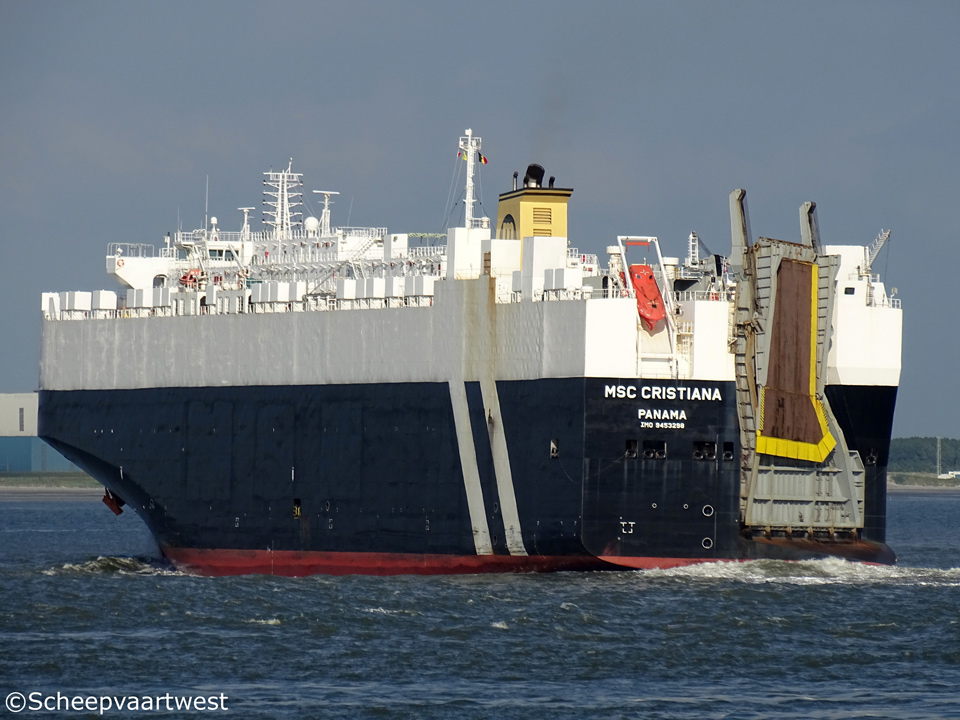

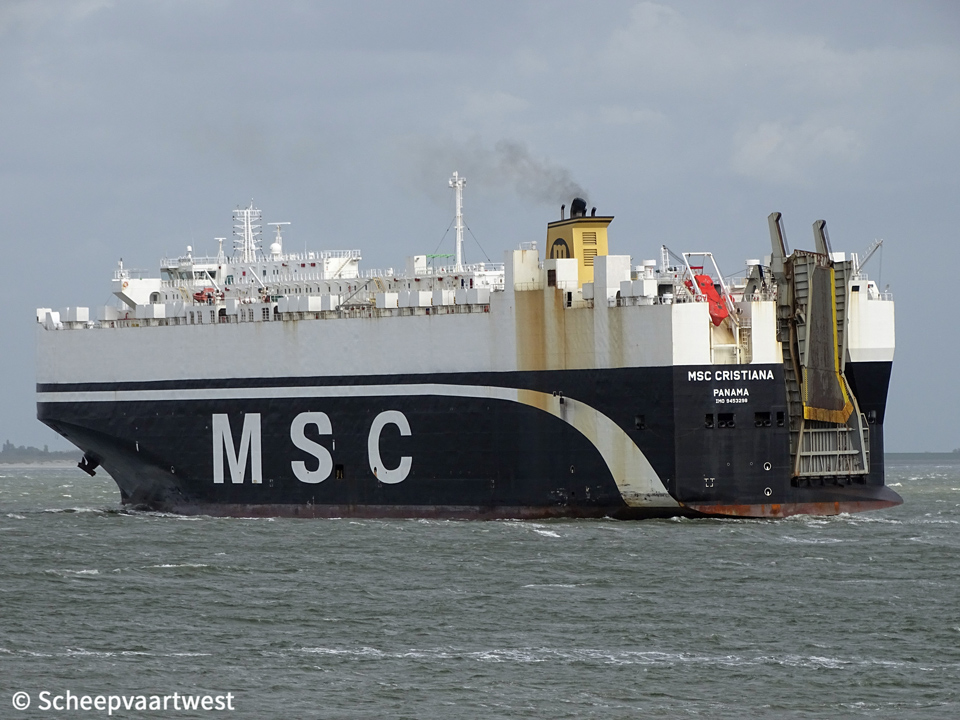

MSC CRISTIANA |
|
Type |
Roll-On/Roll-Off carrier - Vehicle Carrier |
|
IMO-number |
9453298 |
|
Call sign |
3FJT7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.835 t |
|
DWT |
Summer: 22.287,7 t |
|
NT |
25.783 t |
|
Length |
199,08 m overall 190,50 m between perpendiculars |
|
Breadth |
32,28 m extreme |
|
Draught |
11,20 m |
|
Depth |
14,30 m |
|
Speed |
Max.: 24,0 knots |
|
Built |
2011 |
|
Keel laid |
02/11/2010 |
|
Launch date |
26/05/2011 |
|
Date of completion |
13/12/2011 |
|
Builder |
STX (Dalian) Shipbuilding Co., Ltd. Dalian China |
|
Yard number |
D-1005 |
|
Hull material |
Steel |
|
Main engine |
1x STX/MAN-B&W 7S60MC-C8 - 2 stroke 7 cylinder 600 x 2.400 mm diesel combustion 16.660 kW / 22.651 hp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated |
|
Generators |
3x MAN 7L21/31 main diesel generatorsets each 1.300 kW |
|
Emergency generator |
1x Cummins NT855-D(M) diesel generatorset |
|
Bow thruster |
1x 1.500 kW |
|
Number of cars |
6.700 |
|
Number of ramps |
2 |
|
Tank capacities |
Ballast: 9.286,5 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 84 mm |
|
Crew |
18 |
|
Commercial manager |
MSC Shipmanagement Ltd. 43rd Floor, The Centre 99, Queen's Road Central Hong Kong China |
|
ISM manager |
MSC Shipmanagement Ltd. MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Registered owner |
Anemone Shipping Co. Ltd. Care of MSC Ship Management (Hong Kong) Ltd. 43rd Floor, The Centre 99 Queens road Central Hong Kong China |
|
Latest data adjustment |
19 December 2021 |
