Zeebrugge 08 July 2017 |
 |
 |
 |
||
| Zeebrugge 08/07/17 | Zeebrugge 08/07/17 | Zeebrugge 04/07/16 |
|
Name |

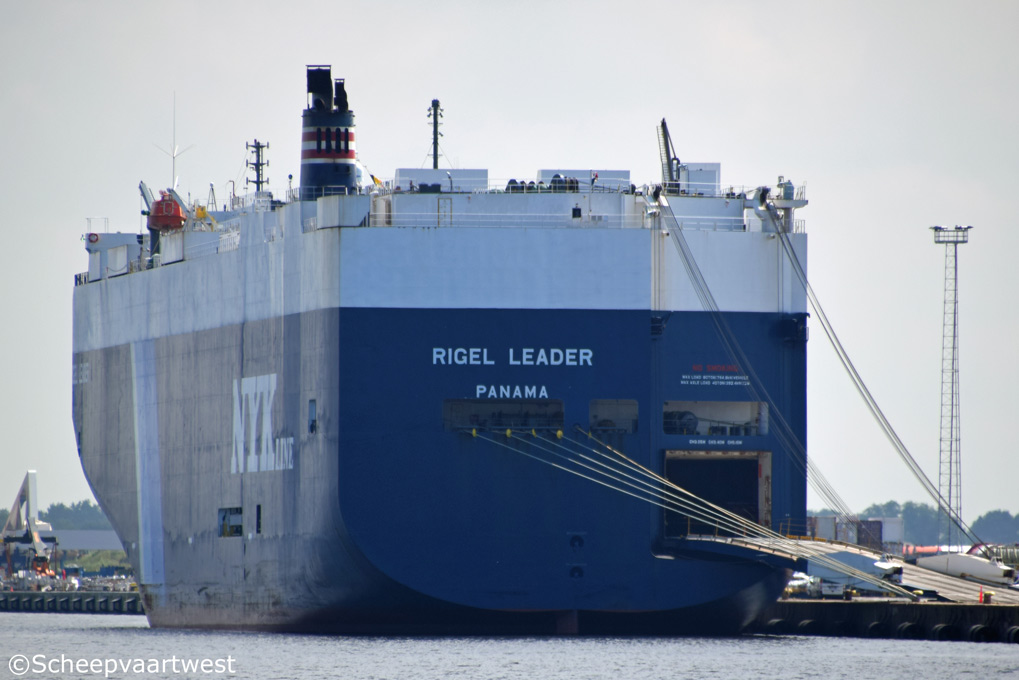

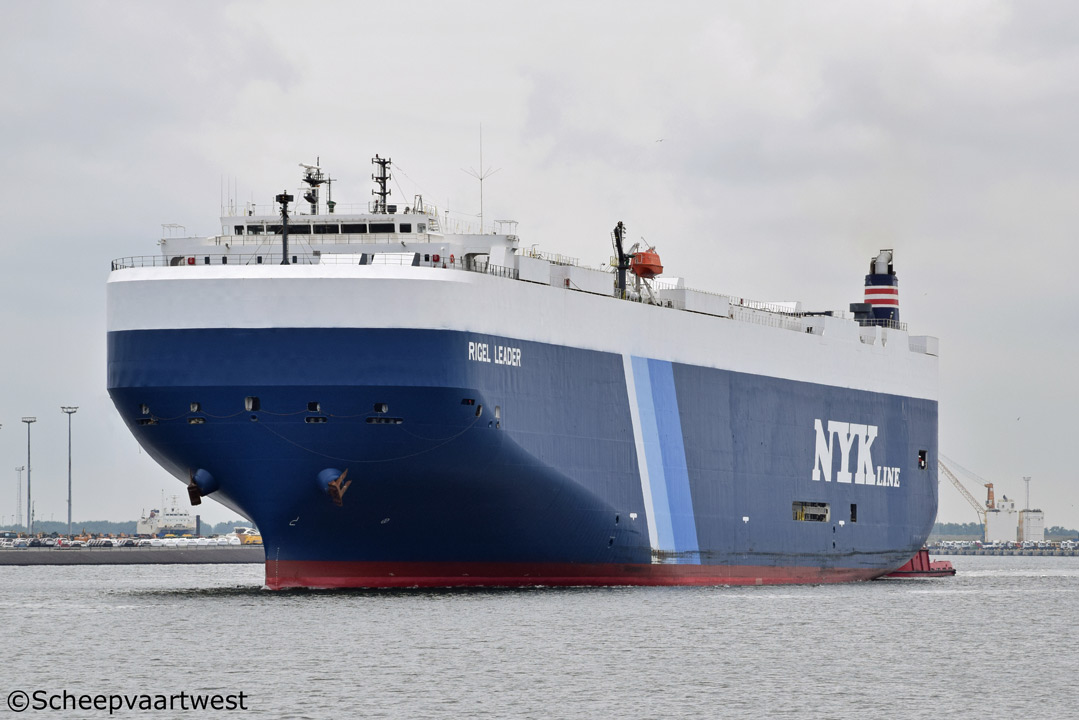

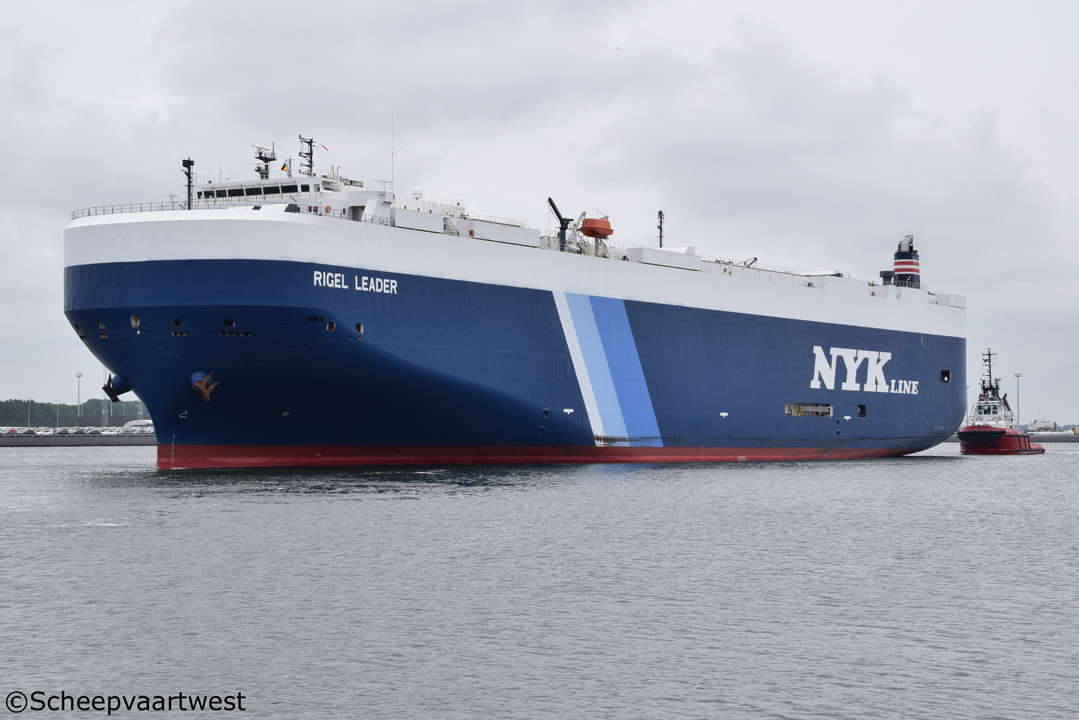

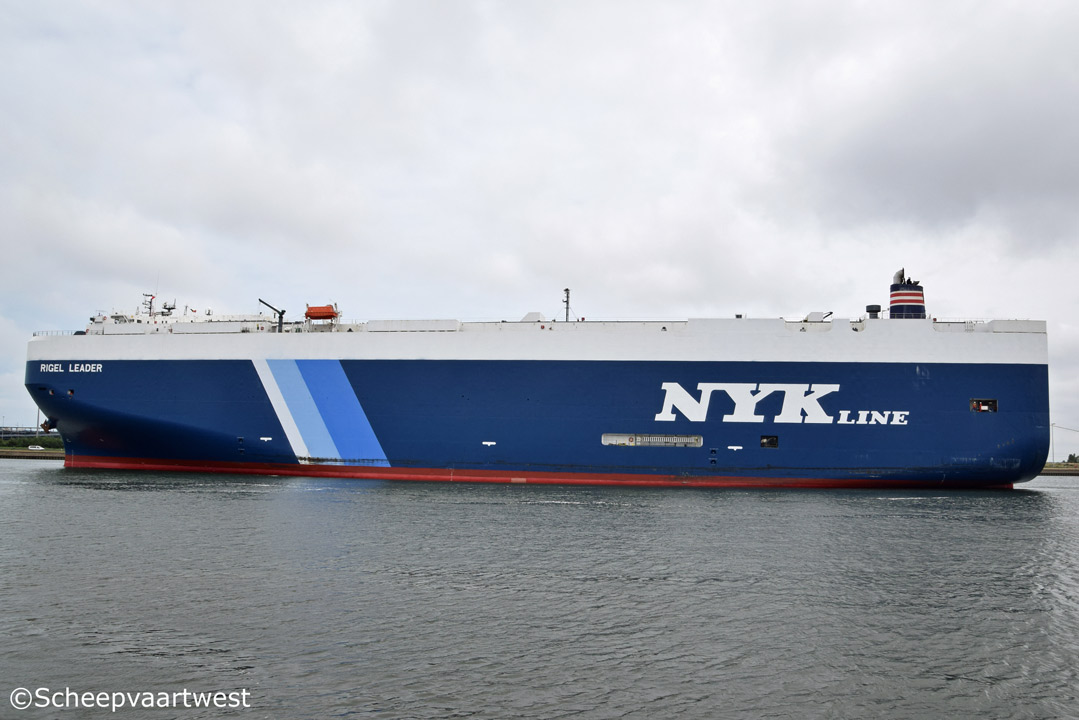

RIGEL LEADER |
|
Type |
Roll-On/Roll-Off carrier - car carrier |
|
IMO-number |
9604940 |
|
Call sign |
3FBT6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.694 t |
|
DWT |
18.884 t |
|
NT |
19.122 t |
|
Length |
199,97 m |
|
Breadth |
32,26 m |
|
Draught |
Summer: 10,01 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 21,31 m |
|
Freeboard |
4.714 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max.: 21,7 knots |
|
Built |
2012 |
|
Keel laid |
11.12.2010 |
|
Launch date |
16.12.2011 |
|
Date of completion |
08.03.2012 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters |
|
Yard number |
1541 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.300 mm diesel engine 13.260 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 3,93 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Generators 4.325 kVA |
|
Number of cars |
6.153 |
|
Tank capacities |
Fuel oil: 2.806 m³ Fresh water: 659 m³ Water ballast: 9.329 m³ |
|
Crew |
22 |
|
Manager |
NYK Shipmanagement Pte Ltd. |
|
Operator |
NYKLine - Nippon Yusen Kaisha |
|
Registered owner |
FPG Shipholding Panama 5 S.A. |
|
Latest data adjustment |
20 July 2016 |
