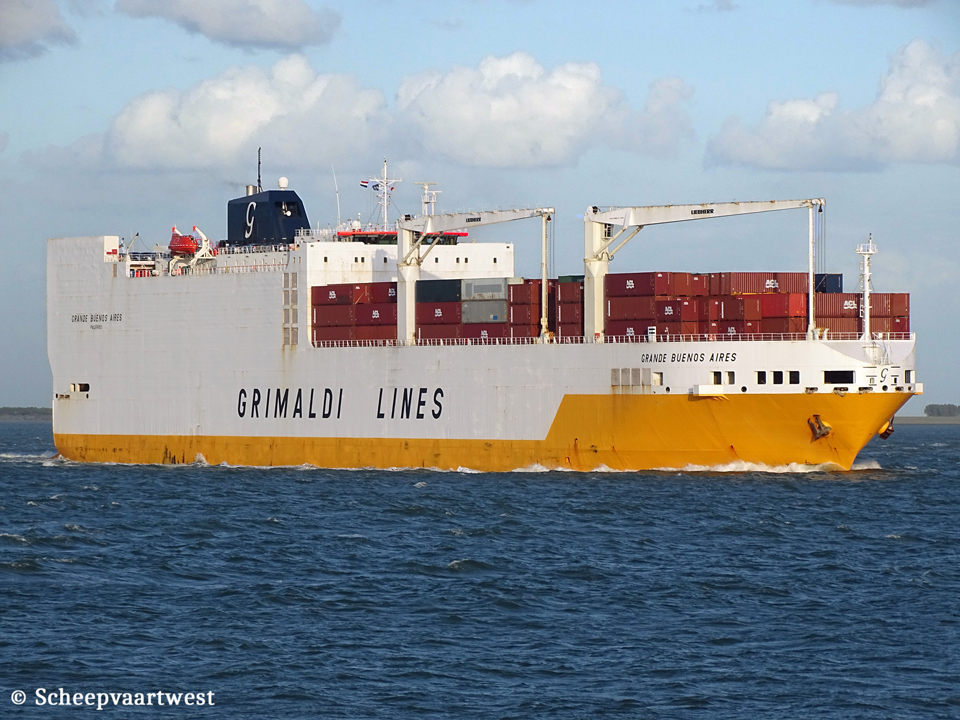

Grande Buenos Aires IMO 9253210 09

Westerschelde 19 August 2019

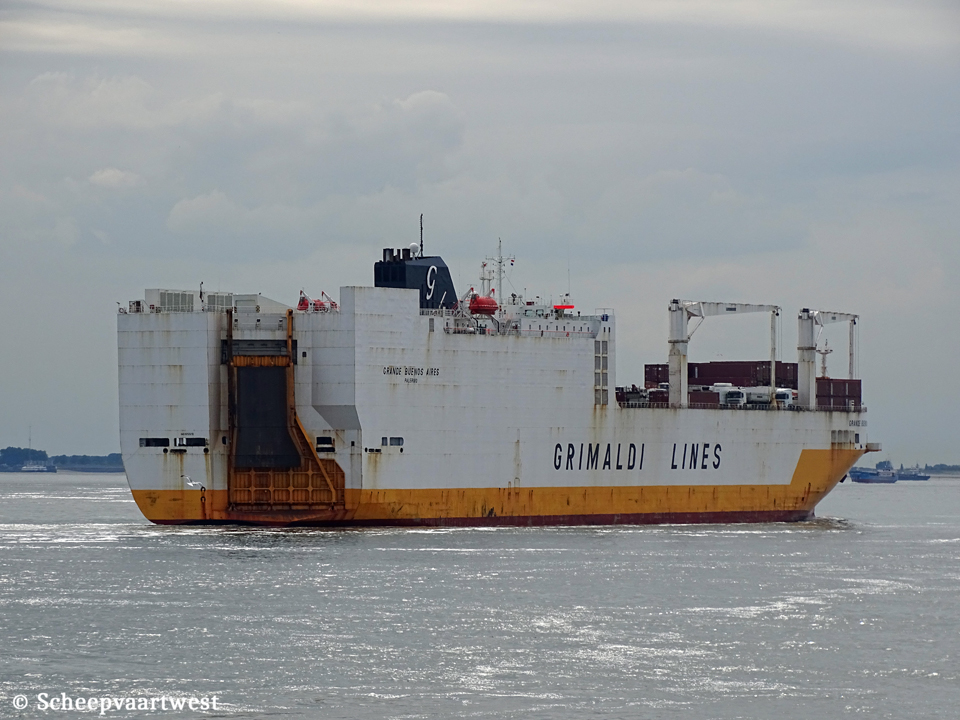

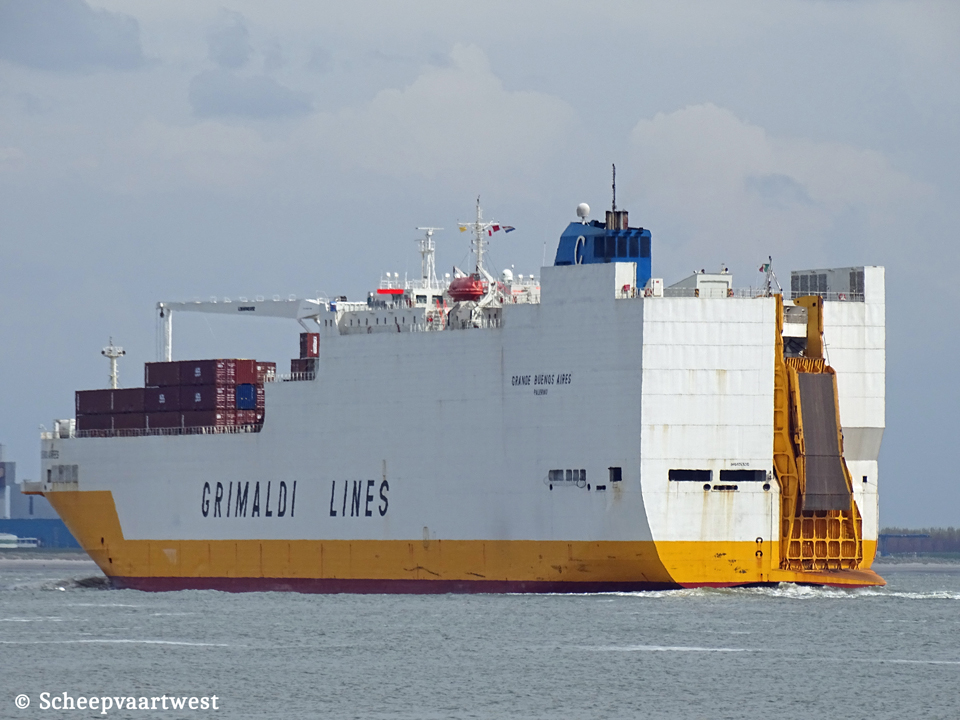

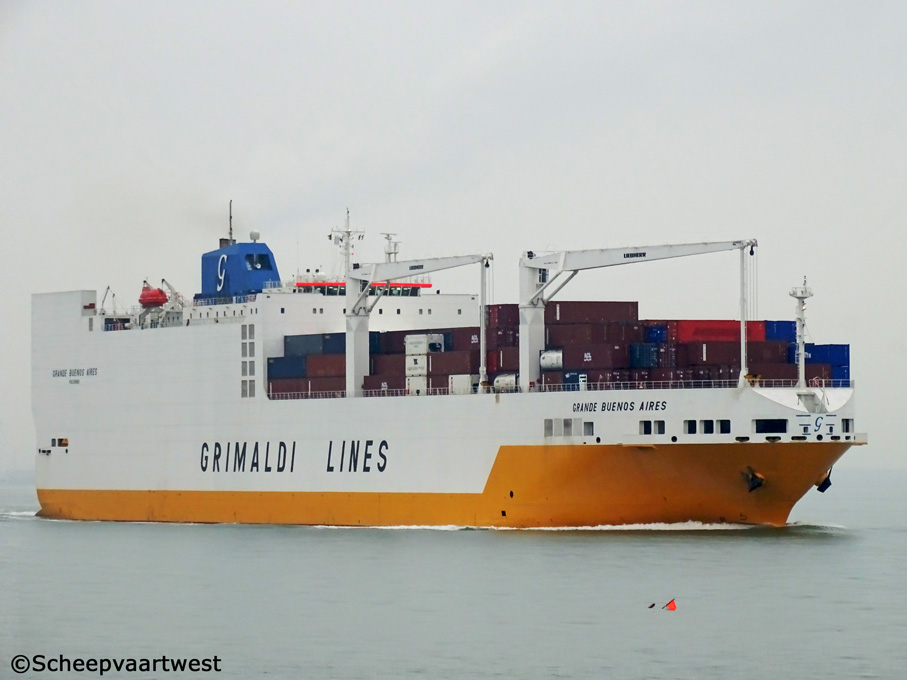

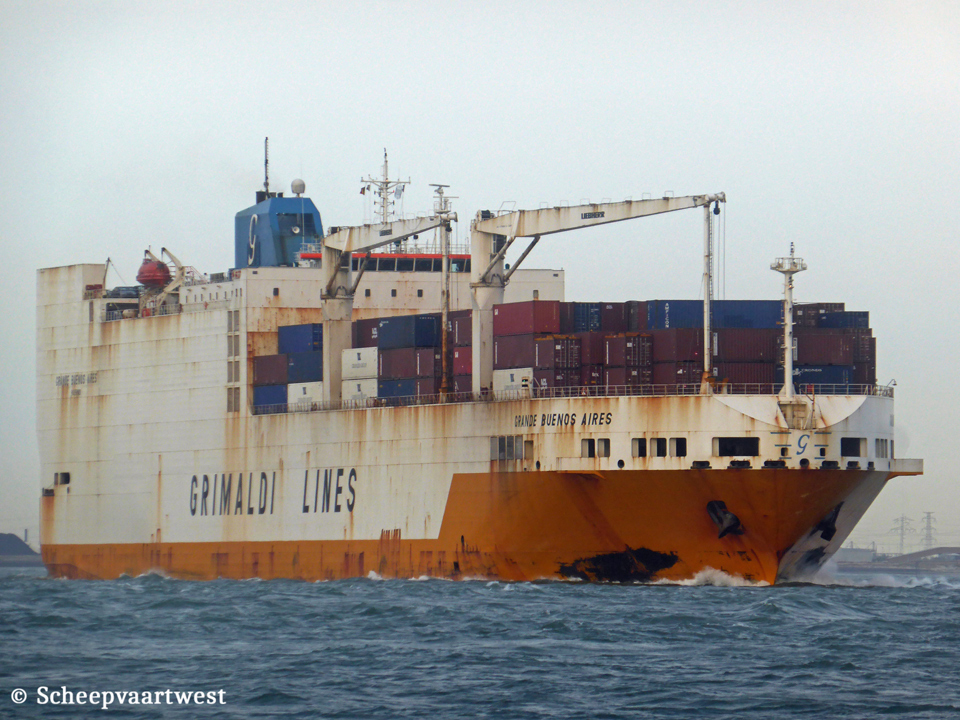

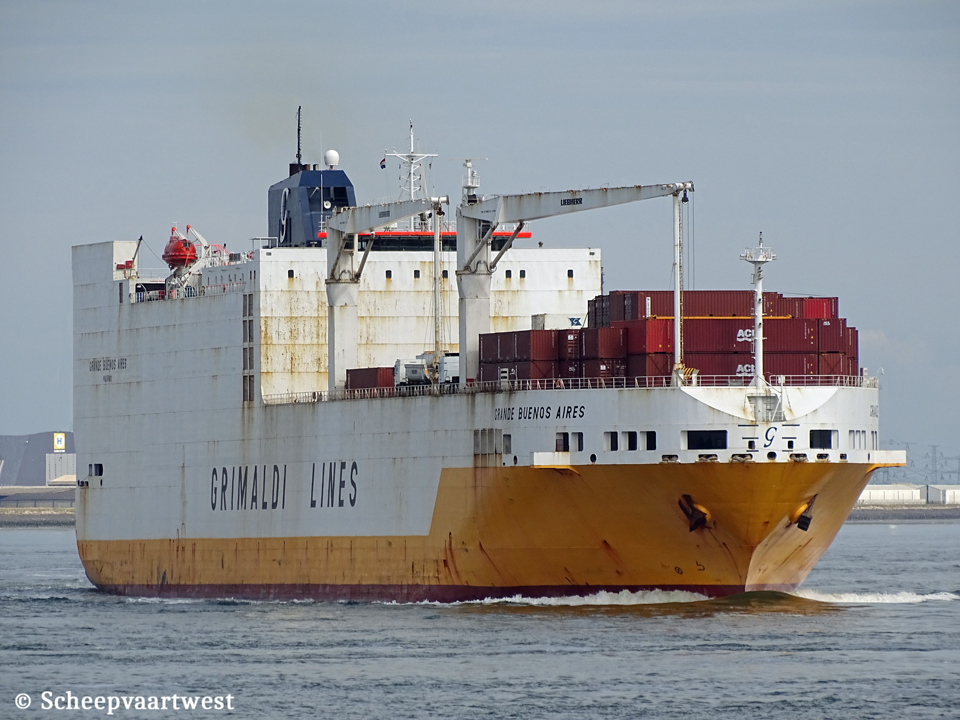

Grande Buenos Aires 01   Grande Buenos Aires 02   Grande Buenos Aires IMO 9253210 05   Grande Buenos Aires IMO 9253210 06   Grande Buenos Aires IMO 9253210 07   Grande Buenos Aires IMO 9253210 08
Westerschelde 15/10/15 Westerschelde 16/07/16 Westerschelde 03/05/20 Westerschelde 03/05/20   Westerschelde 30/04/16   Westerschelde 04/07/15

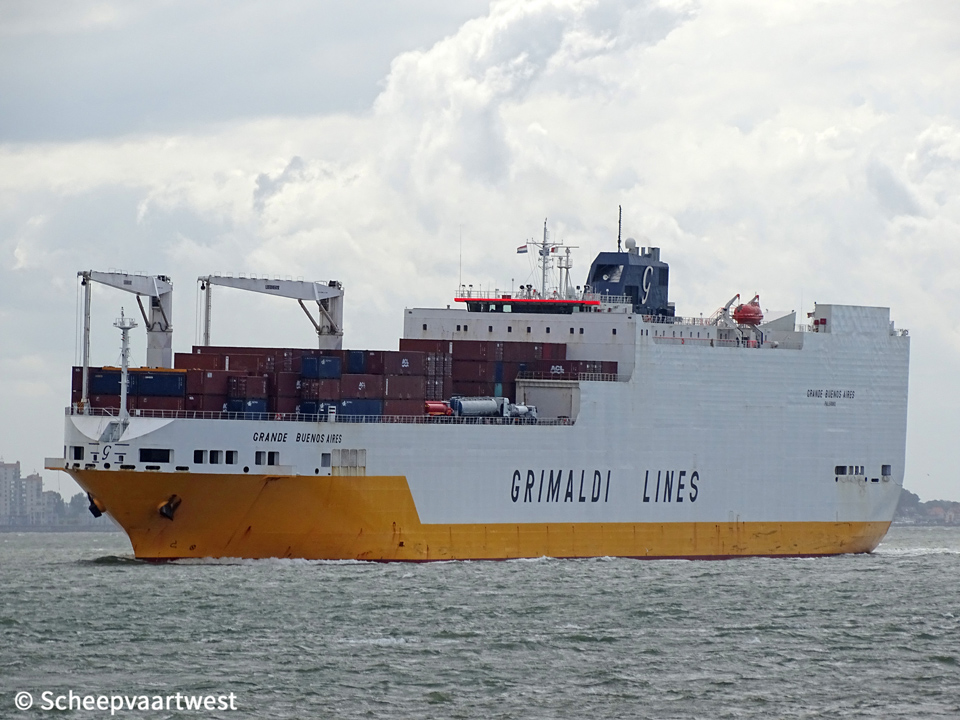

Grande Buenos Aires 03
Westerschelde 19/08/19


Name

GRANDE BUENOS AIRES

Type

RoCon - Roll-On/Roll-Off carrier

IMO-number

9253210

Call sign

IBNA

Flag

Italy

Port of registry

Palermo

GT

56.738 t

DWT

Summer: 26.169 t

NT

19.500 t

Number of 20ft containers

1.321

Reefer capacity

40

Length

213,88 m overall

195,00 m between perpendiculars

Breadth

32,25 m

Draught

9,20 m

Keel to mast end

55,00 m

Lane metres

2.500 m

Depth

25,92 m moulded

Speed

Service: 19,6 knots

Max.: 20,5 knots

Built

2004

Keel laid

27/06/2002

Launch date

04/11/2003

Date of completion

16/02/2004

Builder

Fincantieri-Cantieri Navali Italiani S.p.A.

Palermo

Italy

Yard number

6095

Hull material

Steel

Hull type

Single hull

Main engine

1x Sulzer-Wärtsilä 8RTA62U - 2 stroke single acting 8 cylinder 620 x 2.150 mm combustion engine 18.200 kW / 24.853 hp at 115,0 rpm

Builder: Wärtsilä Italia SpA

Propellers

1x Controllable pitch propeller - aft at 115,0 rpm

Shaft generator

1x 1.440 kW

Generators

4x Diesel generatorsets each 1.160 kW

Bow thruster

1x 1.600 kW, forward

1x 1.600 kW, aft

Number of cars

3.515

Number of trucks

194

Vehicle decks

5

Number of ramps

1

Max. load: 150 t

Number of passengers

12

Number of beds

12

Number of cabins

6

Cargo gear

2x Deck cranes - SWL 40,0 t each

Crew

25

Drew size

46

Commercial manager

Grimaldi Group

Via Marchese Campodisola 13

80133 Naples NA

Italy

ISM manager

Grimaldi Deep Sea Spa

Via Marchese Campodisola 13

80133 Naples NA

Italy

Registered owner

Grimaldi Deep Sea Spa

Via Marchese Campodisola 13

80133 Naples NA

Italy

Latest data adjustment

28 June 2022
