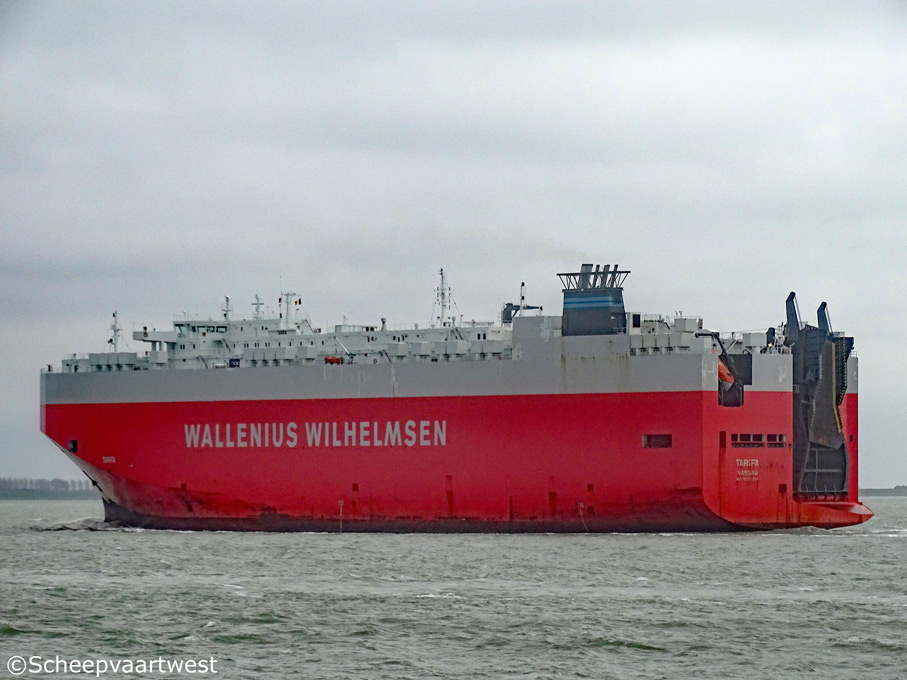

| Westerschelde 12November 2015 |
 |
 |
 |
 |
 |
 |
|||||

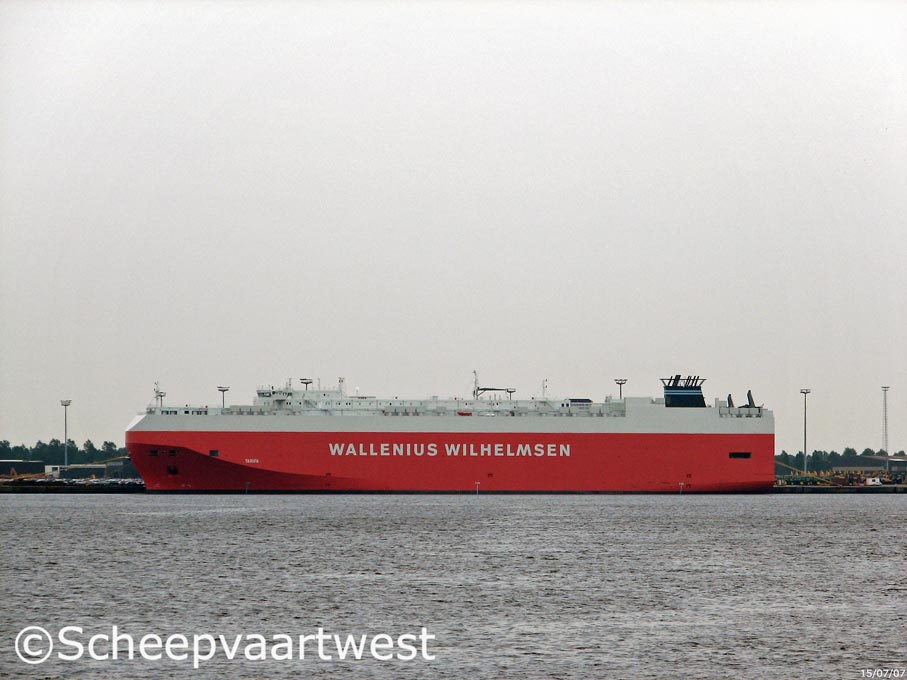

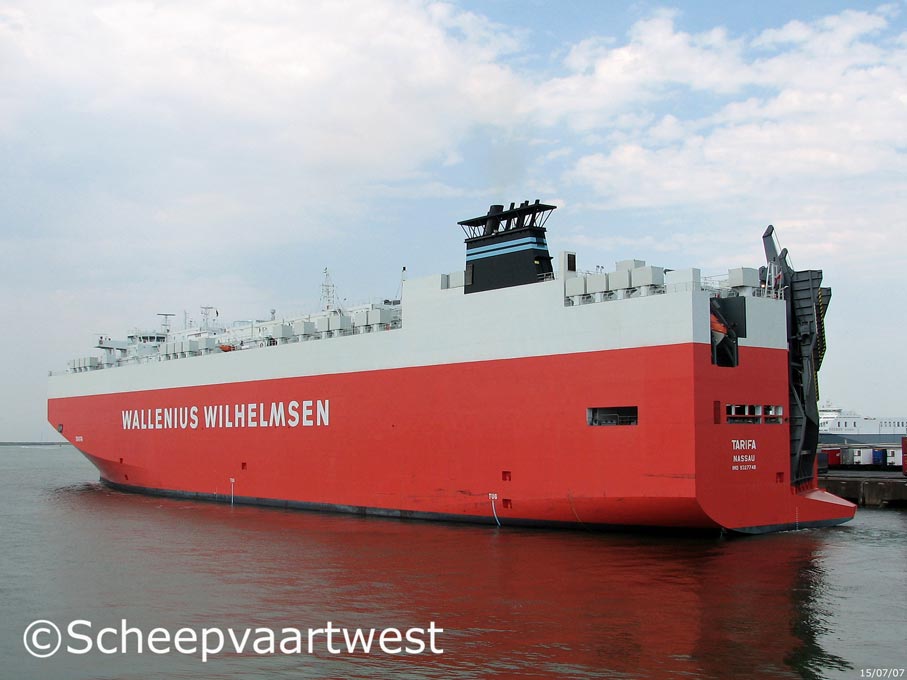

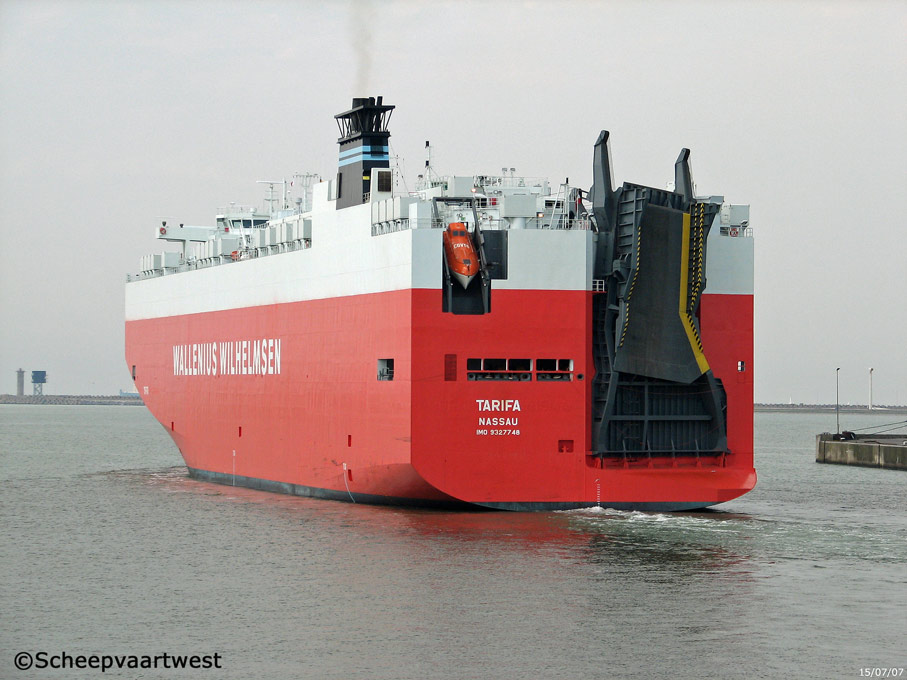

| Zeebrugge 15/07/07 | Zeebrigge 15/07/07 | Zeebrigge 15/07/07 | Westerschelde 09/06/15 | Westerschelde 10/11/15 | Westerschelde 22/09/20 | |||||
|
Name |
TARIFA |
|
Previous name |
2007 build as: Morning Charisma |
|
Type |
Vehicles Carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9327748 |
|
Call sign |
C6VT6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
21.120 t |
|
NT |
21.037 t |
|
Length |
199,95 m overall 188,31 m between perpendiculars |
|
Breadth |
32,26 m overall |
|
Draught |
Summer: 10,00 m |
|
Air draft |
46,00 m |
|
Freeboard |
22.640 mm |
|
Depth |
32,64 m to upperdeck |
|
Speed |
20,0 knots |
|
Line |
North Atlantic |
|
Built |
2007 |
|
Keel Laid |
23/06/2006 |
|
Launch |
21/02/2007 |
|
Date of completion |
04/04/2007 |
|
Builder |
Stocnia Gdynia S.A Group Gdynia ul. Czechoslowacka 3 81-963 Gdynia Poland |
|
Yard number |
8168/16 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 3 |
|
Main engine |
1x MAN-B&W/Cegielski 7S60MC-C - 7 cylinder 600 x 2.400 mm combustion engine with an output of 15.828 kW / 21.520 hp at 105,0 rpm |
|
Number of screws |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas type AV-7 1x Auxiliary boiler, oil/gas fired type Mission OS Builder: Aalborg Industries A/S |
|
Generators |
3x MAN-B&W 7L28/32H main diesel generatorsets total output 4.400 kW |
|
Emergency generator |
1x MAN D2866LXE30 diesel generatorset |
|
Bow thruster |
1x Brunvoll FU 80 LTC 2250 - 1.400 kW |
|
Car deck areas |
Total: 54.900 m² Hoistable: 17.000 m² |
|
Capacity car units RT43 |
6.400 1 RT 43 unit = 7,38975 m² |
|
Ro-Ro ramps |
1x Starboard: 25,0 x7,0 x 22 t 1x Starboard aft: 38,0 x7,0 x 150 t |
|
Number of decks |
13 (of which 4 are hoistable) |
|
Cargo ventilation |
20 air changes an hour |
|
Tank capacities |
Ballast: 7.757 m³ Fuel oil:: 3.350 m³ Diesel oil: 130 m³ Lub oil: 150 m³ Potable water: 260 m³ |
|
Anchor Chain |
Length: 660,00 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Basic complement |
27 |
|
ISM manager |
Stamco Ship Management Company Ltd. 21 Akti Miaouli Street 185 35 Piraeus Greece |
|
Operator |
WWL - Wallenius Wilhelmsen Lines ASA |
|
Owner |
Tarifa Maritime Limited Care of Ray Car Carriers Ltd. 33-37, Athol Street. Douglas, Isle of Man IM1 1LB United Kingdom |
|
Latest data adjustment |
24 October 2023 |
