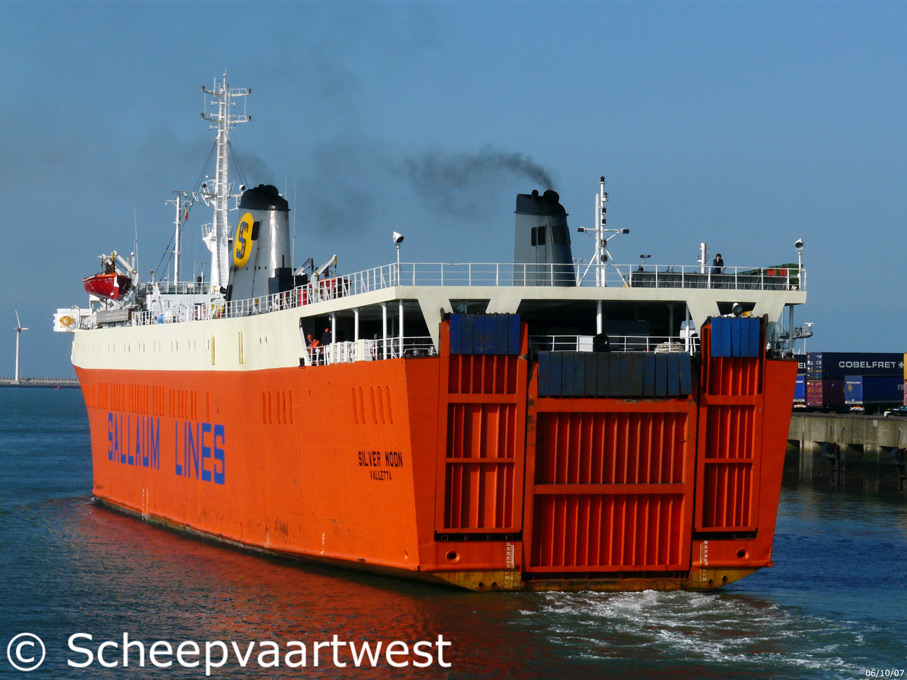

| Zeebrugge 06 October 2007 |
|
Name |
SILVER MOON |
|
Previous names |
Peris Sanas S |
|
Type |
Roll-On/Roll-Off Cargo Vessel |
|
IMO-number |
8503876 |
|
Official number |
8619 |
|
Call sign |
9HUIG7 |
|
Flag |
Malta |
|
Previous flags |
1999 Romania 2002 Saint Vincent & Grenadine 2004 Lebanon |
|
Port of registry |
Valletta |
|
GT |
9.999 t |
|
DWT |
Summer: 3.585,32 t |
|
NT |
2.982 t |
|
Length |
128,21 m overall 120,48 m registered |
|
Breadth |
20,53 m overall 20,49 m moulded |
|
Lane metres |
888 |
|
Draught |
Summer: 6,56 m |
|
Height above keel |
37,00 m |
|
Displacement |
9.432,38 t |
|
Freeboard |
6.045 mm |
|
Depth |
15,50 m moulded |
|
Speed |
17,00 knots |
|
Built |
1985 |
|
Keel laid |
23.05.1981 |
|
Launch date |
28.04.1984 |
|
Completion |
05.1985 |
|
Builder |
Santierul Naval Galatz |
|
Builder as completed |
Damen Shipyard |
|
Yard number |
734 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
3 |
|
Main engine |
2x MaK 9M551AK - 4 stoke single acting 9 cylinder 450 x 550 mm diesel engine each 4.410 kW / 6.000 hp total 8.820 kW at 1.000 rpm Built: 1980 Engines builder: Krupp Mak Maschinenbau Kiel - Germany |
|
Number of screws |
2x Controllable pitch propeller - aft |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating surface: 29,0 m² 1x Steam boiler, exhaust gas heated - 7,0 bar Heating surface: 57,0 m² Year of manufacture: 1981 Manufacturer: Intreprinderea Mecanica Naval |
|
Generators |
3x Sulzer 6AL25/30 diesel generatorsets each 877 hp / 640 kW at 750 rpm |
|
Bow thruster |
1x Transverse thruster 440 kW - forward |
|
Compressed air receivers |
2x Receivers, each 2.500 litres - 30,0 bar 1x Receiver 400 litres - 30,0 bar 1x Receiver 152 litres - 30,0 bar 1x Receiver 125 litres - 10,0 bar 1x Receiver 80 litres - 10,0 bar |
|
Cargo area |
3.565,1 m² |
|
Number of cars |
948 |
|
Tank capacities |
Water ballast: 1.364 m³ Fuel oil: 1.149 m³ |
|
Side stern ramp |
P&S reaching upper deck |
|
Main stern ramp |
9,05 m x 6,20 m reaching main deck Al decks are connected via internal ramps with exception of the tanktop, which is connected via elevator: 13,30 x 2,90 m |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain length: 522,50 m |
|
Manager |
ABC Maritime AG |
|
Owner |
RoRo Maritime Service SA, (Sallaum Lines Ltd) |
