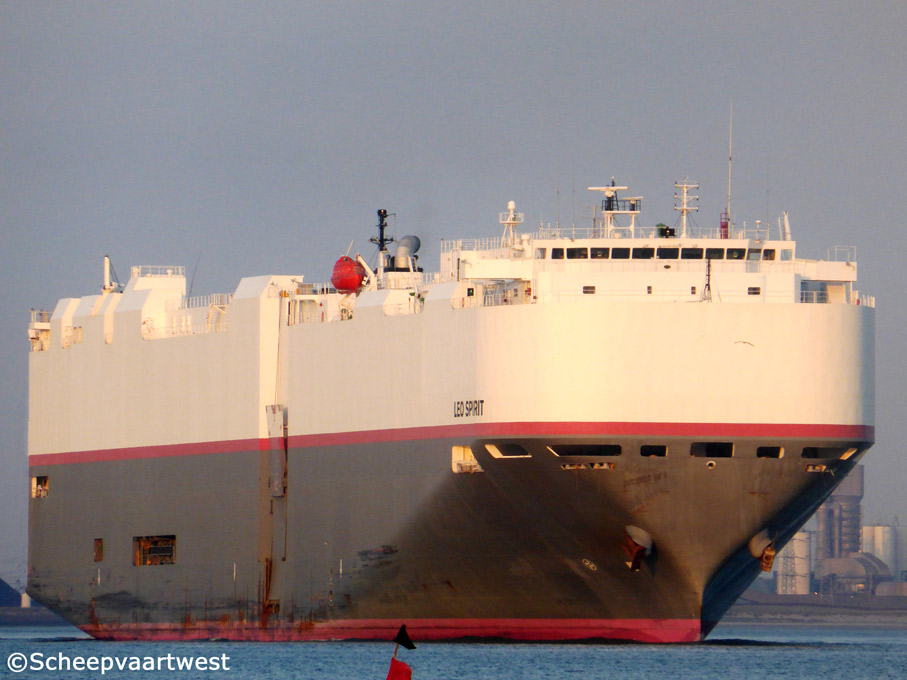

Westerschelde 22 July 2014 |
 |
 |
 |
 |
|||

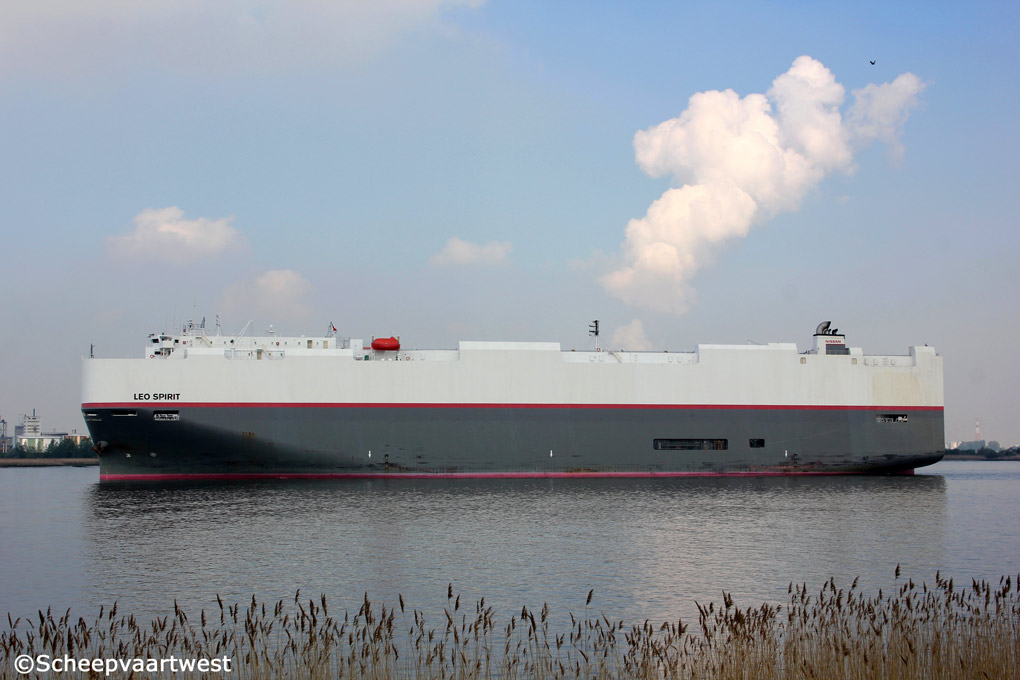

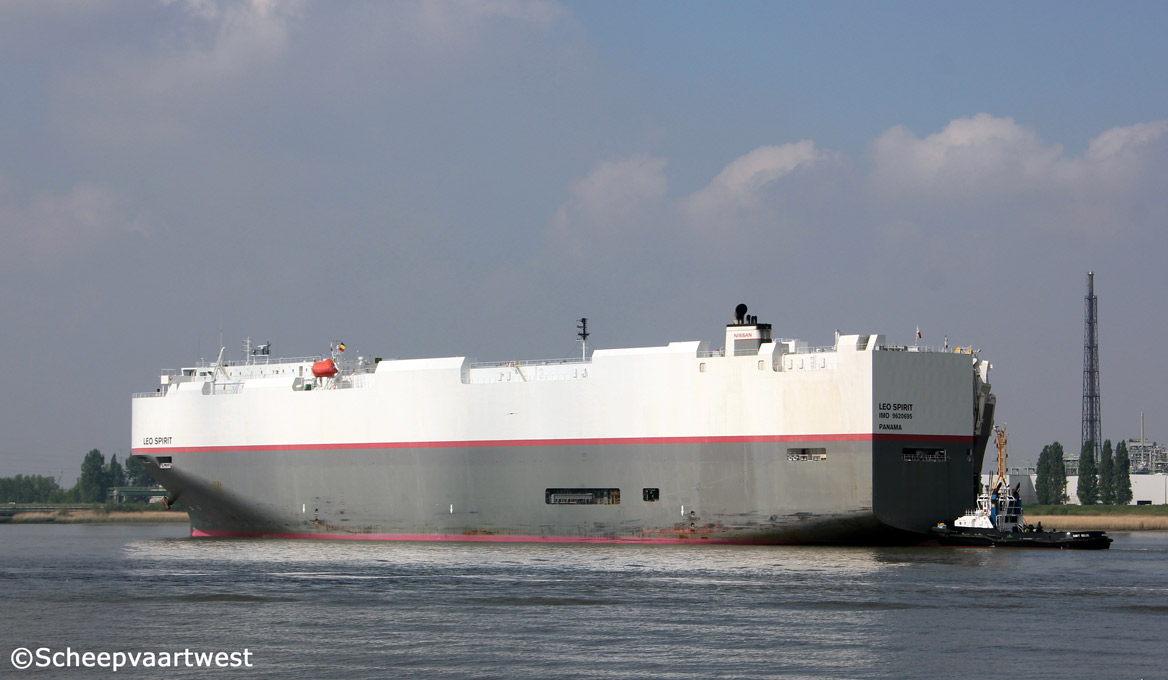

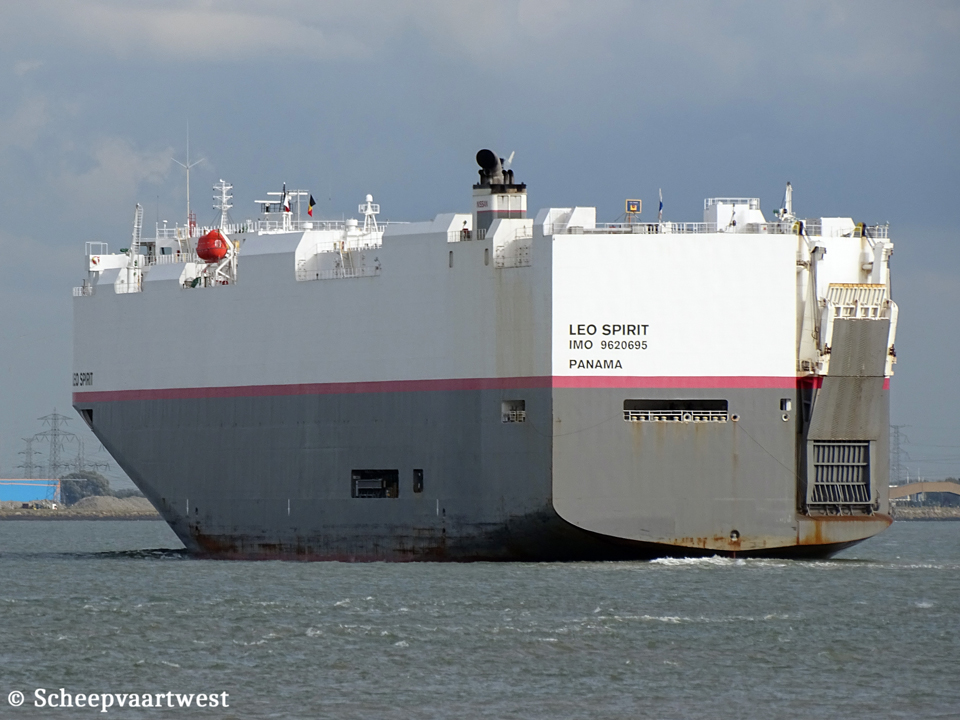

| Antwerpen 23/04/14 | Antwerpen 23/04/14 | Antwerpen 23/04/14 | Westerschelde 30/09/19 |
|
Name |
LEO SPIRIT |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9620695 |
|
Call sign |
3FAQ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
60.825 t |
|
DWT |
Summer: 16.758 t |
|
NT |
18.594 t |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
193,76 x 32,26 x 21,22 m |
|
Freeboard |
Summer: 4.965 mm |
|
Depth |
14,65 m moulded |
|
Speed |
Max: 22,2 knots |
|
Built |
2012 |
|
Keel laid |
19/11/2010 |
|
Launch date |
28/11/2011 |
|
Date of completion |
12/06/2011 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Toyohashi Japan |
|
Yard number |
3652 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.090 kW / 20.516 hp at 98,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 665 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,30 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generators total 4.325 kVA |
|
Number of cars |
6.280 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 2.944 m³ Fresh water: 404 m² Water ballast: 6.751 m³ |
|
Manager |
MOL Ship Management Co., Ltd. |
|
Registered owner |
Gazelle Maritime Inc. - Republic of Panama Care of World Marine Co Ltd. 9th Floor, Kanpai Building, 22-27, Higashigotanda 5-chome, Shinagawa-ku Tokyo, 141-0022 Japan |
|
Latest data adjustment |
18 August 2022 |
