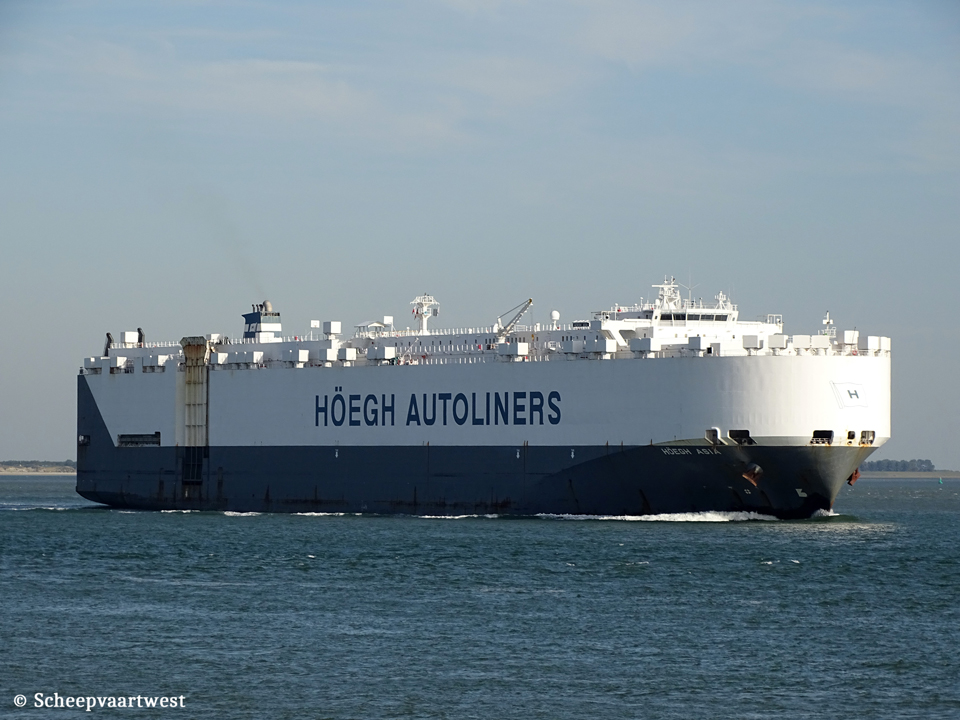

Westerschelde 20 September 2019 |
 |
 |
|

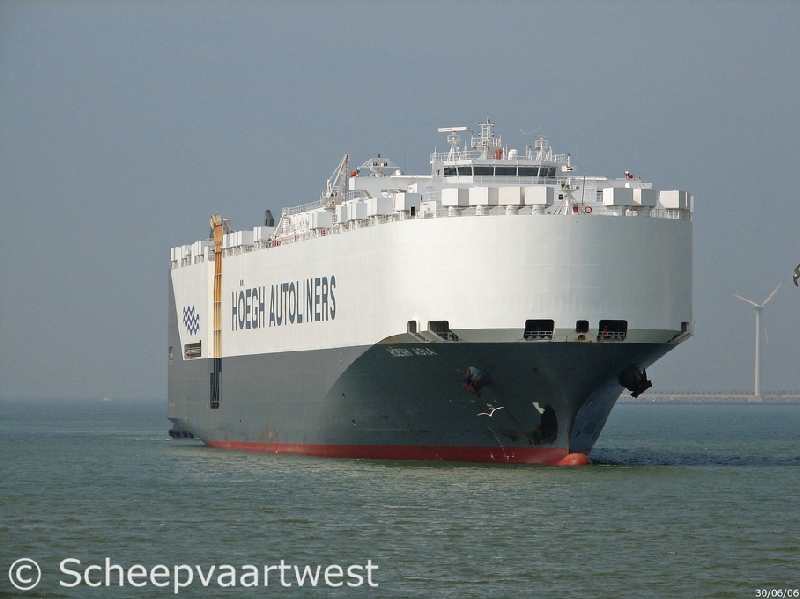

| Westerschelde 07/06/16 | Zeebrugge 30/06/06 |
|
Name |
HÖEGH ASIA |
|
Previous name |
2000 - 2006 Hual Asia |
|
Type |
Roll-on/Roll-off carrier - Vehicle carrier |
|
IMO-number |
9191876 |
|
Call sign |
LAKN7 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
Previous flag |
2000 - 2010 Bahamas, Nassau - Call sign: C6QX7 |
|
GT |
68.060 t |
|
DWT |
27.564 t |
|
NT |
25.775 t |
|
Length |
228,70 m overall 223,91 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
Summer: 10,02 m |
|
Keel to mast end |
46,40 m |
|
Freeboard |
3.690 mm |
|
Depth |
13,70 m |
|
Speed |
Service: 20,2 knots |
|
Built |
2000 21/10/2008 Conversion: Lengthening of vessel 28,80 m mid body |
|
Keel laid |
12/07/1999 |
|
Launch |
23/10/1999 |
|
Date of build |
19/01/2000 |
|
Builder |
Daewoo Heavy Industries Ltd 1, Ajoo-Dong Koje-City Kyungnam 656-714 Republic of Korea |
|
Yard number |
4426 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
MAN-B&W 7S60MC - 2 stroke 7 cylinder 600 x 2.292 mm combustion engine 12.880 kW / 17.512 hp at 105,0 rpm |
|
Number of screws |
1x Fixed pitch mono-block propeller Builder: Mecklenburger Metall |
|
Boilers |
1x Exhaust gas water tube AV-7 Buikder: Aalborg Industries A/S 1x Vertical shell type MA05SJDY Builder: KangRim Industries. Co., Ltd. |
|
Main generator |
3x Berger KRG-6 - Main diesel generatorsets Builder: Rolls-Royce Marine AS |
|
Emergency generator |
1x MAN D2866TE diesel generatorset |
|
Bow thruster |
1x 1.325 kW / 1.775 hp |
|
Cargo capacity |
6.100 |
|
Number of cars |
7.850 |
|
Max deck height |
5,00 m |
|
Ramps |
Max width: 15,20 m Ramp capacity: 150 t |
|
Tank capacities |
Ballast: 9.685,8 m³ |
|
Anchor equipment |
Length: 715,00 m Diameter: 84 mm |
|
ISM & commercial manager |
Höegh Autoliners Management AS Drammensveien 134 0277 Oslo Norway |
|
Registered owner |
Höegh Autoliners Shipping AS Drammensveien 134 0277 Oslo Norway |
|
Latest data adjustment |
06 August 2022 |
