Westerschelde 12 August 2016 |
 |
 |
|
| Westerschelde 30/09/15 | Westerschelde 26/04/16 | |
|
Name |

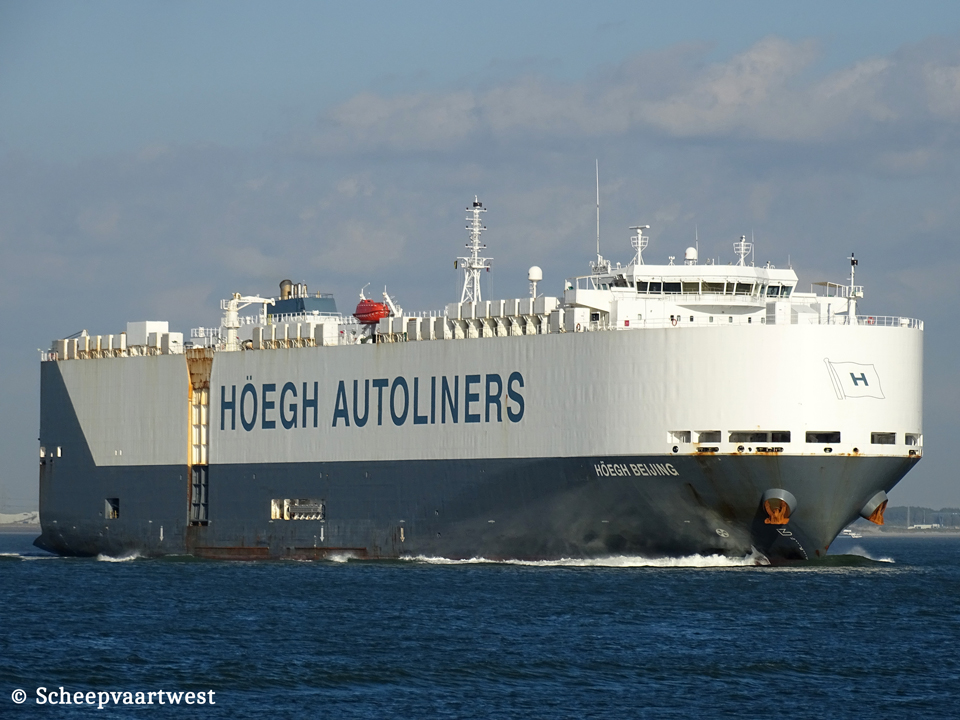

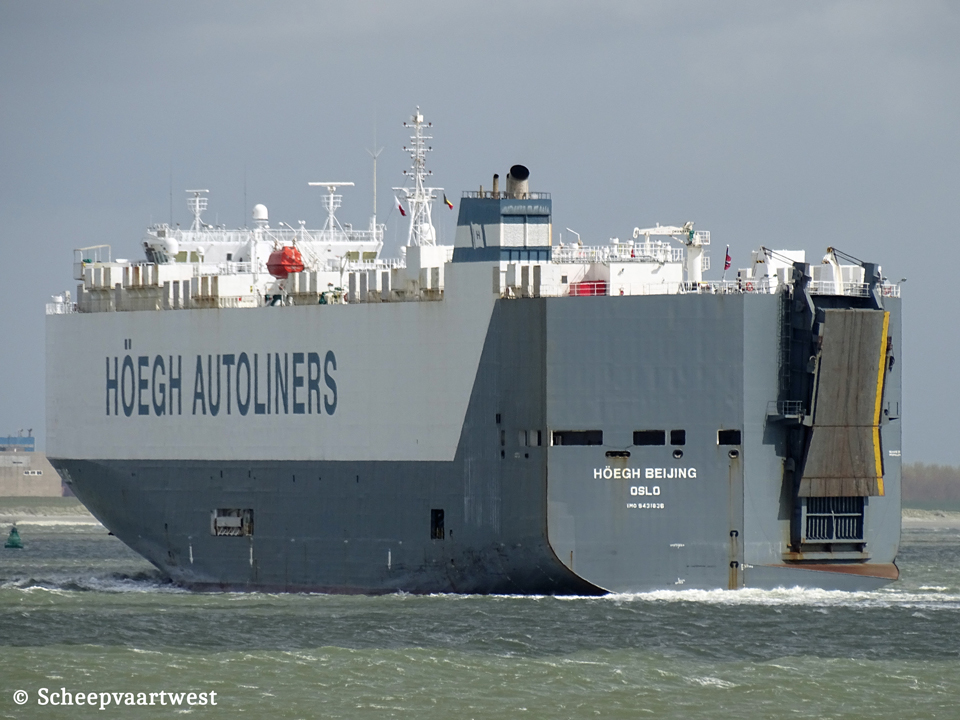

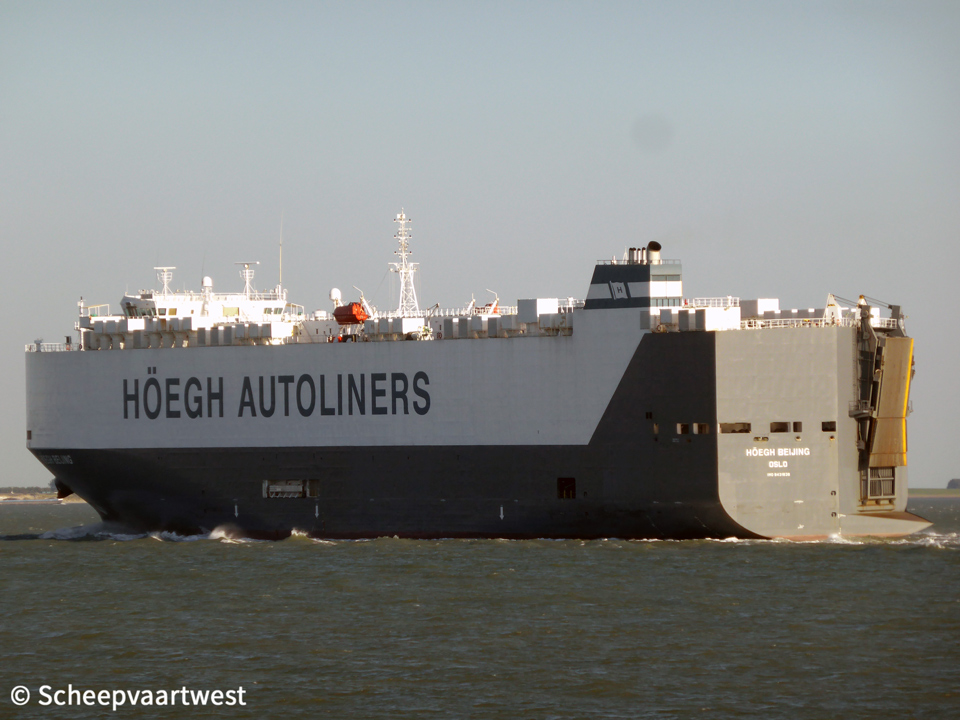

HÖEGH BEIJING |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9431836 |
|
Call sign |
LAJL7 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
GT |
47.232 t |
|
DWT |
Summer: 12.250 t |
|
NT |
14.315 t |
|
Length |
182,80 m overall 170,20 m between perpendiculars |
|
Breadth |
31,50 m extreme |
|
Draught |
Max: 9,00 m |
|
Depth |
19,26 m |
|
Speed |
Max: 22,0 knots Service: 20,0 knots |
|
Built |
2010 |
|
Keel laid |
03/12/2009 |
|
Launch date |
30/03/2010 |
|
Date of completion |
16/07/2010 |
|
Builder |
Xiamen Shipbuilding Industry Co., Ltd. Xiamen China |
|
Yard number |
XSI461A |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 9S50MC-C - 2 stroke 9 cylinder 500 x 2.000 mm combustion engine 14.220 kW / 19.334 hp at 127,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated - AQ-7 1x Auxiliary boiler, oil/gas fired - Mission OS-2000 Builder: Aalborg Industries Ltd. |
|
Generators |
1x MAN 6L23/30 A-H diesel generatorset 2x MAN 8L23/30 A-H diesel generatorsets |
|
Emergency generator |
1x Deutz TBD234V8 diesel generatorset Builder: Henan Diesel Engine Industry Co., Ltd. |
|
Bow thruster |
1x 1.100 kW |
|
Number of ramps |
2 |
|
Tank capacities |
Ballast: 5.155,6 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
|
Commercial manager |
Höegh Autoliners Shipping AS Drammensveien 134 0277 Oslo Norway |
|
ISM manager |
Hoëgh Technical Management Inc. Drammensveien 134 0277 Oslo Norway |
|
Registered owner |
Hoëgh Autoliners Management AS , Drammensveien 134 0277 Oslo Norway |
|
Latest data adjustment |
13 March 2023 |
