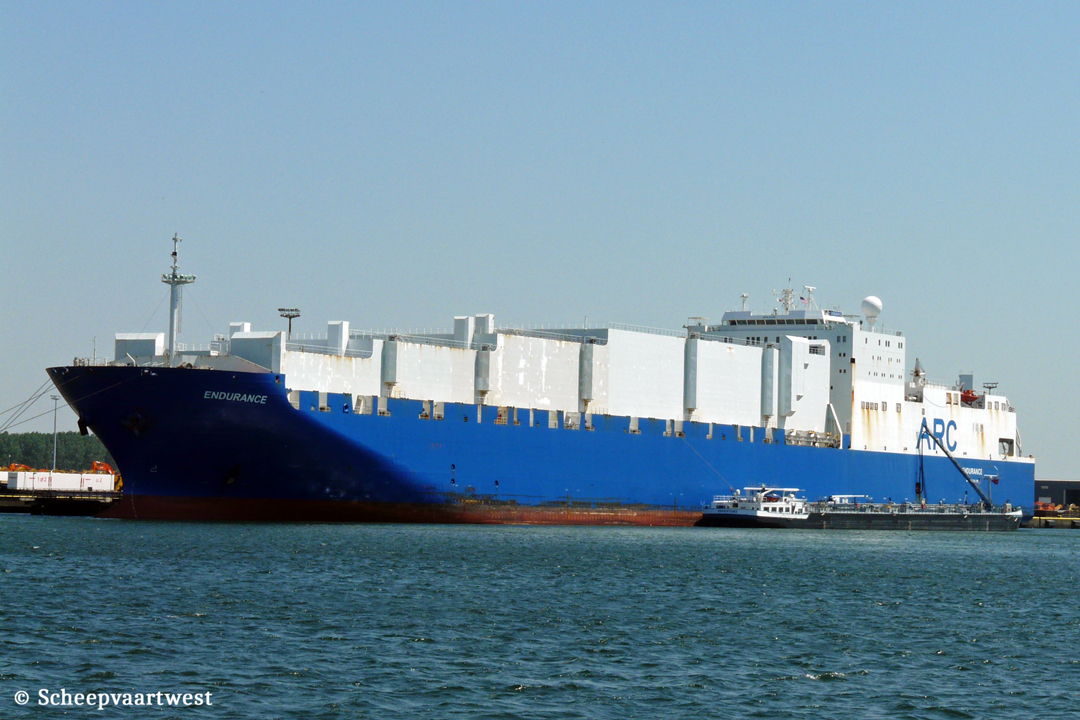

| Zeebrugge 26 May 2012 |
 |
 |
 |
 |
|||

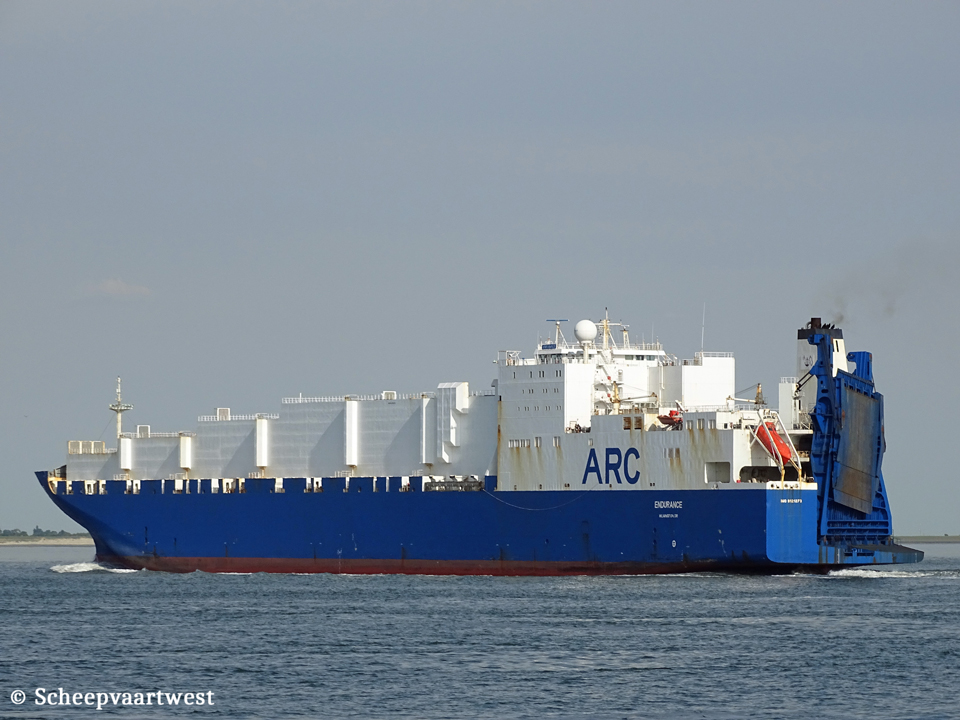

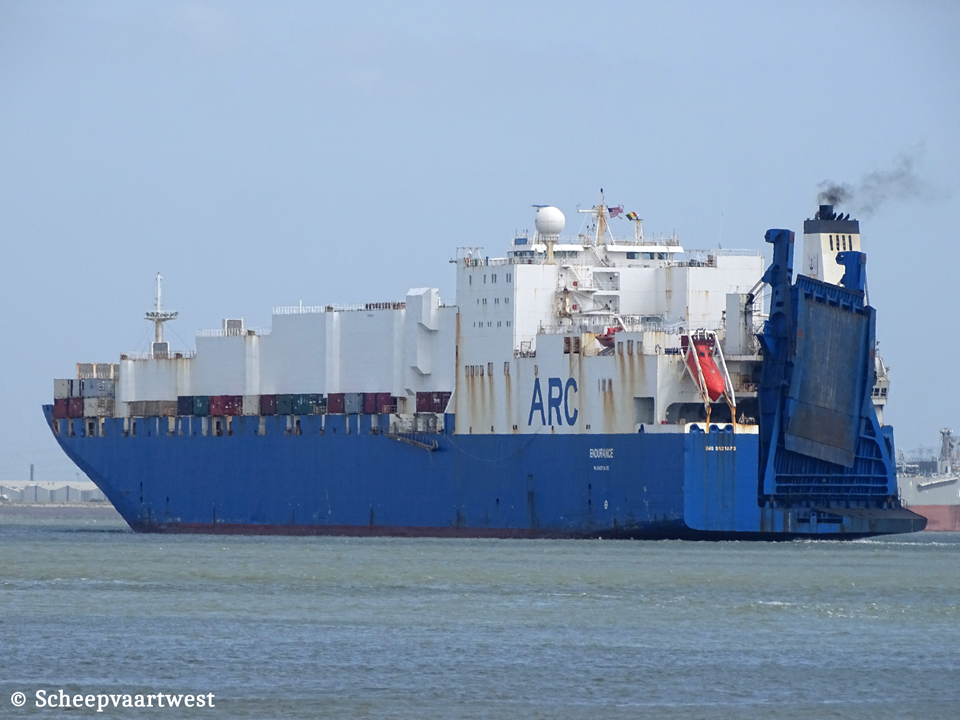

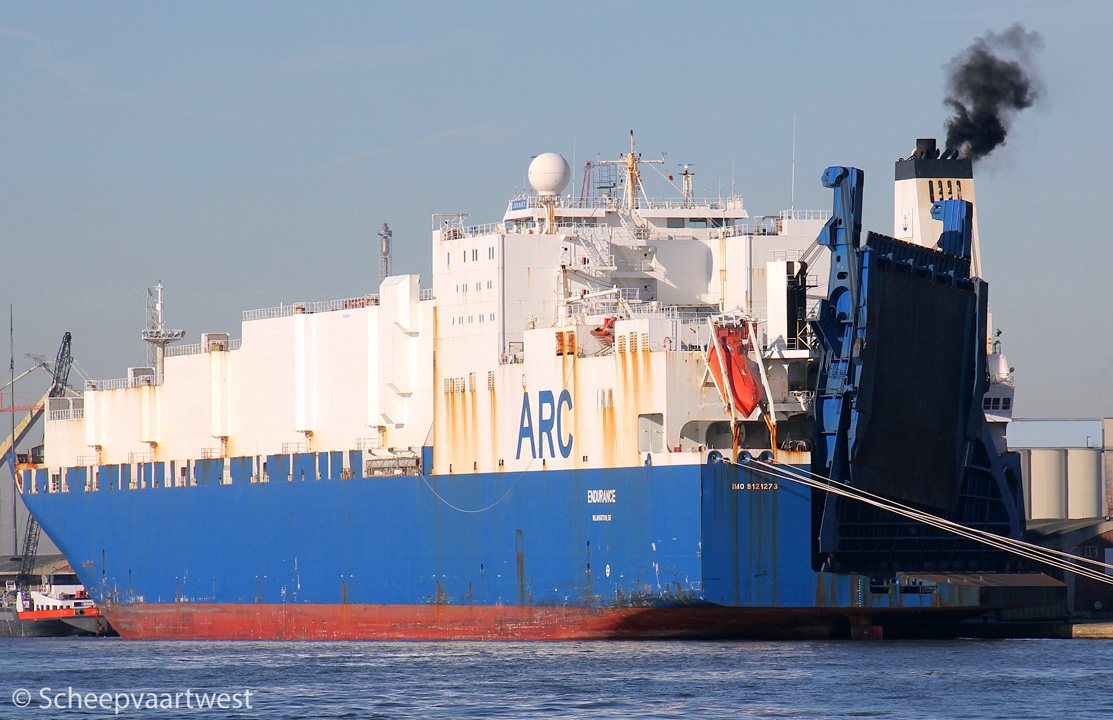

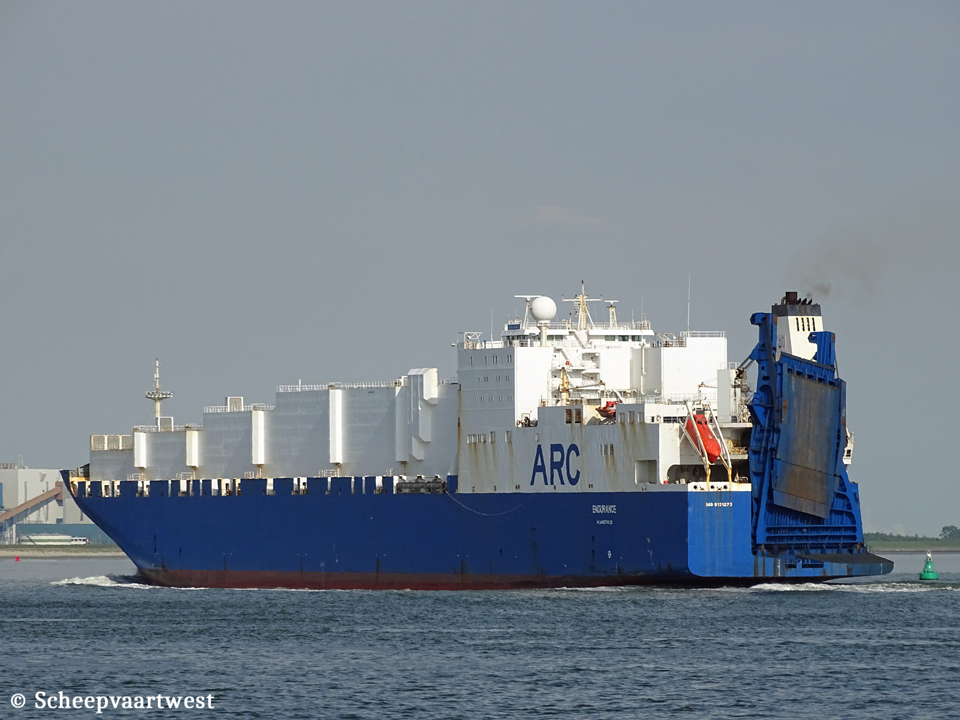

| Antwerpen 12/02/19 | Westerschelde 17/05/18 | Westerschelde 22/05/17 | Westerschelde 22/05/17 | |||
|
Name |
ENDURANCE |
|
Previous names |
1996 - 06/02/2010 Taronga |
|
Type |
Vehicle carrier - Roll-on/Roll-off carrier PCTC - Pure Car Truck Carriers |
|
IMO-number |
9121273 |
|
Call sign |
WDE9586 |
|
Previous call sign |
LACU5 |
|
Flag |
United States of America |
|
Port of registry |
Wilmington De |
|
Previous flag |
1996 - 2010 Norway, Tønsberg |
|
GT |
72.708 t |
|
DWT |
48.988 t |
|
NT |
26.188 t |
|
Number of 20ft containers |
2.700 |
|
Length |
264,60 m overall 249,00 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
Summer: 12,26 m |
|
Air draft |
41,10 m |
|
Freeboard |
9.750 mm |
|
Depth to upperdeck |
22,00 m |
|
Speed |
Max: 22,0 knots |
|
Built |
1996 |
|
Keel laid |
25/05/1996 |
|
Launch date |
28/09/1996 |
|
Date of completion |
16/16/1996 |
|
Builder |
Mitsubishi Heavy Industries Ltd. 1-1 Akunouramachi 850-8610 Nagasaki City Japan |
|
Yard number |
2109 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Trans. bulkheads |
4 |
|
Main engine |
1x Mitsubishi 7UEC85LSC - 2 stroke single acting 7 cylinder 850 x 2.360 mm combustion engine Mcr 25.000 kW / 33.990 hp at 95,4 rpm Builder: Mitsubishi Heavy Industries Ltd - Japan |
|
Propeller |
1x Fixed five bladed solid mono block, keyless propeller - aft at 95,0 rpm |
|
Boilers |
Exhaust gas water tube - Vertical shell type MC-30D Builder: Mitsubishi |
|
Generators |
2x MAN-B&W 6L28/32H - 4 stroke 6 cylinder 280 x 320 mm diesel engines connected with generators each 1.230 kW / 450 Volt 60 Hz 3x MAN-B&W 8L28/32H - 4 stroke 8 cylinder 280 x 320 mm diesel engines connected with generators each 1.640 kW / 450 Volt 60 Hz |
|
Emergency generator |
1x MAN-B&W D2866TE diesel generatorset with an output of 180 kW |
|
Bow thruster |
1x Fixed pitch thruster - 1.650 kW / 2.243 bhp, forward 1x Fixed pitch thruster - 1.650 kW / 2.243 bhp, aft |
|
Capacity car units (RT43) |
4.395 or 809 trucks 1 RT43 unit = 7,38975 m² |
|
Stern ramp width |
12,00 m |
|
Stern ramp capacity |
320 t |
|
Number of decks |
9 (of which 1 is hoistable) |
|
Winches |
Forward deck: 3x Aquamaster Rauma mooring winches type MW 200EA with a break holding capacity of 53 t and 2 Aquamaster Rauma combined mooring and windlass winches with breaking power 53 t and 252 t respectably Amidships: 1x Winch type MW 120 EA with breaking power 53 t and aft mooring deck is equipped with 3 mooring winches type MW 200 EA with breaking power 53 t. Aft mooring deck: 3x Mooring winches type MW 200 EA with breaking power 53 t |
|
Tank capacities |
Ballast: 13.562 m³ Bunker: 6.126 t |
|
Anchor |
2x Sets of cast steel, high holding type, anchor with a weight of 9.675 tons each |
|
Lifting equipment |
2x Provision cranes of type JIB PEEE 5075 are fitted onboard, one on starboard and one on port side of the accommodation |
|
Crew |
26 |
|
Manager |
American Roll-on-Roll-off Carrier, LLC Suite 101, 816, Highway A1A N Ponte Vedra Beach FL 32082-3219 USA |
|
Previous manager |
1996 - 2010 Wilhelmsen Ship Management (Norway) AS Strandveien 20 1324 Lysaker Norway |
|
Owner |
Fidelio Limited Partnership, Inc., Montvale - USA Care of American Roll-on Roll-off Carrier LLC Ponte Vedra Beach FL USA |
|
Previous names & owner |
1996 - 1998 Taronga - WL Shipowning AS - Norway 1998 - 2010 Taronga - Wilhelmsen Lines Shipowning AS |
|
Latest data adjustment |
11 February 2023 |
