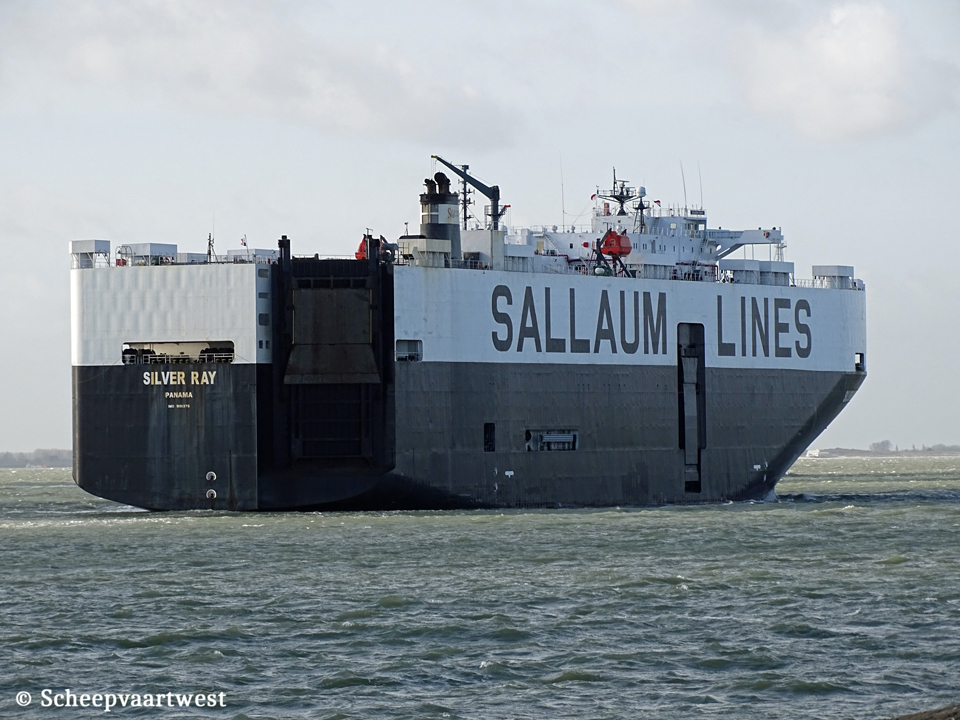

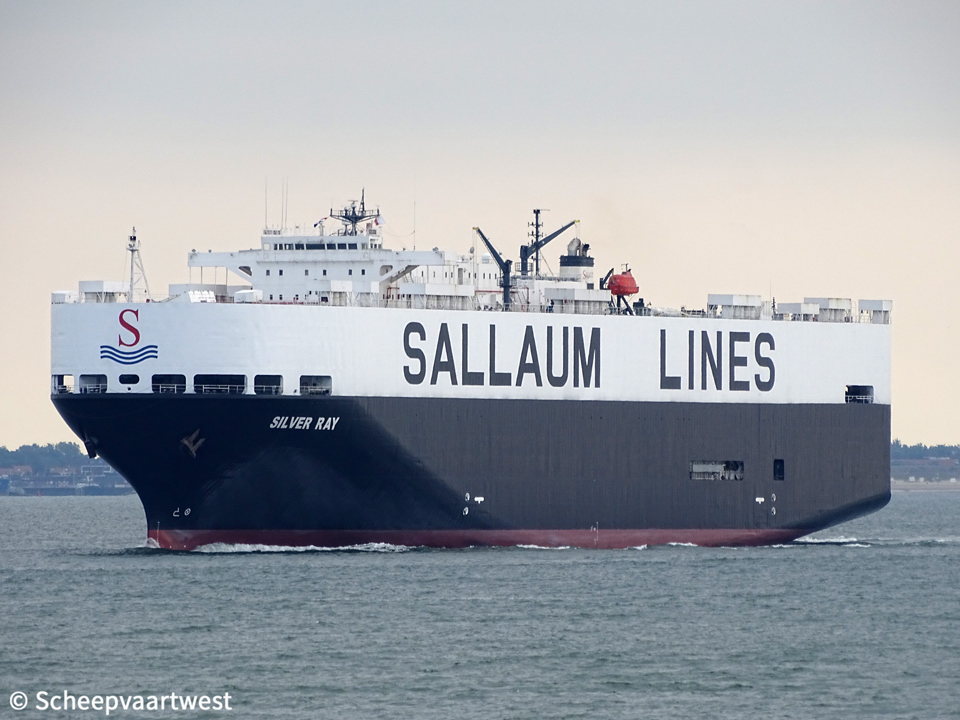

Westerschelde 12 July 2019 |
 |
 |
 |
 |
|||

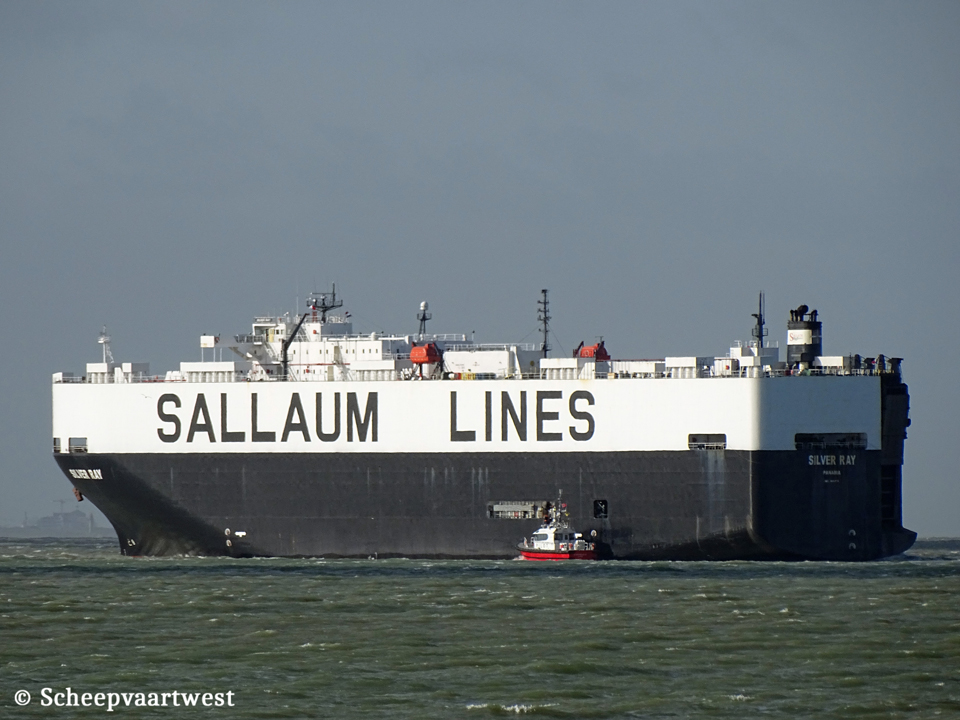

| Westerschelde 12/07/19 | Westerschelde 19/02/20 | Westerschelde 19/02/20 | Westerschelde 19/02/20 |
|
Name |
SILVER RAY |
|
Previous names |
1999 - 10/1999 Altair Leader 10/1999 - 05/2017 Green Dale |
|
Type |
Roll-On/Roll-Off carrier - Vehicle Carrier |
|
IMO-number |
9181376 |
|
Call sign |
3FTI3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
1999 - 2013 United States of America - Call sign: WCZ5238 2013 - 2017 Marshall Islands, Majuro - Call sign: V7CB9 |
|
GT |
50.087 t Suez: 55.355 t |
|
DWT |
Summer: 15.894 t |
|
NT |
15.027 t Suez: 51.591 t Panama: 50.019 t |
|
Length |
179,03 m overall 170,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 9,22 m |
|
Freeboard |
5.693 mm |
|
Depth |
14,89 m moulded |
|
Speed |
Max: 19,5 knots |
|
Built |
1999 |
|
Keel laid |
16/06/1998 |
|
Delivery date |
21/09/1999 |
|
Builder |
Kanasashi Co., Ltd. Toyohashi Works 22 Akemi-Cho Toyohashi City Toyohashi City, 441 Japan |
|
Yard number |
3482 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi 7UEC 60LS - 2 stroke 7 cylinder 600 x 2.200 mm combustion engine 11.620 kW / 15.801 hp at 97,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary fire tube boiler - 6,9 MPa 1x Waste heat boiler - 10,3 MPa |
|
Generators |
3x Main diesel generatorsets each 1.000 kW |
|
Bow thruster |
1x 1.100 kW / 1.800 hp |
|
Number of cars |
4.148 |
|
Ramp |
Max height: 5,30 m Max Width: 7,80 m Ramp: 80 t |
|
Tank capacities |
Fuel oil: 2.744 m³ Ballast: 7.326 m³ Fresh water: 447 m³ |
|
Crew |
34 |
|
Commercial manager |
Sallaum Lines DMCC Office 2001, Swiss Tower, Y3, Jumeirah Lakes Towers Dubai United Arab Emirates |
|
ISM manager |
Maritime Management Serv DMCC Office 2001, Swiss Tower, Y3, Jumeirah Lakes Towers Dubai United Arab Emirates |
|
Registered owner |
Sallaum Lines SA Care of Sallaum Lines DMCC Office 2001, Swiss Tower, Y3, Jumeirah Lakes Towers, Dubai United Arab Emirates |
|
Latest data adjustment |
20 March 2020 |
