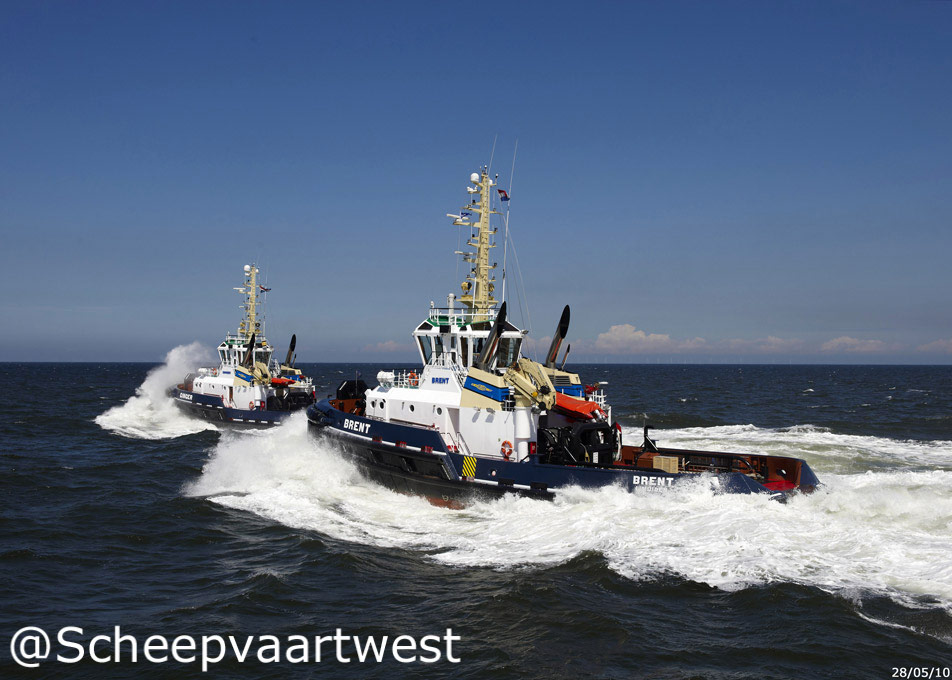

Brent 03
28 May 2010

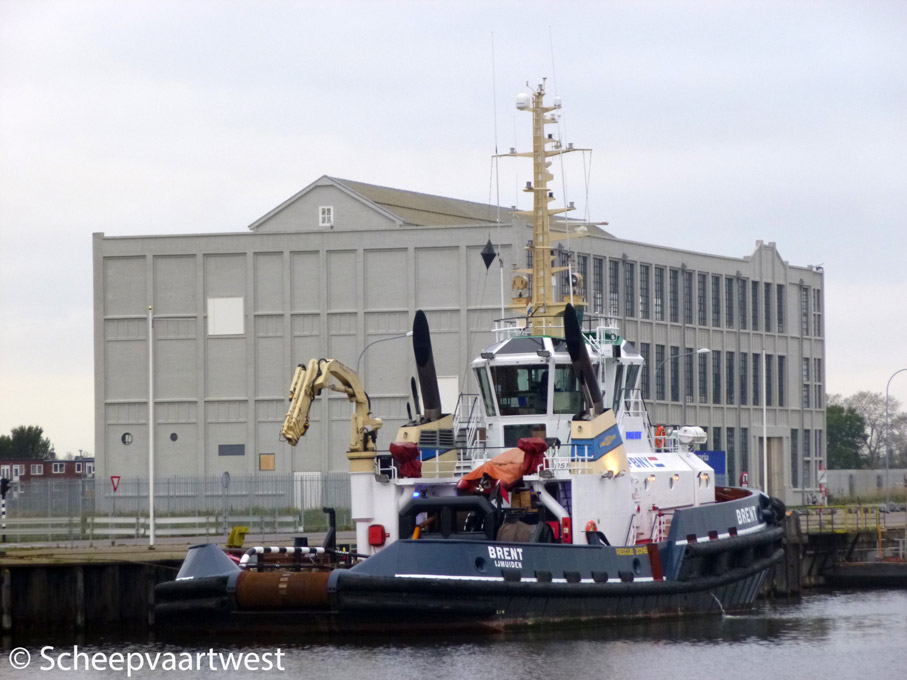

Brent 06
Vlissingen 20/10/12



Name

BRENT

Type

Deep Sea, FiFi I, Escort Port & Terminal Tug

IMO-number

9507051

Call sign

PBNY

Flag

The Netherlands

Port of registry

IJmuiden

GT

487 t

DWT

178 t

NT

147 t

Length

32,00 m overall

33,10 m + fenders

30,25 m registered

Breadth

12,00 m registered

12,80 m + fenders

Draught

4,30 m

Forecastle

14,50 m

Freeboard

1.068 mm

Air draft

21,00 m

Depth

5,36 m moulded

Speed

Max.: 13,5 knots

Built

2009

Keel laid

22/01/2008

Launch date

07/09/2008

Date of completion

03/12/2009

Builder casco

Azim Tersanesi

Karadeniz Eregli

Turkey

Builder completion

Scheepswerf Gebroeders Kooiman B.V.

Lindtsedijk 84

3336 LE Zwijndrecht

The Netherlands

Yard number

180

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

5

Continuous decks

1

Main engine

2x ABC 12(M)DZC-1000-166-A - 4 stroke single acting 12 cylinder 256 x 310 mm combustion engine each 2.650 kW total 5.300 kW / 7.200 hp at 1.000 rpm

Transmission: Main propulsion acts through gears on the propellershaft

Starter type: Compressed air direct

Year of manufacture: 2008

Manufacturer:

Anglo Belgian Corporation N.V.

Wiedauwkaai 43

9000 Gent

Belgium

Propellers

2x Wärtsilä/Lips rudder propeller 275 controllable pitch - aft at 244 rpm

Electric installations

1x Plant 400 V - 312 kVA

1x Plant 400 V - 312 kVA

1x Plant 400 V - 75 kVA

3x Plants each 24 V - 50 Ah

2x Plants each 24 V - 225 Ah

2x Plants each 24 V - 230 Ah

Generators

2x Scania main diesel generatorsets each 312 kVA / 250 kW

Emergency/Harbour gen.

1x Diesel generatorset 75 kVA

Batteries

2x Batteries for UPS navigation each 230 Ah

2x Batteries for emergency lighting each 225 Ah

3x Batteries for start auxiliary engine each 50 Ah

Compressed air receivers

2x Receivers each 200 litres - 30,0 bar

Bow thruster

280 bhp

Bollard pull

83 t

Towing equipment

Winches: Ridderinkhof (fore/aft)

250 ton brake

Aft 80 ton pull

Fore 40/80 ton pull

Wires:

Ocean towage: 1x 800 m, 56 mm

Port towage: 3× 150 m, 88 mm, powerline

Deck equipment

Deck crane: 40 ton/m

Tugger winch: Yes

Towing pins + Stoppers: 120 ton

Sternroller: 3,00 m 150 ton SWL

Deck space: 63 m² (7,00 × 9,00 m)

Deck locks: 2× 10’ containers

Bunker capacity

Gas oil: 210.000 ltr.

Fresh water: 40.000 ltr.

Ballast: 99.000 ltr.

Fire fighting

Fi-Fi 1

2× 1400 m³/h - 120 meters

Anchor equipment

3x Anchors weight each 660 kg

Chain length: 302,50 m

Diameter: 24 mm

Bridge equipment

MF/HF Sailor System 5000 150 W

2× Satcom C

Direction Finder, Tayio

2× Chart System

Satcom-F, Broadband f-250

2× GSM box

DGPS, JRC NWZ-4570

2× Radar JMA-5310-6

3× VHF Sailor RT 5022

2× GMDSS porto SP 3520

Accommodation

7 beds

Owner

Sleepdienst B. Iskes & Zoon B.V.

Loggerstraat 17

1976 CX IJmuiden

The Netherlands

Renamed

01/2022 VB Brent

The Netherlands, IJmuiden - Call sign: PBNY

Owner: Brent Tug B.V.

ISM & commercial manager: Sleepdienst Boluda B.V.

Latest data adjustment

15 March 2022
