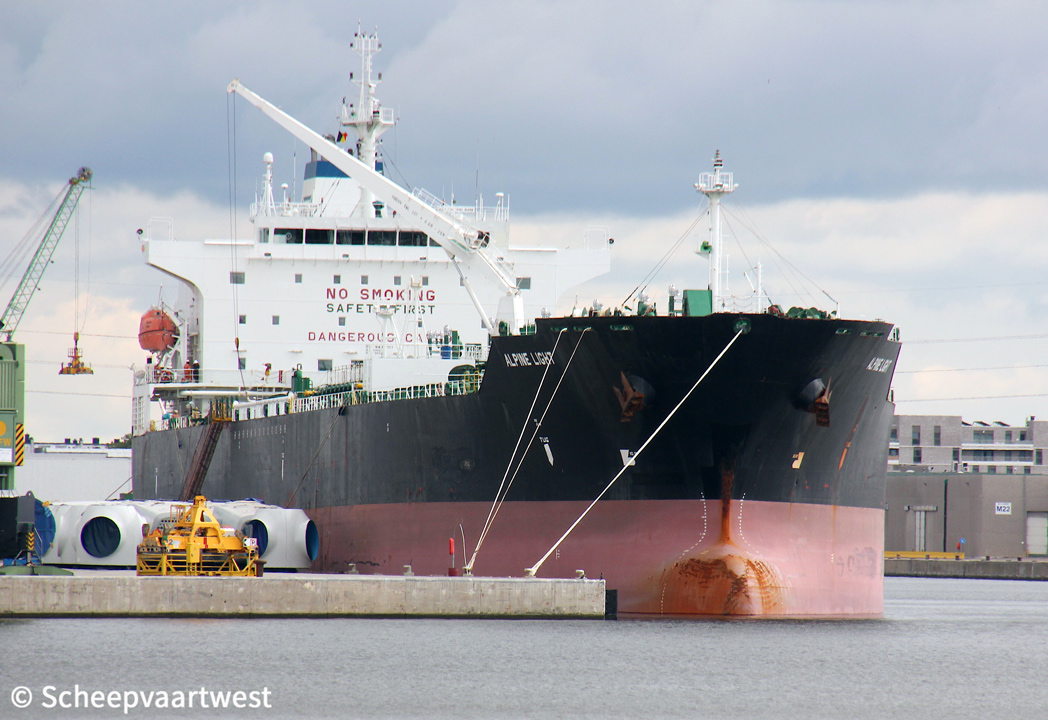

Alpine Light 02

Antwerpen 14 July 2019

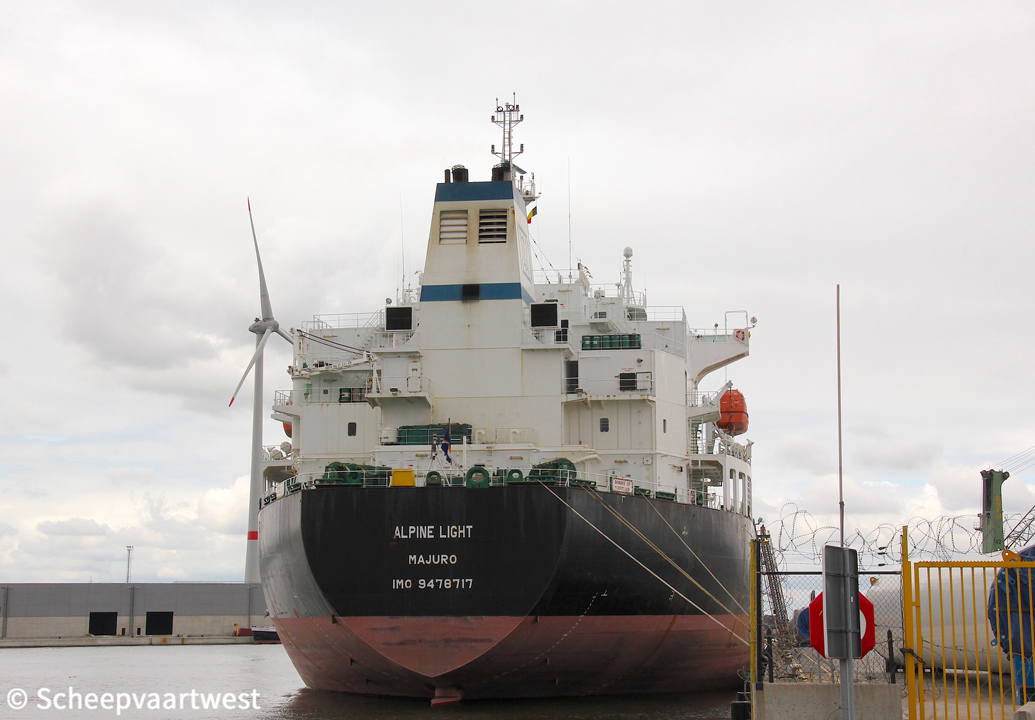

Alpine Light 01
Antwerpen 14/07/19













Name

ALPINE LIGHT

Type

Oil & chemical carrier

IMO-number

9478717

Call sign

V7UJ6

Flag

Marshall Islands

Port of registry

Majuro

GT

29.826 t

Suez: 31.053,62 t

DWT

Summer: 50.238,46 t

NT

13.429 t

Panama: 24.866 t

Suez: 26.080,14 t

Displacement

50.238,6 t

Length

183,00 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Max: 13,08 m

Freeboard

6.052 mm

Depth

19,10 m moulded

Speed

14,9 knots

Built

2010

Keel laid

22/03/2010

Launch date

19/06/2010

Date of completion

06/10/2010

Builder

SPP Shipbuilding Company Ltd.

537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si Gyeongsangnam-Donam Do, 664-942

South Korea

Yard number

H1035

Hull material

Steel

Hull type

Double hull

Main engine

1x Doosan/MAN-B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x

Manufacturer: Sil La Metal Co.

Boilers

1x Auxiliary boiler Mission OL 20t/h - 9,0 bar

1x Economizer boiler Mission XW - 12,0 bar

Manufacturer: Aalborg Industries Ltd.

Generators

3x Yanmar 8N21AL-EV - 6 cylinder 210 x 290 mm combustion engine each 970 kW at 900 rpm connected to generators each 900 kW

Manufacturer: Yanmar Co., Ltd. / Taiyo Electric Co., Ltd.

Number of cargo tanks

14

Cargo tank capacity 100%

54.619,75 m³

Tank capacities

Diesel oil: 114,90 m³

Lube oil: 152,72 m³

Fresh water: 414,00 m³

Fuel oil: 1.415,46 m³

Ballast: 23.092,26 m³

Lifting equipment

1x Engine room overhead crane - SWL 2,5 t

Manufacturer: SPP Machine Tech

1x Hose handling crane - SWL 10,0 t

1x Provision crane - SWL 3,0 t

Manufacturer: Manufacturer: Haean Machinery Ind. Co. Ltd.

Crew

26

Manager

Sea World Management And Trading Inc.

Athens

Greece

Registered owner

Aphrodite Shipowning Inc.

Marshall Islands

Latest data adjustment

31 March 2020
