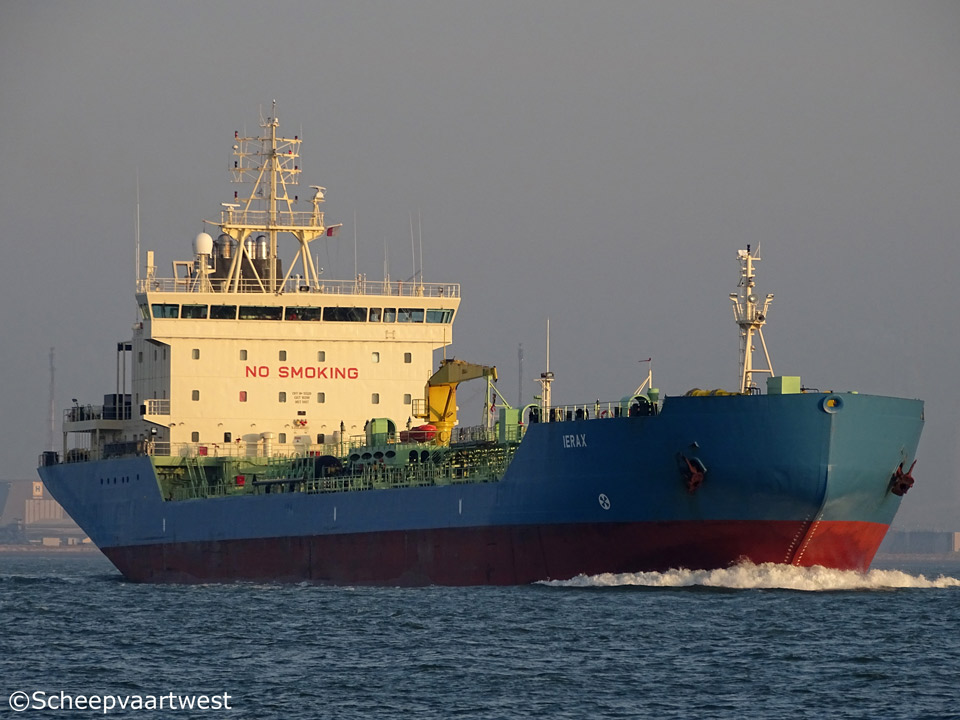

Westerschelde 15 December 2016 |
 |
|

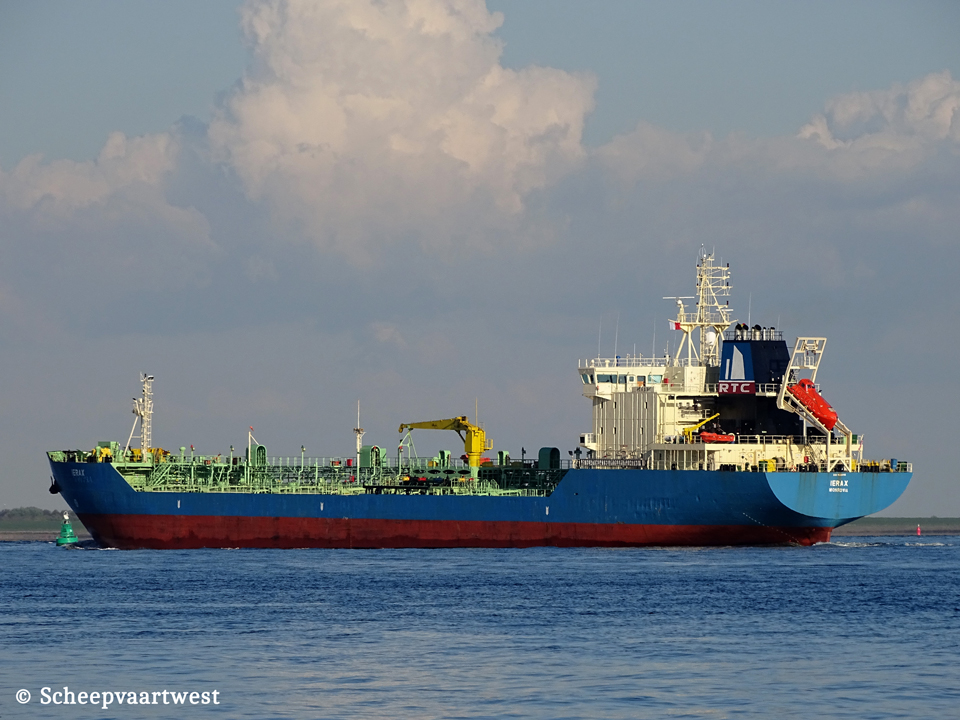

| Westerschelde 18/04/17 | |
|
Name |
IERAX |
|
Previous names |
1998 - 04/2006 Volgograd 04/2006 - 11/2007 Dmitry Laptev 11/2007 - 12/2011 Anefani |
|
Type |
Oil Tanker / Chemical tanker CCP - Clean Petroleum Product Carrier |
|
IMO-number |
9156498 |
|
Call sign |
D5BH5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
1998 - 2007 Russia 2007 - 2011 Malta, Valletta - Call sign: 9HKG8 |
|
GT |
10.298 t registered |
|
DWT |
Summer: 15.885 t |
|
NT |
5.057 t registered Panama: 8.680 t Suez: 8.408,67 t |
|
Length |
145,88 m overall |
|
Breadth |
22,50 m moulded |
|
Draught |
Summer: 8,72 m |
|
Moulded L x B x D |
137,00 x 22,50 x 11,25 m |
|
Registered L x B x D |
138,45 x 22,50 x 11,25 m |
|
Keel to mast |
39,85 m |
|
Freeboard |
Summer: 2.560 mm |
|
Depth |
11,25 m moulded |
|
Speed |
Max.: 15,8 knots |
|
Built |
1998 |
|
Keel laid |
05/09/1997 |
|
Launch date |
21/10/1997 |
|
Date of completion |
27/02/1998 |
|
Builder |
Aker MTW Werft GmbH Wismar Germany |
|
Yard number |
274 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
9 |
|
Number of decks |
1 |
|
Main engine |
1x MAN-B&W 8S35MC - 2 stroke single acting 8 cylinder 350 x 1.400 mm combustion engine 5.300 kW / 7.206 hp at 170 rpm |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 460 mm |
|
Propellers |
1x KaMeWa contolable pitch propeller |
|
Boilers |
2x Auxiliary vertical boiler - 12,0 bar Evaporation: 5,10 t/h Manufacturer: VEB Dampfkesselbau Dresden-Ubigau - Germany |
|
Generators |
3x SKL 8VDS 24/16 AL-1 main diesel generatorsets each 670 kW |
|
Emergency generator |
1x DEMP D 0226 MLE diesel generatorset |
|
Bow thruster |
1x KaMeWa contolable pitch thruster 493 kW / 670 hp, forward |
|
Number of tanks |
9 |
|
Cargo tank capacity 98% |
Liquid: 16.947 m³ |
|
Slop tank capacity 98% |
364 m³ |
|
Number of pumps |
1x Cargo pump 584 m³/h 2x Cargo pumps each 472 m³/h |
|
Tank capacities |
Fuel oil: 1.159 m³ Fresh water: 123 m³ Ballast: 5.640 t |
|
Manifolds |
Bow centre manifolds: 79,50 m |
|
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
|
Lifting equipment |
1x Crane - SWL 7,0 t 1x Crane - SWL 1,5 t |
|
Rescue equipment |
1x lifeboat: 28 persons 1x rescue boat: 6 persons 1x liferaft: 6 persons 4x liferafts: 16 persons |
|
Crew size |
24 |
|
ISM & commercial manager |
Melody Shipmanagement Pvt Ltd. Office 308, 3rd Floor, Space 912, ABV Brand Factory, Mira Bhayandar Road, Mira Road (E), Thane, Maharashtra, 401107 India |
|
Registered owner |
Spitsbergen Inc. Care of Melody Shipmanagement Pvt Ltd , Office 308, 3rd Floor, Space 912, ABV Brand Factory, Mira Bhayandar Road, Mira Road (E), Thane, Maharashtra, 401107 India |
|
Previous names & owners |
1998 - 2006 Volgograd - Lukoil Kaliningradmorneft - Flag: Russia 2006 - 2007 Dmitry Laptev - Pal Shipping 4 Co. Ltd. - Flag: Russia 2007 - 2011 Anefani - Malta Anefani Maritime Co. Ltd. - Flag: Valletta - Malta |
|
Renamed |
2021 - 2022 Yuandong Liberia, Monrovia - Call sign: D5BH5 2022 Yuandong Republic of Panama, Panama City - Call sign: 3E2689 Owner: Fareast Marine Services HK Ltd. - Hong Kong Manager: Melody Shipmanagement Pvt Ltd. |
|
Latest data adjustment |
17 March 2023 |
