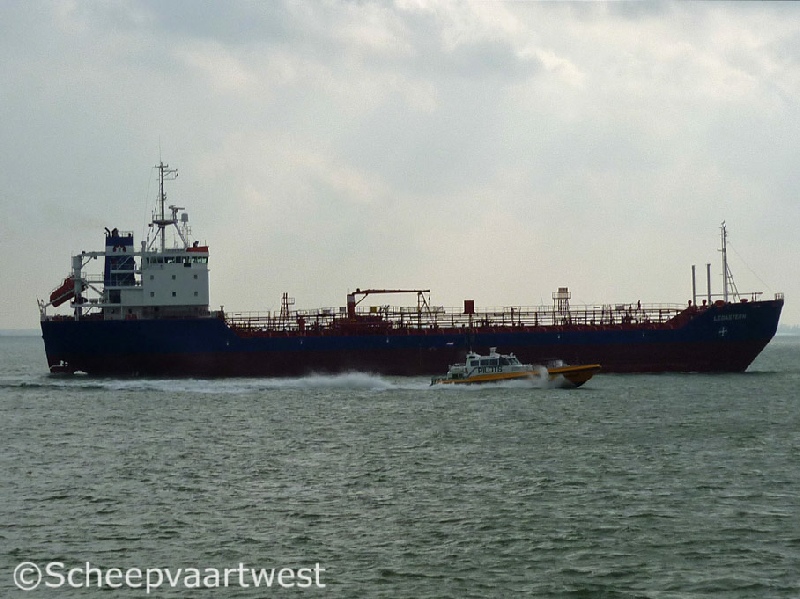

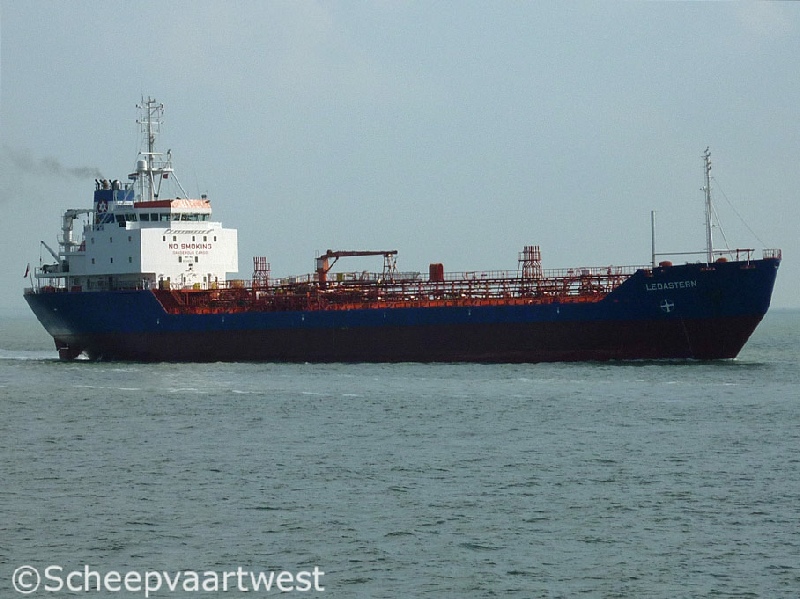

| Westerschelde 17 October 2011 |
 |
| Westerschelde 17/10/11 |
|
Name |
LEDASTERN |
|
Type |
Chemical / Oil products tanker |
|
IMO-number |
9046576 |
|
Call sign |
MWBC7 |
|
Flag |
Isle Of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
6.262 t |
|
DWT |
10.463 t |
|
NT |
3.154 t Panama: 6.502 t Suez: 6.494 t |
|
Length |
123,71 m overall 118,16 m between perpendiculars |
|
Breadth |
17,70 m registered |
|
Draught |
8,359 m |
|
Forecastle |
12,15 m |
|
Poop |
23,40 m |
|
Keel to top of mast |
40,00 m |
|
Depth |
10,60 m moulded |
|
Speed |
Service: 12,5 knots |
|
Built |
1993 |
|
Keel laid |
21.12.1992 |
|
Launch date |
13.03.1993 |
|
Date of completion |
09.07.1993 |
|
Builder |
MTW Schiffswerft GmbH |
|
Yard number |
126 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 6 L 35 MC - 2 Stroke 6 cylinder 350 x 1.050 mm diesel engine - 3.700 kW at 210 rpm Year of manufacture: 1993 Manufacturer: MAN B&W Diesel A/S |
|
Propeller |
1x KaMeWa controllable pitch propeller ice strengthened - aft at 210 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 130,8 m² 1xThermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 249,0 m² Year of manufacture: 1993 Manufacturer: HTI Hoch-Temperatur Industrieanlagen GmbH |
|
Electric installations |
3x Plant 440/220 V - 675 kVA 1x Plant 440 V - 625 kVA 1x Plant 440 V - 108 kVA |
|
Shaft generator |
1x 625 kVA |
|
Generators |
3x Deutz MWM main diesel generatorset each 675 kVA |
|
Emergency generator |
1x Diesel generatorset 108 kVA |
|
Compressed air receivers |
2x Receivers each750 litres - 30,0 bar 1x Receive r 500 litres - 8,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 410 kW, forward |
|
Number of cargo tanks |
12 |
|
Total cargo capacity 98% |
10.673 m³ incl. slop tanks |
|
Largest cargo tank |
980 m³ |
|
Tank coating |
Epoxy |
|
Heating capacity |
Max. 60ºC |
|
Bow to centre of manifold |
70,00 m |
|
Number of cargo pumps |
12x Framo Deepwel pumps of 220 m³ each 2x Framo Deepwell pumps of 70 m³ each |
|
Pumping capacity |
Abt. 1.320 m³/h |
|
Loading capacity |
Abt. 2.000 m³/h |
|
Ballast water |
3.295 m³ |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain Length: 522,50 m |
|
Lifting equipment |
1x Hose crane - SWL 3,0 t |
|
Crew size |
19 |
|
Manager |
Rigel Schiffahrts GmbH & Co. KG |
|
Owner |
Rigel Schiffahrts GmbH & Co. KG MT "LEDASTERN" |
