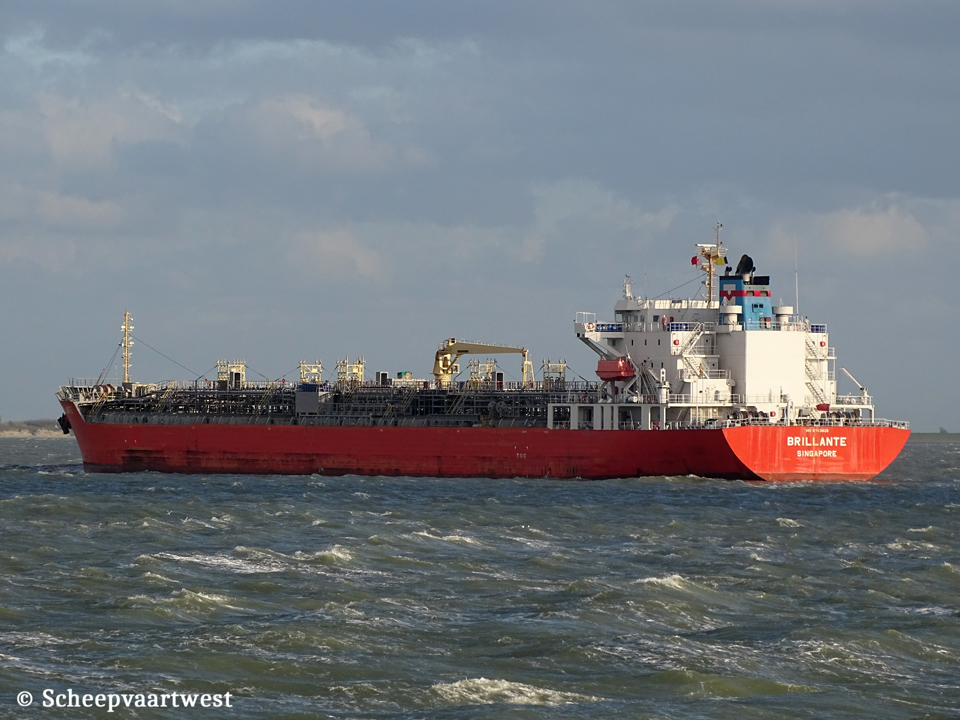

Brillante IMO 9743825 01
Westerschelde 03 November 2020



Name

BRILLANTE

Type

Chemical/Oil products tanker

IMO-number

9743825

Call sign

9V5044

Flag

Republic of Singapore

Singapore City

GRT

22.987 t

Suez: 23.532 t

DWT

Summer: 37.342,65 t

NRT

9.866 t

Panama: 19.148 t

Suez: 20.864 t

Length

180,15 m overall

Breadth

28,20 m moulded

Draught

Summer: 11,37 m

Moulded L x B x D

174,15 x 28,20 x 16,30 m

Registered L x B x D

174,34 x 28,20 x 16,30 m

Keel to mast end

40,20 m

Freeboard

Summer: 4.964 mm

Depth

16,30 m moulded

Speed

Service: 14,6 knots

Built

2017

Keel laid

02/12/2015

Launch date

15/07/2016

Date of completion

31/03/2017

Builder

Kitanihon Shipbuilding Co. Ltd.

Japan

Yard number

622

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W/Makita 6S46ME-B8 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine Mcr 6.100 kW / 8.24 hp at 110,0 rpm

NSR: 5.250 kW at 104,0 rpm

Manufacturer: Makita Corporation - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 460 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical water tube boiler - 0,93 MPa

Evaporation: 18;98 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

3x Brushless main diesel generatorsets each 1.000 kVA at 720 rpm

Bow thruster

1x 868 kW

Number of tanks

28

Cargo tank capacity

Liquid: 39.264,52 m³

Number of pumps

10x Cargo pumps each 330 m³/h

18x Cargo pumps each 220 m³/h

2x Hydraulic driven, vertical centrifugal ballast pumps each 500 m³/h

Tank capacities

Fuel oil: 2.180,40 m³

Diesel oil: 155,68 m³

Fresh water: 592,90 m³

Water ballast: 14.276,50 m³

Accommodation

Officer: 8

Crew: 15

Other: 7

Total: 30

Previous managers

MOL Chemical Tankers Pte Ltd.

15-01, UIC Building, 5, Shenton Way

Singapore 068808

Republic of Singapore

ISM manager

Unix Line Pte Ltd.

15-01, UIC Building, 5, Shenton Way

Singapore 068808

Republic of Singapore

Registered owner

Brillante Maritime Pte Ltd.

Care of MOL Chemical Tankers Pte Ltd , 15-01, UIC Building, 5, Shenton Way,

Singapore 068808

Republic of Singapore

Latest data adjustment

23 December 2021
