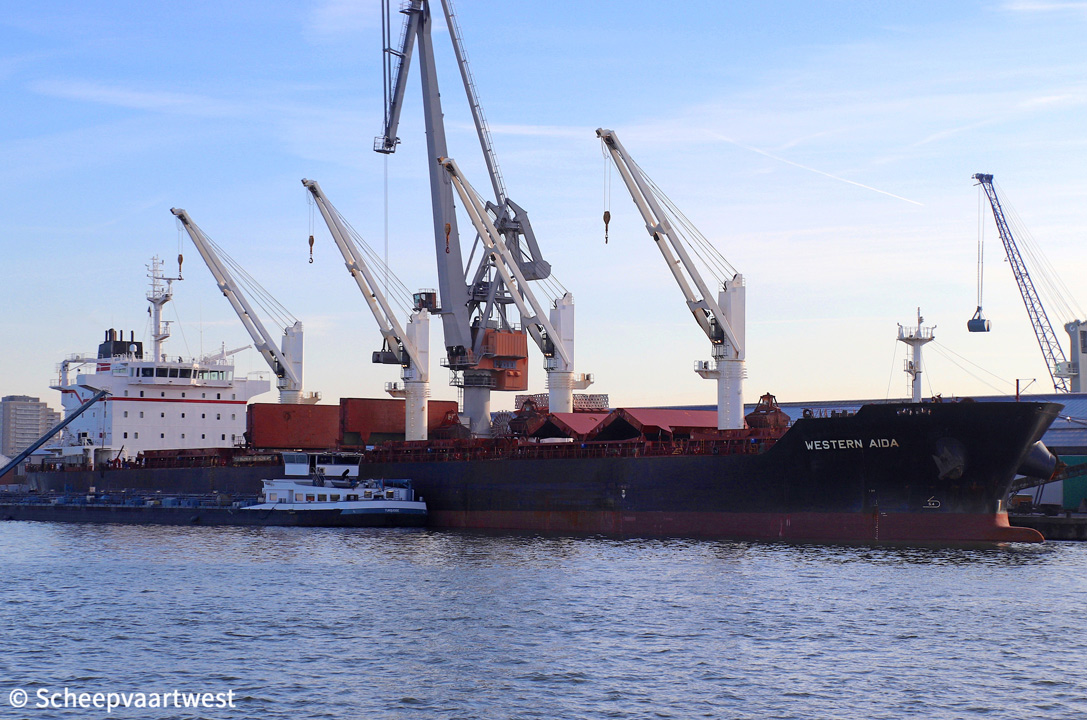

Western Aida 01

Antwerpen 18 December 2019



Name

WESTERN AIDA

Type

Bulk carrier - Handysize

IMO-number

9609677

Call sign

5BPY4R

Flag

Cyprus

Port of registry

Limassol

GT

22.668 t

DWT

Summer: 37.400 t

Winter: 36.300 t

DWCC

Summer: 36.000 t

Winter: 35.000 t

NT

11.856 t

Length

186,96 m overall

178,00 m between perpendiculars

Breadth

28,63 m extreme

Draught

Summer: 10,42 m

Winter: 10,20 m

Freeboard

5.216 mm

Depth

15,60 m moulded

Speed

Service: 14,3 knots

Max: 15,5 knots

Built

2012

Keel laid

27/01/2012

Delivery date

11/05/2012

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

6107

Hull material

Steel

Hull type

Single hull double bottom

Watertight compartments

8

Number of decks

1

Main engine

1x HHI/MAN-B&W 6S46 MC-C - 2stroke 6 cylinder 460 x 1/932 mm combustion engine 7.700 kW / 10.462 hp at 120,0 rpm

Build: 30/01/2012

Builder: Hyundai heavy ind. co., ltd.-Engine & mach. Div., Ulsan - South Korea

Propellers

1x Fixed pitch propeller

Builder: HHI Engine & Machinery Div.

Boilers

1x CHM 25,76 m² - 8,80 bar

Generators

3x Main diesel generatorsets each each 675 kVA - 540 kW - 781 hp

Emergency generator

1x Diesel generatorset 150 kVA - 120 kW - 188 hp

Number of holds

5

Hold 1: 14,22 x 15,90 m

Hold 2-5: 18,96 x 15,90 m

Cargo hold capacity

Grain / Bale:

Hold 1: 9.004,2 / 8.689,1 m³

Hold 2: 10.434,2 / 10.069,0 m³

Hold 3: 10.088,7 / 9.735,6 m³

Hold 4: 10.444,5 / 10.078,9 m³

Hold 5: 9.715,5 / 9./375,5 m³

Total: 49.687,1 / 47.948 m³

Number of hatches

5

Hatch 1: 14,22 x 15,90 m

Hatch 2-5: 18,96 x 15,90 m

Hatch type

McGregor folding type

Max permitted loads

Tanktop:

Hold 1,3,5: 18,9 t/m²

Hold 2,4: 15,8 t/m²

On hatches: 1,75 t/m²

Tank capacities

Fuel oil: 1.486,9 m³

MDO: 243,7 m³

Ballast: 12.412,9 m³

Fresh water: 222,0 m³

Lifting equipment

2x Provision cranes - SWL 3,0 t each

Cargo gear

4x Deck cranes - SWL 30,5 t each

Max. outreach: 25,00 m

Grabs: 4

Volume: 12,0 m³ / 425 ft³

Crew size

20

Operator

MTL Maritime Transport + Logistik GmbH & Co. Kg

August-Hirsch-Strasse 10

47119 Duisburg

Germany

Registered owner

Bellum Shipping Ltd.

Latest data adjustment

05 March 2020
