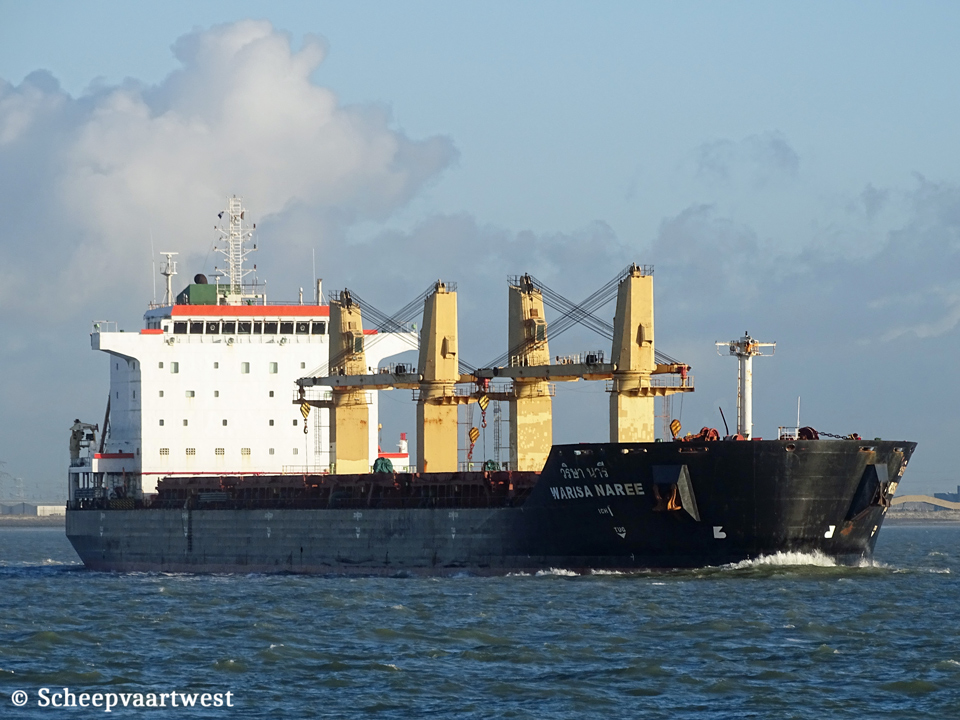

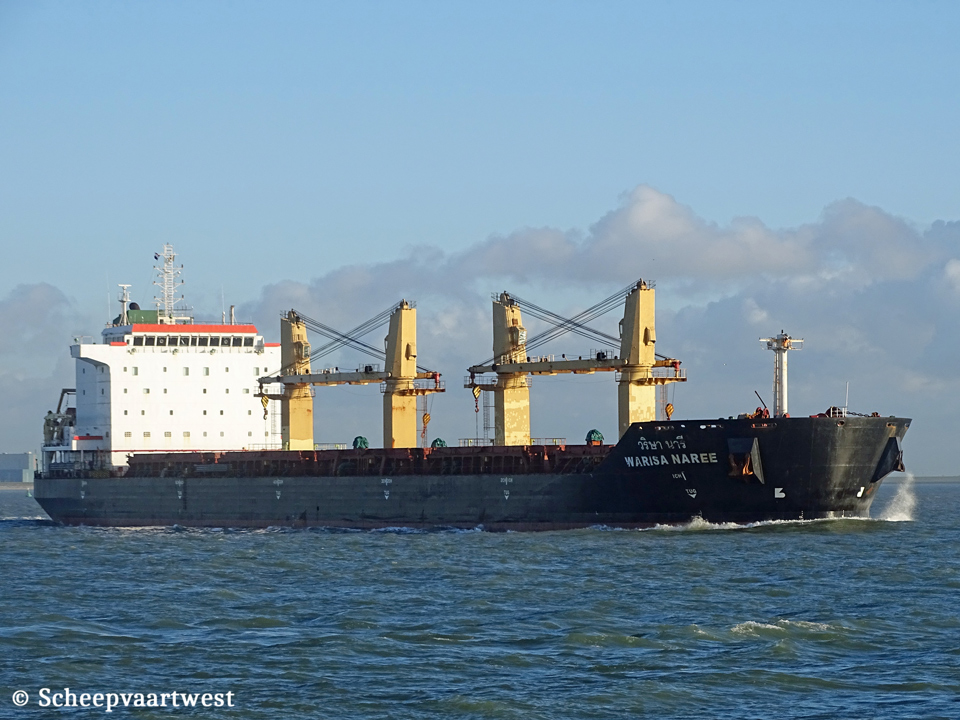

Westerschelde 17 December 2018 |
 |
 |
 |
||

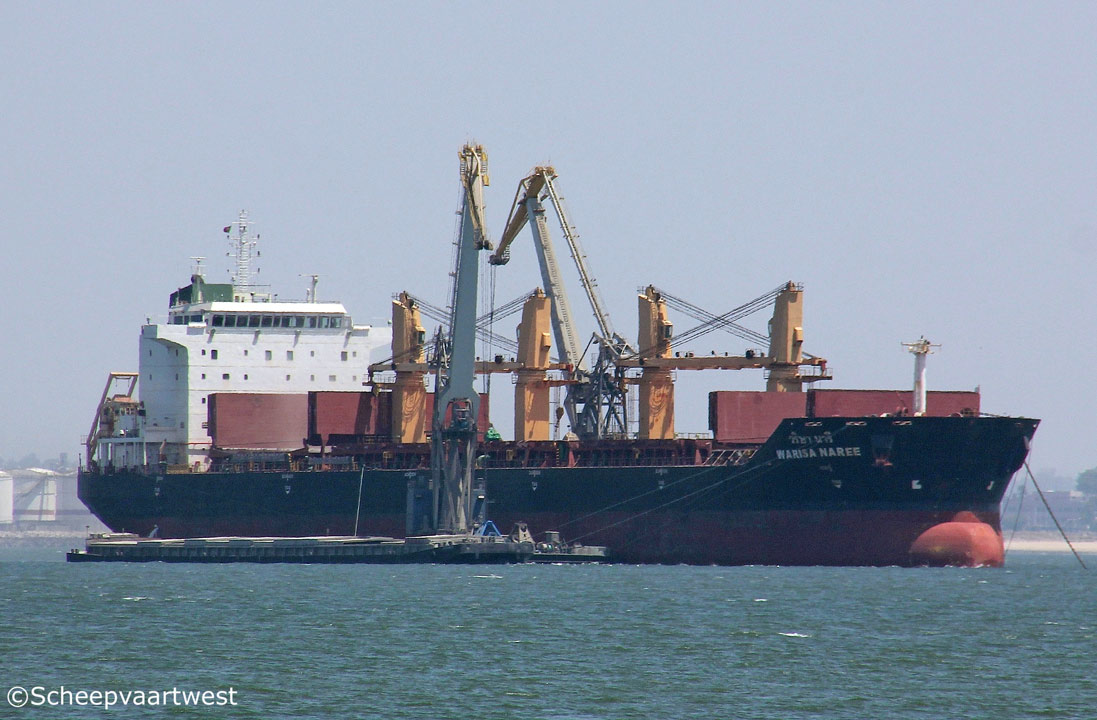

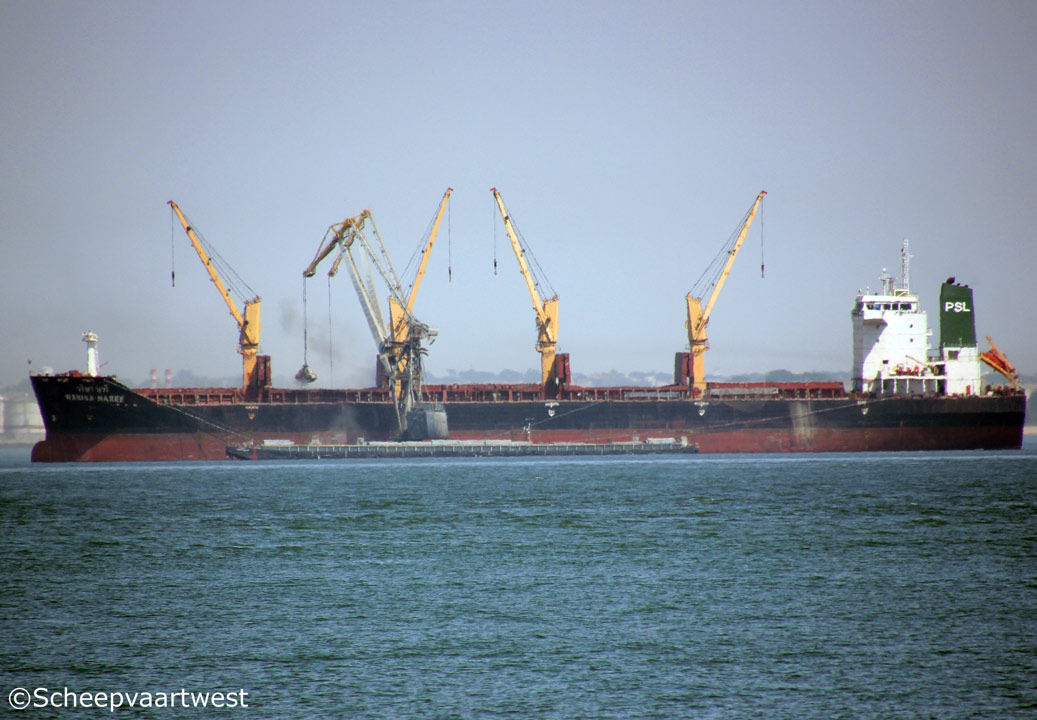

| Westerschelde 17/12/18 | Lisboa, Portugal 14/06/17 | Lisboa, Portugal 14/06/17 |
|
Name |
WARISA NAREE |
|
Previous names |
2010 - 02/2013 Good Pride |
|
Type |
Bulk carrier |
|
IMO-number |
9343417 |
|
Call sign |
HSRW |
|
Flag |
Thailand |
|
Port of registry |
Bangkok |
|
Previous flags |
2010 - 2013 India - Call sign: AUWI |
|
GT |
32.661 t Suez: 33.174,86 t |
|
DWT |
Summer: 53.839 t Winter: 52.334 t |
|
NT |
18.210 t Suez: 29.805,40 t Panama: 27.07 t |
|
Light displacement |
11.245 t |
|
Length |
190,02 m overall 183,25 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 12,63 m Winter: 12,36 m |
|
Keel to mast end |
45,60 m |
|
Depth |
17,50 m moulded |
|
Speed |
Ballast: 14,0 knots - Eco: 12,5 knots Laden: 13,5 knots - Eco: 12,0 knots |
|
Built |
2010 |
|
Date of completion |
04/2010 |
|
Builder |
Hindustan Shipyard Visakhapatnam India |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä 6RT-flex50 - 2 stroke 6 cylinder 500 x 2.050 mm combustion engine 8.262 kW / 11.233 hp at 124,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Wärtsilä 4L20 - 4 stroke 4 cylinder 200 x 280 mm diesel generatorsets each Mcr 680 kW |
|
Number of holds |
5 Hold 1: 29,60 x FWD 8,70 m, AFT 25,20 m Hold 2: 26,40 x 25,60 m Hold 3: 26,40 x 25,60 m Hold 4: 26,40 x 25,60 m Hold 5: 29,20 x FWD 25,60 m, AFT 7,20 m |
|
Cargo hold capacity |
Grain / Bale: Hold 1: 12.438 m³ / 12.319 m³ Hold 2: 13.395 m³ / 13.136 m³ Hold 3: 13.397 m³ / 13.138 m³ Hold 4: 13;395 m³ / 13.136 m³ Hold 5: 13.320 m³ / 13.147 m³ Total: 65.945 m³ / 64.876 m³ |
|
Number of hatches |
5 Hatch 1: 19,20 x 20,80 m Hatch 2: 21,60 x 22,40 m Hatch 3: 21,60 x 22,40 m Hatch 4: 21,60 x 22,40 m Hatch 5: 21,60 x 22,40 m |
|
Hatch type |
Folding type |
|
Max permitted loads |
Tank top: 25,0 t/m² Main deck: 4,5 t/m² Hatch: 2,5 t/m² |
|
Cargo gear |
4x Deck cranes - SWL 36,0 t each Grabs: 4x Electro hydraulic grabs each 14,0 m³ |
|
Crew |
22 |
|
Commerical manager |
Precious Shipping PCL 7th Floor, Cathay House, 8/30 Sathon Nua Road, Silom, Bangrak, Bangkok, 10500 Thailand |
|
ISM manager |
Great Circle Shipping Agency Cathay House, 8/35 Sathon Nua Road, Silom, Bangrak Bangkok, 10500 Thailand |
|
Registered owner |
Precious Ponds Ltd. Care of Precious Shipping PCL , 7th Floor, Cathay House 8/30, Sathon Nua Road, Silom, Bangrak Bangkok, 10500 Thailand |
|
Latest data adjustment |
31 July 2021 |
