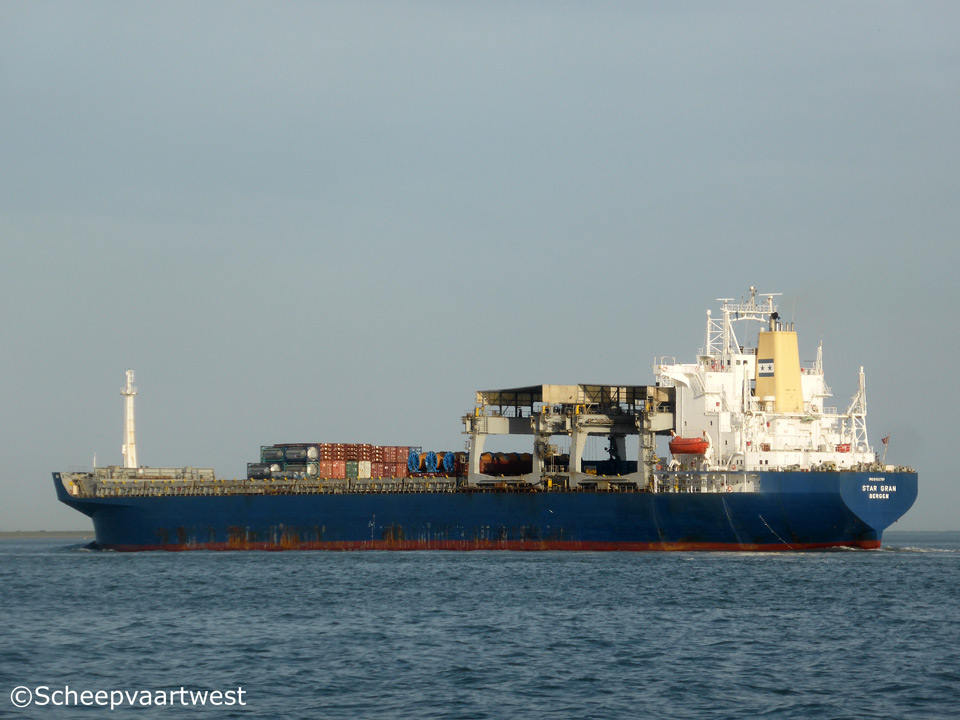

Star Gran 01

Westerschelde 05 August 2015



Name

STAR GRAN

Type

General cargo ship - Open hatch - Single deck

Main products

Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes

IMO-number

8420799

Call sign

LADR4

Flag

Norway

Port of registry

Bergen

GT

27.192 t

DWT

Summer: 43.712 t

Winter: 42.479 t

NT

12.918 t

Number of 20ft containers

On deck: 660

in hold: 852

Total: 1.512

Length

197,80 m overall

188,50 m between perpendiculars

Breadth

29,41 m extreme

Draught

11,72 m

Air draft

Max.: 46,30 m

Depth

16,25 m moulded

Speed

14,5 knots

Built

1986

Keel laid

16.10.1985

Launch date

03.03.1986

Date of completion

01.05.1986

Builder

Mitsui Engineering & Shipbuilding Co. Ltd.
Chiba
Japan

Yard number

1329

Hull material

Steel

Main engine

1x Mitsui B&W 6L60MCE - 6 cylinder diesel engine

MCR: 7.546,5 KW at 104 rpm

NCR: 6.793,3 KW at 100,4 rpm

Turbo charger

Mitsui MAN NA57

Propellers

1

Boilers

1x Auxiliary Boiler, OSAKA Boiler type OEC-512

Steam production: 1.200 kg/h

Working pressure: 7 kg/cm²

1x Exhaust gas economizer, MITSUI

Type: Two-header bent tube forced circulation

Steam production: 1.100 kg/h

Working pressure: 9 kg/cm²

Generators

3x Daihatsu Diesel 6DL-24 - 4 stroke 6 cylinder diesel engines with generator output 800 KW at 720 rpm each

Emergency generator

1x Mitsui/Deutz diesel generatorset 64 kW

Compressed air receivers

2x Tanabe HC-265A - 154 m³/h capacity at 30,0 bar

Service air compressor

1x Working air compressor

Type: Tanabe VLH 2114

Capacity: 400 m³/h capacity at 8,0 bar

1x Emergency diesel air compressor

Yanmar type: KSC3

Capacity: 4,5 m³/h at 30,0 bar

Dehumidifiers

MA-3000-50-64E 5.000 m³/hour capacity

Fresh water generator

1x Fresh water generator Sasakura

Type: AFGU-S61

Capacity: 36 tons/day

Bow thruster

Kawasaki heavy Ind. KT 130 B

Number of holds

10x Box-shaped cargo holds

Cargo hold capacity

Grain:

Hold 1: 3.776,8 m³ / 133.381 ft³

Hold 2: 4.918,7 m³ / 173.381 ft³

Hold 3: 4.917,1 m³ / 173.652 ft³

hold 4: 4.918,8 m³ / 173.712 ft³

Hold 5: 4.922,1 m³ / 173.829 ft³

Hold 6: 4.920,5 m³ / 173.772 ft³

hold 7: 4.917,1 m³ / 173.652 ft³

Hold 8: 4.917,1 m³ / 173.652 ft³

Hold 9: 4.917,1 m³ / 173.652 ft³

Hod 10: 4.521,5 m³ / 159.681 ft³

Total:

Grain: 47.646 m³ / 1.682.681 t

Bale: 47.334 m³

Number of hatches

10

Max. permitted loads

Tanktop:

Holds: 1, 3, 5 & 9 - 26,2 t/m²

Holds: 2, 4, 6, 8 & 10 - 17,1 t/m²

Hatch cover: 3,0 t/m²

Cargo gear

2x Gantry cranes - SWL 40,0 t each

Accommodation

Aft for a total of 31 persons

Manager

Grieg Star AS

Operator

Grieg Star AS

Owner

Grieg International II AS
C. Sundtsgate 17/19
Bergen
Norway

Latest data adjustment

11 April 2017
