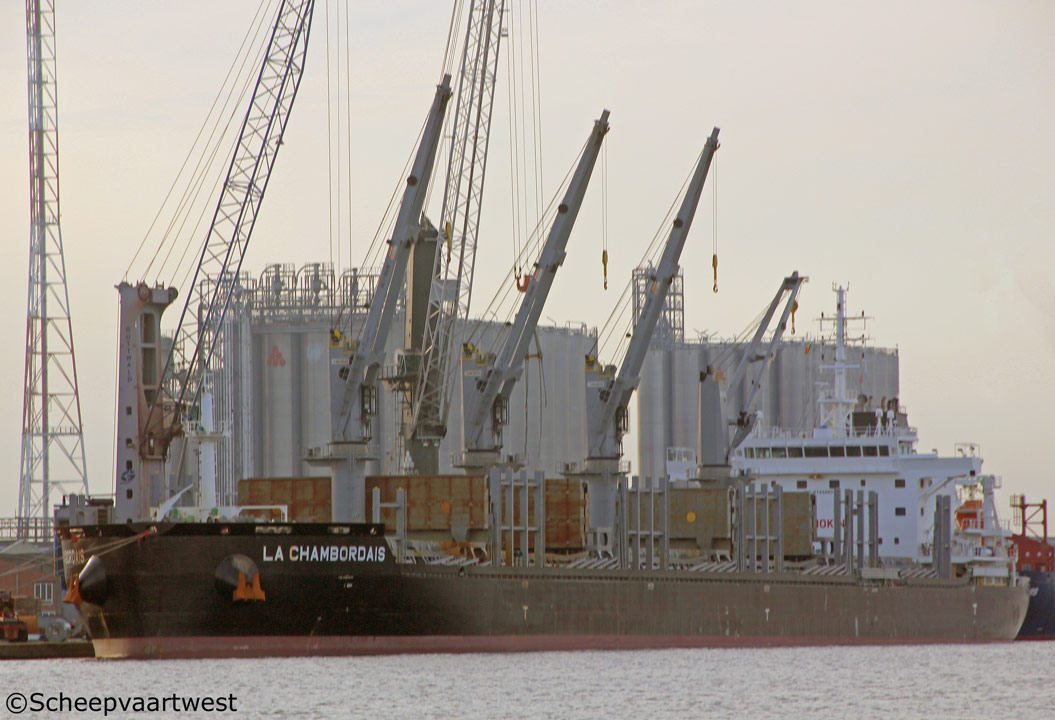

La Chambordais 01

Antwerpen 23 November 2016



Name

LA CHAMBORDAIS

Type

Bulk carrier

IMO-number

9733260

Call sign

9HA3584

Flag

Malta

Port of registry

Valletta

GT

24.725 t

DWT

40.481 t

NT

13.677 t

Length

179,99 m overall

176,65 m between perpendiculars

Breadth

30,00 m

Draught

10,50 m

Freeboard

4.342 mm

Depth

15,00 m

Speed

14,0 knots

Built

2015

Date of completion

15.06.2015

Builder

Tianjin Xingang Shipbuilding Heavy Industry Co.,Ltd.
China

Yard number

NB007-6

Hull material

Steel

Watertight compartments

7

Continuous decks

1

Main engine

1x MAN-B&W-Yichang Marine 5S50ME-B9.2 - 2 stroke 4 stroke 5 cylinder 500 x 2.214 mm diesel engine 6.050 kW / 8.220 hp at 99,0 rpm

Built: 24.06.2014

Builder: Yichang Marine Diesel Engine Co. Ltd., Yichang - China

Propellers

1x Screw propeller solid

Boilers

1x CHM 191,20 m² - 9,0 bar
1x CHR 67,00 m² - 9,0 bar

Generators

3x Main diesel generatorsets each 931 kVA - 745 kW - 1.012 hp

Emergency generator

1x diesel generatorset 150 kVA - 120 kW - 190 hp

Number of holds

5

Total capacity of holds

51.288,30 m³

Tank capacities

Fuel oil: 1.673,7 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manager

Louis Dreyfus Armateurs SAS
21 Quai Gallieni

92150 Suresnes

France

Registered owner

SAS Caroline 57

Latest data adjustment

25 December 2016
