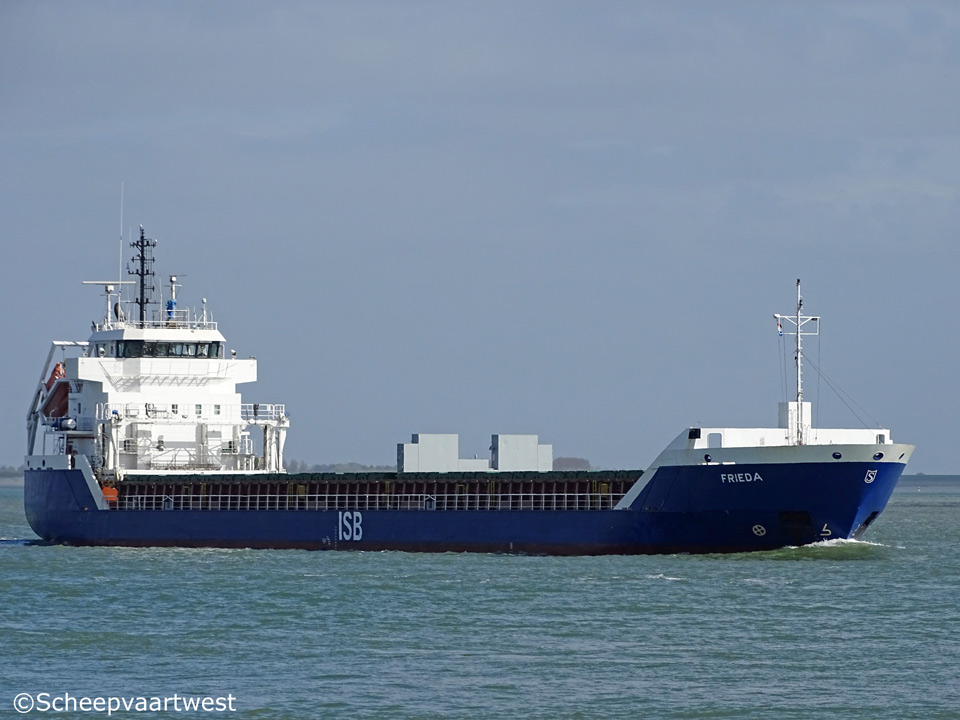

Westerschelde 06 April 2017 |
 |
 |
|

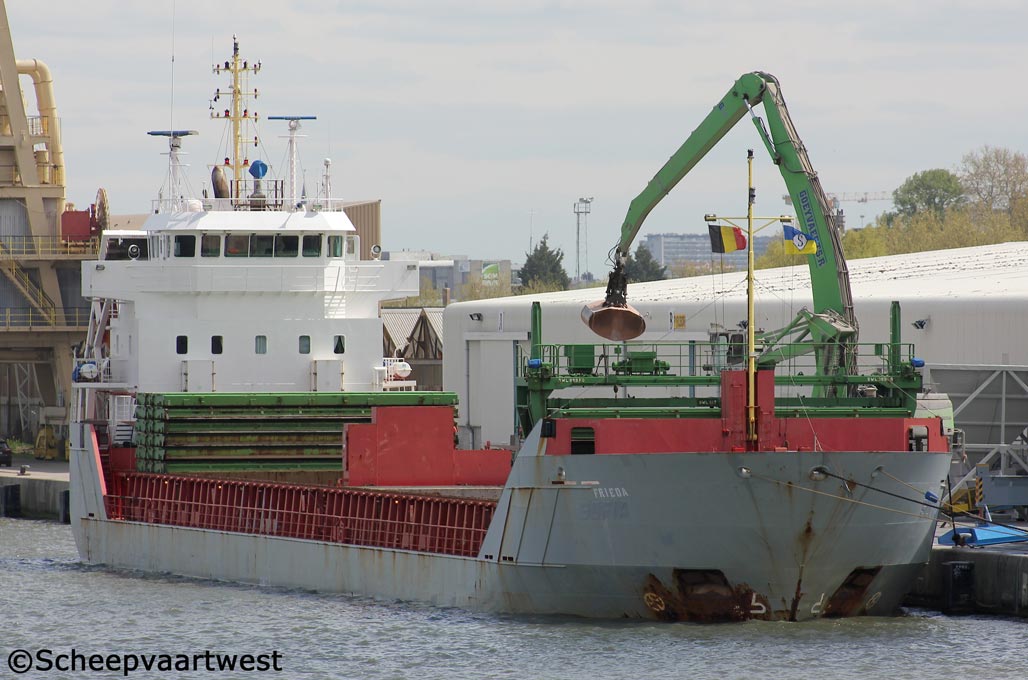

| Westerschelde 06/04/17 | Antwerpen 27/04/15 | |
|
Name |
FRIEDA |
|
Previous names |
06/2004 - 03/2015 Sofia |
|
Type |
General cargo ship / Container ship |
|
IMO-number |
9312690 |
|
Call sign |
V2GR2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
|
|
GT |
3.870 |
|
DWT |
5.750 t |
|
DWCC |
Summer: 5.450 t Winter: 5.200 t |
|
NT |
2.132 |
|
Number of 20ft containers |
240 |
|
Length |
106,12 m overall 100,01 m between perpendiculars |
|
Breadth |
14,40 m moulded |
|
Draught |
Max: 6,14 m |
|
Freeboard |
1.972 mm |
|
Depth |
8,10 m moulded |
|
Speed |
Max: 13,0 knots Service: 11,5 knots |
|
Built |
2005 |
|
Keel laid |
05/2004 |
|
Launch date |
21/12/2004 |
|
Date of completion |
17/06/2005 |
|
Builder casco |
Maritim Sp. z.o.o. Gdansk Poland |
|
Builder completion |
Koninklijke Niestern Sander B.V. Delfzijl The Netherlands |
|
Yard number |
823 |
|
Hull material |
Special steel |
|
Watertight compartments |
8 |
|
Moveable bulkheads |
2 - 4 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M25 - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.700 kW / 3.668 hp at 750 rpm Built: 2004 Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x 438 kVA - 350 kW |
|
Generators |
2x Main diesel generatorsets each 189 kVA - 151 kW - 220 hp |
|
Emergency generator |
1x Diesel generatorset 105 kVA - 84 kW - 125 hp |
|
Bow thruster |
1x 350 kW electrical |
|
Number of holds |
2 Hold 1: 37,53 x 11,70 x 8,95 m Hold 2: 37,53 x 11,70 x 8,95 m |
|
Total capacity of holds |
Hold 1: 3.820 m³ Hold 2: 3.936 m³ Total: 7.756 m³ |
|
Cargo hatchways |
2 37,53 x 11,70 m each |
|
Max permitted loads |
Tanktop: 12,0 t/m² |
|
Tank capacities |
Fuel oil: 255 m³ |
|
Manager |
HS Schiffahrts G.m.b.H. & Co. KG Haren/Ems Germany |
|
Previous managers |
04/2005 - 10/2010 Intersee Schiffahrtsgesellschaft m.b.H. & Co K.G., Haren/Ems - German Federal Republic |
|
Owner |
HS Schiffahrt Thyssenstraße 16 49733 Haren/Ems Germany |
|
Registered owner |
HS-Schiffahrt GmbH & Co.KG MS ''FRIEDA'' St. John's Antigua & Barbuda |
|
Previous names & owners |
04/2005 - 10/2010 Sofia - Sofia Schiffahrts Reederei K.G., Haren/Ems - Germany |
|
Renamed |
03/2018 Kjervaagsund Norway, Trondheim - Call sign: LAFK8
|
|
Latest data adjustment |
15 August 2026 |
