Westerschelde 03 April 2014 |
 |
 |
|
| Westerschelde 03/04/14 | Westerschelde 03/04/14 |
|
Name |

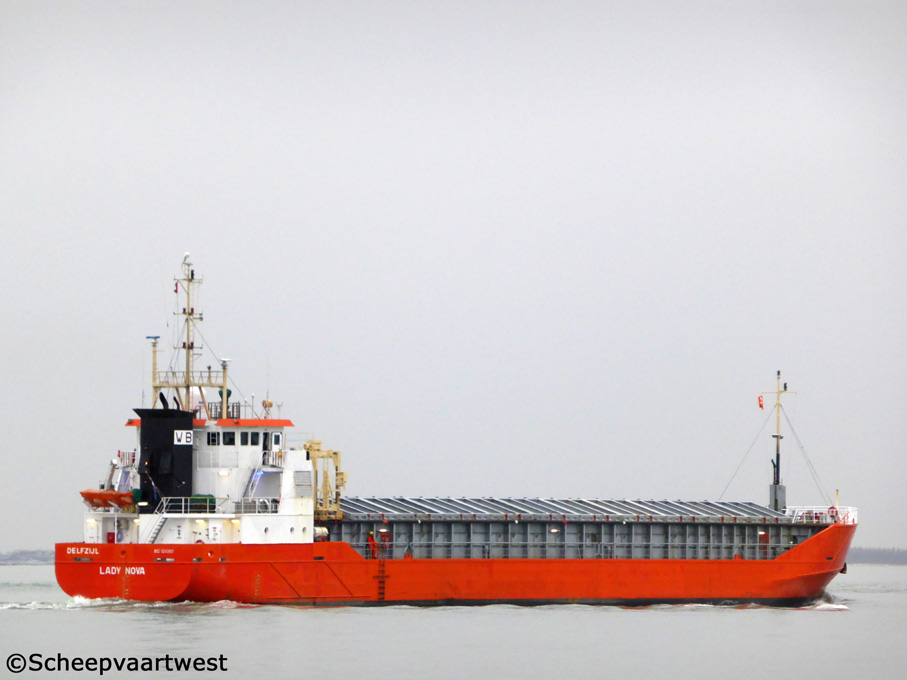

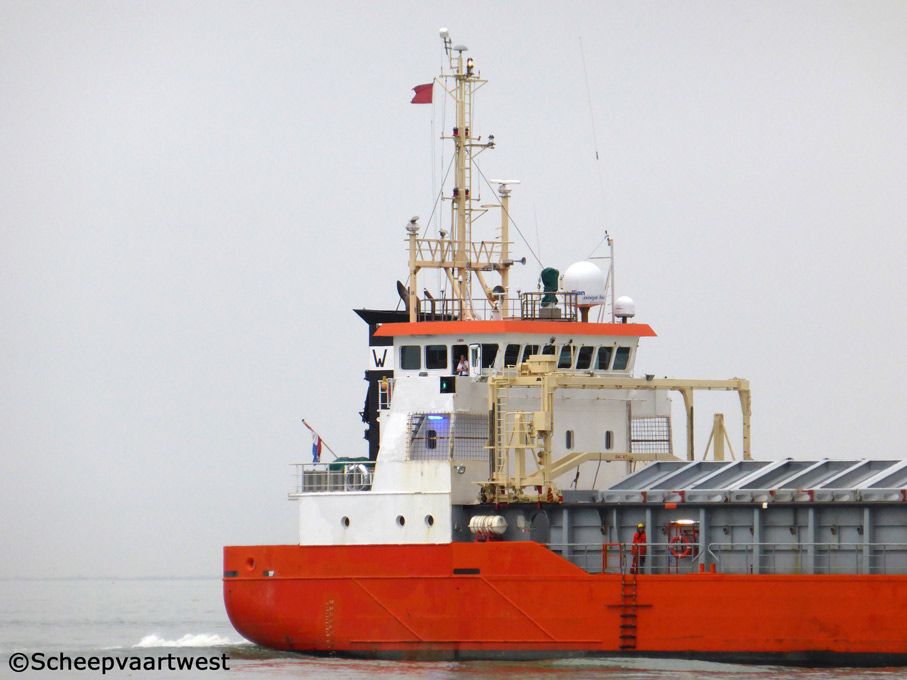

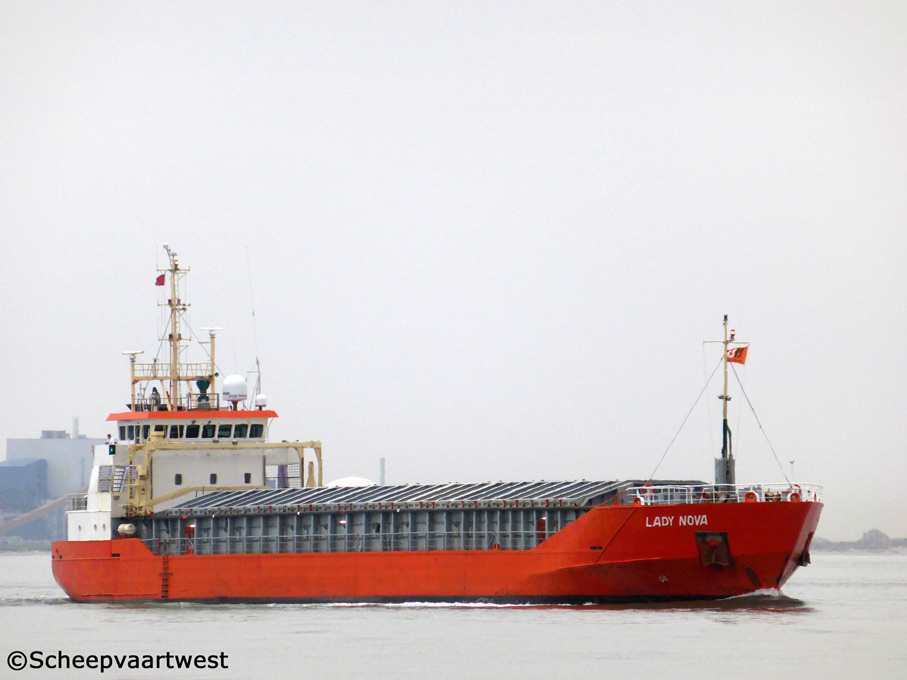

LADY NOVA |
|
Previous names |
2002 - 03/2010 Nova |
|
Type |
Multi-Purpose general cargo ship |
|
IMO-number |
9243887 |
|
Call sign |
PBGP |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
1.978 t |
|
DWT |
2.050 t |
|
NT |
790 t |
|
Length |
79,98 m overall 76,20 m between perpendiculars |
|
Breadth |
12,10 m moulded |
|
Draught |
Summer: 4,00 m |
|
Air draft |
22,00 m in ballast |
|
Depth |
6,45 m moulded |
|
Speed |
13,1 knots |
|
Built |
2002 |
|
Launch date |
09/08/2002 |
|
Date of completion |
20/09/2002 |
|
Builder |
Koninklijke Niestern Sander Delfzijl Delfzijl The Netherlands |
|
Yard number |
911 |
|
Hull material |
Steel |
|
Watertight bulkheads |
4 |
|
Number of decks |
1 |
|
Main engine |
1x Caterpillar 3512B - 4 stroke single acting 12 cylinder 170 x 215 mm combustion engine 1.249 kW at 1.600 rpm Starter type: Electrical starter Built: 2010 Builder: Caterpillar Tractor Co. |
|
Gearbox |
1x Reverse reduction gear Reintjes WAF-1172 Reduction: 7.048:1 |
|
Propellers |
1x Solid Propeller - aft at 227 rpm 5 blades - Diameter 2.600 mm |
|
Generators |
1x Sisu Diesel 645DSBIMG - 6 cylinder 111 x 145 diesel engine 180 kW at 1.500 rpm coupled with Stamford HC.M434D1 generator 275 kVA Built: 2002 1x Sisu Diesel 634DSBIG - 6 cylinder 108 x 1345 diesel engine 150 kW at 1.500 rpm coupled with Stamford UC.M274H1 generator 175 kVA Built: 2002 |
|
Emergency Generator |
1x Sisu Diesel 420DSRIG - 6 cylinder 108 x 120 diesel engine 90 kW at 1.500 rpm coupled with Stamford generator 97 kVA Built: 2002 |
|
Bow thruster |
1x Promac thruster 180 KW |
|
Number of holds |
1 49,70 x 10,00 x 7,83/8,82 m |
|
Number of hatches |
1 49,70 x 10,00 m |
|
Hatches type |
Pontoon hatch |
|
Cargo hold capacity |
Grain: 149.584 ft³ / 4.236 m³ |
|
Timber capacity |
3.000 / 3.200 m³ |
|
Deck Strength |
Tanktop: 10,0 t/m² |
|
Hold ventilation |
6x Air-changes/h |
|
Tank capacities |
Ballast water: 1.104 m³ Potable water: 33,0 m³ Fuel oil: 129 m³ Lubricating oil: 6 m³ Sewage: 6 m³ Sludge: 5 m³ |
|
Anchor equipment |
2x Each 1.195 kg Length: 220,00 m |
|
Lifting equipment |
1x Gantry crane 1x Boat crane |
|
Manager |
Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V. Delfzijl The Netherlands |
|
Owner |
2010 Beheermaatschappij Timberfleet II B.V. Delfzijl The Netherlands |
|
Previous names & shipping companies |
09/2002 - 10/2008 Nova - Scheepvaartonderneming Opwierde B.V., Delfzijl (C.V. Timberfleet B.V., Delfzijl) - The Netherlands |
|
Renamed |
11/2019 Vidar Chili, Puerto Montt - Call sign: CA7904 |
|
Latest data adjustment |
17 January 2020 |
