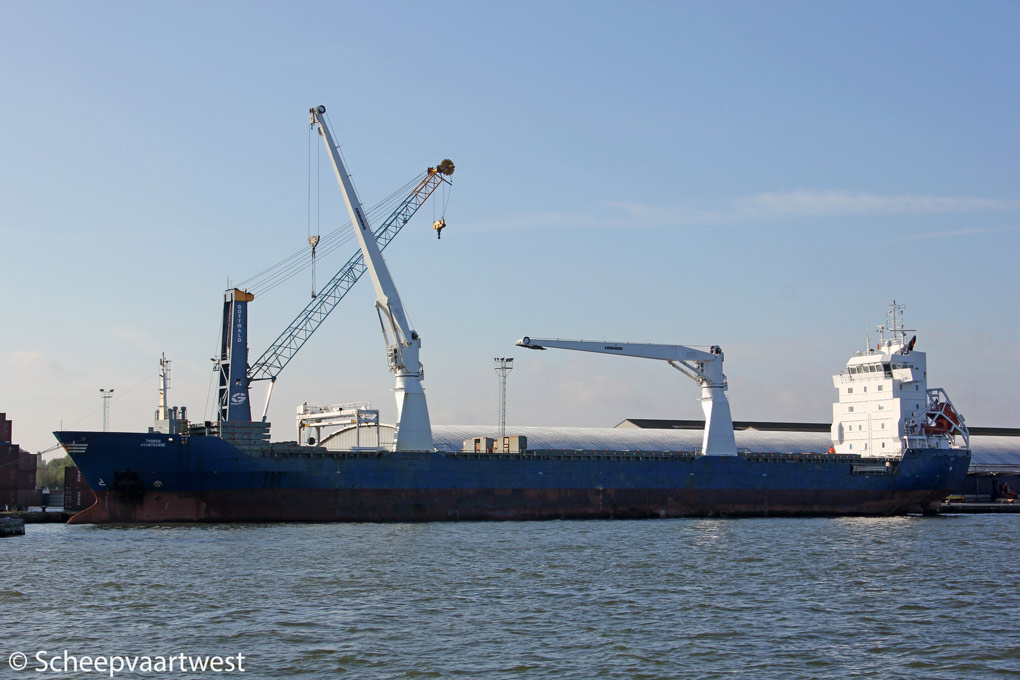

Thorco Avantgarde 01
Antwerpen 26 October 2013



Name

THORCO AVANTGARDE

Previous names

2009 - 06.2010 Dutch Verena

2010 - 03.2011 Beluga Novation

2011 - 10.2013 BBC Napels

Type

Multi-purpose dry cargo ship - Heavy cargo - Equipped for carriage of containers

IMO-number

9484223

Call sign

V2ET5

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

6.351 t

DWT

9.833,7 t

NT

3.617 t

Number of 20ft containers

On deck: 206

In hold: 264

Total: 470

Reefer points

20

Length

132,20 m overall

124,56 m between perpendiculars

Breadth

15,87 m moulded

Draught

Max.: 7,78 m

Freeboard

1.879 mm

Depth

9,65 m

Speed

14,8 knots

Built

2009

Date of completion

17.06.2010

Builder

Qingdao Heshun Shipyard Co.,Ltd.
Qingdao
China

Yard number

HS-8504

Hull material

Steel

Watertight compartments

6

Continuous decks

1

Main engine

1x MAK 8M32 - 4 stroke 8 cylinder 320 x 480 diesel engine - 3.840 kW / 5.217 hp at 600 rpm

Built: 11.05.2009

Builder: Caterpillar Motoren GmbH & Co. KG , Kiel - Germany

Propellers

1x Screw propeller controllable pitch - at 148 rpm

Boilers

1x CHR Tube Tec Rohrverform - 77,00 m² - 10,0 bar
1x CHO Apprate- und Kesselb - 17,50 m² - 10,0 bar

Shaft generator

1x 813 kVA

Generators

2x Main diesel generatorsets each  405 kVA - 324 kW - 455 hp

Emergency generator

1x Diesel generatorset 118 kVA - 94 kW - 174 hp

Bow thruster

1x 500 kW

Number of holds

2

Total capacity of holds

12.821,75 m³

Max. deck load

Tank top: 15,0 t/m²

Tween deck: 3,5 t/m²

Hatch cover: 1,75 t/m²

Tank capacities

IFO: 621,7 m³

MGO: 58,9 m³

Fresh water: 73,1 m³

Cargo gear

2x Liebherr cranes - SWL 60,0 t each

Manager

Marship Management GmbH & Co. KG
Herrn Bernhard Held
Boschstraße 21
49733 Haren (Ems)
Germany

Owner

Marship Management GmbH & Co. KG
Herrn Bernhard Held
Boschstraße 21
49733 Haren (Ems)
Germany

Registered owner

MS Dutch Verena Shipping GmbH & Co., KG

Last update

29 November 2013
