Vlissingen 13 November 2015 |
 |
| Vlissingen 13/11/15 |
|
Name |

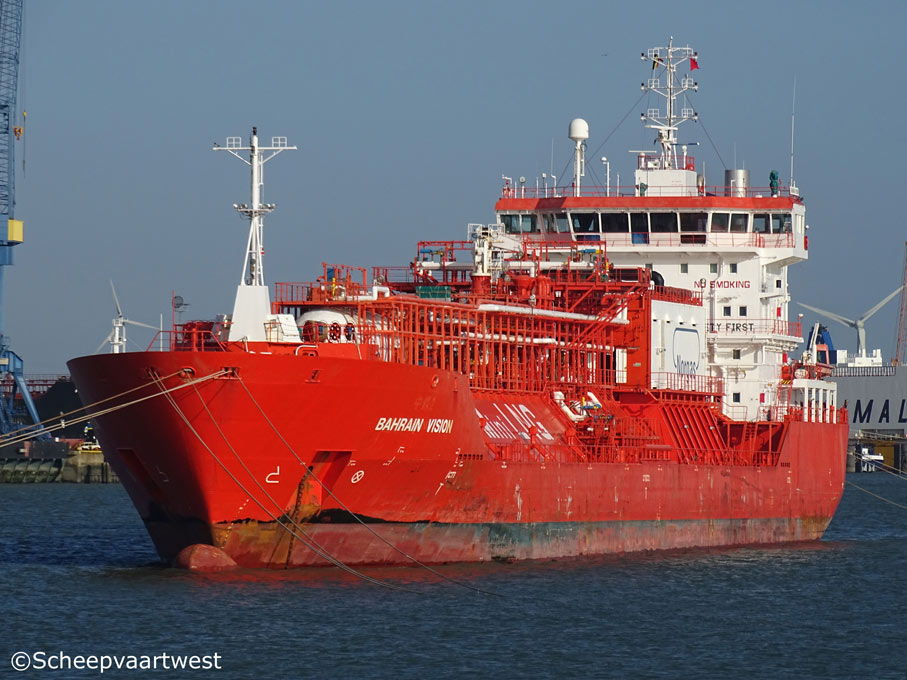

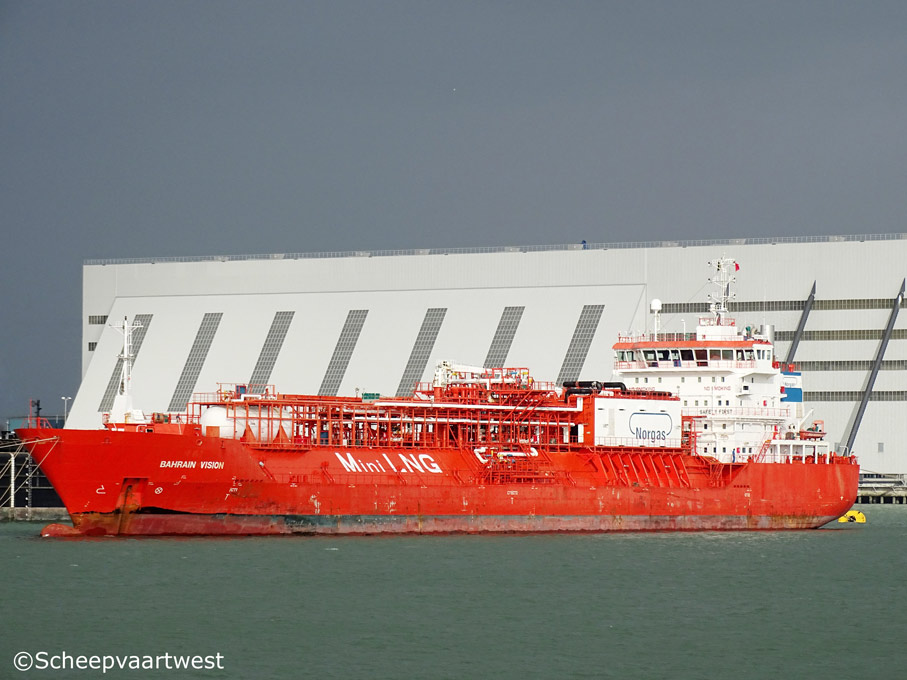

BAHRAIN VISION |
|
Previous names |
2011 Launch as: Norgas Vision |
|
Type |
Liquefied gas tanker |
|
IMO-number |
9468449 |
|
Call sign |
9V8564 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
11.327 t |
|
DWT |
Summer: 12.569 t |
|
NT |
3.399 |
|
Length |
152,17 m overall 142,36 m between perpendiculars |
|
Breadth |
19,84 m extreme |
|
Draught |
8,30 m |
|
Depth |
11,50 m |
|
Built |
2011 |
|
Keel laid |
01.11.2008 |
|
Launch date |
19.12.2010 |
|
Date of completion |
14.10.2011 |
|
Builder |
I.M. Skaugen Marine Services Pte. Ltd. |
|
Yard number |
DHJS 2007-002 |
|
Hull material |
Steel |
|
Main engine |
1x MAN 6S46MC-C8 - 6 cylinder diesel engine Builder: MAN Diesel & Turbo, Filial of MAN Diesel & Turbo SE - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated type QFK750-0.7 1x Thermal oil heater, oil fired type QXC-150W |
|
Generators |
3x Caterpillar 3508B diesel generatorsets |
|
Emergency generator |
1x MWM Deutz TBD234V6 diesel generatorset |
|
Number of tanks |
2 |
|
Tank capacity |
12.000 m³ |
|
Max. pressure |
5,2 bar |
|
Min. temp |
-163°C |
|
Tank capacities |
Ballast: 6.781 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
|
Manager |
Norgas Carriers Pte. Ltd. |
|
Previous managers |
2011 - 2012 I.M. Skaugen Marine Services Pte. Ltd. |
|
Owner |
DHJS Hull No.2007-002 LLC |
|
Previous owners |
2011 - 2012 I.M. Skaugen Marine Services Pte. Ltd. |
|
Latest data adjustment |
06 December 2015 |
