| Westerschelde 29 April 2017 |
|
Name |

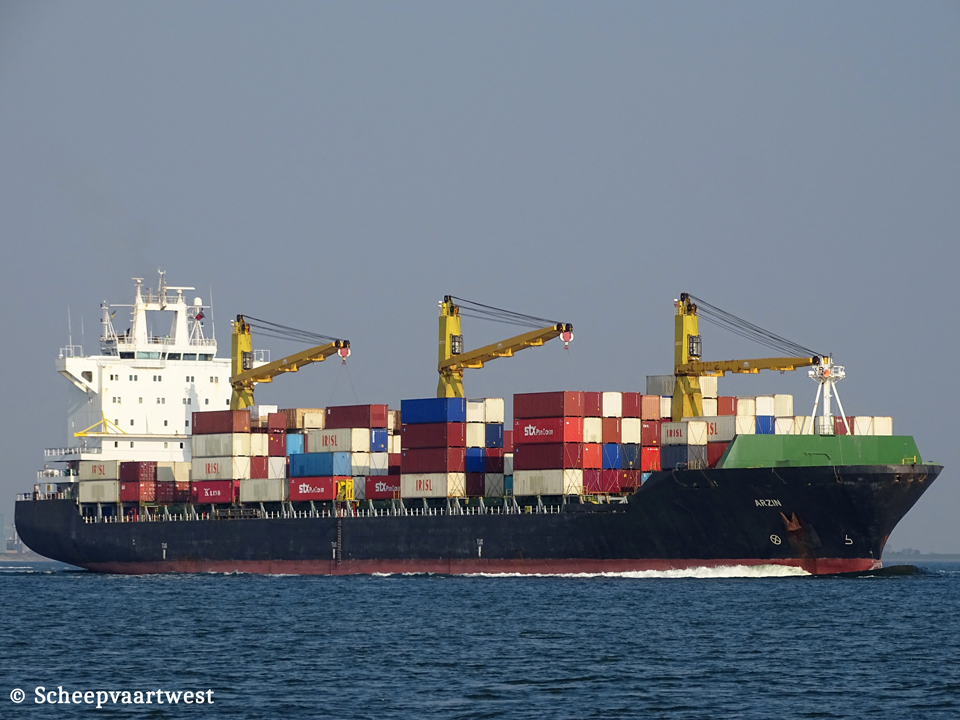

ARZIN |
|
Previous names |
2004 - 2009 Iran Yasooj 2009 - 2011 Simber 2011 - 2013 Pardis |
|
Type |
Cellular containership |
|
IMO-number |
9284142 |
|
Call sign |
EPBZ4 |
|
Flag |
Iran |
|
Port of registry |
Qeshm |
|
Previous flags |
2004 - 2011 Iran 2011 - 2013 Barbados |
|
GT |
25.391 t |
|
DWT |
33.812 t |
|
Number of 20ft containers |
2.478 |
|
Container capacity 14t |
1.894 |
|
Reefer capacity |
400 |
|
Length |
206,00 m |
|
Breadth |
29,00 m |
|
Draught |
Summer: 11,40 m |
|
Depth |
16,40 m |
|
Speed |
Max: 22,5 knots |
|
Built |
2004 |
|
Keel laid |
03/12/2003 |
|
Delivery date |
30/04/2004 |
|
Builder |
Aker MTW Werft GmbH Germany |
|
Yard number |
23 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 7RTA72 U - 2 stroke 7 cylinder combustion engine 21.560 kW at 99,0 rpm Manufacturer: Wärtsilä Italia S.p.A |
|
Propellers |
1x Solid propeller (keyless) - aft at 99,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 36.5 m² Heating surface: 310.0 m² manufacturer: Siempelkamp Energie- und Anlagentechnik GmbH & Co. KG |
|
Electric installations |
1 Plant 440/ 220 V with 1880 kVA 1 Plant 440/ 220 V with 1880 kVA 1 Plant 440/ 220 V with 1880 kVA 1 Plant 440 V with 220 kVA |
|
Generators |
3x Wärtsilä 9L20 main diesel generatorsets each 1.880 kVA |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Compressed air receivers |
2x Receivers each 9.000 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Kawasaki transverse thruster - 1.620 kW |
|
Number of holds |
5 |
|
Tank capacities |
Fuel: 2.443 m³ Water ballast: 9.969 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length 660,00 m |
|
Cargo gear |
3x deck cranes - SWL 45,0 t each |
|
Crew size |
23 |
|
Manager |
IRISL - Islamic Republic of Iran Shipping Line (Darya Hafiz Shipping Tehran - Iran) |
|
Registered owner |
Rahbaran Omid Darya Shipmanagement Tehran Iran |
|
Latest data adjustment |
17 April 2023 |
