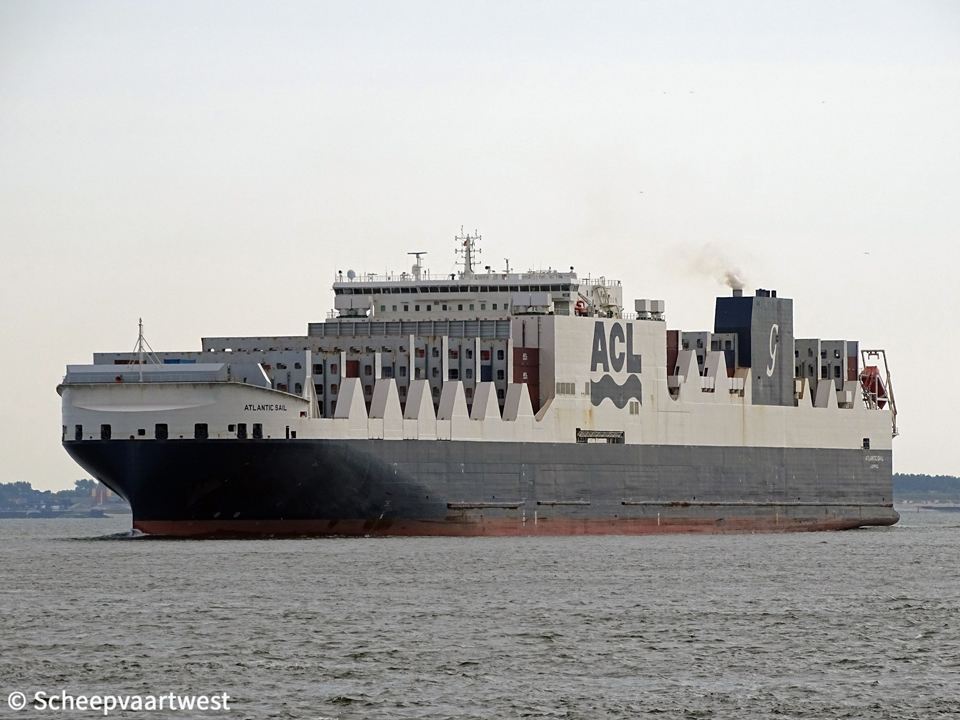

Atlantic Sail 02

Westerschelde 11 July 2018

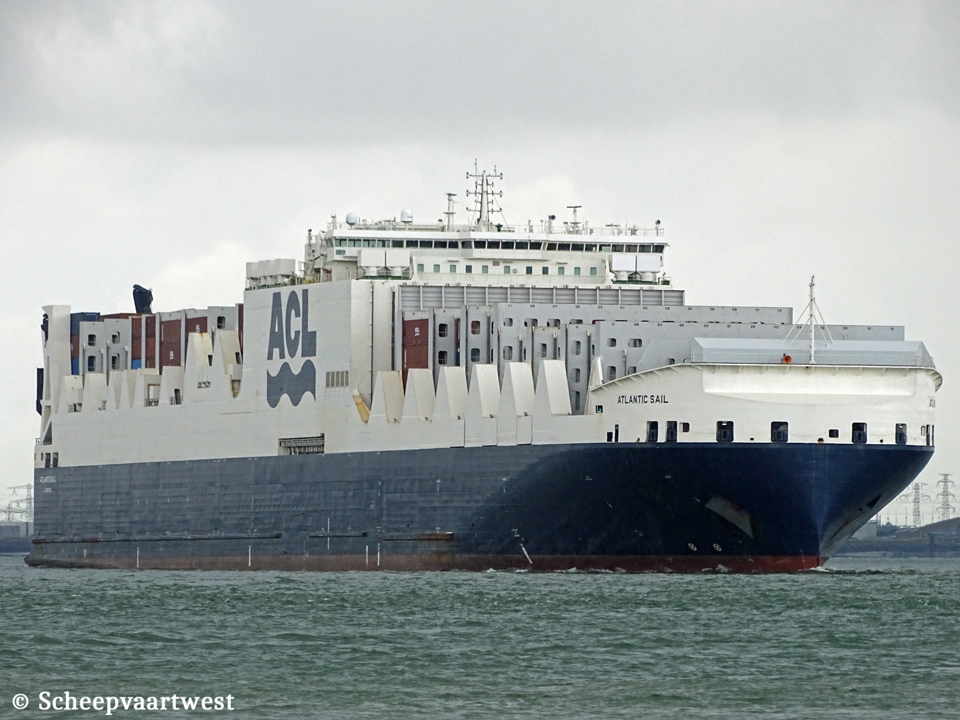

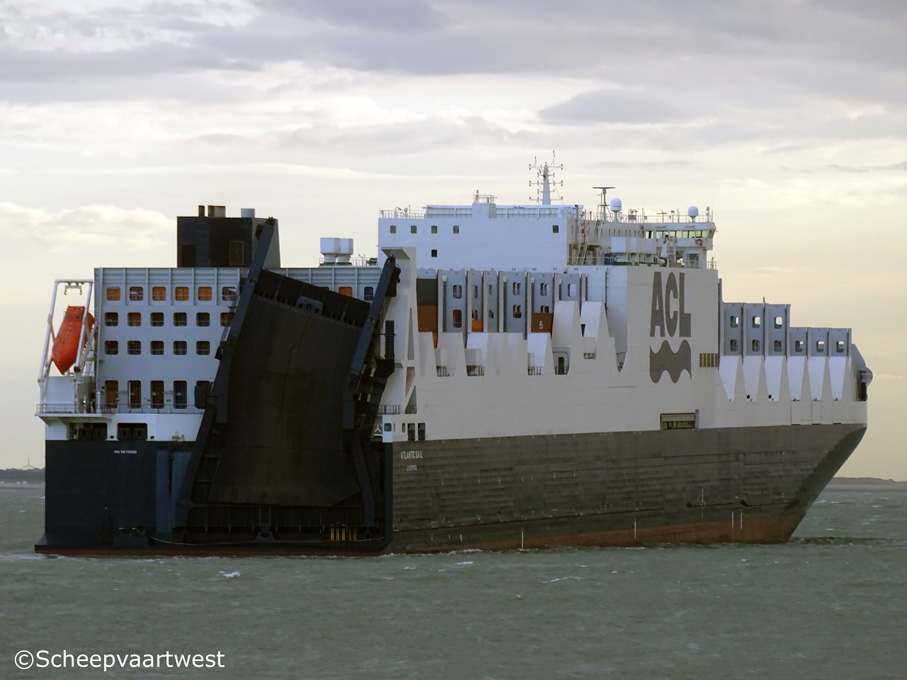

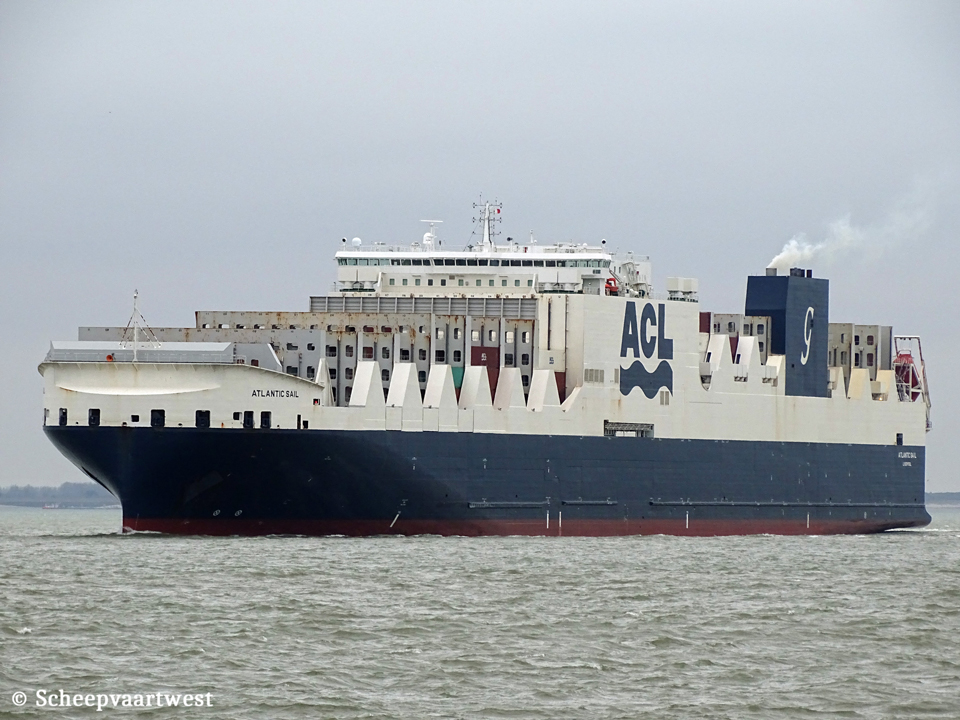

Atlantic Sail 01   Atlantic Sail IMO 9670585 03
Westerschelde 04/08/16   Westerschelde 16/09/17



Name

ATLANTIC SAIL

Type

Roll-On/Roll-Off vehicle and container carrier

RoCon

IMO-number

9670585

Call sign

2JCC5

Flag

United kingdom

Port of registry

Liverpool

GT

100.430 t registered

DWT

56.700 t

NT

30.295 t registered

Number of 20ft containers

3.810

Reefer plug

209

Length

296,00 m overall

286,80 m between perpendiculars

Breadth

37,60 m moulded

Draught

Max.: 11,50 m

Depth

14,00 m moulded to deck 3

22,95 m moulded to deck 4

Speed

18,0 knots

Built

2016

Keel laid

31/03/2014

Launch date

15/06/2015

Date of completion

31/03/2016

Builder

Hudong Zhonghua Shipbuilding (Group) Co., Ltd.

Shanghai

China

Yard number

H1696A

Hull material

High strength steel

Watertight bulkheads

8

Main engine

1x HHM/Wärtsilä 8RT-flex68D - 2 stroke 8 cylinder 680 x 2.720 mm combustion engine 22.000 kW / 29.912 hp at 95,0 rpm

Manufacturer: Hudong Heavy Machinery Co., Ltd.

Propellers

1x Wärtsilä nickel aluminium bronze fixed controllable pitch propeller - aft at 96,0 rpm

Diameter: 7.600 mm

Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co., Ltd.

Boilers

Exhaust and oil fired - 7,0 bar

Manufacturer: Kangrim Heavy Industries Co., Ltd.-Changzhou Office

Shaft generator

1x 2.000 kW

SAM Electronics GmbH

Generators

2x Yanmar 8EY26LW - 2.245 kW

2x Yanmar 8EY26LW - 2.450 kW

Bow thruster

2x Wärtsilä 1.750 kW each, forward

1x Wärtsilä 1.750 kW, aft

Hatch cover type

MacGregor

Number of cars

1.307

Stern door

25,80 x 6,80 m

420 t

RoRo capacity

28.900 m²

Number of tanks

Sea water: 29

Fuel oil: 14

Lubricating oil: 7

Fresh water: 5

Slop: 3

Diesel oil: 3

Waste water: 1

Sewage: 1

Sludge: 1

Tank capacities 100%

Diesel Oil: 455,9 m³ / 410,31 t

Freshwater: 743,5 m³

Fuel Oil: 3.577,9 m³ / 3.507,33 t

Lube Oil: 238 m³ / 216,57

Lifting equipment

2x Engine room overhead crane - SWL 5,0 t

Manufacture: Fochs Fordertechnik AG

1x Provision handling crane - SWL 4,0 t

Manufacture: Ningbo Kairong

Operator

ACL - Atlantic Container Line

Owner

ACL Vessel Two H1696A AB

Gothenburg

Sweden

Headquarters

Atlantic Container Line

50 Cardinal Drive

Westfield, NJ 07090

USA

Group

Grimaldi Group

Via Marchese Campodisla

Napoli

Italy

Latest data adjustment

07 January 2021
