Name |

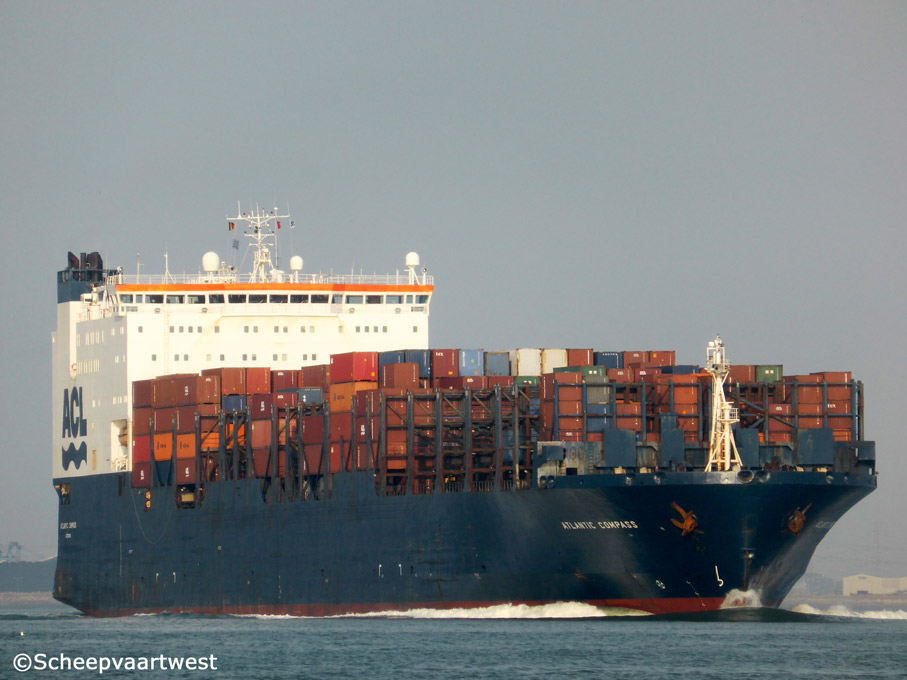

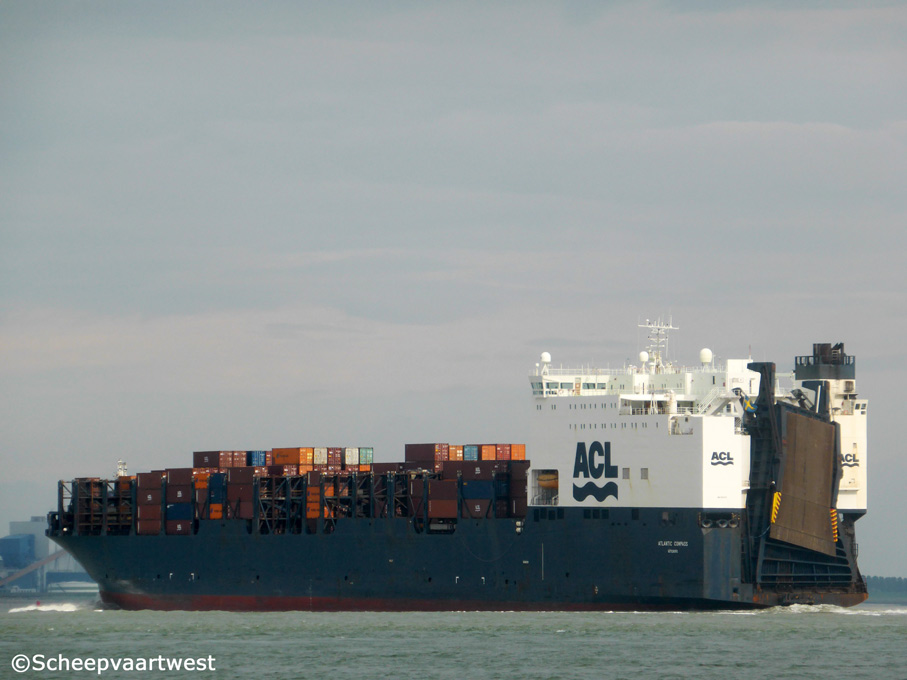

ATLANTIC COMPASS |
|
Type |
RoCon - Roll-On/Roll-Off carrier - Container vessel |
|
IMO-number |
8214176 |
|
Call sign |
SKUN |
|
Flag |
Sweden |
|
Port of registry |
Gothenburg |
|
GT |
57.255 |
|
DWT |
Summer: 46.303 t |
|
NT |
21.175 |
|
Number of 20ft containers |
2.911 |
|
Reefer containers |
364 |
|
Length |
291,92 m overall 276,12 m between perpendiculars |
|
Breadth |
32,39 m extreme 32,26 m moulded |
|
Draught |
11,60 m |
|
Keel to mast end |
49,00 m |
|
Lanemetres |
3.372 m |
|
Depth |
20,25 m |
|
Speed |
17,5 m |
|
Built |
1984 1987: Ship was lengthened at Hyundai Mipo Dockyard Co. Ltd., Ulsan - South Korea |
|
Launch date |
20/06/1984 |
|
Date of completion |
21/09/1984 |
|
Builder |
Kockums Mek. Verkstads AB Malmö Sweden |
|
Yard number |
595 |
|
Main engine |
1x MAN-B&W 6L90GEB - 2 stroke single acting 6 cylinder 900 c 2.180 mm combustion engine 20.198 kW / 27.459 bhp at 100 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 100,0 rpm |
|
Bow thruster |
2x Forward |
|
Number of holds |
5 |
|
Number of hatches |
10 |
|
Number of cars |
2.640 |
|
Number of trailers |
208 |
|
Manager |
ACL Ship Management AB Skärhamn Sweden |
|
Operator |
ACL - Atlantic Container Line |
|
Owner |
Atlantic Container Line (ACL) Iselin, NJ United States of America |
|
Group |
Grimaldi Group Napoli Italy |
|
Scrapped |
15/06/2016 beached at Alang - India |
|
Latest data adjustment |
27 February 2025 |
